Horizontal Automatic Continuous Bag Band Sealer Sealing Machine

Horizontal Automatic Continuous Bag Band Sealer Sealing Machine

Product SKU: JFCBB00021

Out of stock

$339.99 USD
$339.99 USD
Sale Sold out
Shipping calculated at checkout.

Estimated Shipping Widget will be displayed here!
View full details

INTRODUCTION

This continuous sealing machine combines excellent sealing performance, convenient printing function, space-saving design, and easy operation, making it an ideal choice for various business needs. In terms of specifications, it features a seal width of 0.4 inch, an adjustable speed range of 0-24m/min, and can seal single-layer bags with a maximum thickness of 0.18mm; its temperature is adjustable between 0-300℃ (572℉), and it can bear a load weight ranging from 0-3kg, adapting to different sealing requirements. Equipped with an embossing wheel and type wheel, it supports simultaneous printing of dates, comments, and logos while sealing, adding practical marking functions to your packaging process. Despite its powerful functionality, the machine adopts a compact horizontal automatic design, which is perfect for businesses with limited space; it is also built to be durable and long-lasting, capable of withstanding the rigors of continuous operation, ensuring stable performance in long-term use. Moreover, it has a uniquely designed user-friendly yet powerful control panel—you only need to turn on a few dials to start working, greatly reducing the difficulty of operation and improving work efficiency.

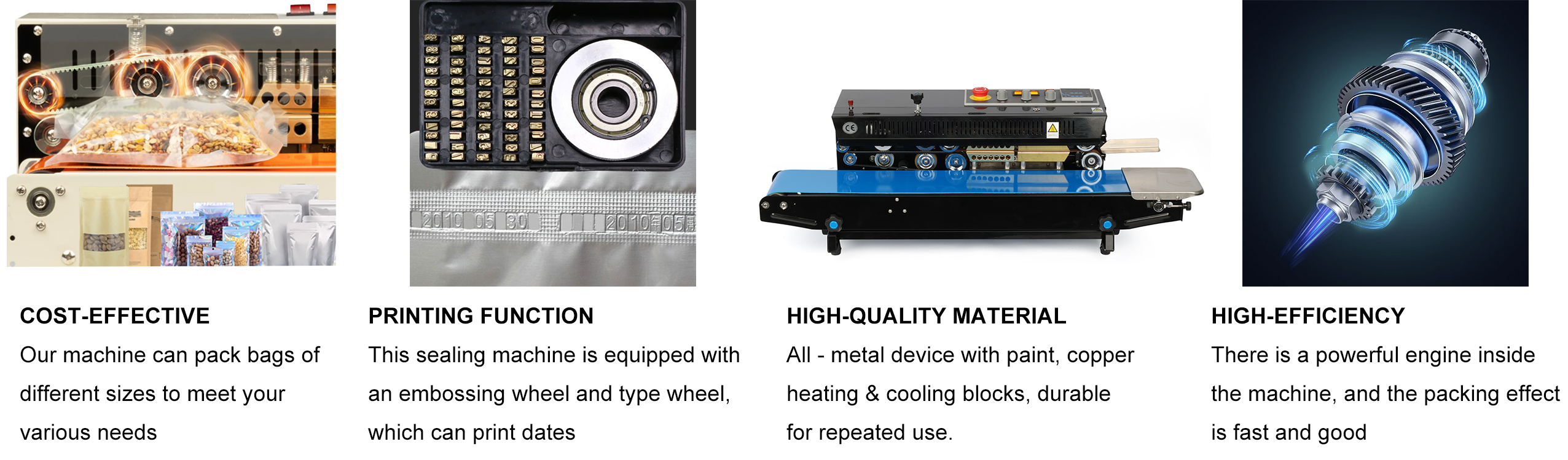

FEATURES

APPLICATIONS

SPECIFICATIONS

Model USS-CBB00021 Brand U.S. Solid
Power Supply 110V,60HZ Power 790W
Sealing Speed 0 - 24M/min (adjustable) Sealing Width 0.39 inch
Max. Seal Thickness 0.03 inch Temp. range 0 - 300°C (adjustable)
Counting Function NO Max. Load Weight 6.6 lb

WARNING

1. Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2. Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

3. Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

4. Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5. Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

6. When using the machine for the first time, please turn the emergency switch upward to unlock it.

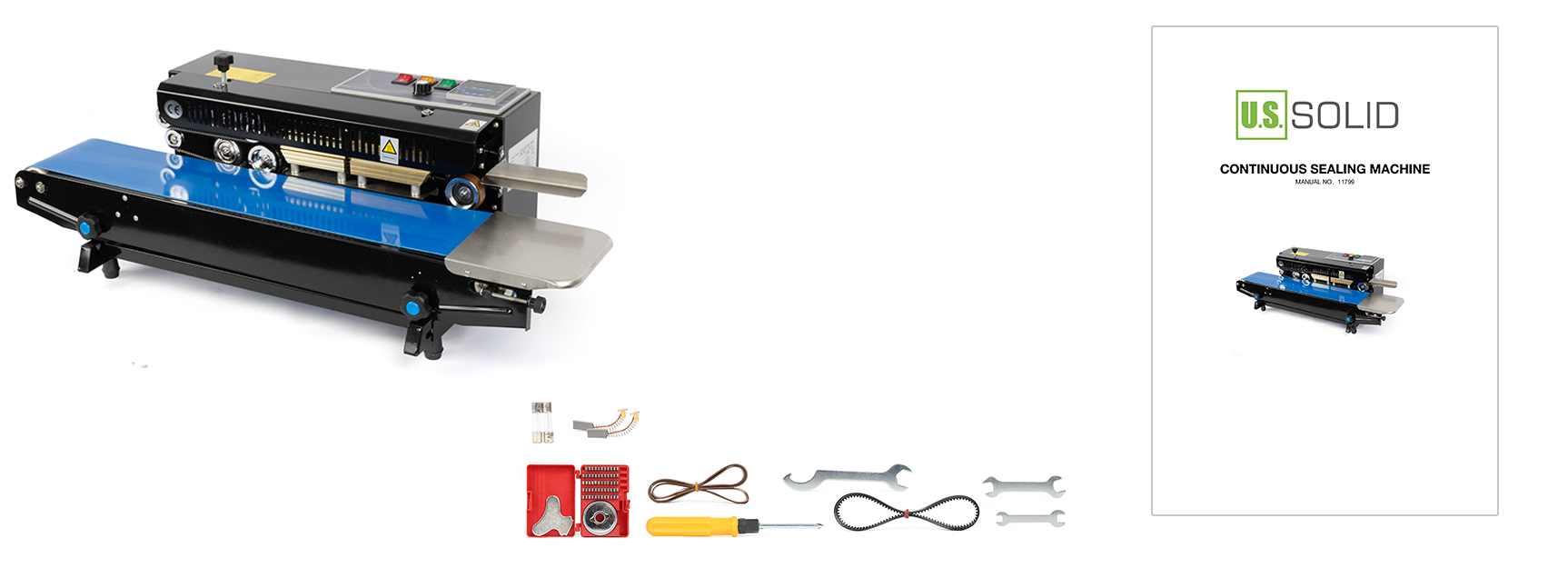

PACKING LIST

  1. Main Machine x1
  2. Accessory Bag x1
  3. User Manual x1

OTHER MODELS

SKU USS-CBB00005 USS-CBB00003 USS-CBB00002 USS-CBB00001 USS-CBB00006-BLACK USS-CBB00005
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.47 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~12 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.019 inch 0.03 inch 0.03 inch 0.019 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 22 lb 2.2 lb 11 lb 6.6 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function × × × × × ×
Conveyor Table √ √ × √ √ √
SKU USS-CBB00006 USS-CBB00007 USS-CBB00008 USS-CBB00009 USS-CBB00010 USS-CBB00011
Seal Width 0.47 inch 0.39 inch 0.39 inch 0.39 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~24 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.015 inch 0.015 inch 0.011 inch 0.015 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 2.2 lb 22 lb 22 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × √ ×
Inflation Function × × √ √ × ×
Conveyor Table √ × √ √ √ √
See More ▼
SKU USS-CBB00012 USS-CBB00013 USS-CBB00014 USS-CBB00015 USS-CBB00016 USS-CBB00017
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.5 inch 0.5 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 7 m/min
Max. Seal Thickness 0.011 inch 0.03 inch 0.01 inch 0.03 inch 0.03 inch 0.006 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 13 lb 6 lb 6.6 lb 13 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function √ × × × × ×
Conveyor Table √ √ √ √ √ ×
SKU USS-CBB00018 USS-CBB00019 USS-CBB00020 USS-CBB00021
Seal Width 0.39 inch 0.39 inch 0.39 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 24 m/min 0 ~ 24 m/min
Max. Seal Thickness 0.003 inch 0.03 inch 0.03 inch 0.03 inch
Max. Temperature 572°F 572°F 572°F 572°F
Max. Load Weight 22 lb 2.2 lb 6.6 lb 6.6 lb
Intelligent Inkjet Coding Function × × × ×
With an Ink Wheel × × √ ×
Inflation Function × × × ×
Conveyor Table √ √ √ √

Download user manual here

INTRODUCTION

This continuous sealing machine combines excellent sealing performance, convenient printing function, space-saving design, and easy operation, making it an ideal choice for various business needs. In terms of specifications, it features a seal width of 0.4 inch, an adjustable speed range of 0-24m/min, and can seal single-layer bags with a maximum thickness of 0.18mm; its temperature is adjustable between 0-300℃ (572℉), and it can bear a load weight ranging from 0-3kg, adapting to different sealing requirements. Equipped with an embossing wheel and type wheel, it supports simultaneous printing of dates, comments, and logos while sealing, adding practical marking functions to your packaging process. Despite its powerful functionality, the machine adopts a compact horizontal automatic design, which is perfect for businesses with limited space; it is also built to be durable and long-lasting, capable of withstanding the rigors of continuous operation, ensuring stable performance in long-term use. Moreover, it has a uniquely designed user-friendly yet powerful control panel—you only need to turn on a few dials to start working, greatly reducing the difficulty of operation and improving work efficiency.

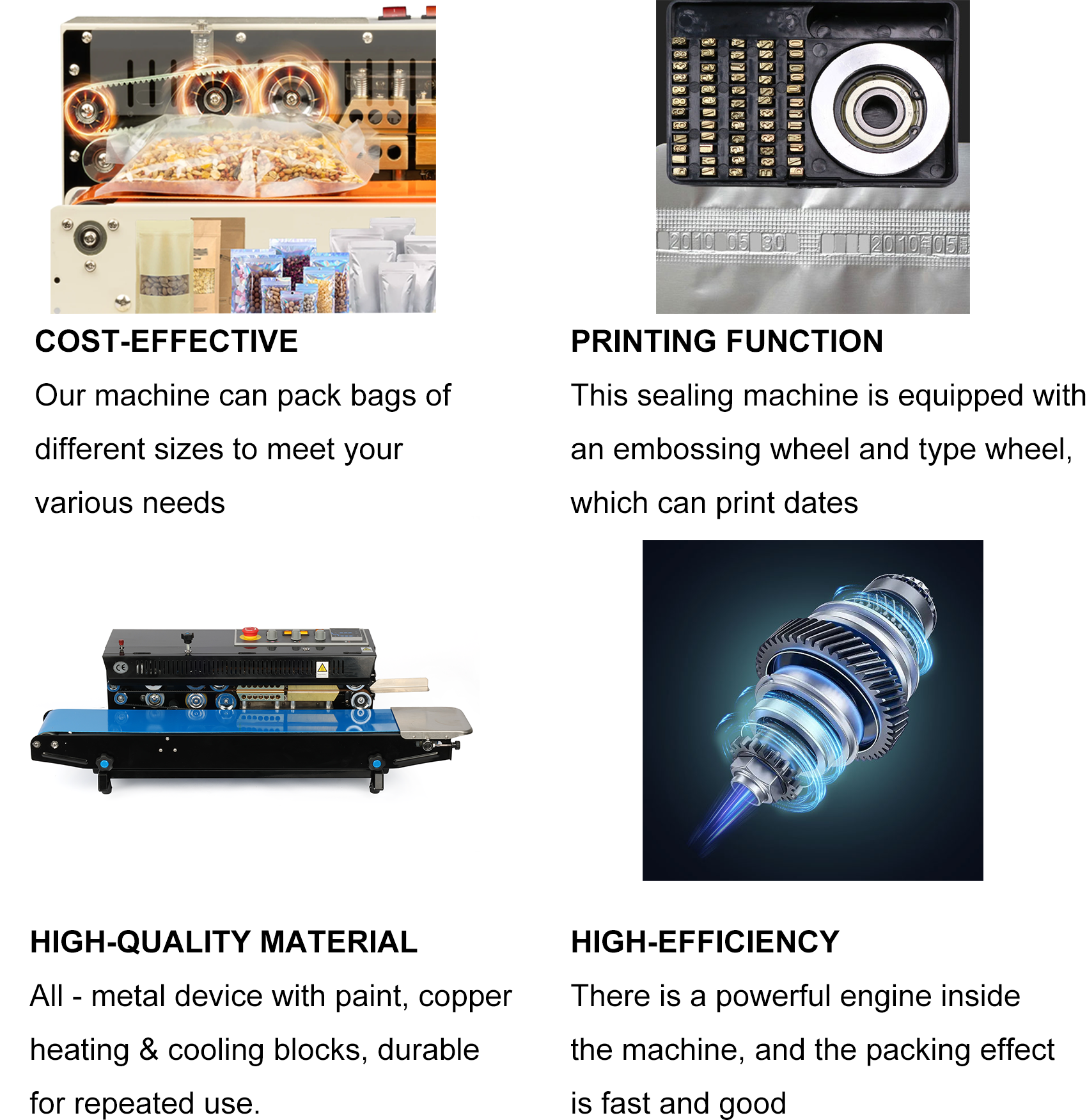

FEATURES

APPLICATION

SPECIFICATIONS

Model USS-CBB00021 Brand U.S. Solid
Power Supply 110V,60HZ Power 790W
Sealing Speed 0 - 24M/min (adjustable) Sealing Width 0.39 inch
Max. Seal Thickness 0.03 inch Temp. range 0 - 300°C (adjustable)
Counting Function NO Max. Load Weight 6.6 lb

WARNING

1. Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2. Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

3. Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

4. Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5. Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

6. When using the machine for the first time, please turn the emergency switch upward to unlock it.

OTHER MODELS

SKU USS-CBB00005 USS-CBB00003 USS-CBB00002 USS-CBB00001 USS-CBB00006-BLACK USS-CBB00005
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.47 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~12 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.019 inch 0.03 inch 0.03 inch 0.019 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 22 lb 2.2 lb 11 lb 6.6 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function × × × × × ×
Conveyor Table √ √ × √ √ √
SKU USS-CBB00006 USS-CBB00007 USS-CBB00008 USS-CBB00009 USS-CBB00010 USS-CBB00011
Seal Width 0.47 inch 0.39 inch 0.39 inch 0.39 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~24 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.015 inch 0.015 inch 0.011 inch 0.015 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 2.2 lb 22 lb 22 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × √ ×
Inflation Function × × √ √ × ×
Conveyor Table √ × √ √ √ √
See More ▼
SKU USS-CBB00012 USS-CBB00013 USS-CBB00014 USS-CBB00015 USS-CBB00016 USS-CBB00017
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.5 inch 0.5 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 7 m/min
Max. Seal Thickness 0.011 inch 0.03 inch 0.01 inch 0.03 inch 0.03 inch 0.006 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 13 lb 6 lb 6.6 lb 13 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function √ × × × × ×
Conveyor Table √ √ √ √ √ ×
SKU USS-CBB00018 USS-CBB00019 USS-CBB00020 USS-CBB00021
Seal Width 0.39 inch 0.39 inch 0.39 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 24 m/min 0 ~ 24 m/min
Max. Seal Thickness 0.003 inch 0.03 inch 0.03 inch 0.03 inch
Max. Temperature 572°F 572°F 572°F 572°F
Max. Load Weight 22 lb 2.2 lb 6.6 lb 6.6 lb
Intelligent Inkjet Coding Function × × × ×
With an Ink Wheel × × √ ×
Inflation Function × × × ×
Conveyor Table √ √ √ √

PACKING LIST:

  1. Main Machine x1
  2. Accessory Bag x1
  3. User Manual x1
Product Image

Download user manual here
