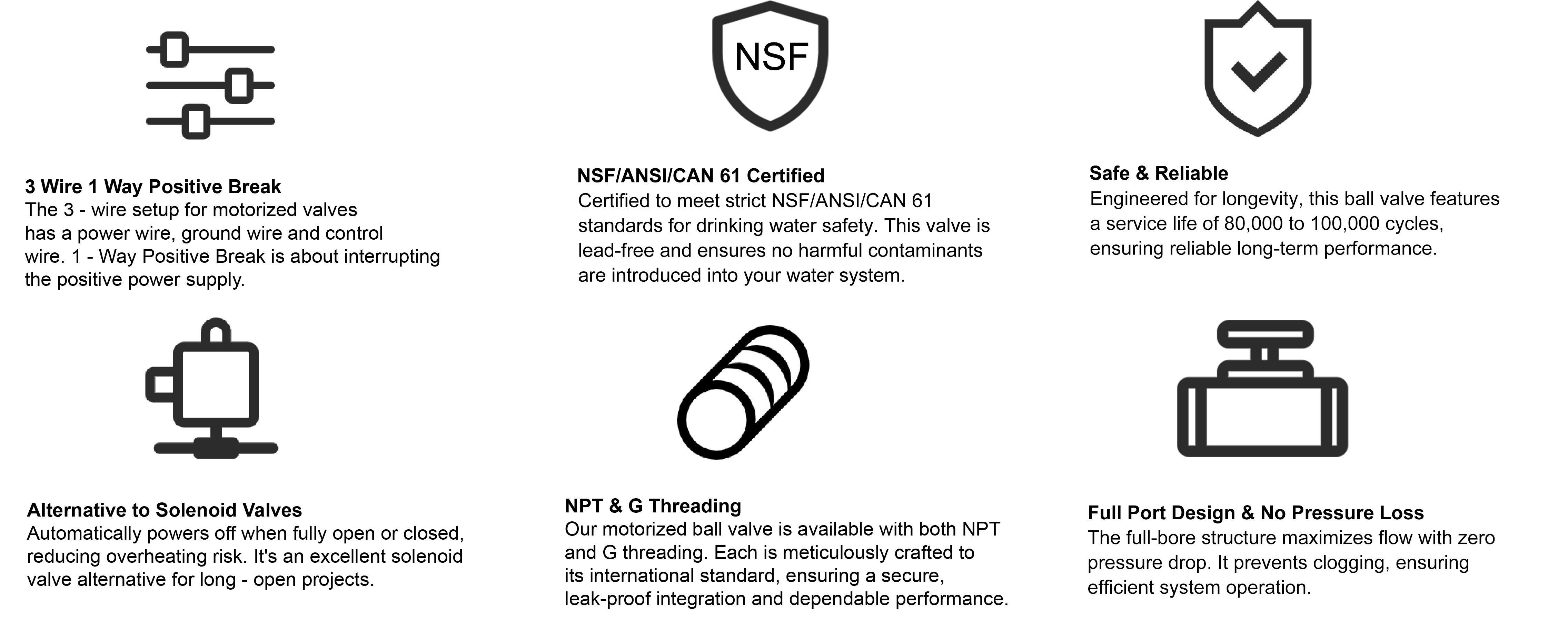

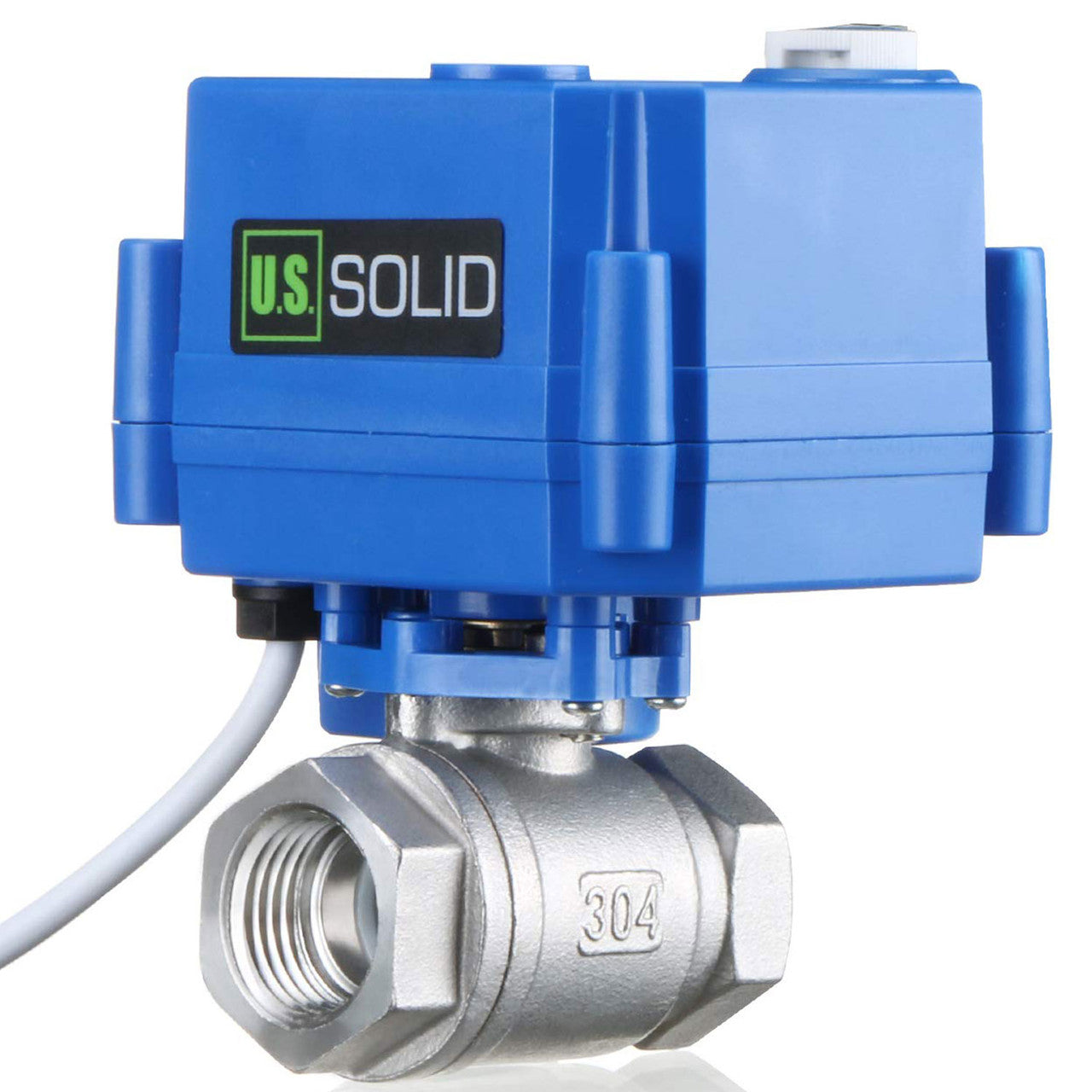

- Versatile Power Options: The Motorized Electrical Ball Valve by U.S. Solid operates on a wide voltage range of 9V-24V AC/DC, making it adaptable to various power sources and ensuring reliable performance in diverse settings.
- Efficient Operation: With a maximum power consumption of just 2W and a maximum torque of 2.5 N m, this valve offers a balance of power efficiency and performance. It's designed to operate smoothly and reliably, even in demanding conditions.
- Quick Response Time: The valve boasts an impressive open/close time of less than 8 seconds, ensuring rapid response and efficient control in your fluid systems. This feature is particularly beneficial in applications where quick adjustments are crucial.
- Robust and Durable: With an IP65 rating, the valve is dust-tight and protected against water jets, ensuring its durability and reliability in various environmental conditions. It can withstand a maximum pressure of 1.0 MPa, making it suitable for high-pressure applications.
- Wide Temperature Range: The valve can handle a flow medium temperature range of 0°C to 90°C (194°F), and an ambient temperature range of -5°C to 40°C (-41°F to 104°F). This makes it versatile for use in a variety of environments and applications, from heating systems to industrial processes.

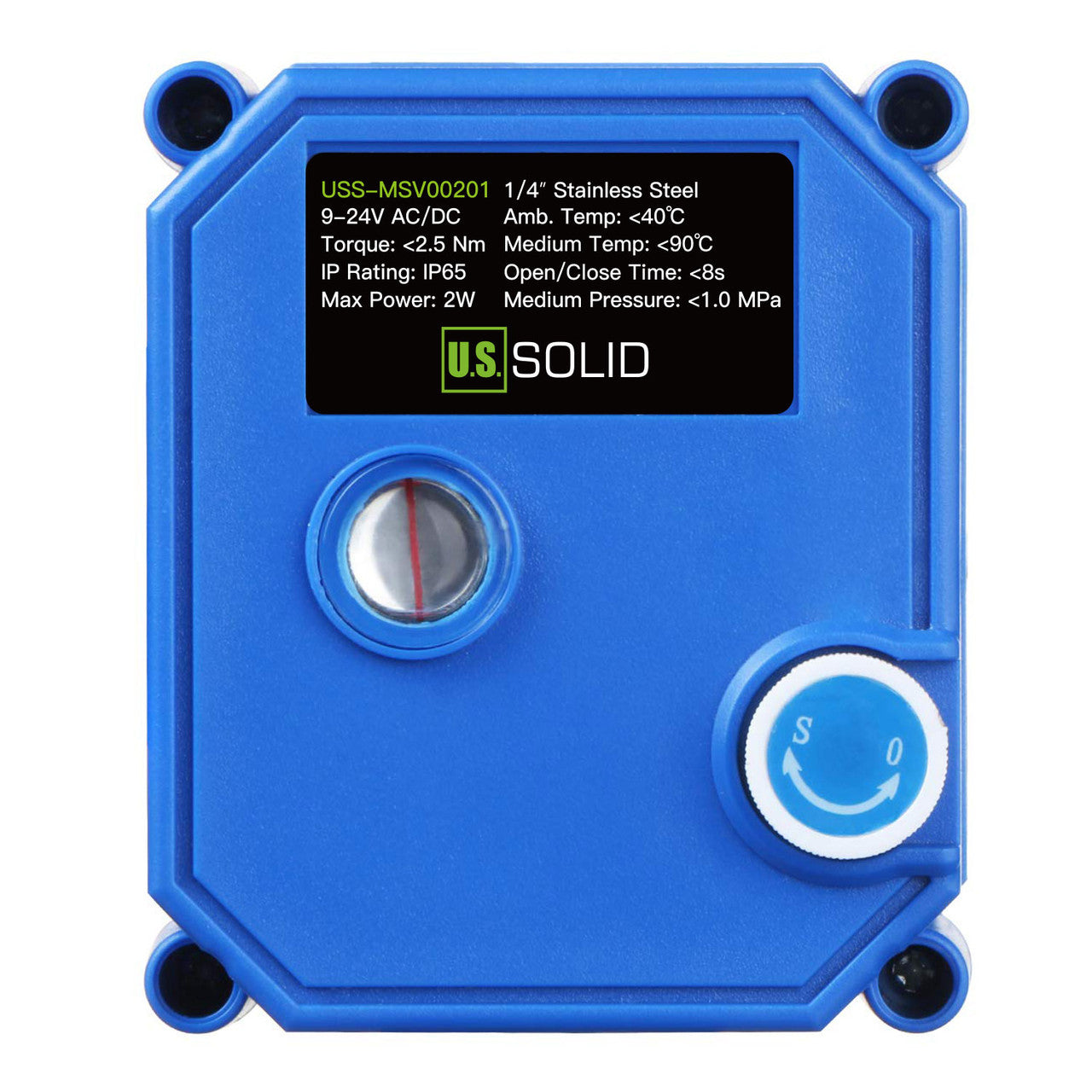

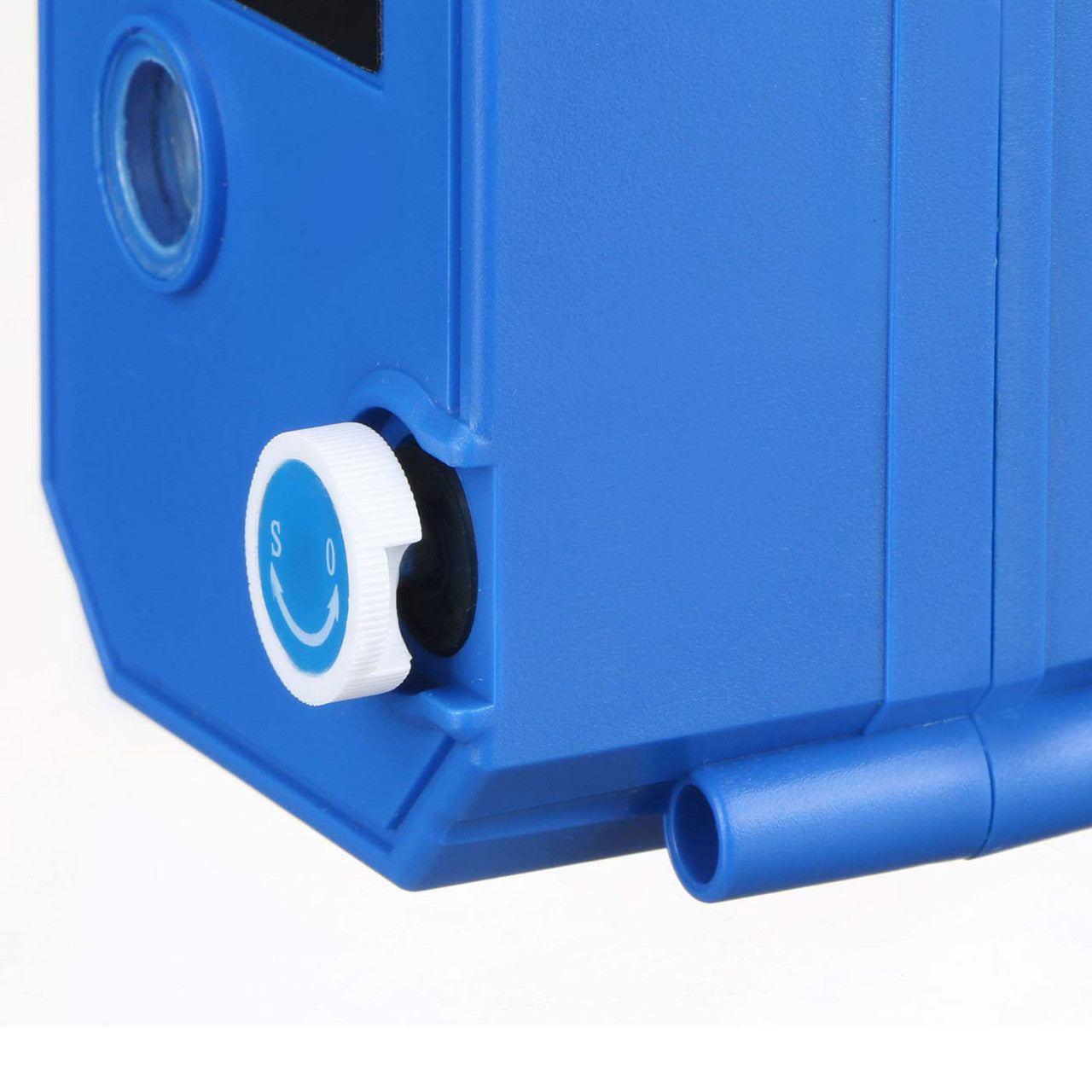

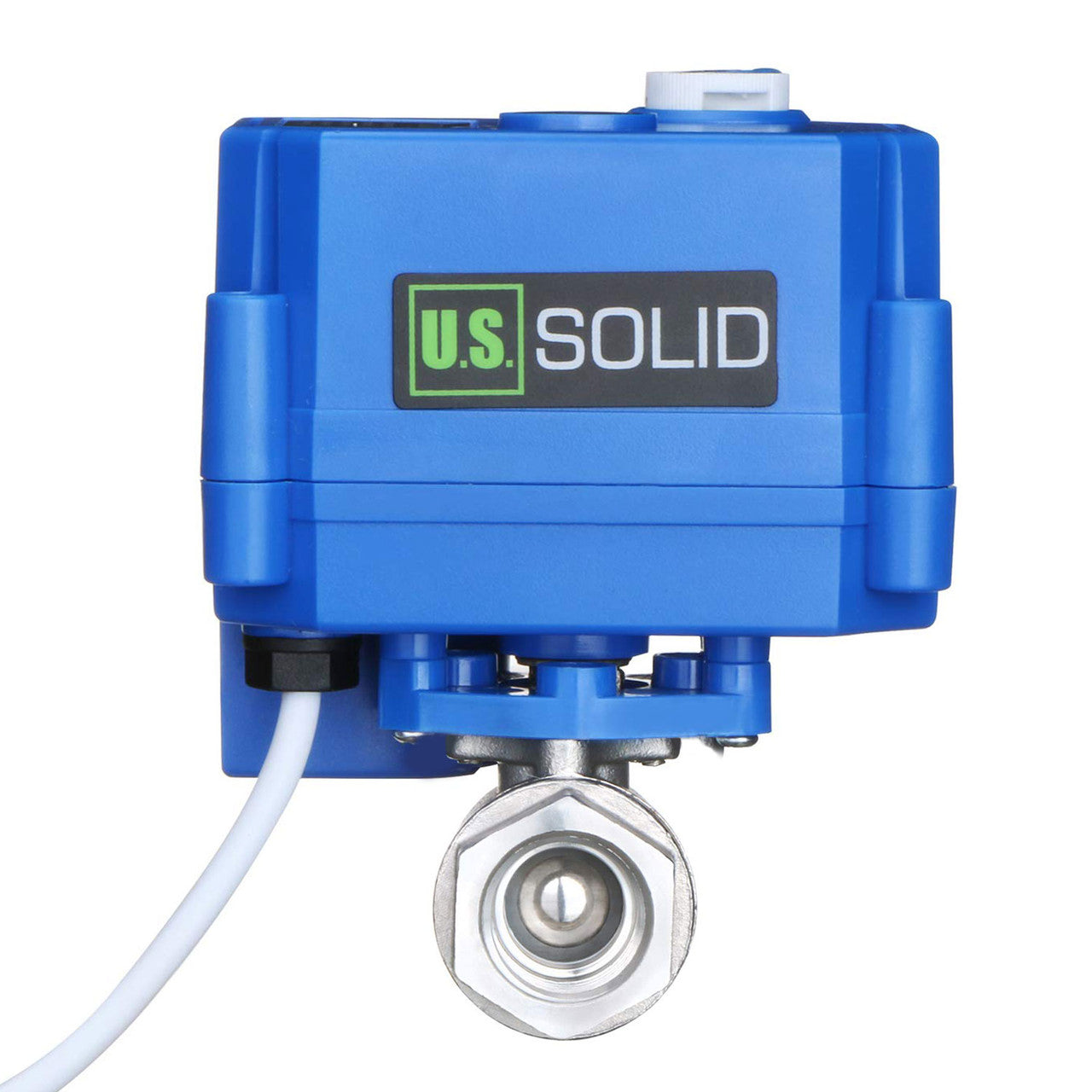

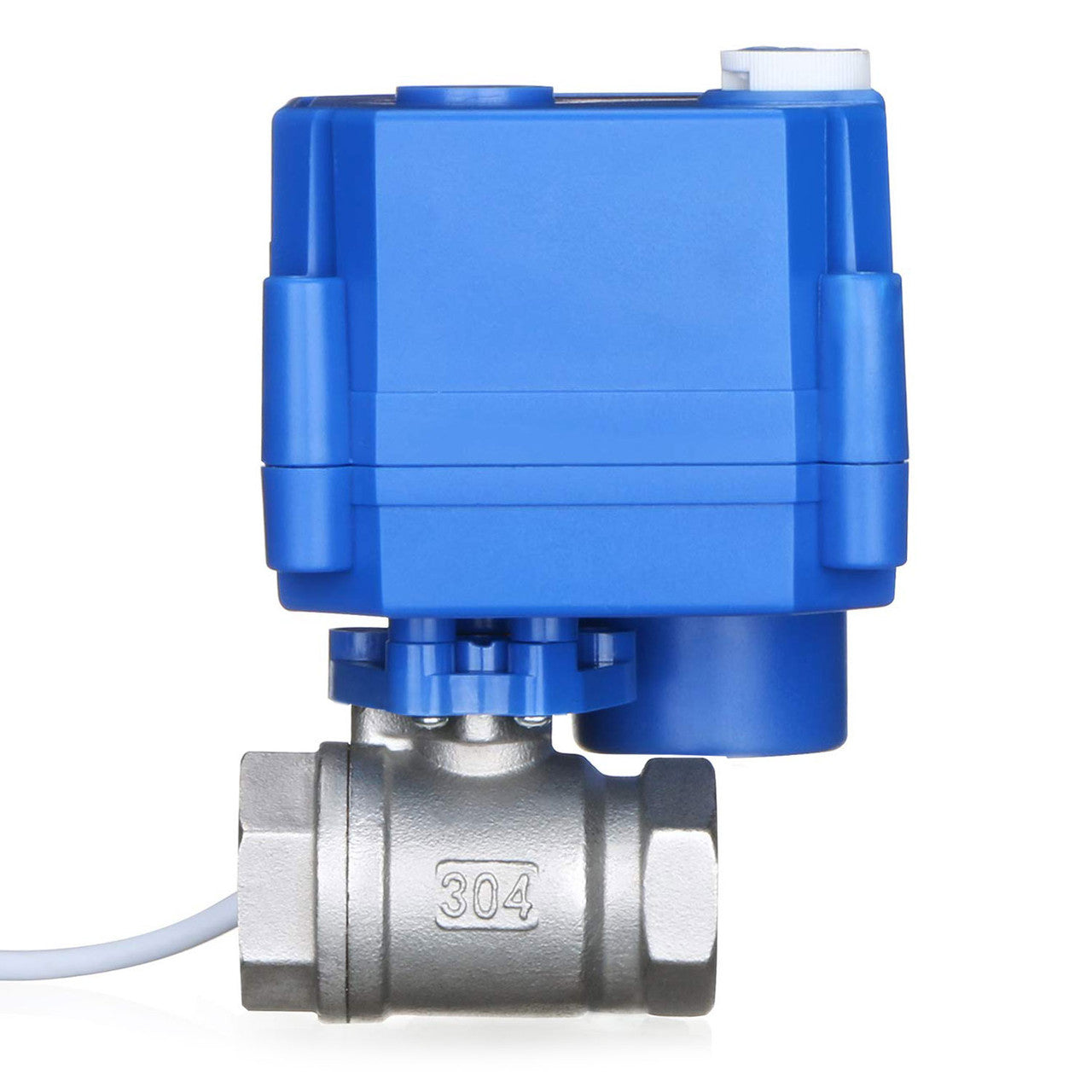

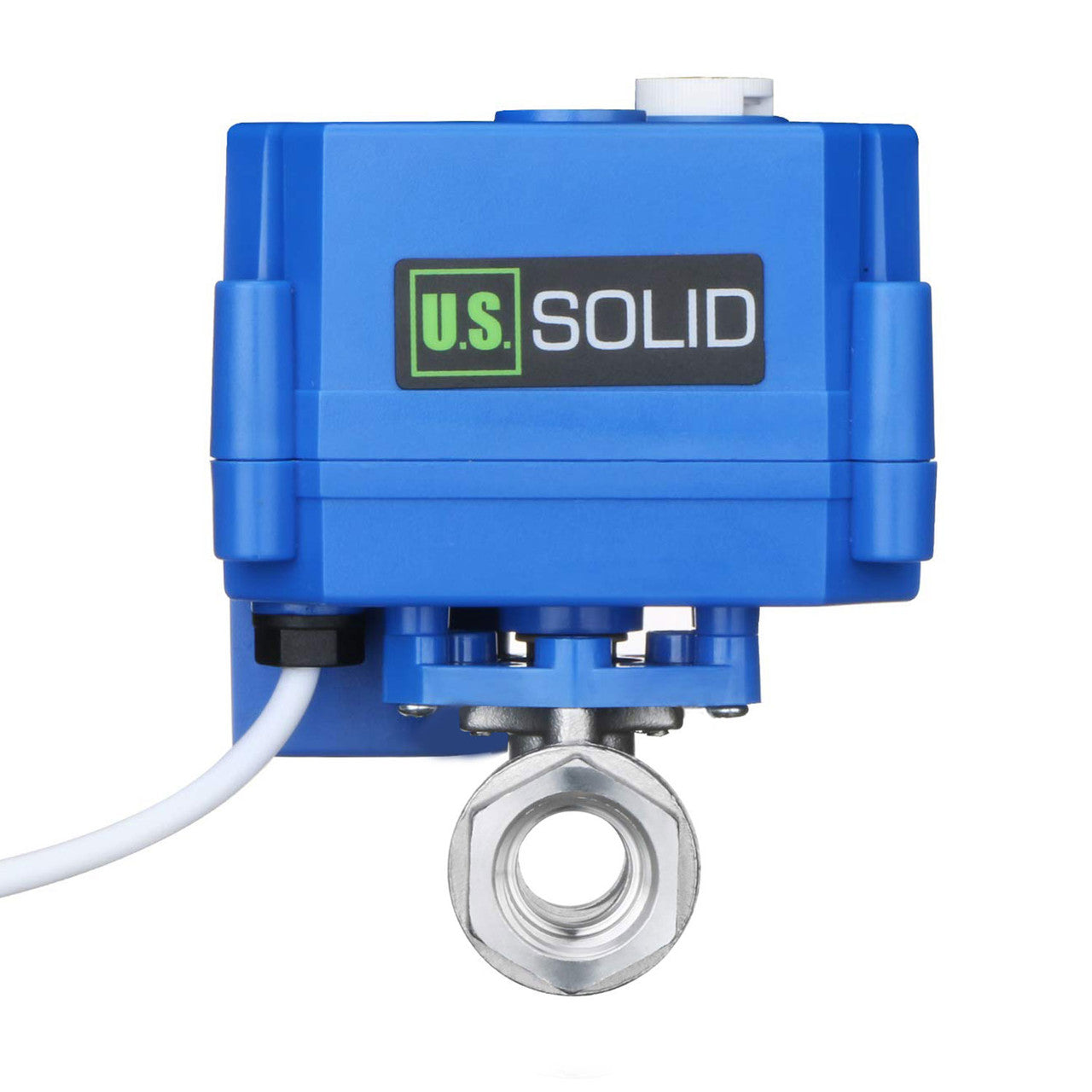

The Position Indicator on the top of actuator can help you see the on / off state of the valve. In addition, the valve comes with manual function, it can be adjusted manually if the valve is locked. Or when the power is cut off, the valve can be opened manually if necessary.
How to wire this valve?

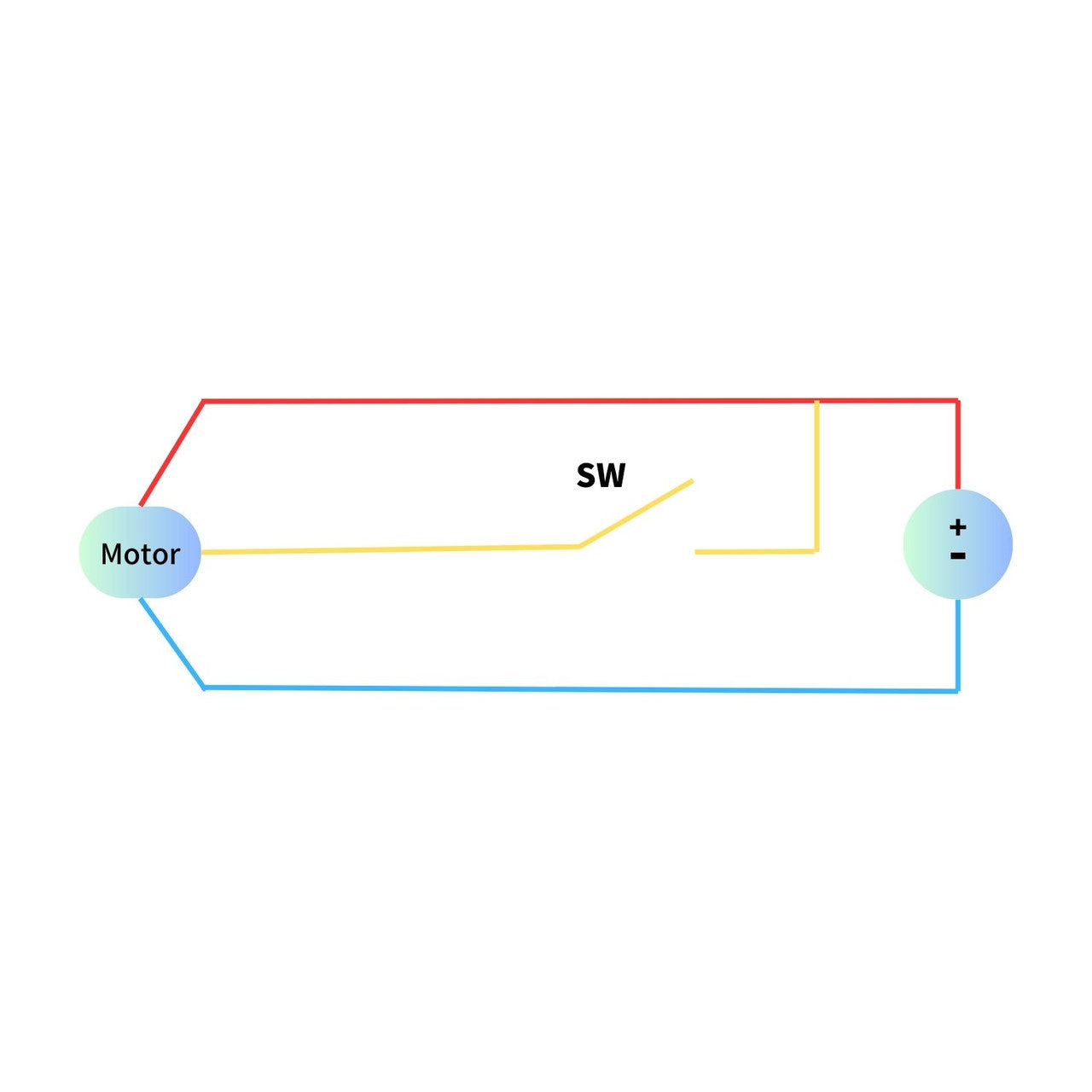

In direct current (DC) situations, the red wire is connected to the positive terminal, and the blue wire is connected to the negative terminal. The valve opens when the yellow wire is simultaneously connected to the positive terminal with the red wire, and the valve closes when the yellow wire is disconnected and the red wire is connected to the positive terminal alone. This means that the red and blue wires are always connected to the positive and negative poles, respectively, and the valve is controlled by parallel or disconnection of the third yellow wire with the red wire.
In alternating current (AC) situations, polarity is not a concern. Simply connect the red and blue wires to any two poles of the power source. When the yellow wire is connected in parallel with the red wire to one pole, the valve opens. Conversely, when the yellow wire is disconnected and only the red wire is connected to the pole, the valve closes.
In this wiring mode, the valve is neither normally open nor normally closed. When the power supply is off, the valve remains in its original state without moving.
Specifications:

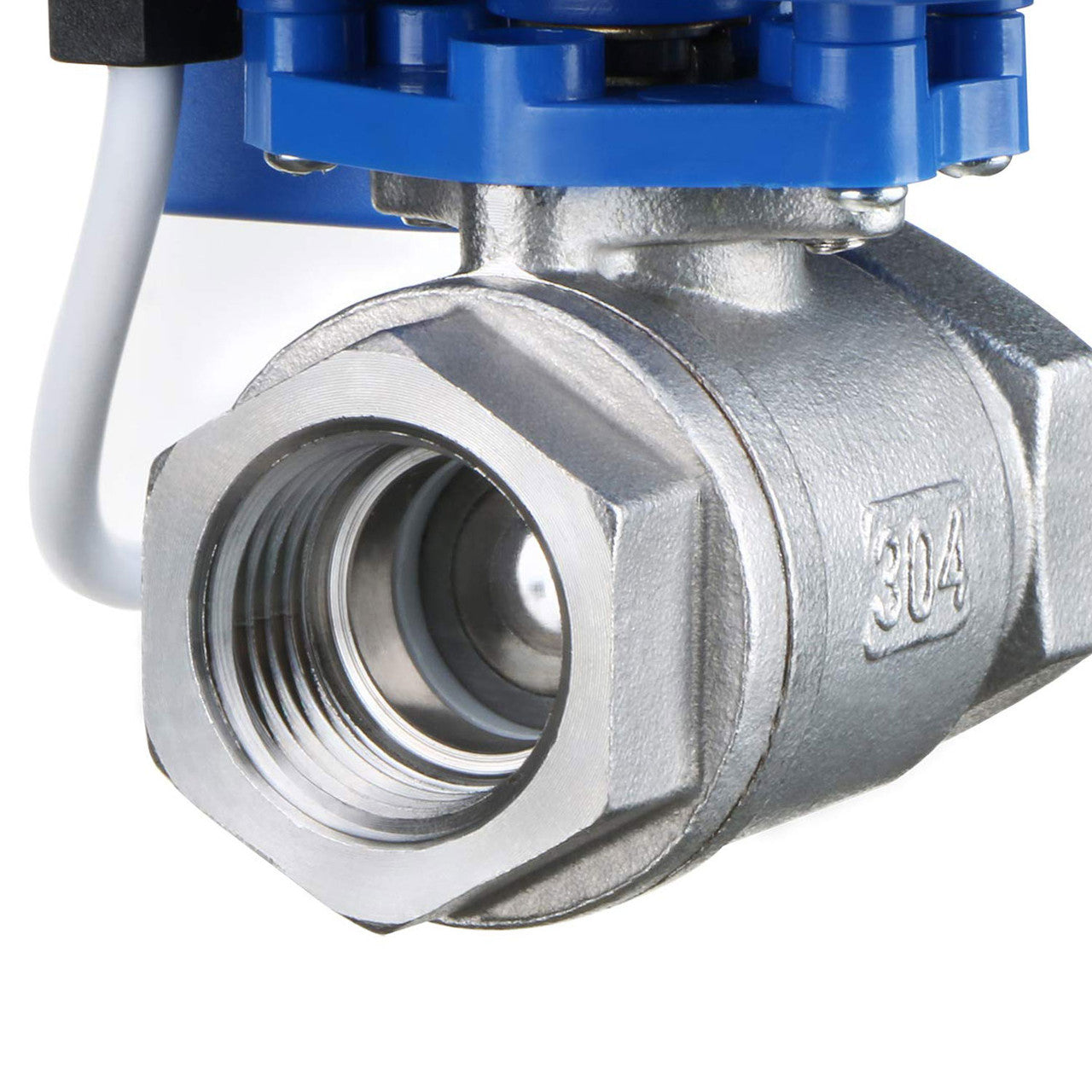

Valve Material: Stainless Steel
Ball Seal: PTFE
Close/Open Time: <8 Seconds
Working Voltage: 9~24V AC/DC
Max Power: 2 W
Max Torque: 2.5 N m
Max Pressure: 1.0 MPa
Temperature range for flow medium: 0°C to 90°C
Ambient Temperature Range: -5°C to 40°C
Enclosure Rating: IP65
Life Expectancy: 80,000-100,000 Cycles
Bore Type: Full
Thread Type: NPT
|
Link |
|||||||||||||
|
Material |
SS304 |
Brass |
|||||||||||
|
Size(NPT) |
1/4 |
1/2 |
3/4 |
1 |
1/2 |
3/4 |
1 |
||||||
|
Bore Type |
Full |
Standard |
|||||||||||
|
Wiring |
3-wire 1-way Positive Break |
||||||||||||
|
Manual Function |
√ |
× |
√ |
× |
√ |
× |
√ |
× |
√ |
× |
√ |
× |
|
