Introduction

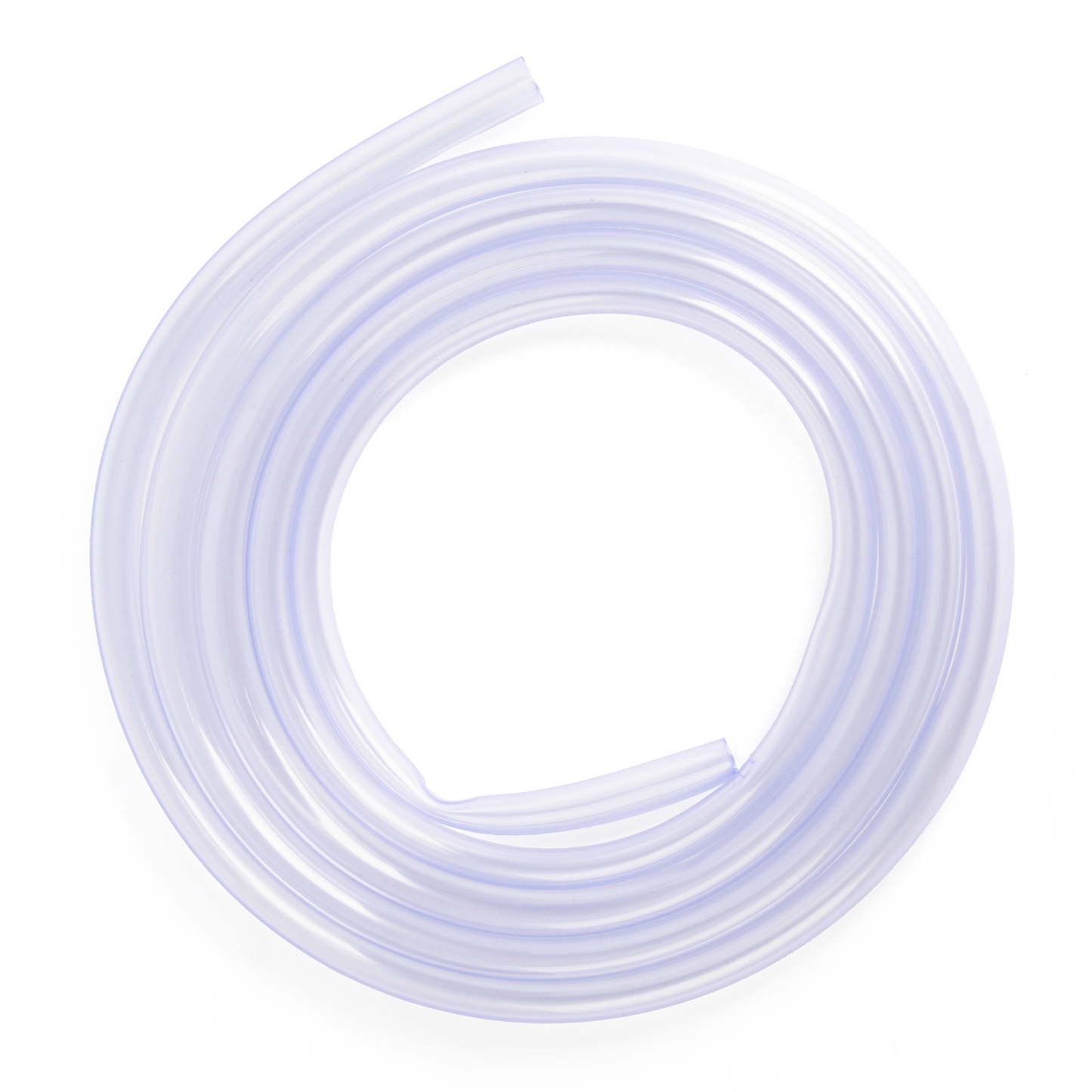

This transparent, durable PVC tube (clear vinyl tubing) is flexible and versatile, allowing easy cutting to your desired size as needed. Ideal for drain pipes, laboratory setups, aquariums, and general low-pressure applications, it is suitable for handling water, air, and mild non-corrosive liquids and gases. Maximum working pressure: 72.5 psi; temperature range: -4°F to 140°F. Not recommended for potable water use.
Applications
Features
- This transparent PVC tubing is suitable for a wide range of water, neutral fluids, air, and mild non-corrosive media, offering reliable performance in low-pressure transfer and flow control applications.

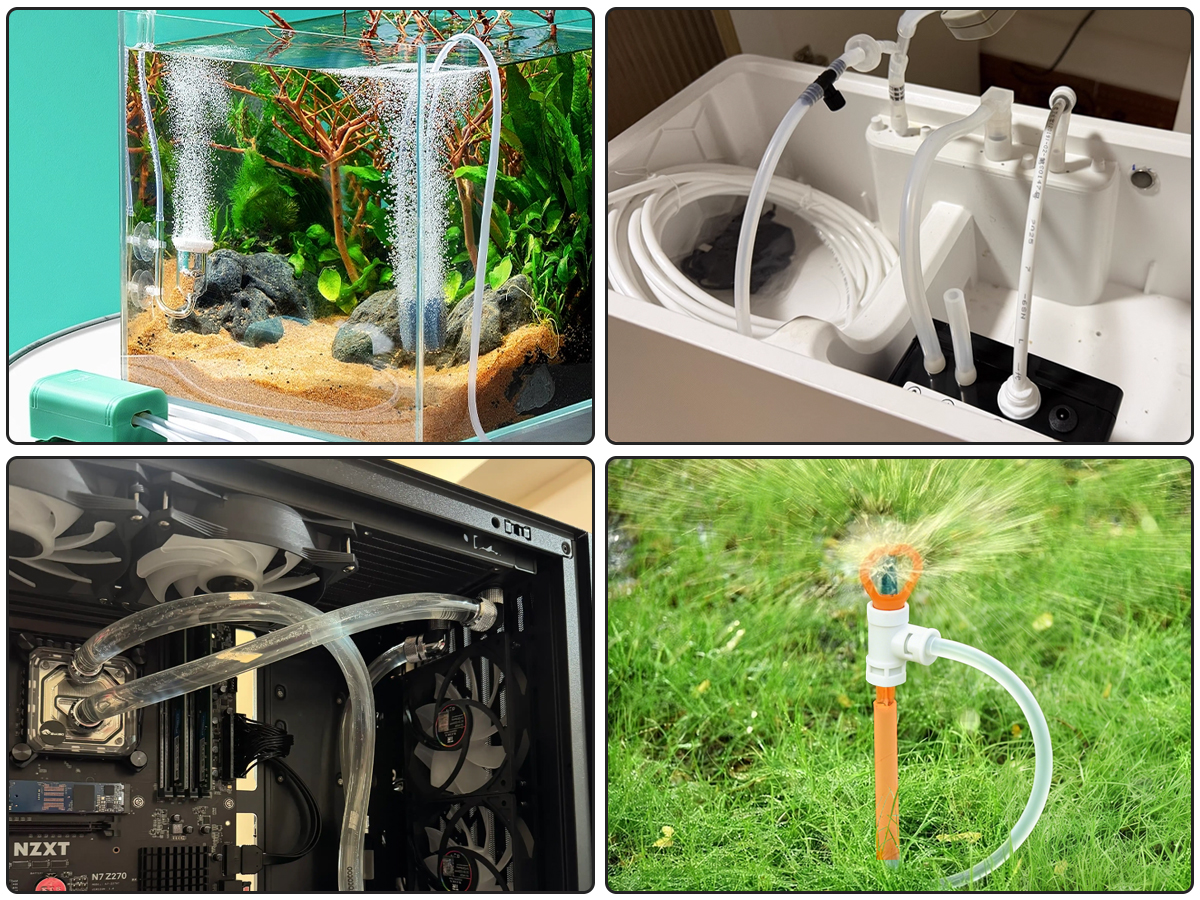

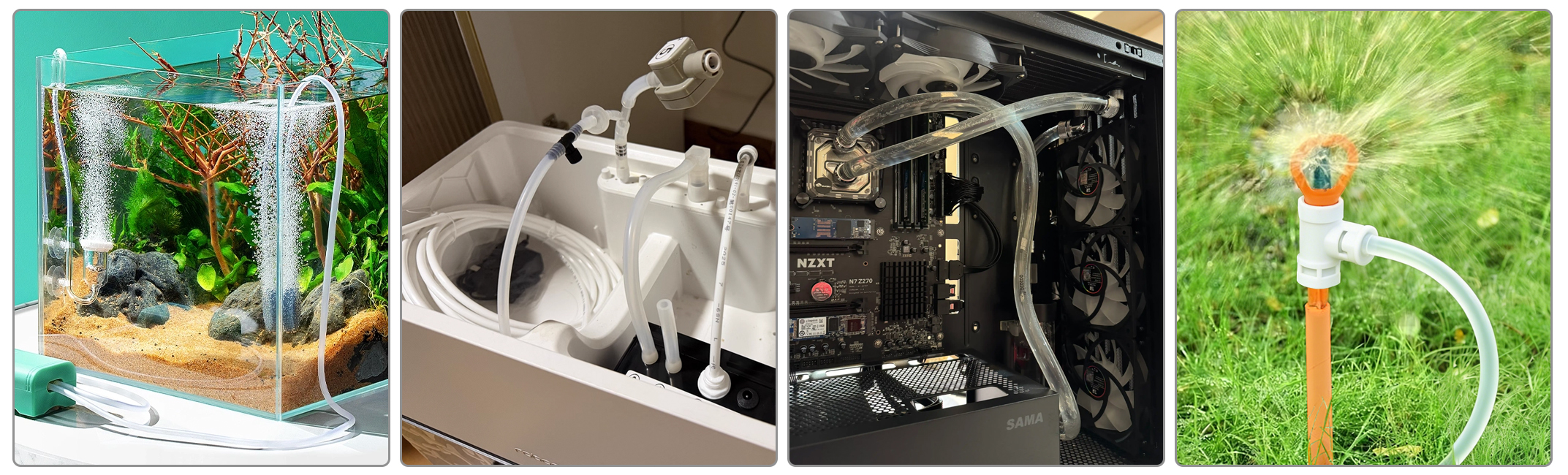

- Ideal for drainage lines, aquarium air lines, and laboratory setups; not recommended for potable water applications.
- Soft and flexible, this tubing can be easily cut to custom lengths for a perfect fit in DIY projects or professional plumbing and pneumatic systems.
- Constructed from clear, flexible PVC with strong resistance to abrasion and kinking, maintaining consistent flow and long service life.
- This tube features 1/2" ID x 5/8" OD, a pressure rating up to 72.5 PSI, and a temperature range of -4°F to 140°F.
Technical Data
| Model | USS-PHS01001 | Length | 9.84ft(3m) |
| Inner Diameter | 1/2"(13mm) | Outer Diameter | 5/8"(16mm) |
| Wall Thickness | 1/16"(1.5mm) | Material | PVC |
| Temperature | -4°F ~ 140°F | Pressure | 72.5 psi/0.5 mpa |
| Potable Water Safe | No | ||
*To view the full table on mobile, please swipe left or right on the screen.
FAQ
Problem 1: Can this PVC hose be used for drinking water?
Not recommended for drinking water.
Problem 2: What should I do if the hose is deformed or flattened after receipt?
Since the hose is rolled up for packaging, it may become flattened or deformed during transportation.You can use a hair dryer to gently heat the deformed area. Once the hose becomes slightly softer and more flexible, manually reshape it back to its round cylindrical form.
All Options
| Model | Length | Inner Diameter | Outer Diameter | Wall Thickness |
| USS-PHS01001 | 9.84ft(3m) | 1/2"(13mm) | 5/8"(16mm) | 1/16"(1.5mm) |
| USS-PHS01002 | 19.69ft(6m) | |||
| USS-PHS01003 | 9.84ft(3m) | 3/4"(19mm) | 29/32"(23mm) | 5/64"(2mm) |
| USS-PHS01004 | 19.69ft(6m) |
