INTRODUCTION
This machine integrates labeling and on-print coding (dates, lot numbers, etc.) in one step on blank labels—no separate printer needed, saving space and cost. Compatible with round bottles (Ø0.6-5.5 inches/15-140mm), it offers ±0.2mm precision for bubble/wrinkle-free application. Built with a durable aluminum alloy body and CNC-machined key parts, its user-friendly semi-automatic press-to-label design operates stably at up to 40 bottles per minute.

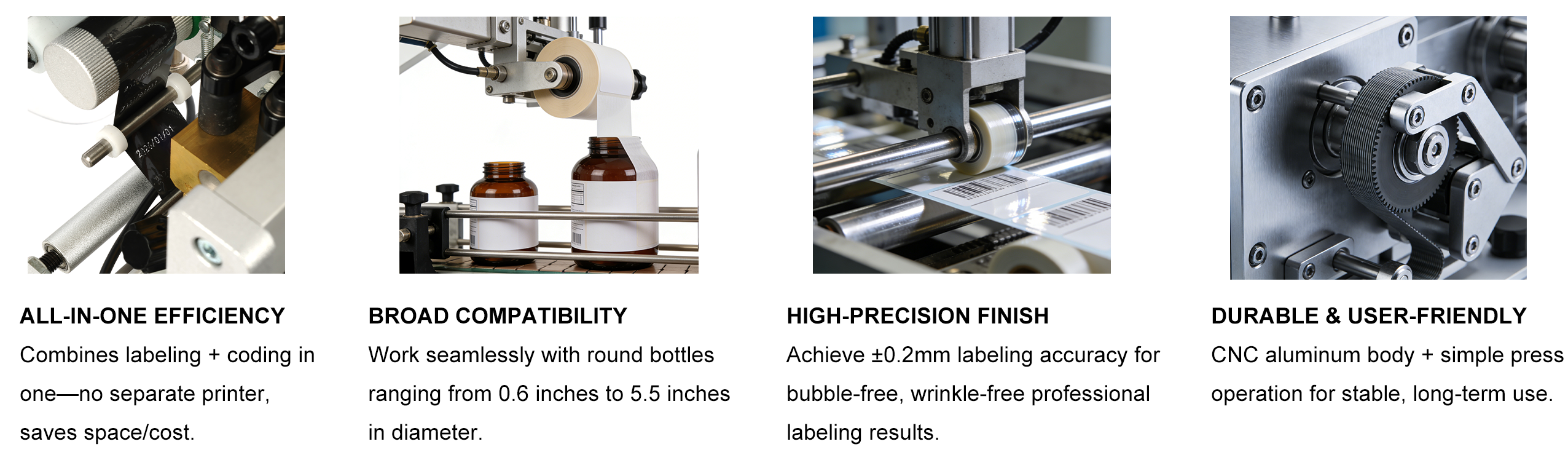

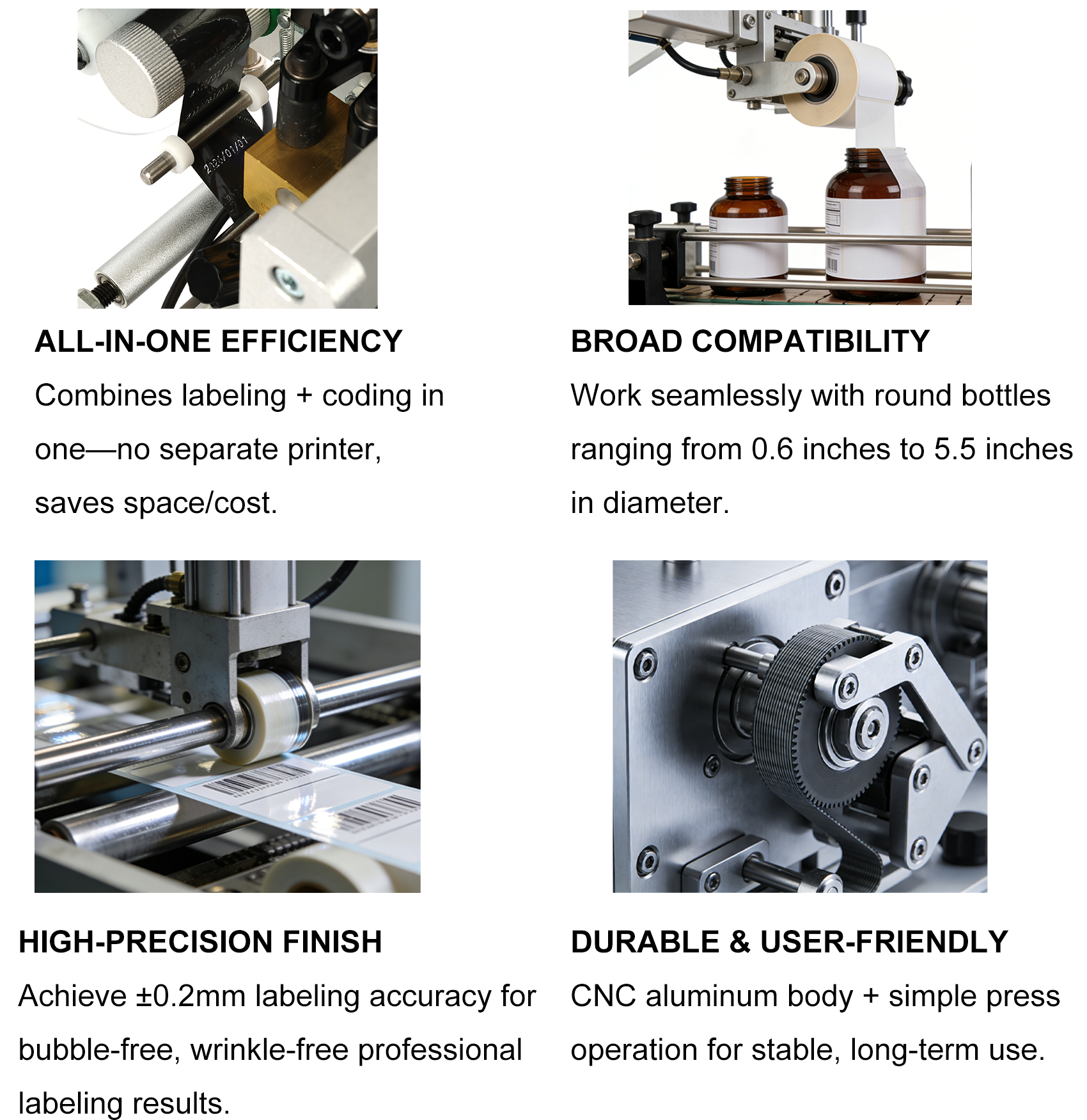

FEATURES
APPLICATIONS
SPECIFICATIONS
| Model | USS-RBL00002 | Brand | U.S. Solid |
|---|---|---|---|
| Power Supply | AC 110V/60Hz | Power | 45W |
| Speed | 1-40 times/min | Labeling Line Speed | 7 m/min |
| Label Specifications - Width | 0.59 - 4.72 inches | Label Specifications - Length | 0.59 - 12.20 inches |
| Applicable Bottle Diameter | φ 0.59 inches ~ φ 5.51 inches | Net Weight | 55.12 lbs |
WARNING
1. Use a properly grounded three-pin socket to avoid electronic component malfunctions.
2. Disconnect power before maintenance or part replacement to prevent component damage.
3. Do not use high-pressure cleaning— it damages electronic and mechanical parts.
4. Operate only in indoor room temperature environments to preserve performance.
5. Stop use for abnormalities and contact support; unauthorized troubleshooting worsens damage.

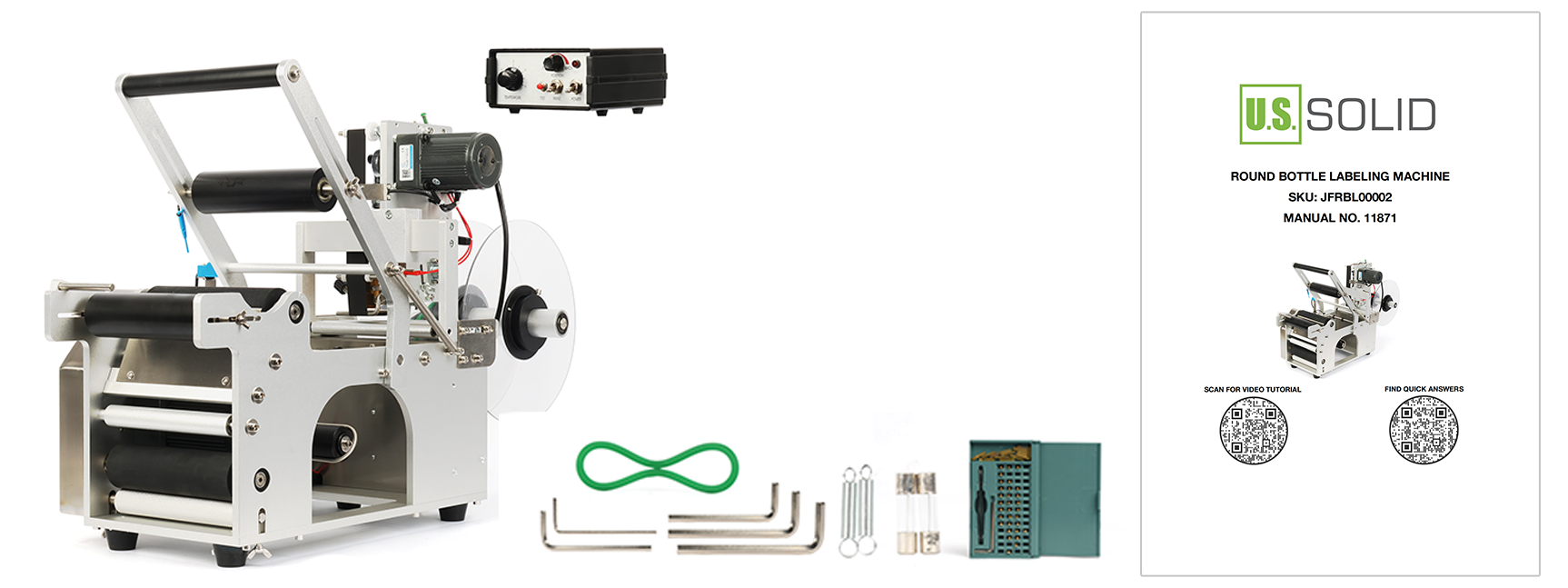

PACKING LIST
- Main Machine x1
- User Manual x1
Download user manual here
INTRODUCTION
This machine integrates labeling and on-print coding (dates, lot numbers, etc.) in one step on blank labels—no separate printer needed, saving space and cost. Compatible with round bottles (Ø0.6-5.5 inches/15-140mm), it offers ±0.2mm precision for bubble/wrinkle-free application. Built with a durable aluminum alloy body and CNC-machined key parts, its user-friendly semi-automatic press-to-label design operates stably at up to 40 bottles per minute.
FEATURES
APPLICATION
SPECIFICATIONS
| Model | USS-CBB00024 | Brand | U.S. Solid |
|---|---|---|---|
| Power Supply | AC 110V/60Hz 45W | Power | 45W |
| Speed | 1-40 times/min | Labeling Line Speed | 7 m/min |
| Label Specifications - Width | 0.59 - 4.72 inches | Label Specifications - Length | 0.59 - 12.20 inches |
| Applicable Bottle Diameter | φ 0.59 inches ~ φ 5.51 inches | Net Weight | 55.12 lbs |
WARNING
1. Use a properly grounded three-pin socket to avoid electronic component malfunctions.
2. Disconnect power before maintenance or part replacement to prevent component damage.
3. Do not use high-pressure cleaning— it damages electronic and mechanical parts.
4. Operate only in indoor room temperature environments to preserve performance.
5. Stop use for abnormalities and contact support; unauthorized troubleshooting worsens damage.
