Introduction

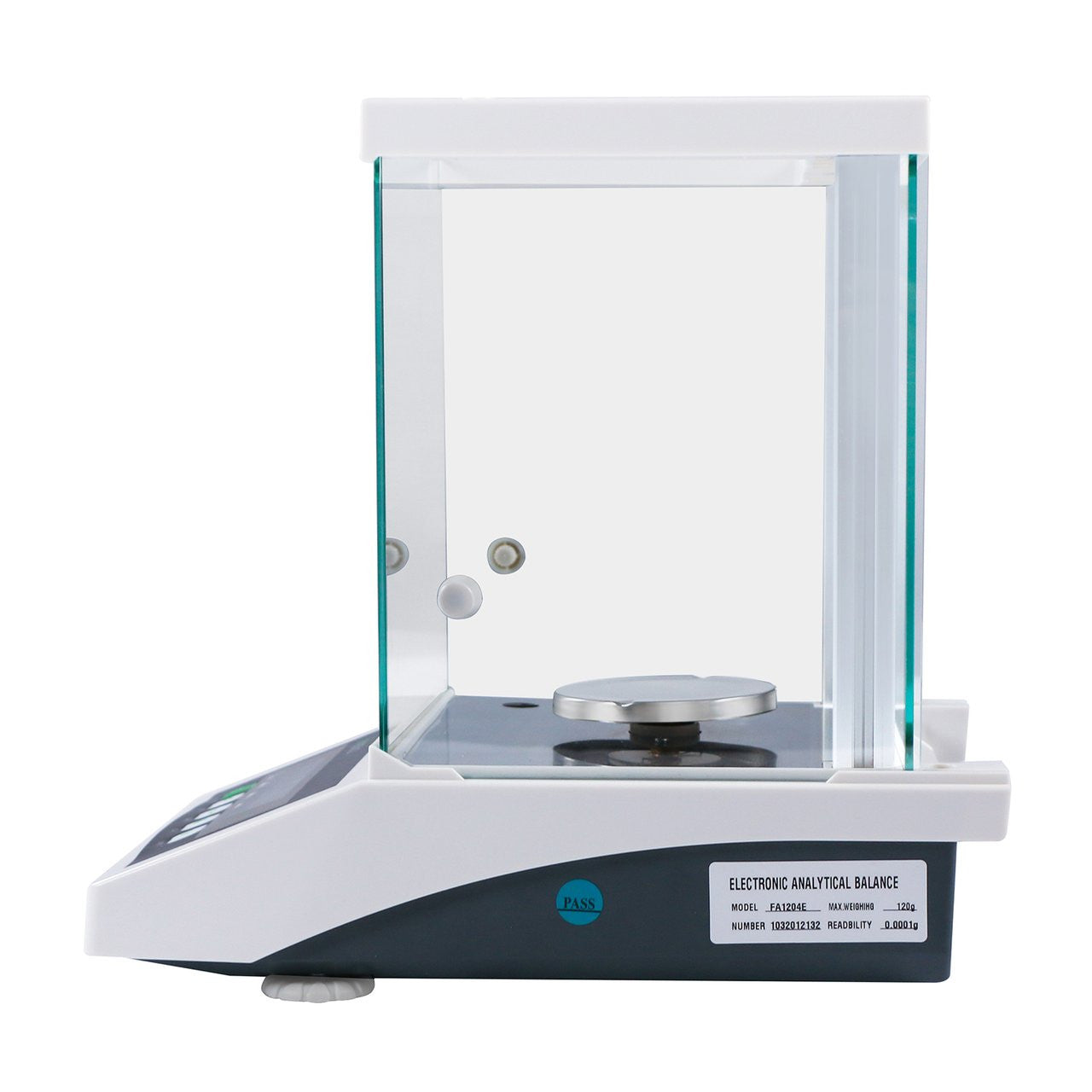

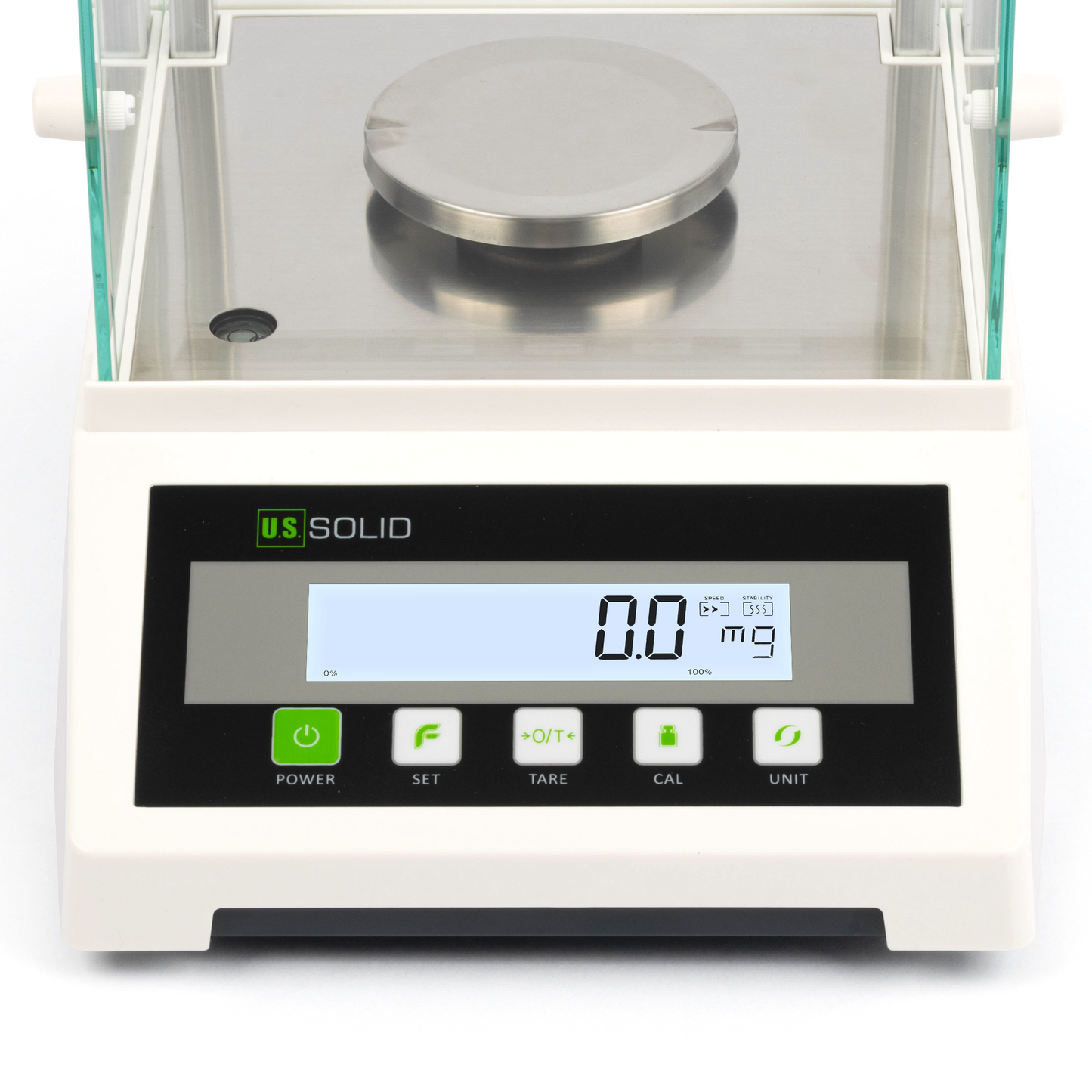

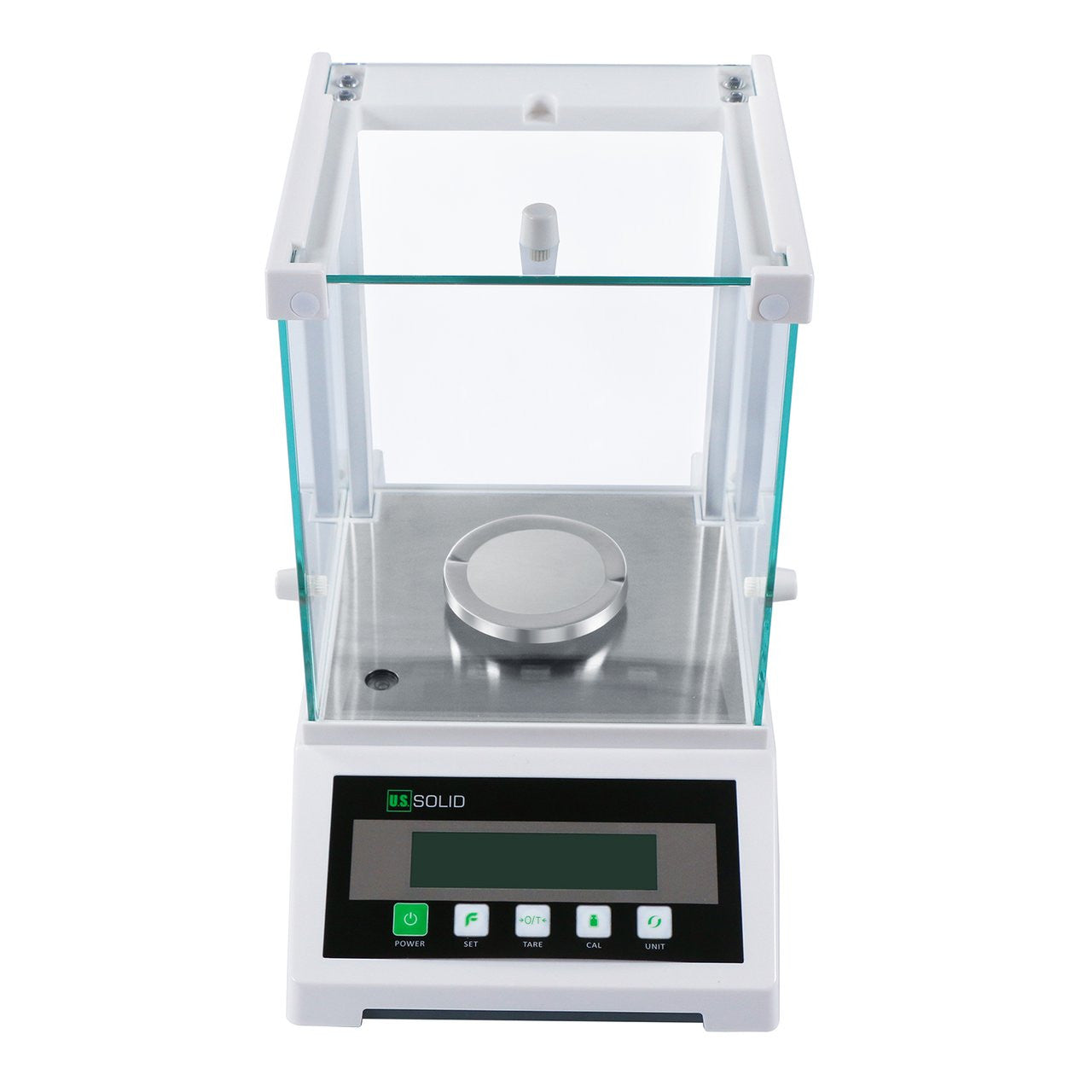

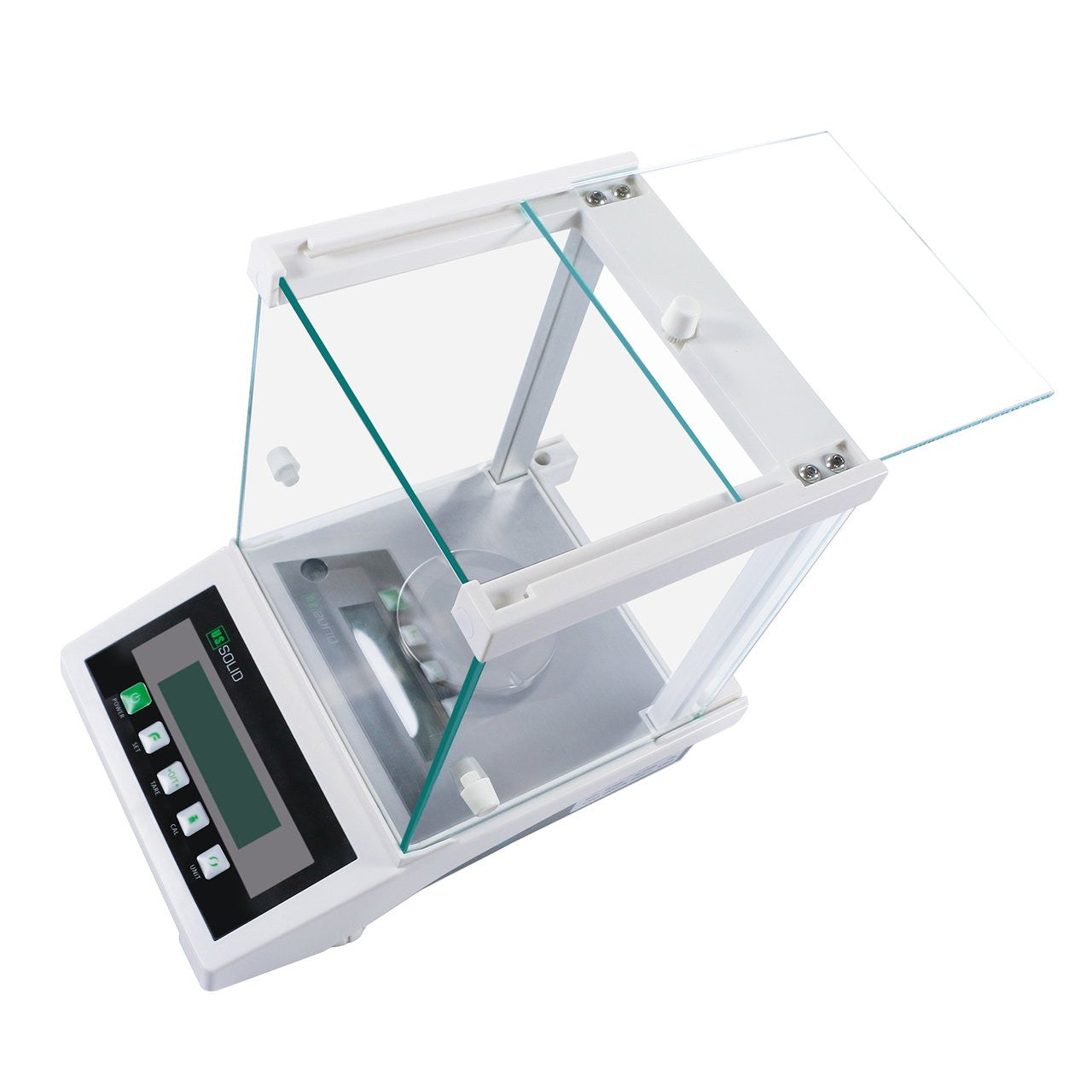

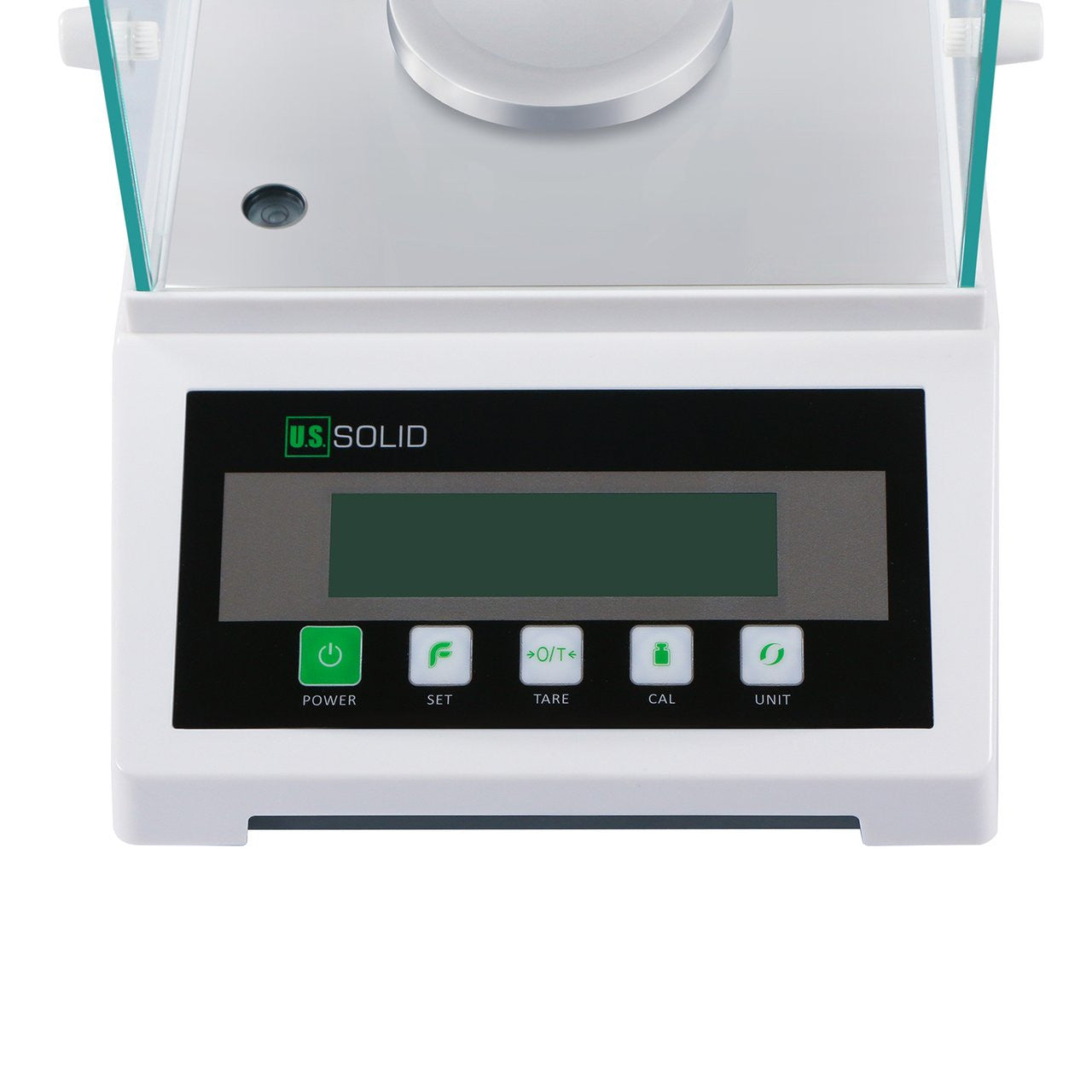

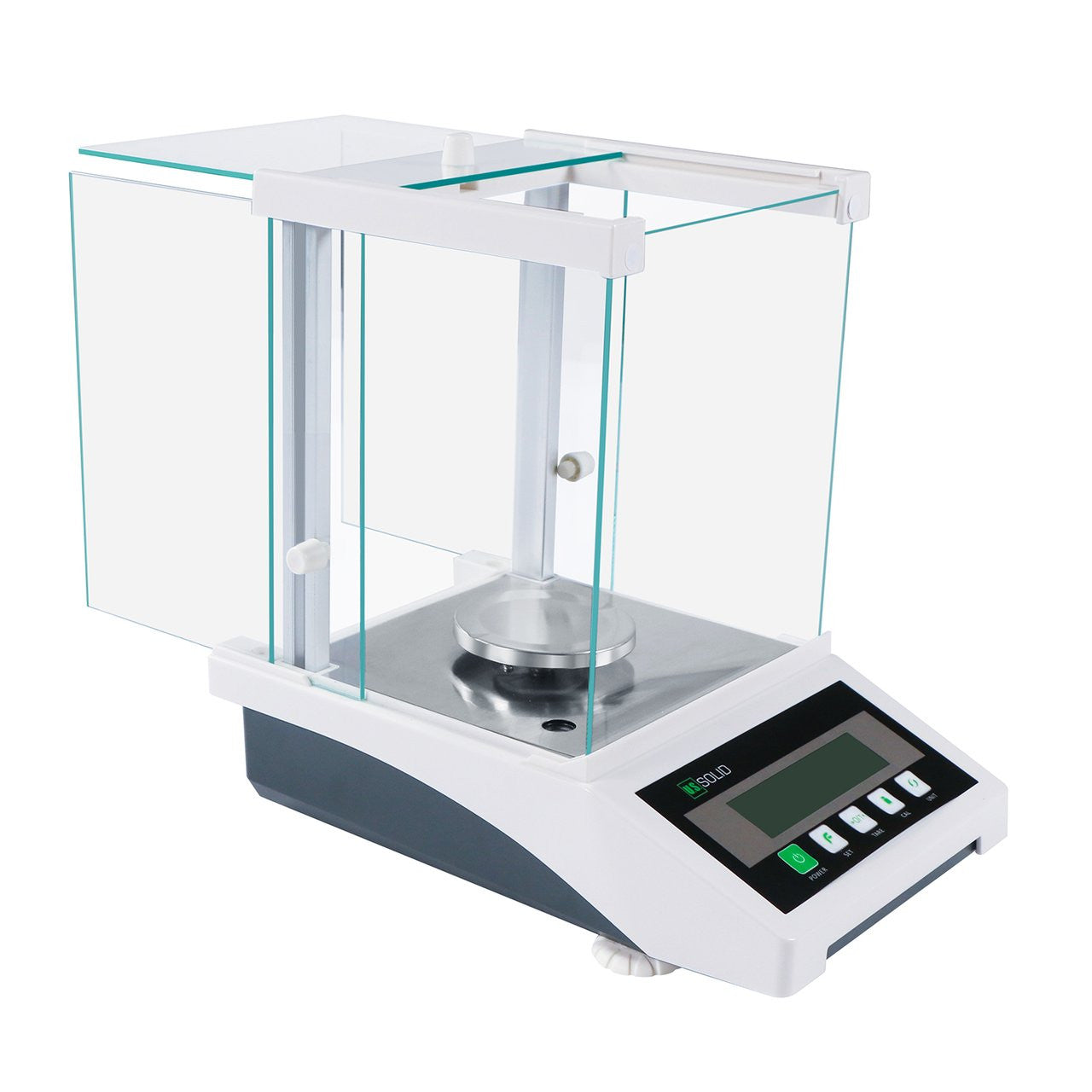

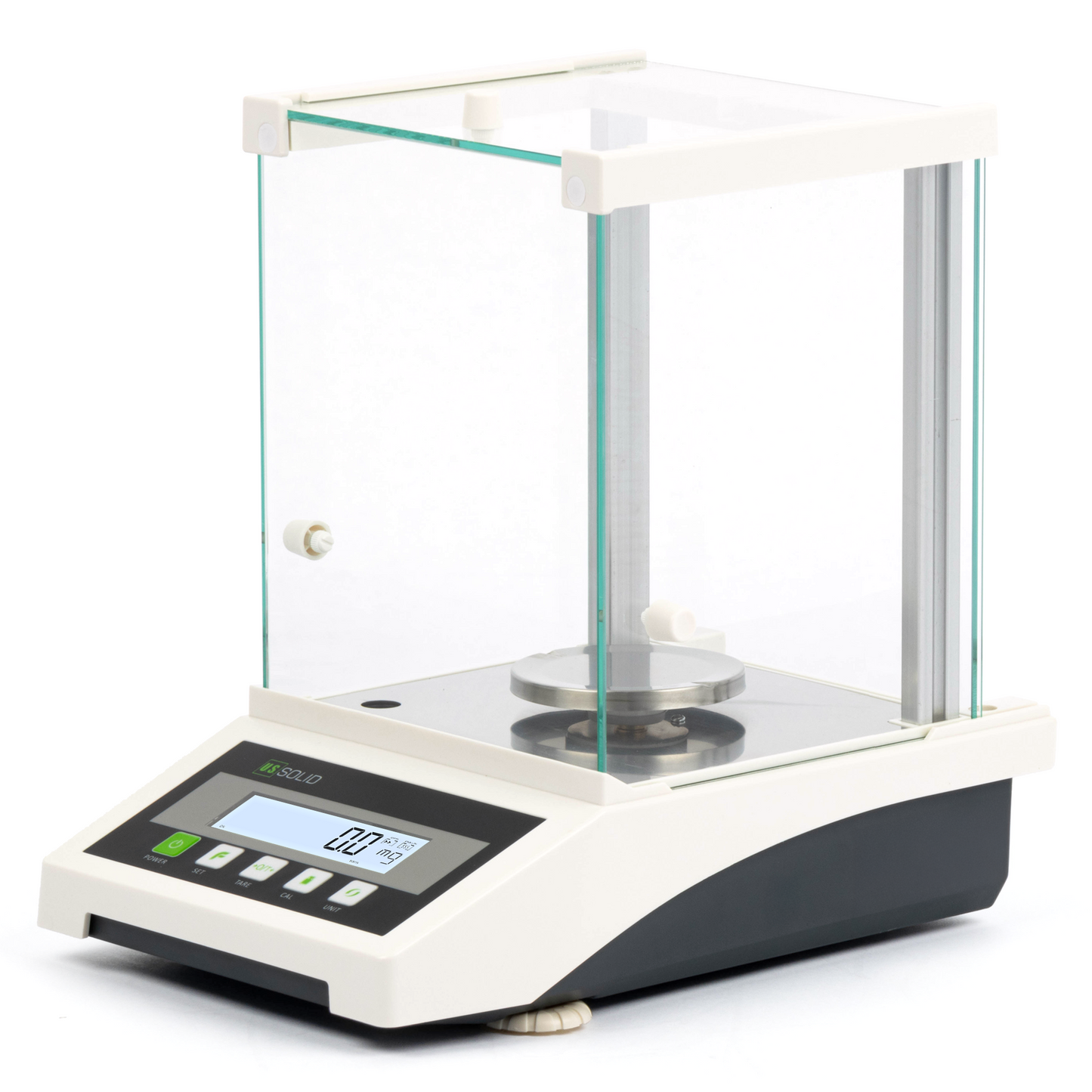

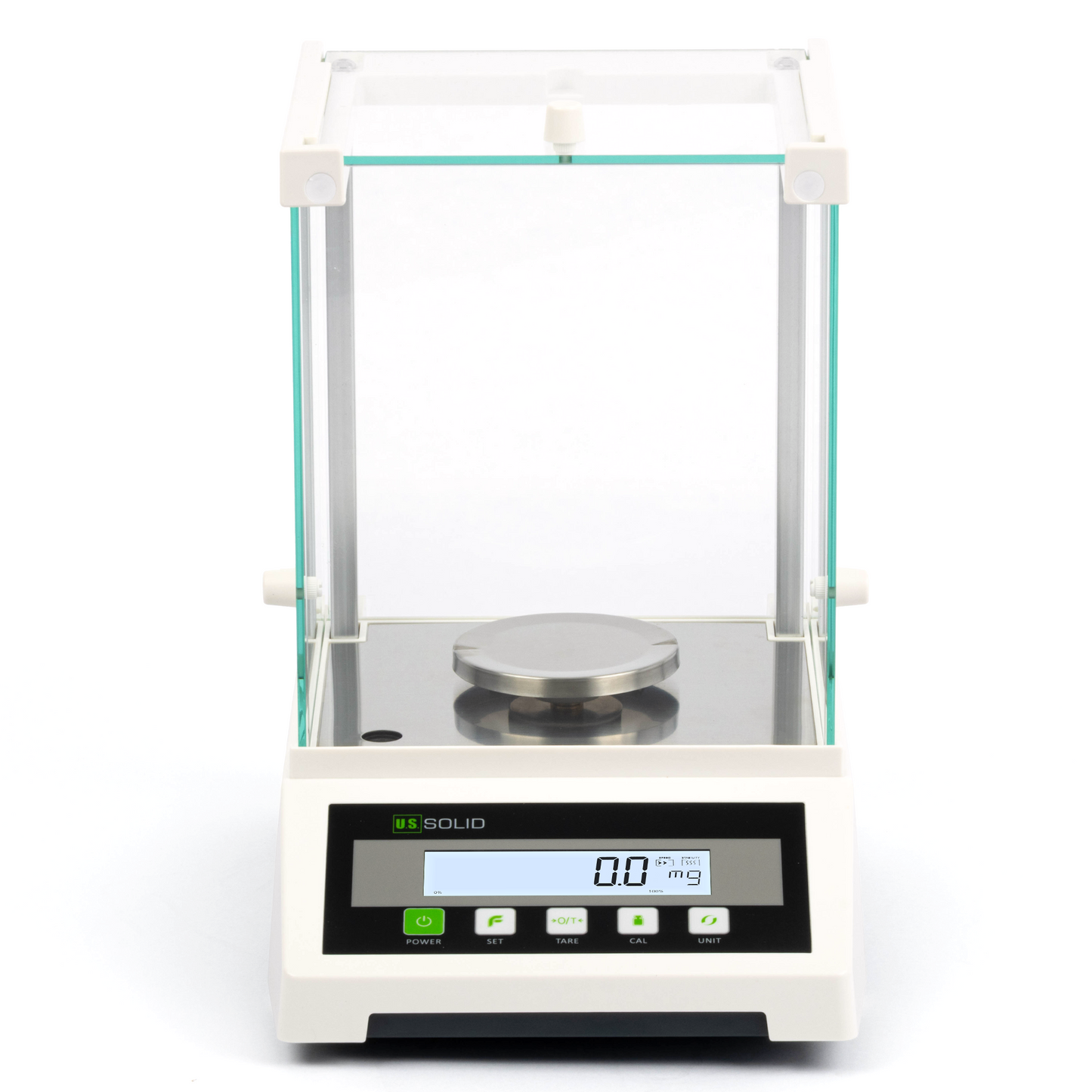

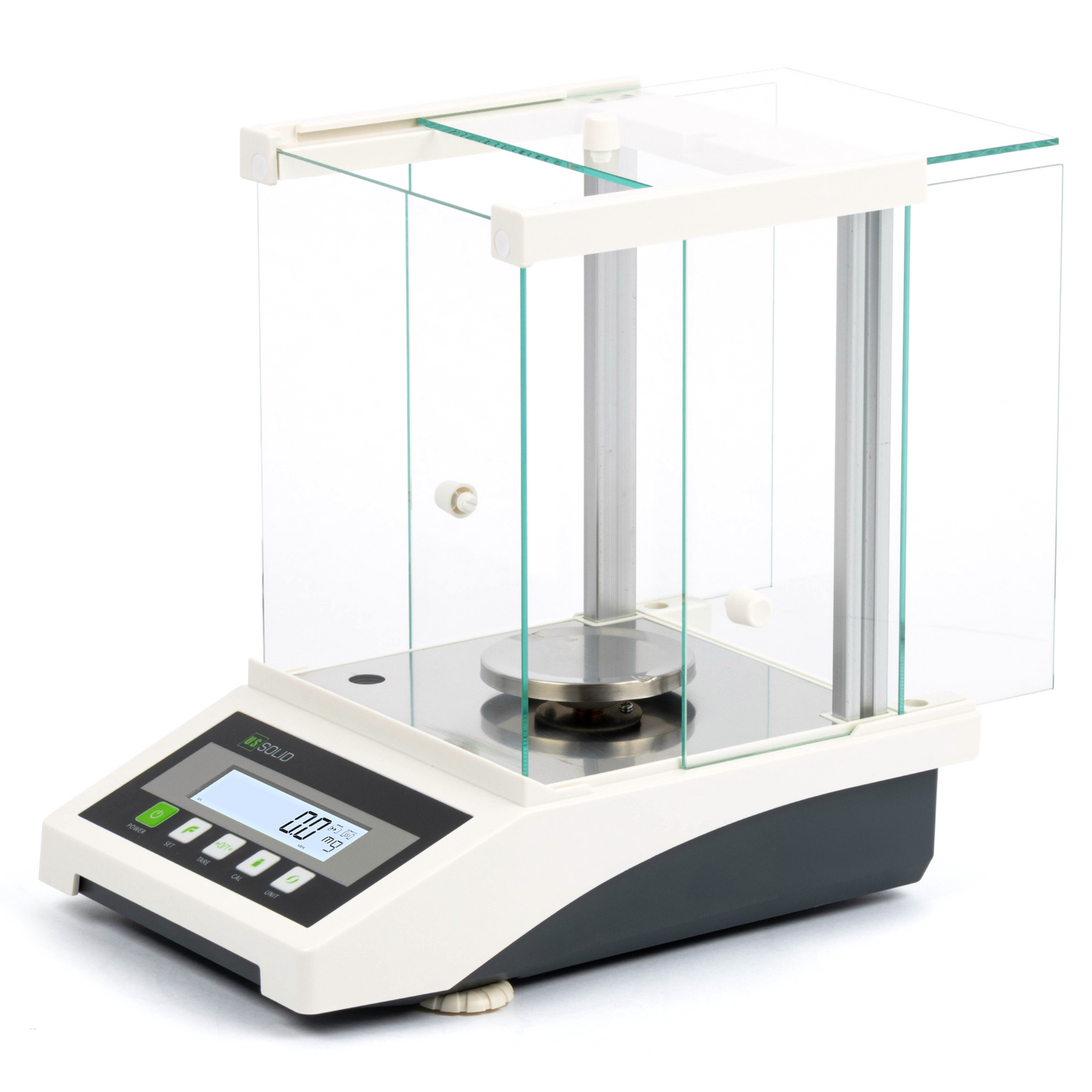

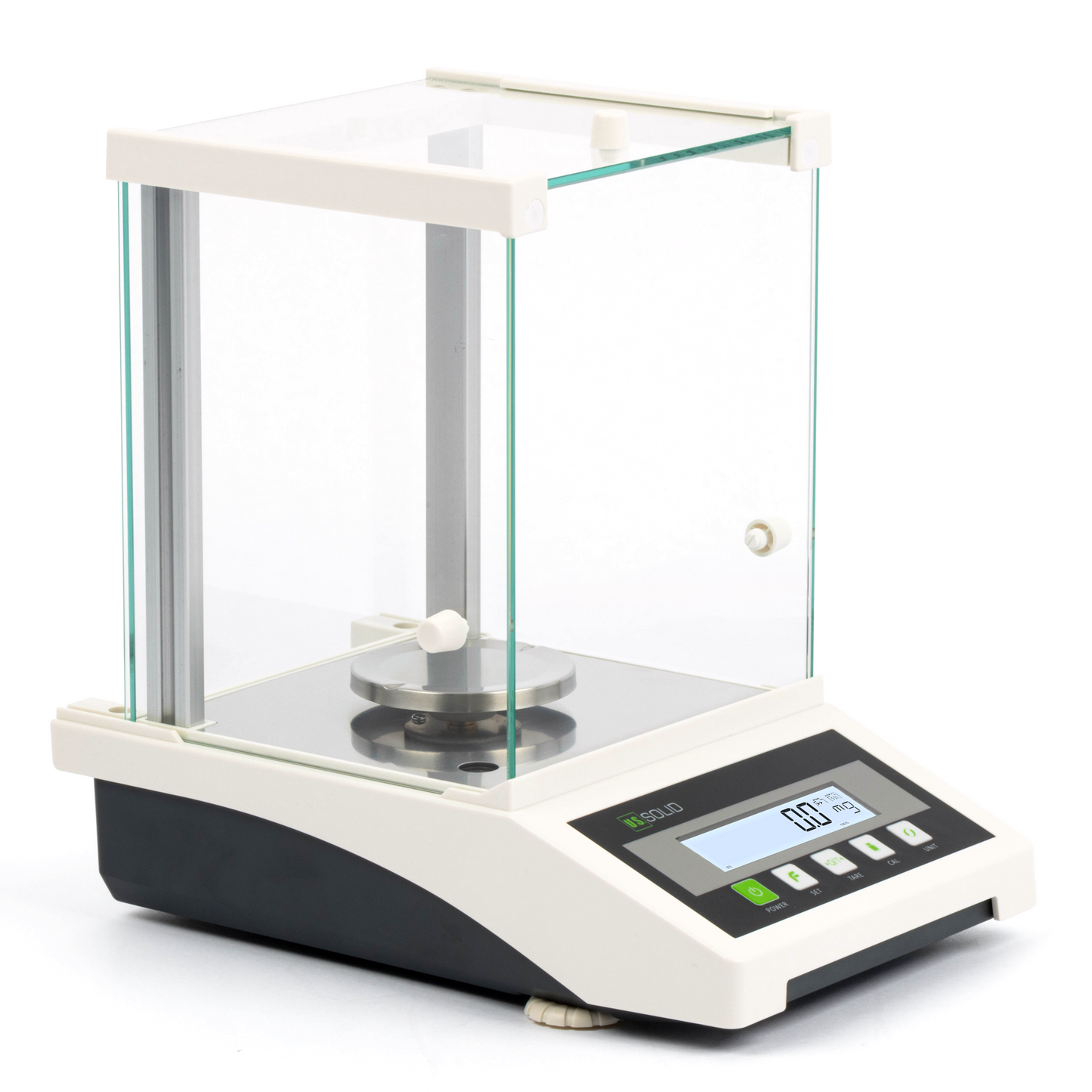

The U.S. Solid USS-DBS83 Analytical Balance offers precise 0.0001g accuracy with an electromagnetic transducer for accurate measurements. Built with durable, high-quality materials, it is easy to use and highly sensitive, allowing for quick and efficient weighing of samples in performance labs.
Applications


Features
- Readability: 0.0001g (0.1mg), with an electromagnetic transducer
- Capacity: 0.001g - 120g
- External Calibration: Manual calibration with weights
- 5 Weighing Units Conversion: g, mg, gn, ct, oz

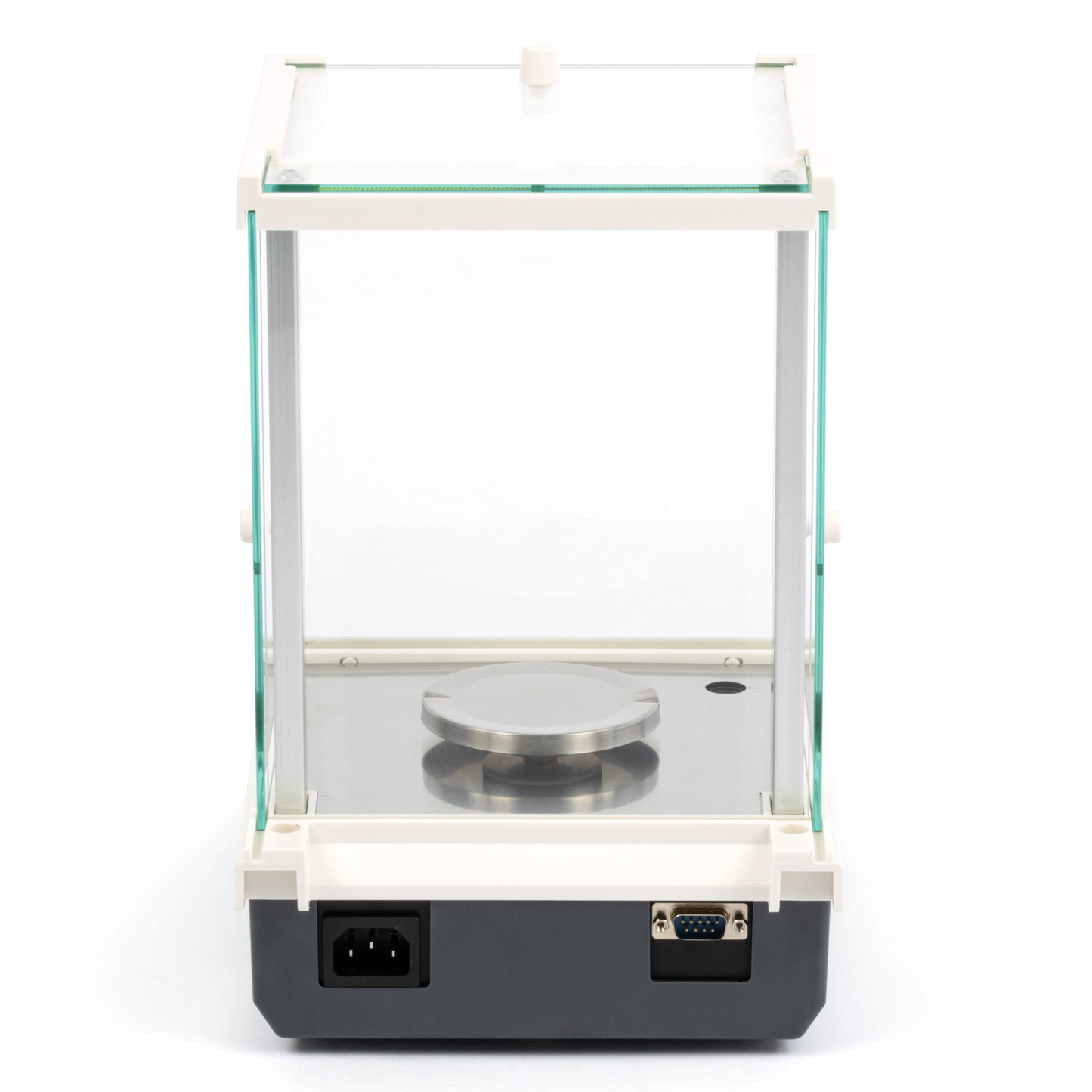

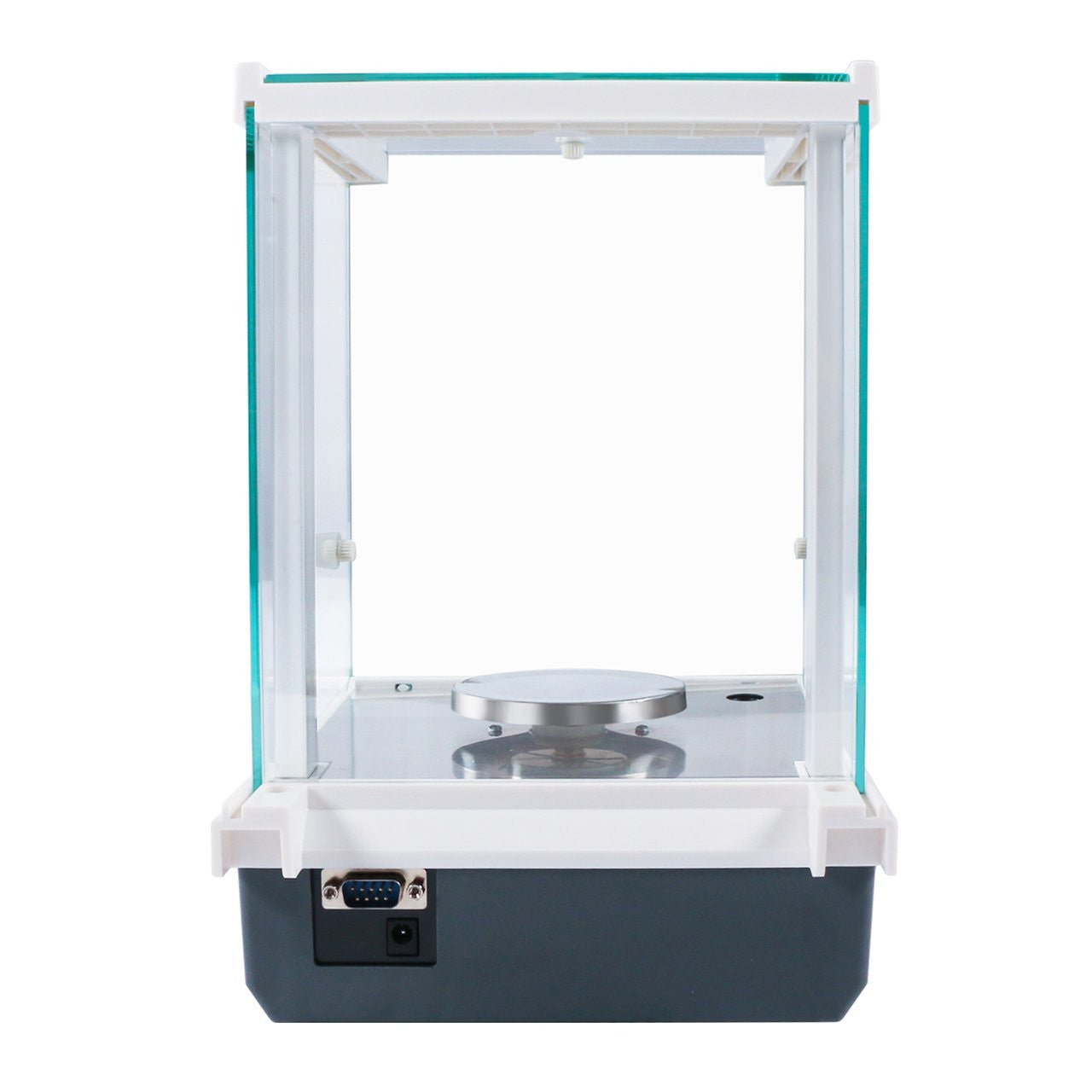

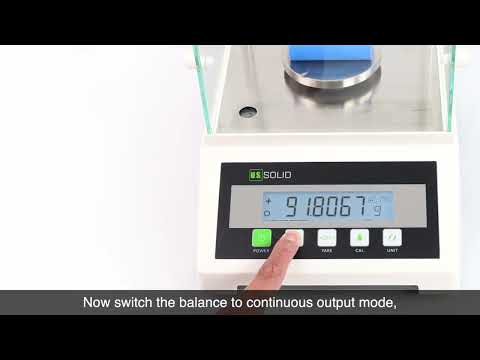

- RS232 Interface
- Counting Function
- Overload Warning Function
- Percent Weighing Function
More Details


User Manual
For instructions on how to install, calibrate, set up, and use the product, please refer to the user manual.

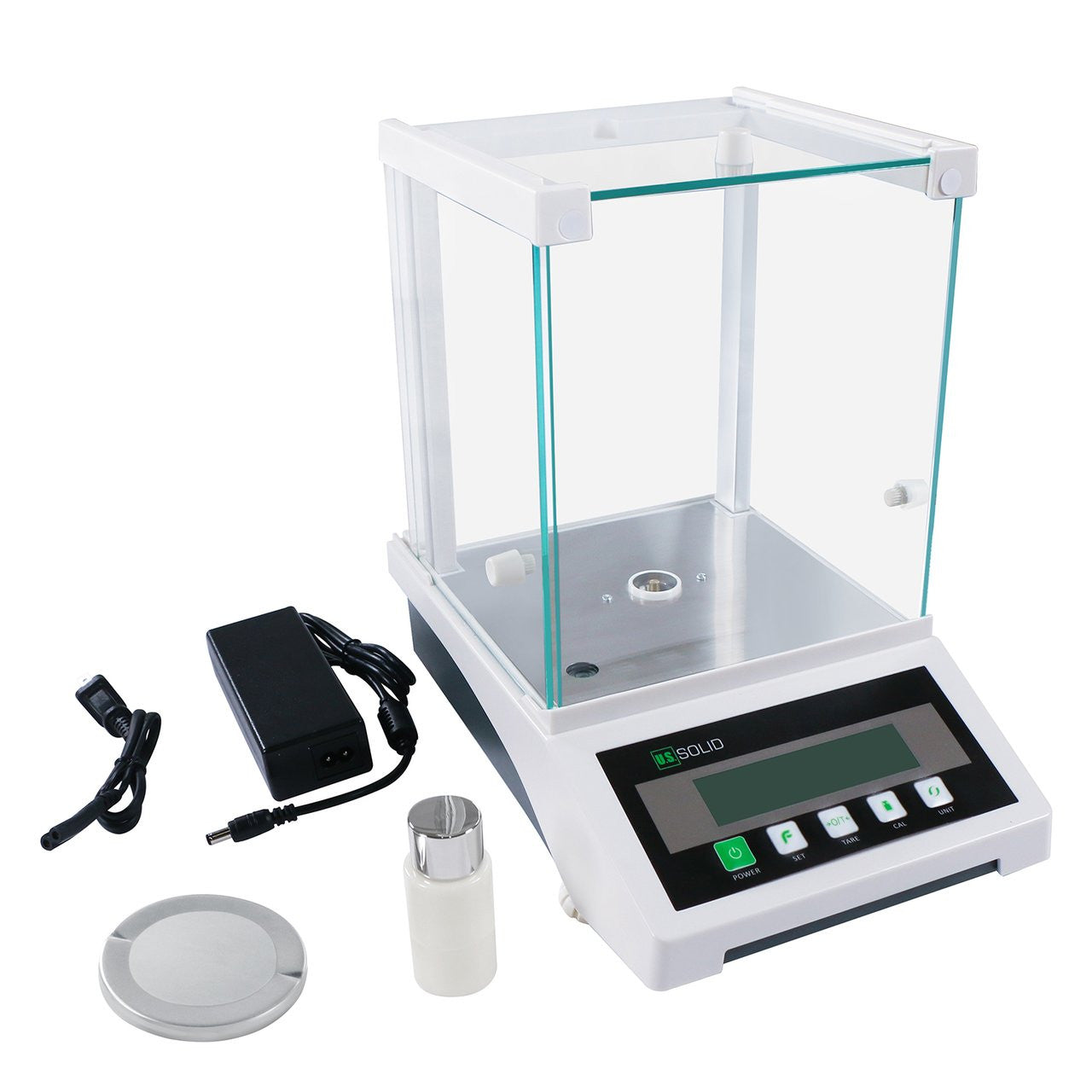

Packing List
① | Balance Main Body | ⑤ | Calibration Weight (100g) | ||
② | Weighing Pan | ⑥ | Instruction Manual | ||
③ | Draft Shield | ⑦ | Quality Certification | ||
④ | Power Cable |
*To view the full table on mobile, please swipe left or right on the screen.
Technical Data
Model | USS-DBS83-120G | Calibration Weight | 100g | ||
Calibration | External calibration | Weighing Sensor | Electromagnetic force | ||
Capacity | 0.001g - 120g | Units | g, mg, gn, ct, oz | ||
Readability | 0.0001g (0.1mg) | Interface | RS232 | ||

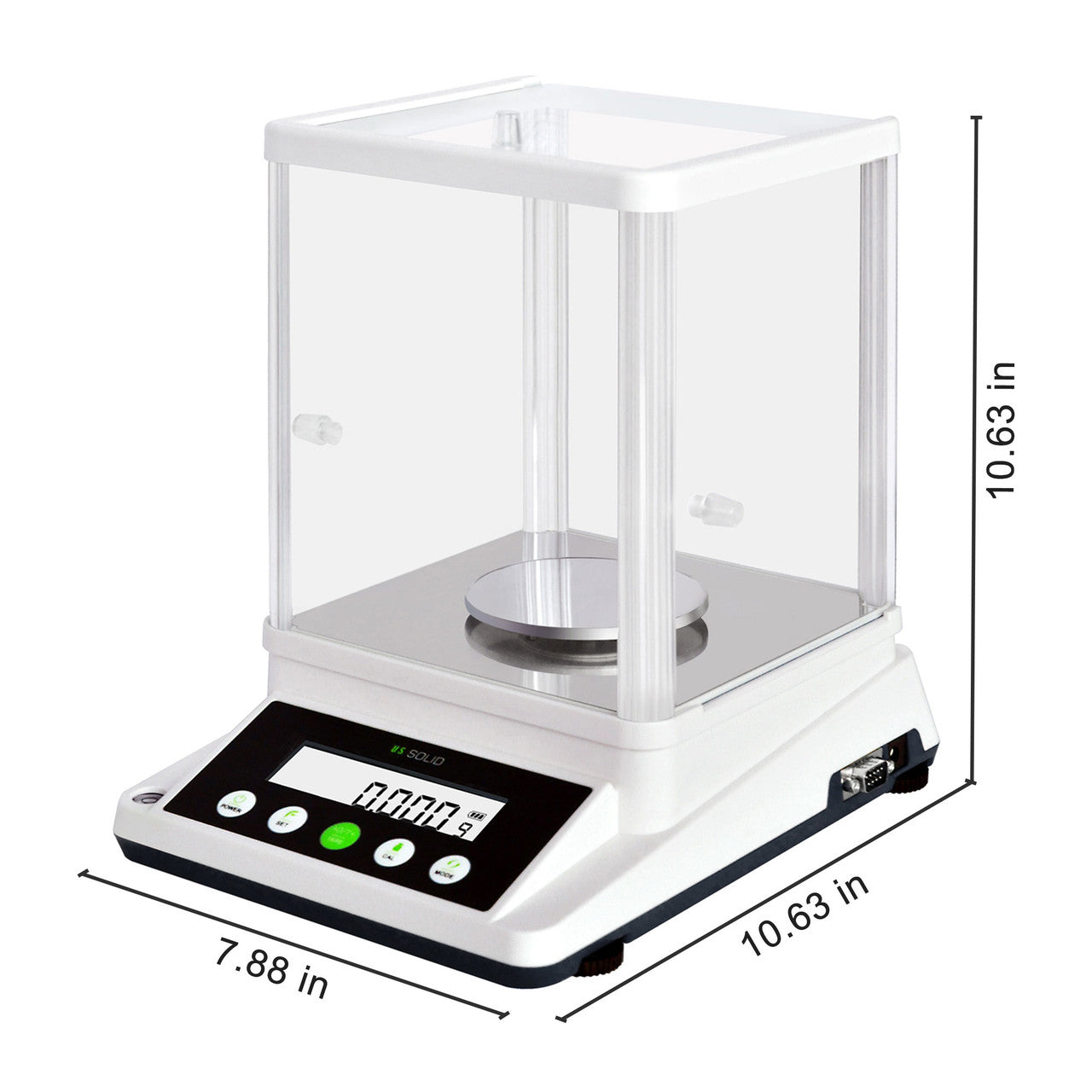

Repeatability | ±0.0002g | Power | 110V, 60Hz, AC | Linearity | ±0.0003g | Packaging Dimensions | 16.73"x16.54"x12.40" |
Pan Size | Φ80 mm | Gross Weight | 12.57 lbs |
*To view the full table on mobile, please swipe left or right on the screen.
Precautions

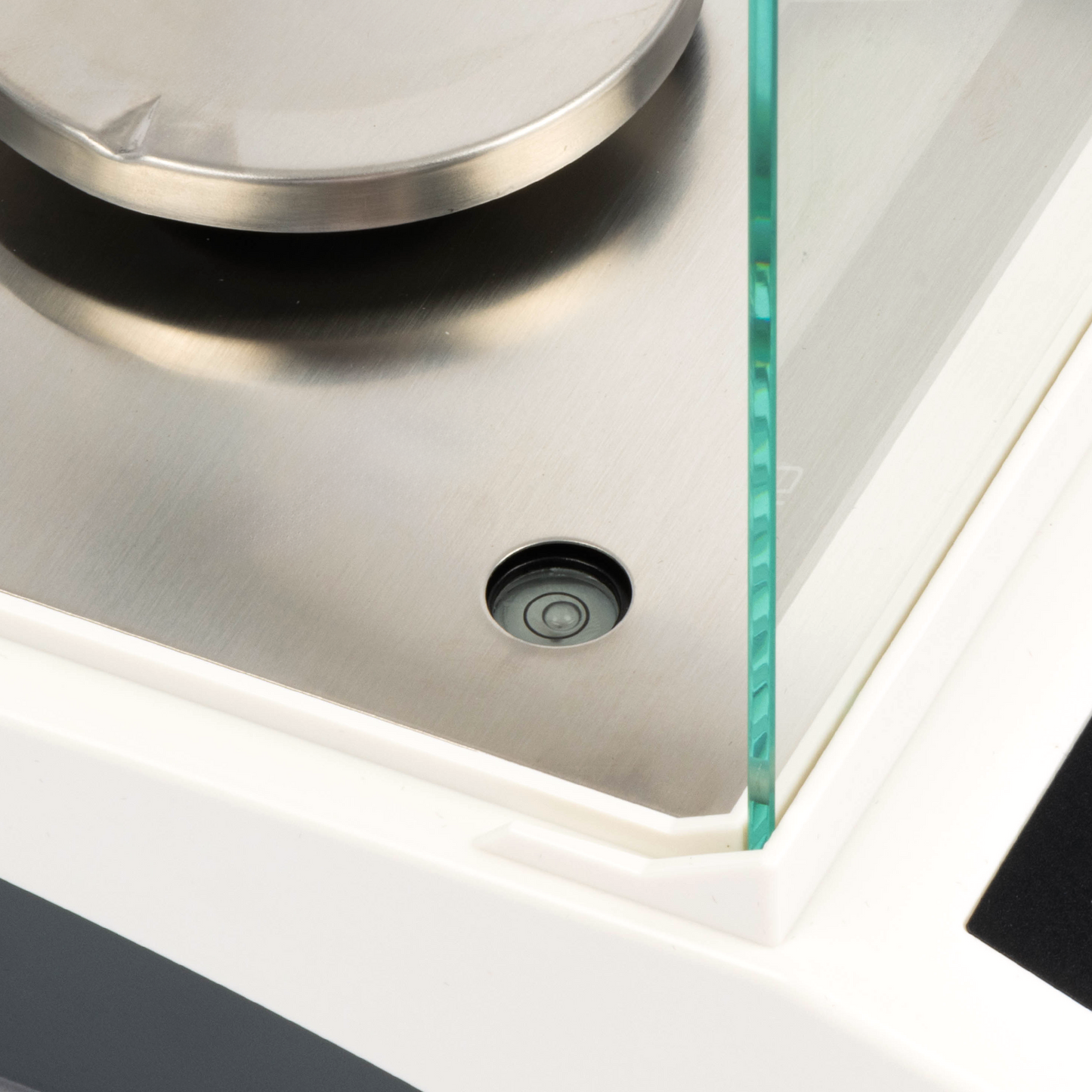

- Leveling the Balance:Accurate horizontal positioning necessary for repeatable measurementsand exact results. Adjust the leveling feet of the analytical balance until the air bubbleinthe indicator is centered.
- Warm-Up Requirement:For accurate results, the balance must warm up for at least one hour after being powered on or after a power outage longer than 30 minutes, to reach the proper operating temperature before calibration or use.
- Stability:According to different operating environments, the balance is kept inarelatively stable state by adjusting its stability.
- Calibration:Calibrate the balance if it is moved (even within the same room), when ambient conditions change, and before each use.
Troubleshooting
Problem 1: Display remains off after switching on.
Possible causes: Power cord is not connected/ Power line fuse blown/ Power supply interrupted/ Instrument faulty
Problem 2: Display does not change when loading samples.
Possible causes: The sample pan/pan holder is not installed correctly.
Problem 3: Weight display is constantly changing or unstable.
Possible causes: The sample pan is in contact with the draft shield or heating chamber/ Air movement/ Test bench vibration/ Electromagnetic field interference
All Options
Readability | Units | Model | Capacity | Calibration | Calibration Weight | Repeatability Error | Linearity Error | Stabilization Time | Pan Size | Interface | Power Supply |
0.0001g | 5 types | USS-DBS83-100G | 0.001g - 100g | External calibration | 100g*1 | ± 0.0002g | ± 0.0003g | ≤3 s | Φ80mm | RS-232 | 110V |
USS-DBS83-100IC | Internal calibration | ||||||||||
USS-DBS83-120G | 0.001g - 120g | External calibration | |||||||||
USS-DBS83-120IC | Internal calibration | ||||||||||
USS-DBS83-200G | 0.001g - 200g | External calibration | 200g*1 | ||||||||
USS-DBS83-200IC | Internal calibration | ||||||||||
USS-DBS83-220G | 0.001g - 220g | External calibration | |||||||||
USS-DBS83-220IC | Internal calibration | ||||||||||
* 5 Weighing Units Conversion: g, mg, gn, ct, oz |
