A pneumatic valve is a switch for routing air to any pneumatic device, usually an actuator, allowing a relatively small signal to control a large device. It is also the interface between electronic controllers and pneumatic systems. It allows pneumatic control of position, flow, pressure and temperature.
Pneumatic types of valves can be found in a wide array of industries. Aircrafts use pneumatic valves to control the pressure and flow of hot engine air to the windshield for the anti-icing and rain removal. Food and beverage manufacturers use them to make, dispense or preserve food and beverage products.
U.S. SOLID pneumatic valves offer reliability, low power consuming, and long life. They have prewired connections which makes installation, maintenance, and control simple.
Specifications

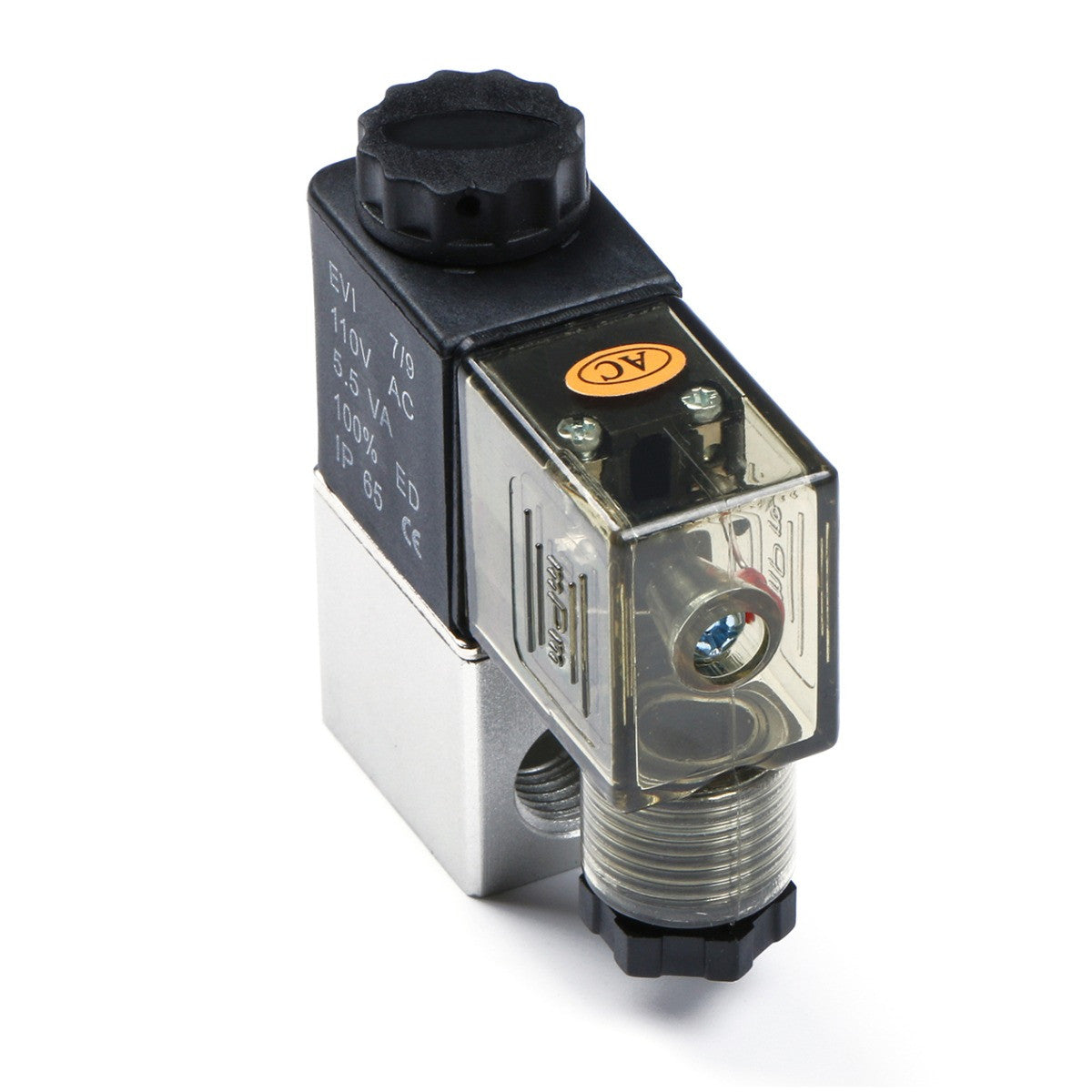

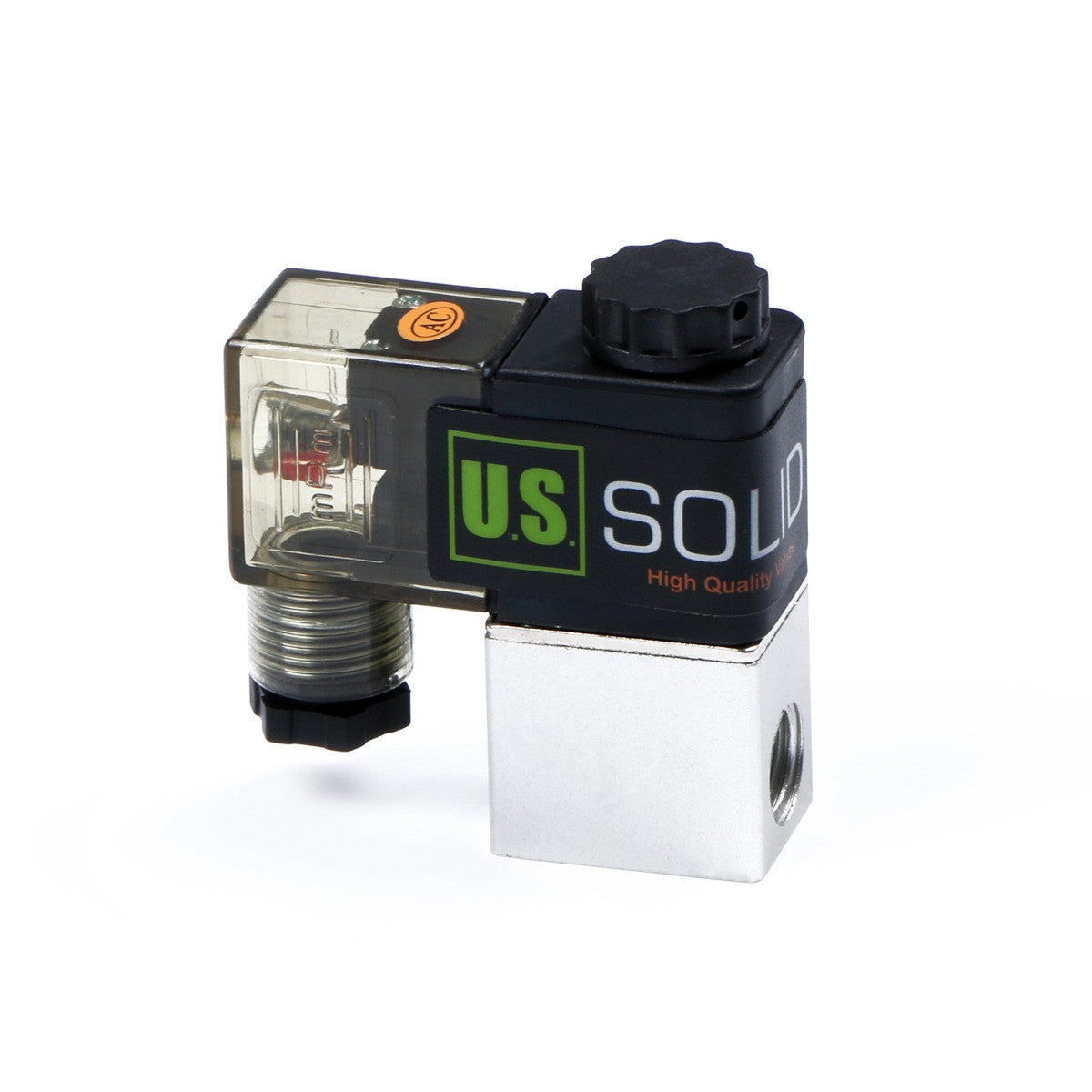

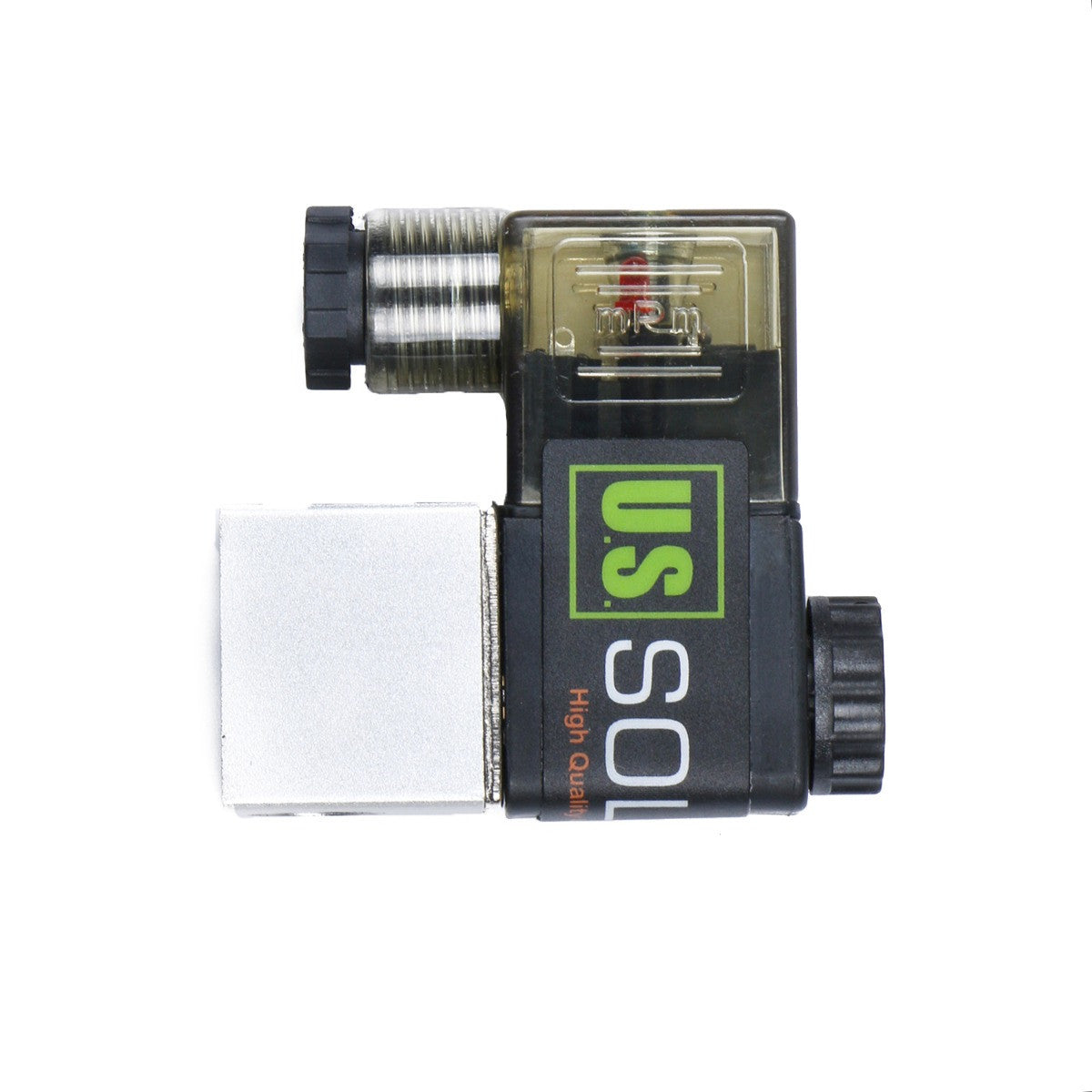

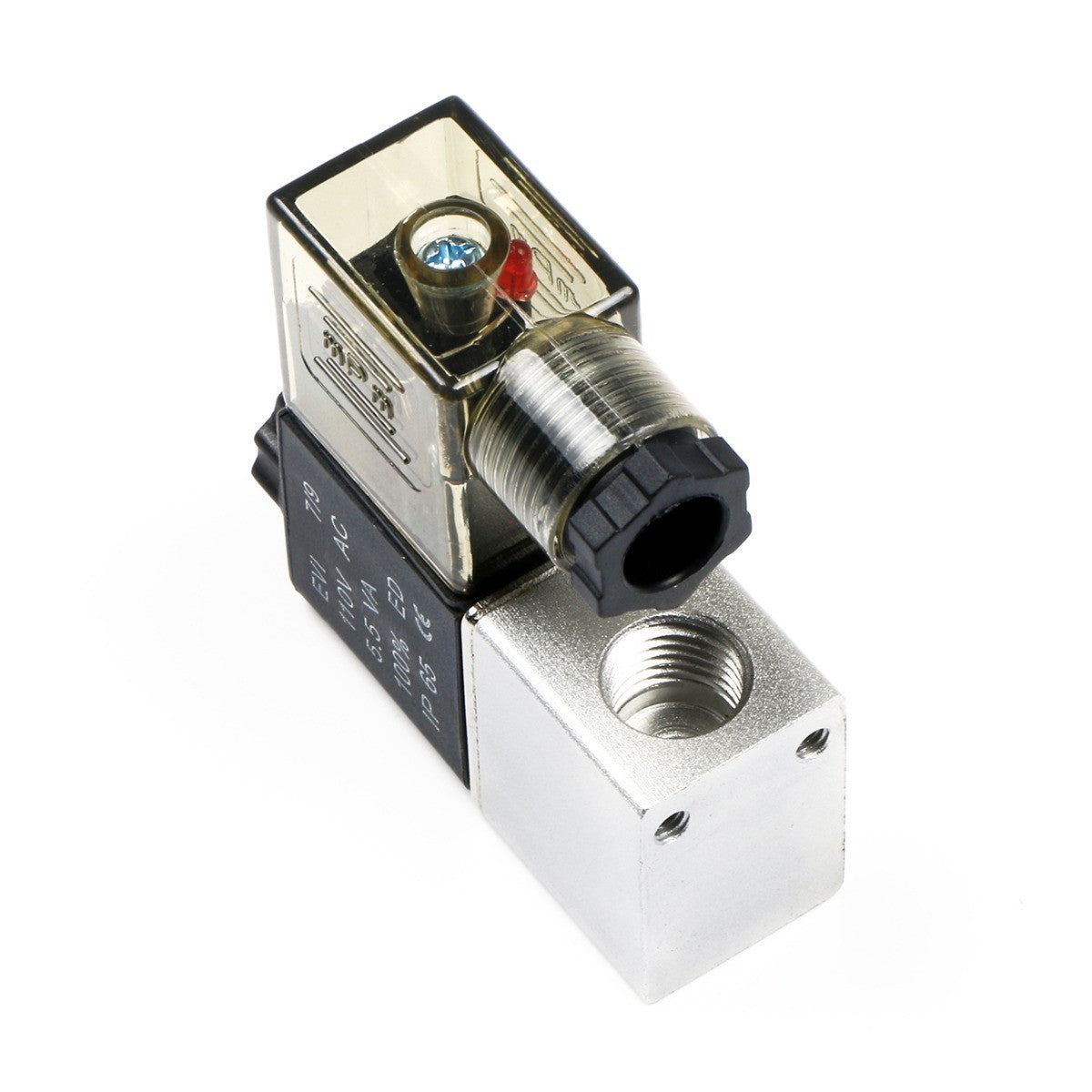

U.S. Solid Model: USS- PSV00035
Valve Type: 2 Position 2 Way
Thread Type: NPT
Operation/ Property : Normally Closed
Material : Aluminum Alloy
Size : 1/4"
Voltage : AC 110 V
Applicable Media : Filtered Air
Power Rating (W) : 4.5
Aperture (mm) : 2.5
Flow Value (Cv) : 0.23
Insulation & Protection : Class F; IP 65
Working Pressure : 0 ~ 0.8 Mpa
Max. Pressure Resistance : 1.2 Mpa
Direct Operated/ Pilot Operated : Direct Acting
Operation Temperature : -5°C ~ 60°C
Voltage : ±10%
