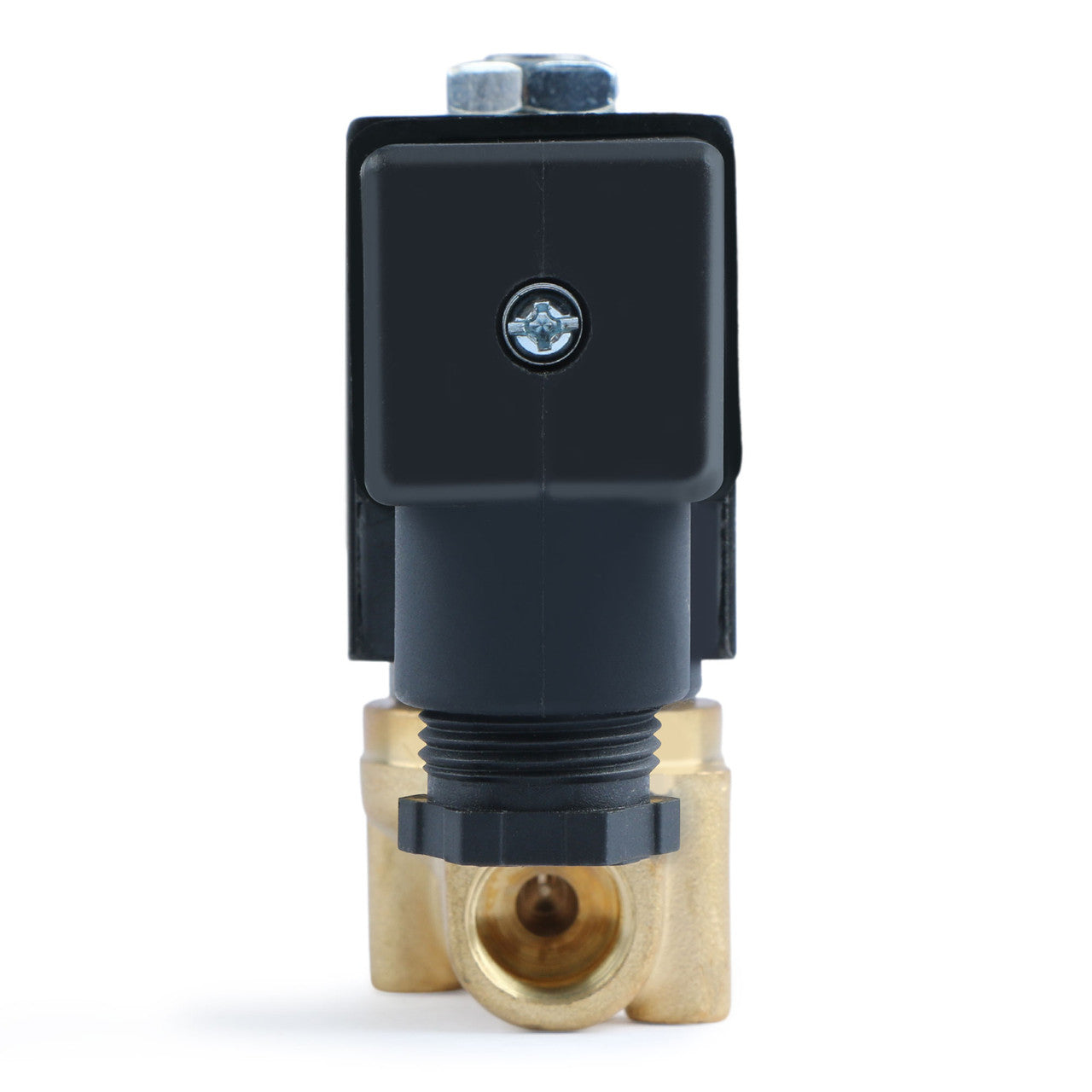

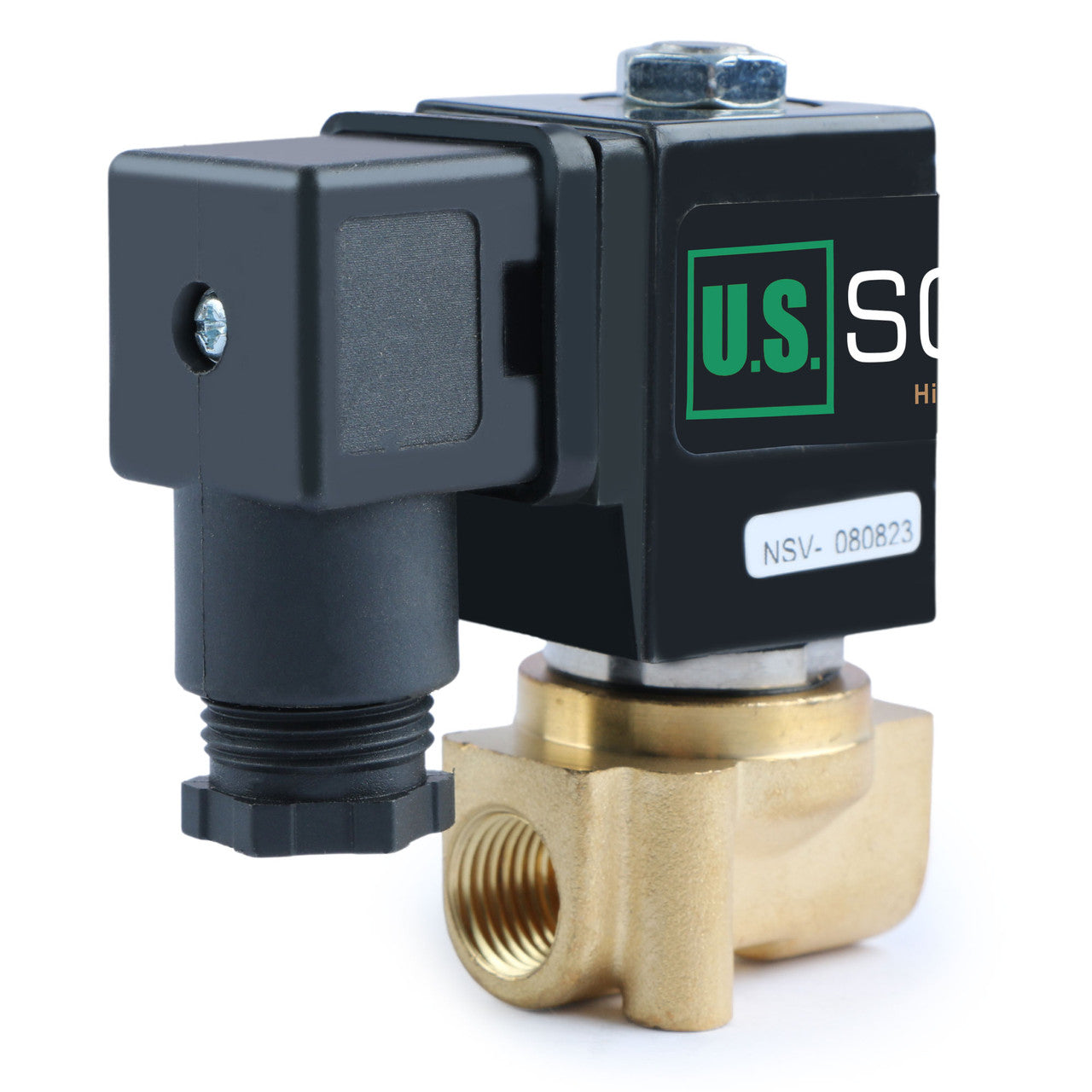

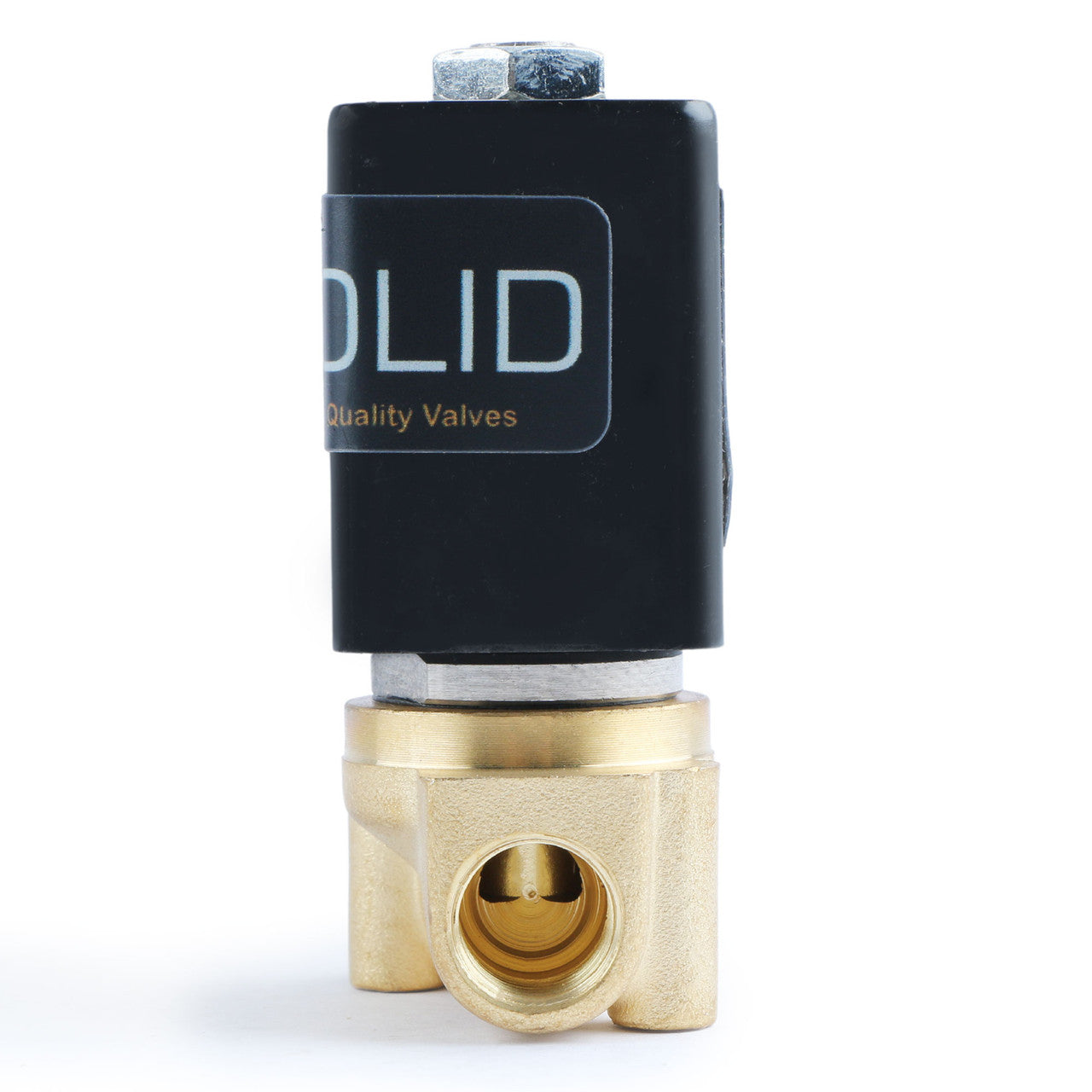

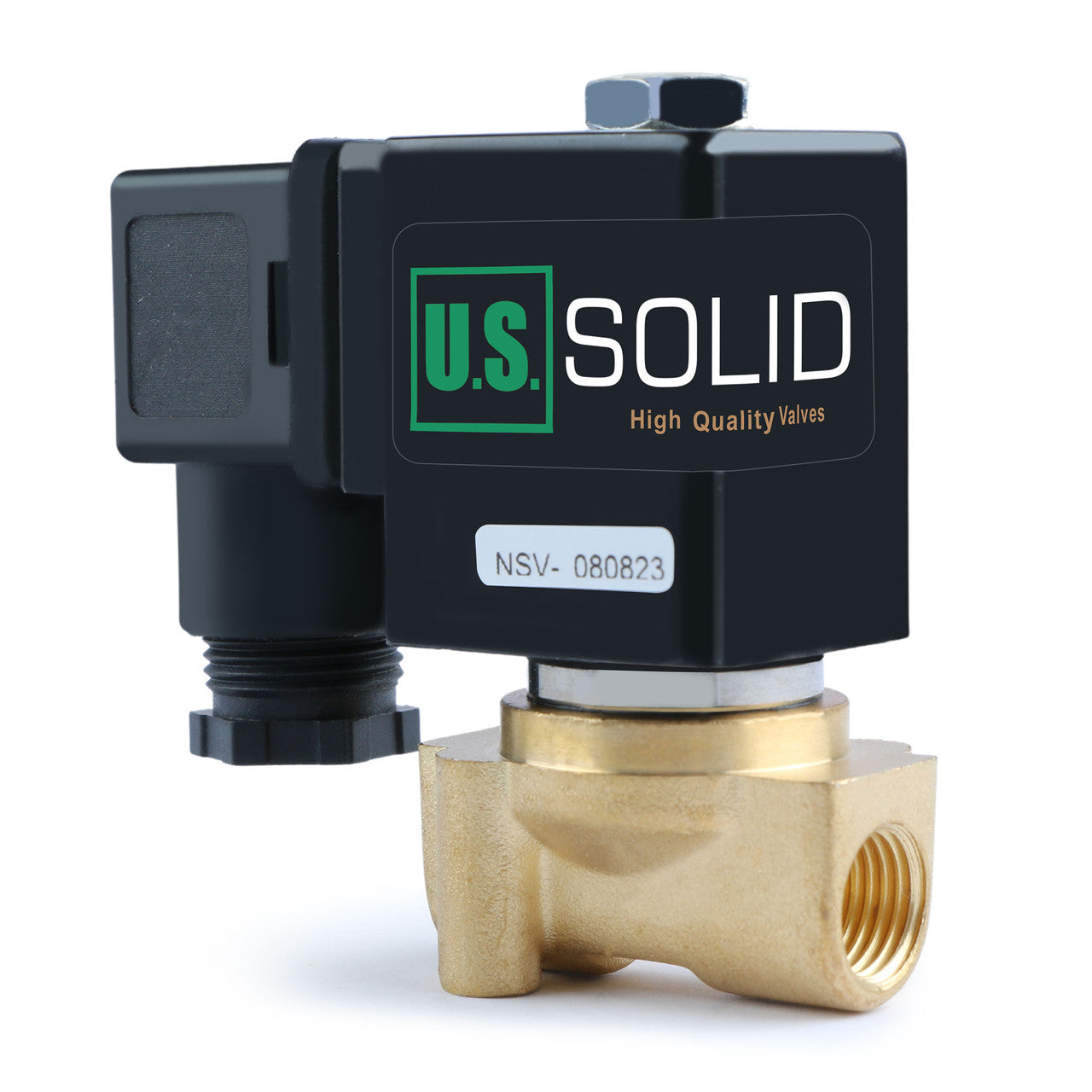

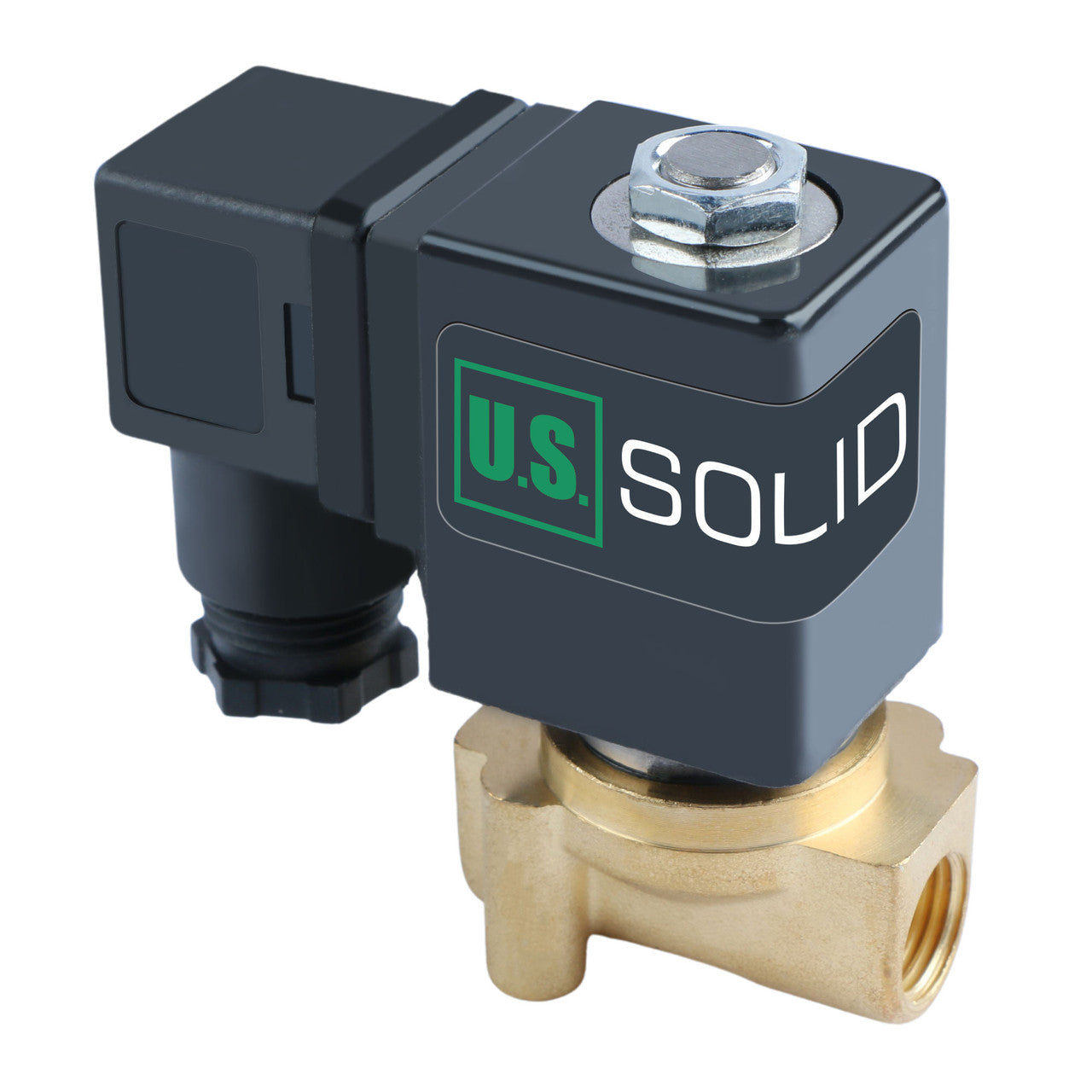

U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, 1/4" female threaded (NPT) connections, and strong VITON gasket. Suitable for use with hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst) and gasoline or other petroleum based liquids. Customers chose this general purpose valve for supplemental gas tanks, sprinkler systems, and more.
Specifications
Brand: U.S. Solid

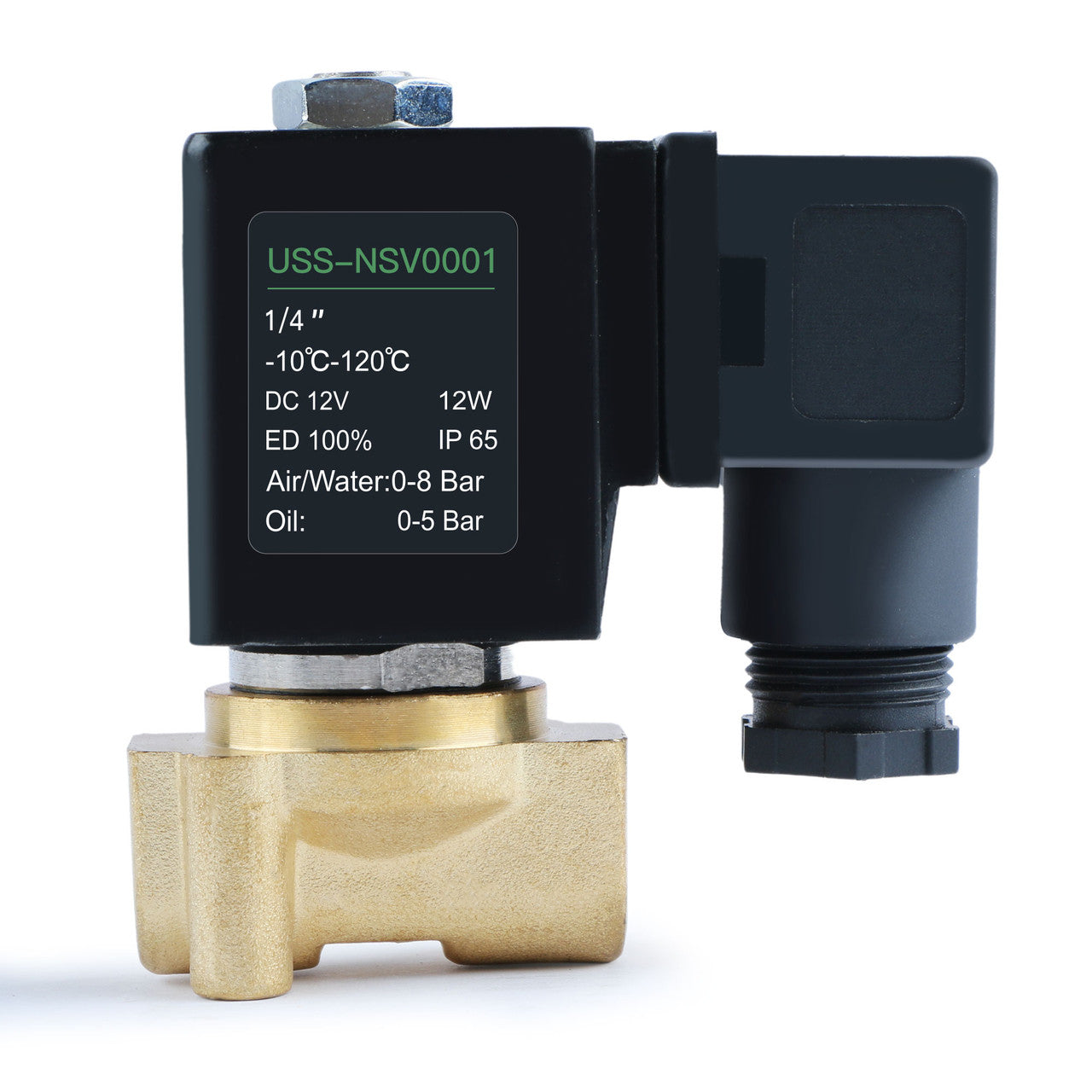

Model: USS-NSV00001
Size: 1/4"
Flow Aperture: 2.5 mm

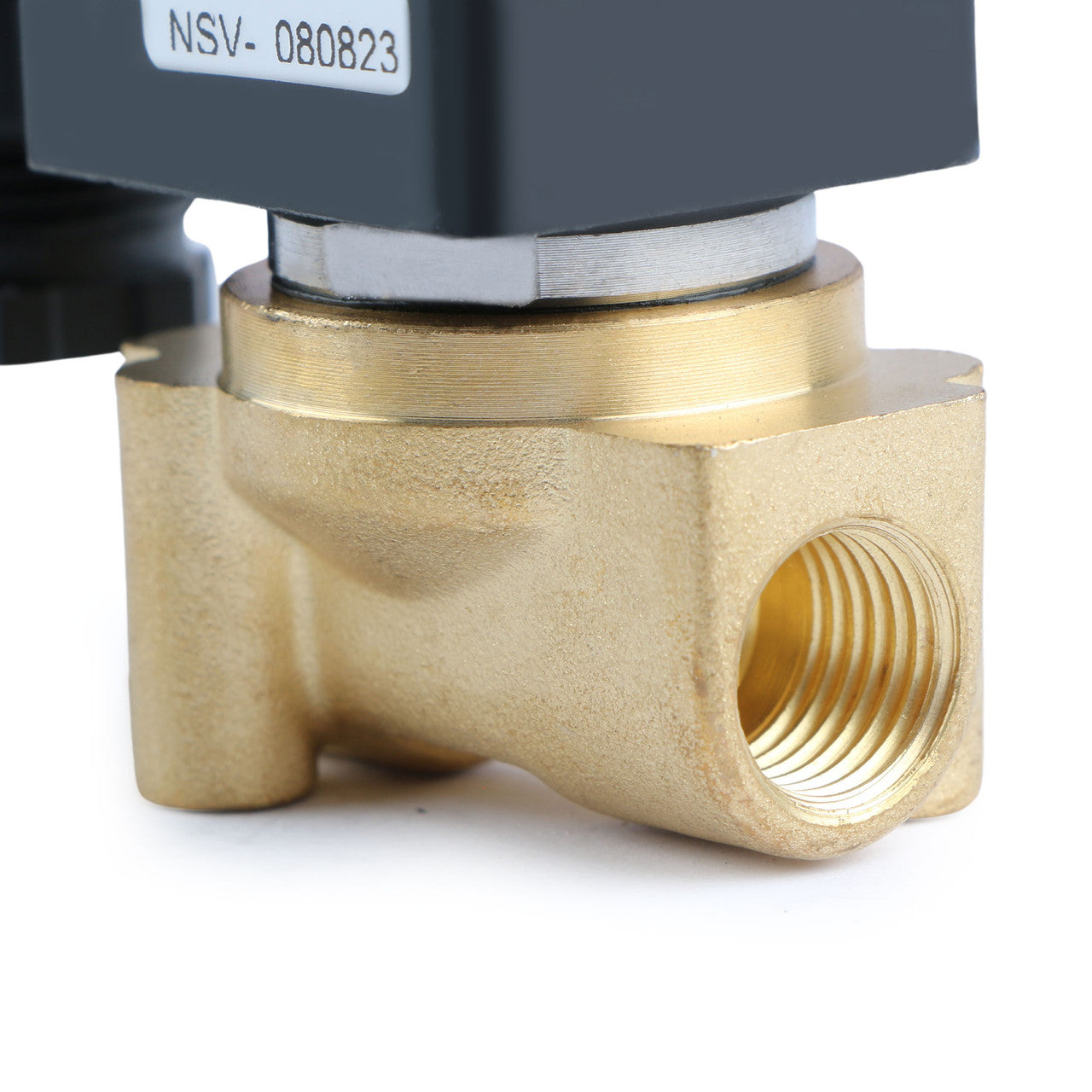

Body Material: Brass
Gasket / Diaphragm / Seal: VITON
Rated voltage: DC 12 V, ±10%
Current: 1A
Power rating: 12 W
Operation Type: Direct Lift Valve
Operation Mode: Normally Closed
Level of protection: IP65
Operational pressure range: 0 to 116 PSI / 0-0.8 MPa (for Air, Water); 0 to 72 PSI / 0-0.5 MPa (for Oil)
Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)
Flow capacity: 0.23 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI
Flow value: 0.23 Cv
Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc. Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities.
OVERHEATING WARNING: While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 80℃. It is fully complied with national standard: JB/T7352-2010. Energized continuously for no more than 24h at a time is recommended.
CA PROP65 WARNING - This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. They are not allowed by federal law to be installed for potable water use in the U.S.A. and its territories.
