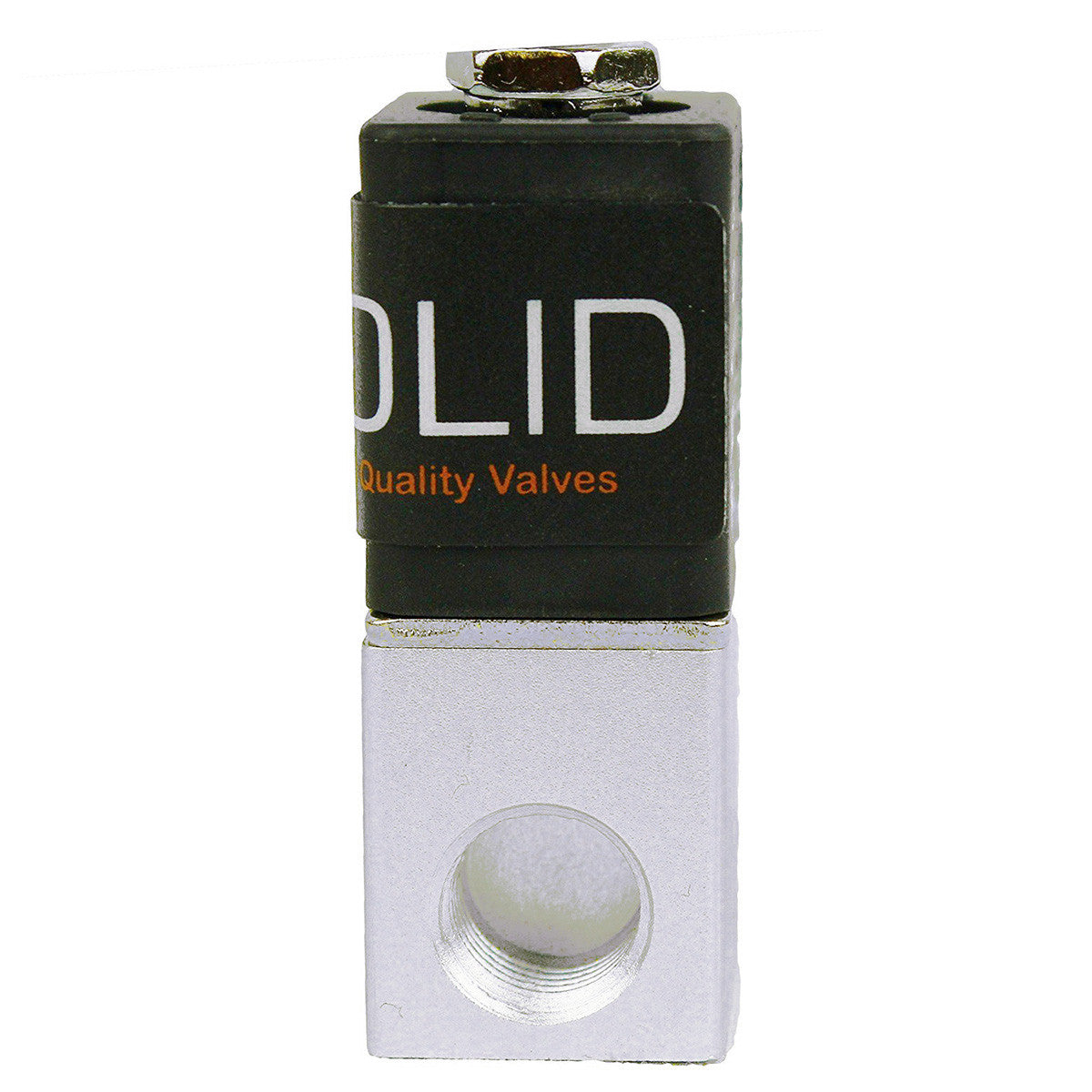

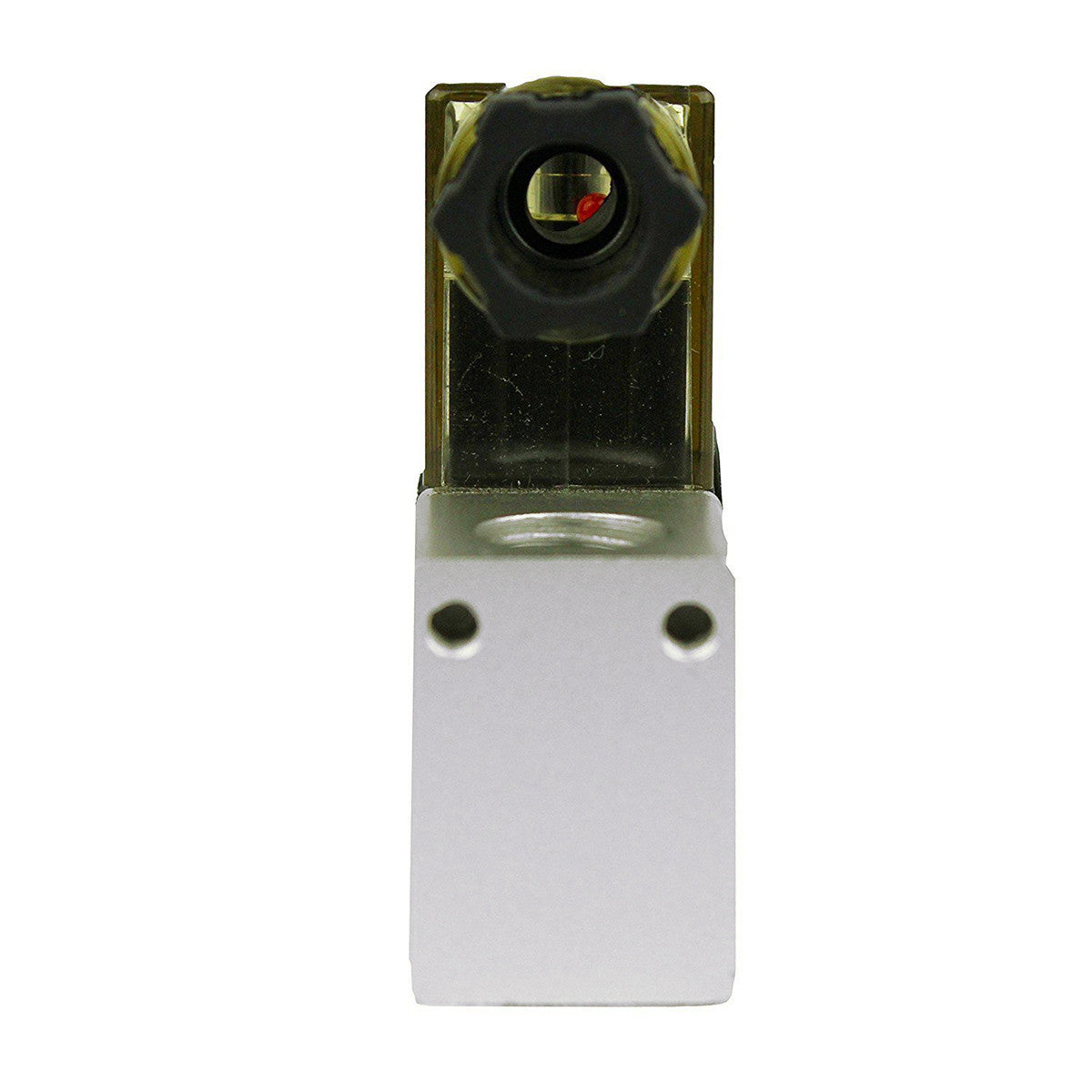

The U.S. Solid 1/4" Female NPT 2 Way 2 Position Pneumatic Electric Solenoid Valve is a most advanced level of pneumatic valve technology. It is a 2/2 valve which means it has 2 ports and 2 flow positions; meaning this valve either opens or closes air flow. This valve uses DC 12V, is constructed with aluminum alloy, and has an aperture of 1/4" Female NPT. This valve consumes little energy, does not get hot, and is compact in size.

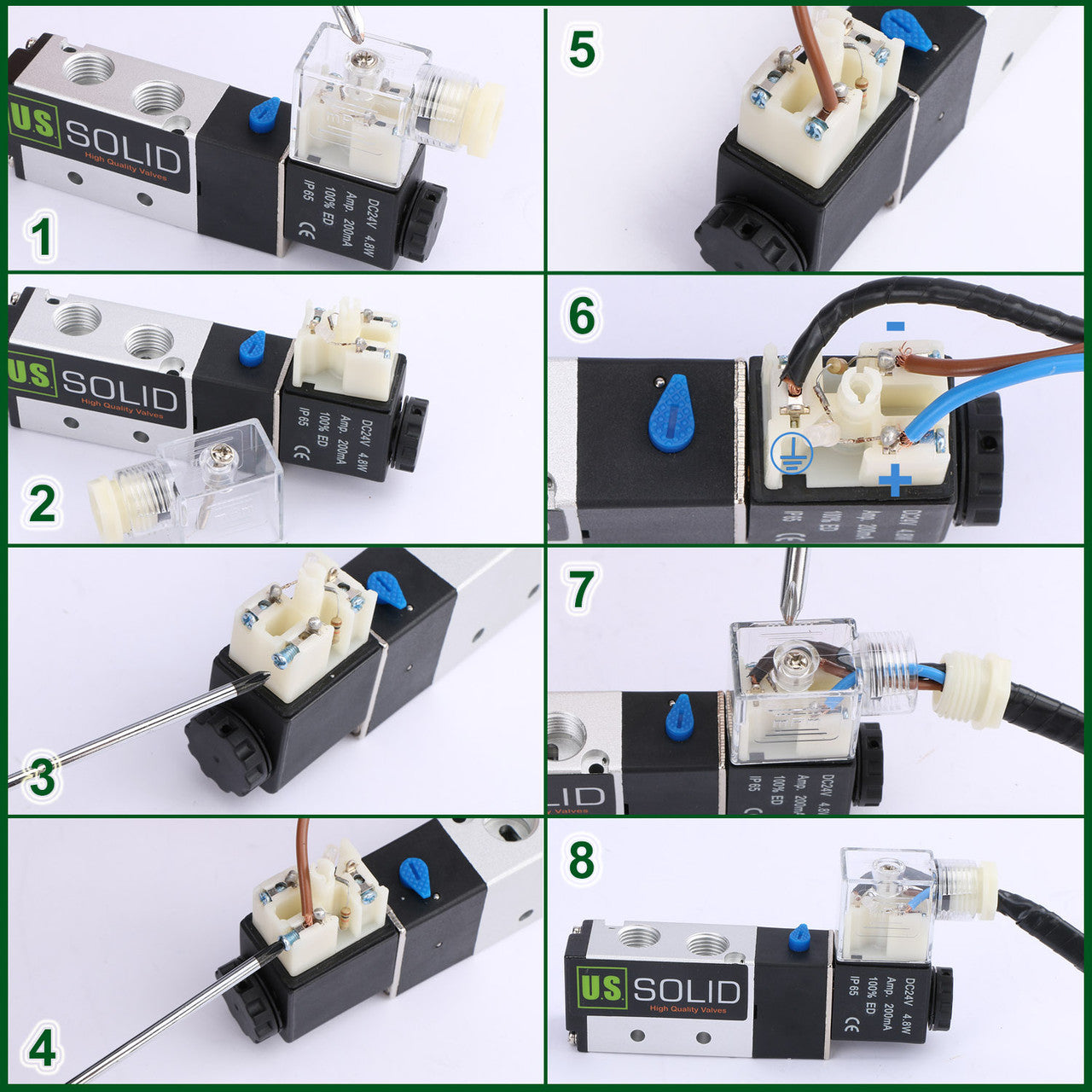

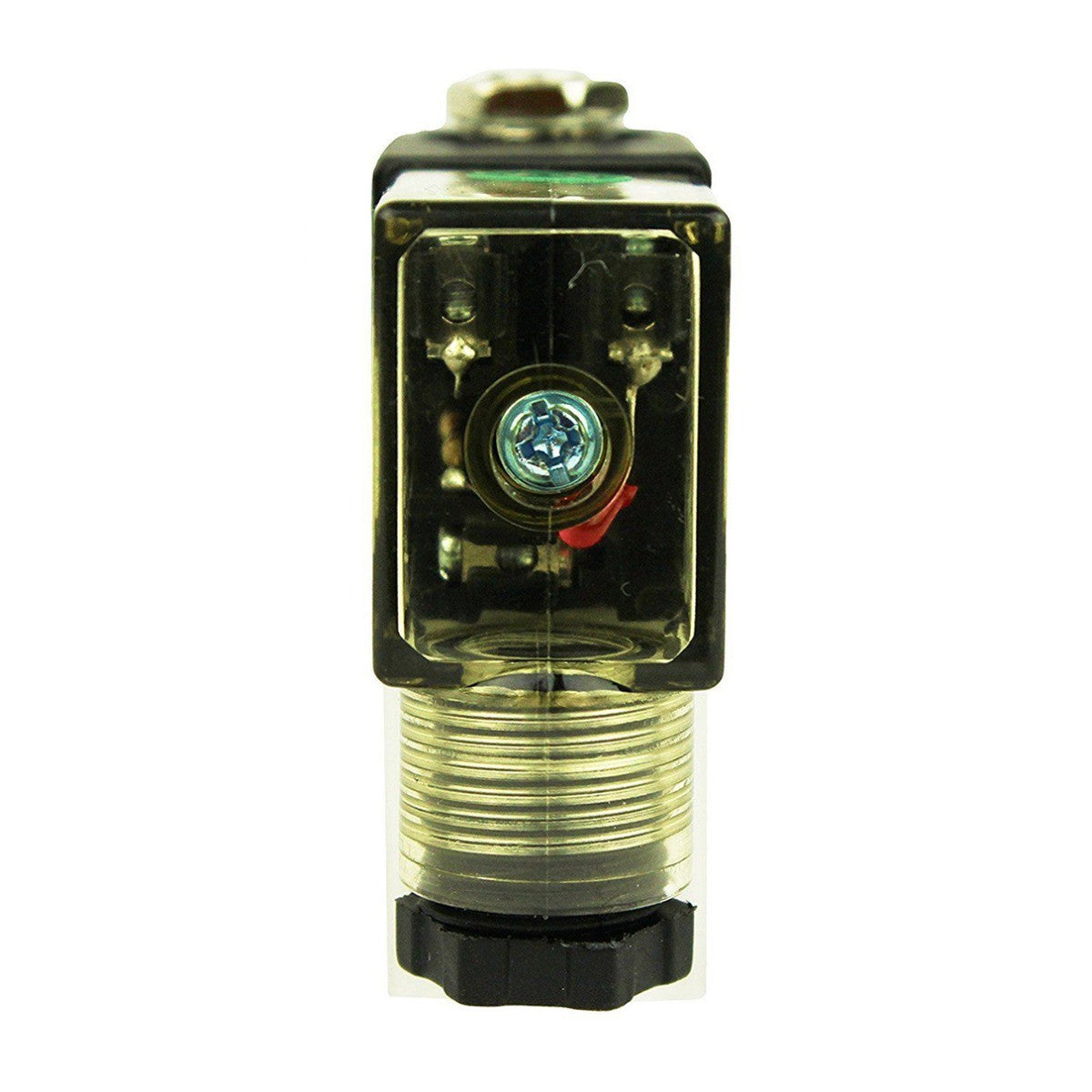

U.S. Solid pneumatic valves are reliable, low power consuming, and have long life. They are have prewired connections that makes installation, maintenance, and control easy.
Specification
Model: USS-PSV00045

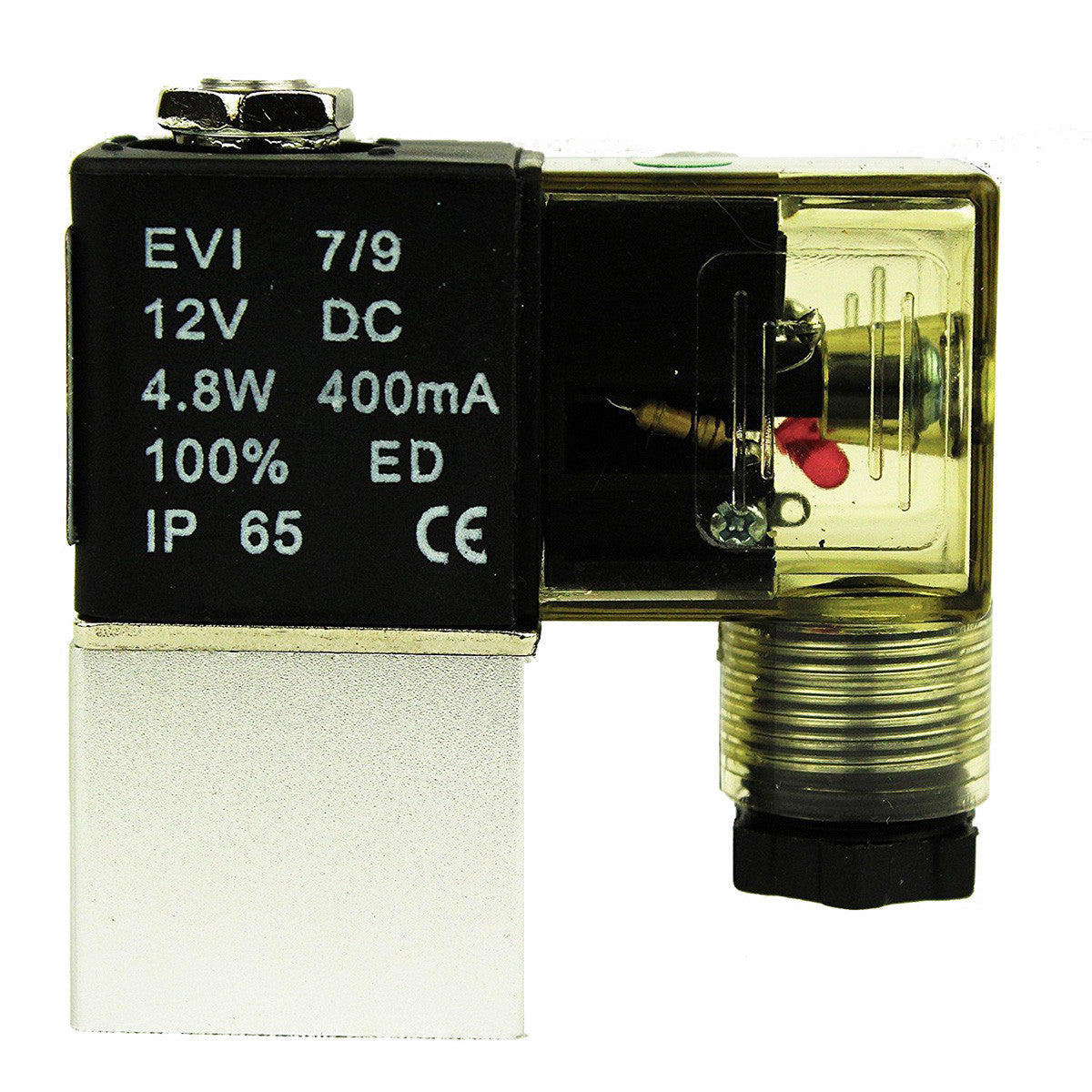

Rated voltage: 12V DC, ±10%
Power Rating: 4.5 W
Valve Type: 2 Position 2 Way
Size: 1/4"
Aperture: 2.5 mm
Flow Value: 0.23 Cv
Material: Aluminum Alloy
Operation/ Property: Normally Closed
Applicable Media: Filtered Air
Insulation & Protection: Class F; IP 65
Working Pressure: 0.15 ~ 0.8 Mpa
Max. Pressure Resistance: 1.2 Mpa
Operation Temperature: -5°C ~ 60°C
Direct Operated/ Pilot Operated: Direct Acting
Thread Type: NPT
