INTRODUCTION

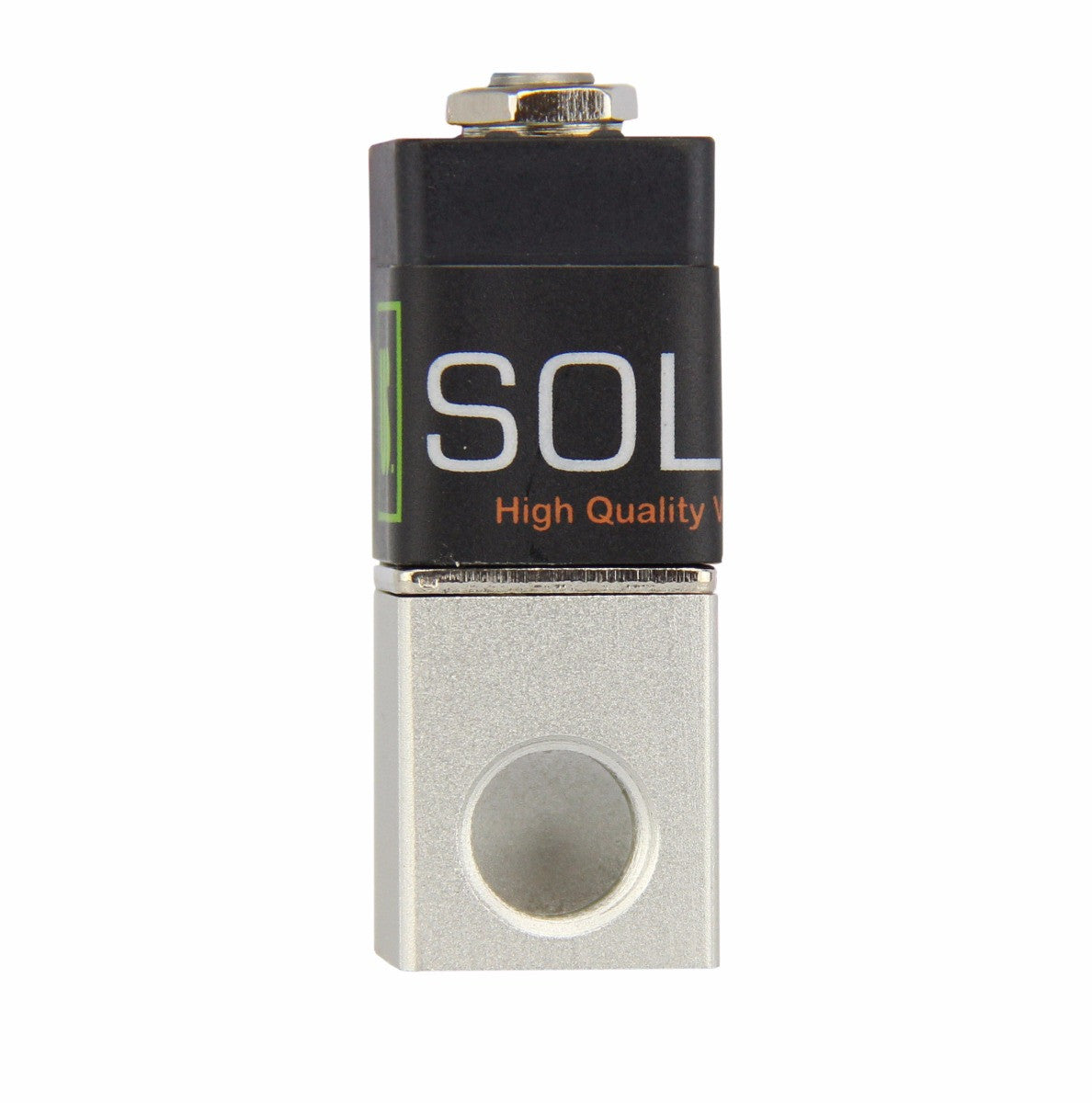

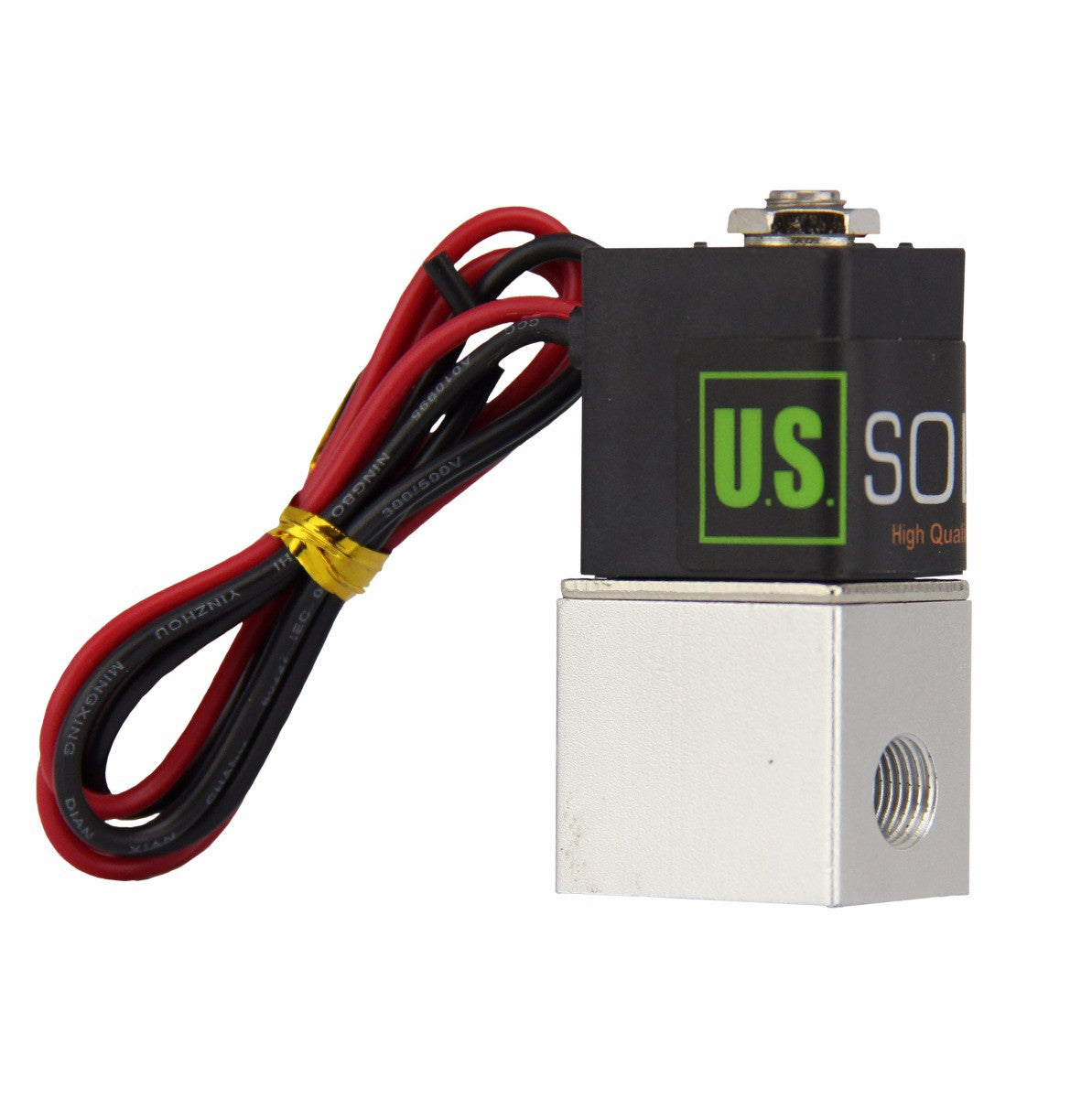

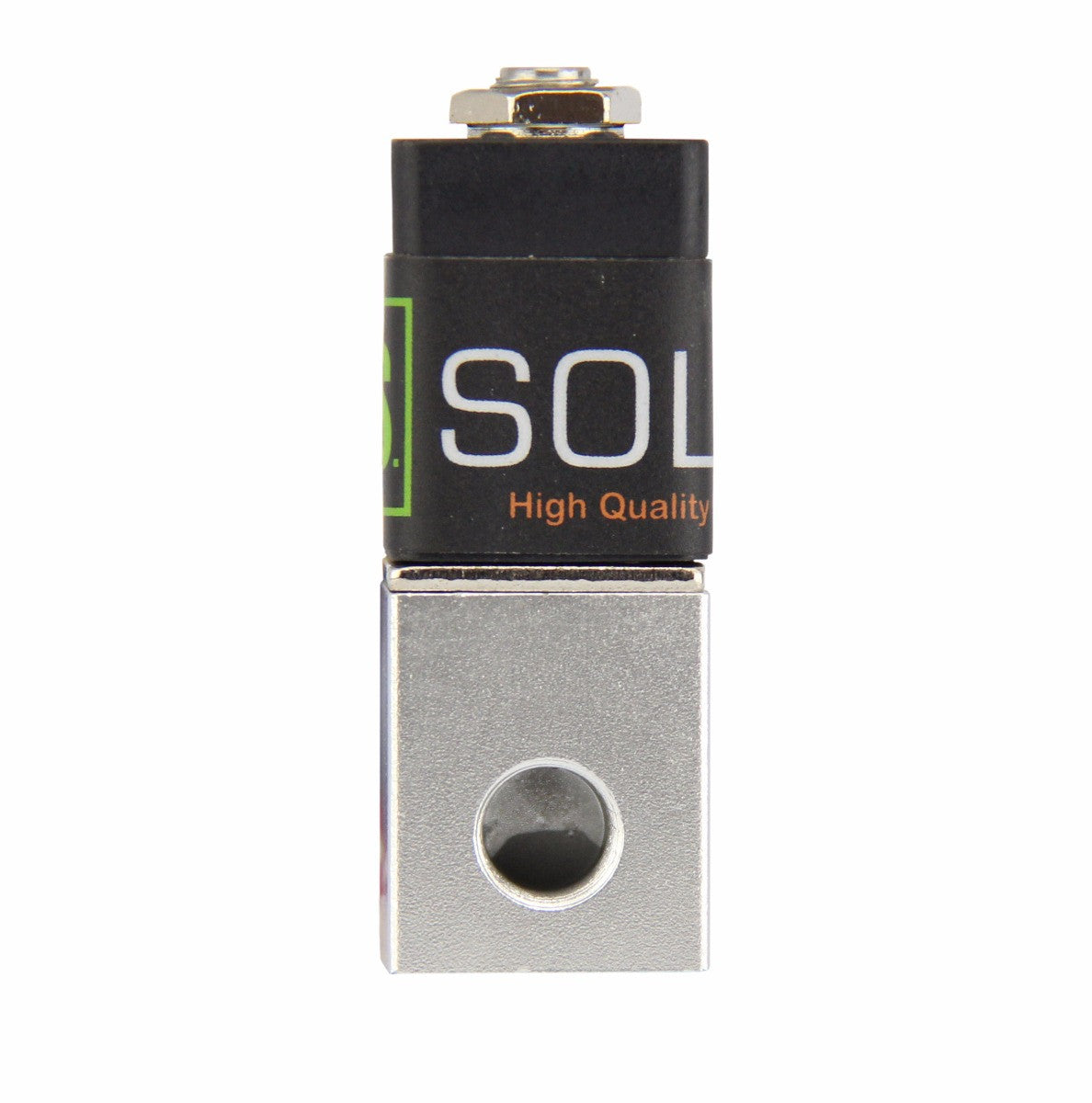

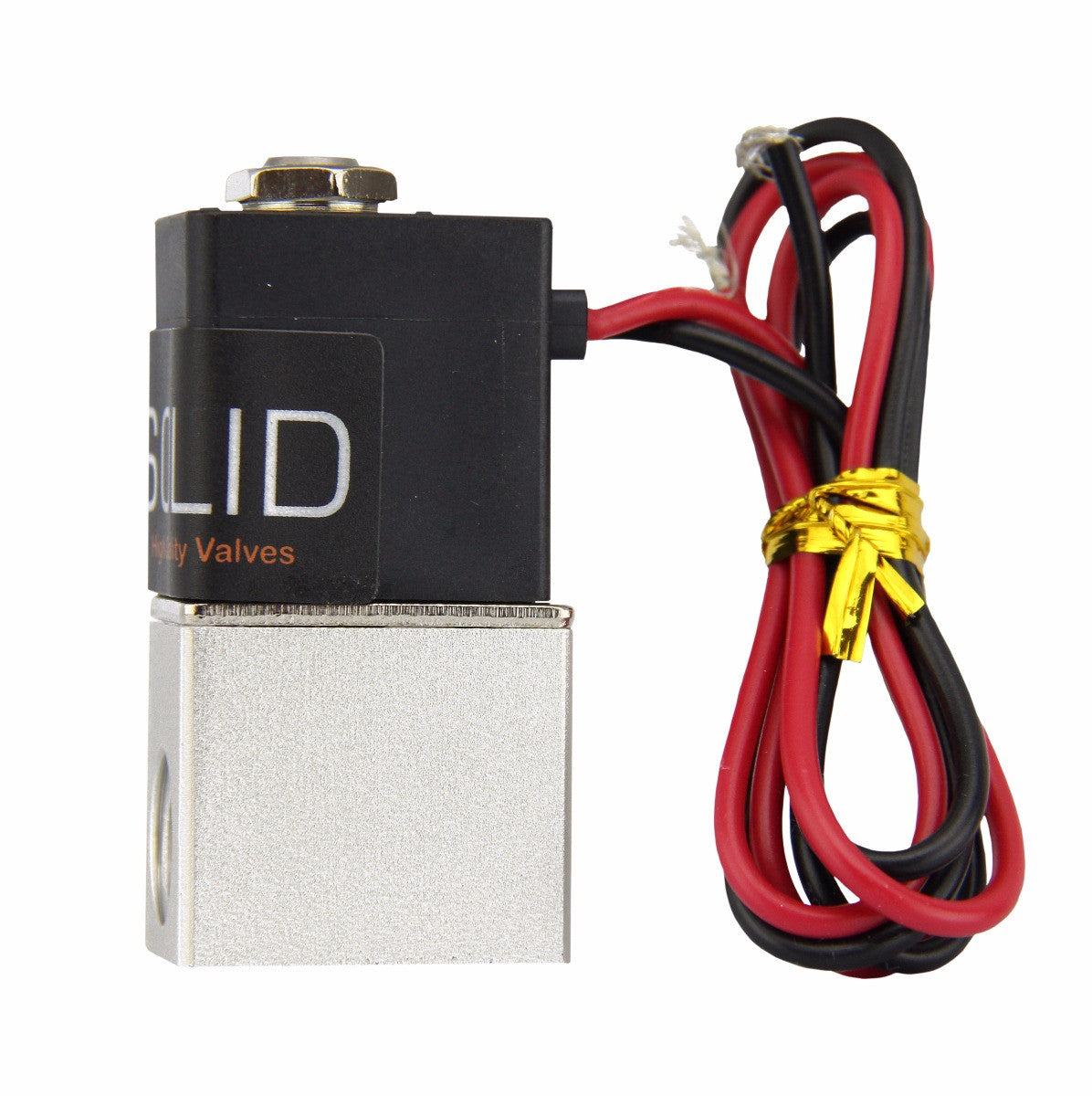

The U.S. SOLID 2 Way 2 Position Pneumatic Electric Solenoid Valve is a state - of - the - art 2/2 pneumatic valve. It can block or open air flow and is made of aluminum alloy.A pneumatic valve switches air to pneumatic devices like actuators. It allows a small signal to control a large device, and interfaces between electronic controllers and pneumatic systems for controlling position, flow, pressure, and temperature.Pneumatic valves are applied in multiple industries. Aircrafts use them for windshield anti - icing and rain removal, and food and beverage manufacturers use them in production processes.U.S. SOLID pneumatic valves are reliable, low - power consuming, and long - lasting, with prewired connections for easy installation, maintenance, and control.
FEATURES
APPLICATIONS
SPECIFICATIONS

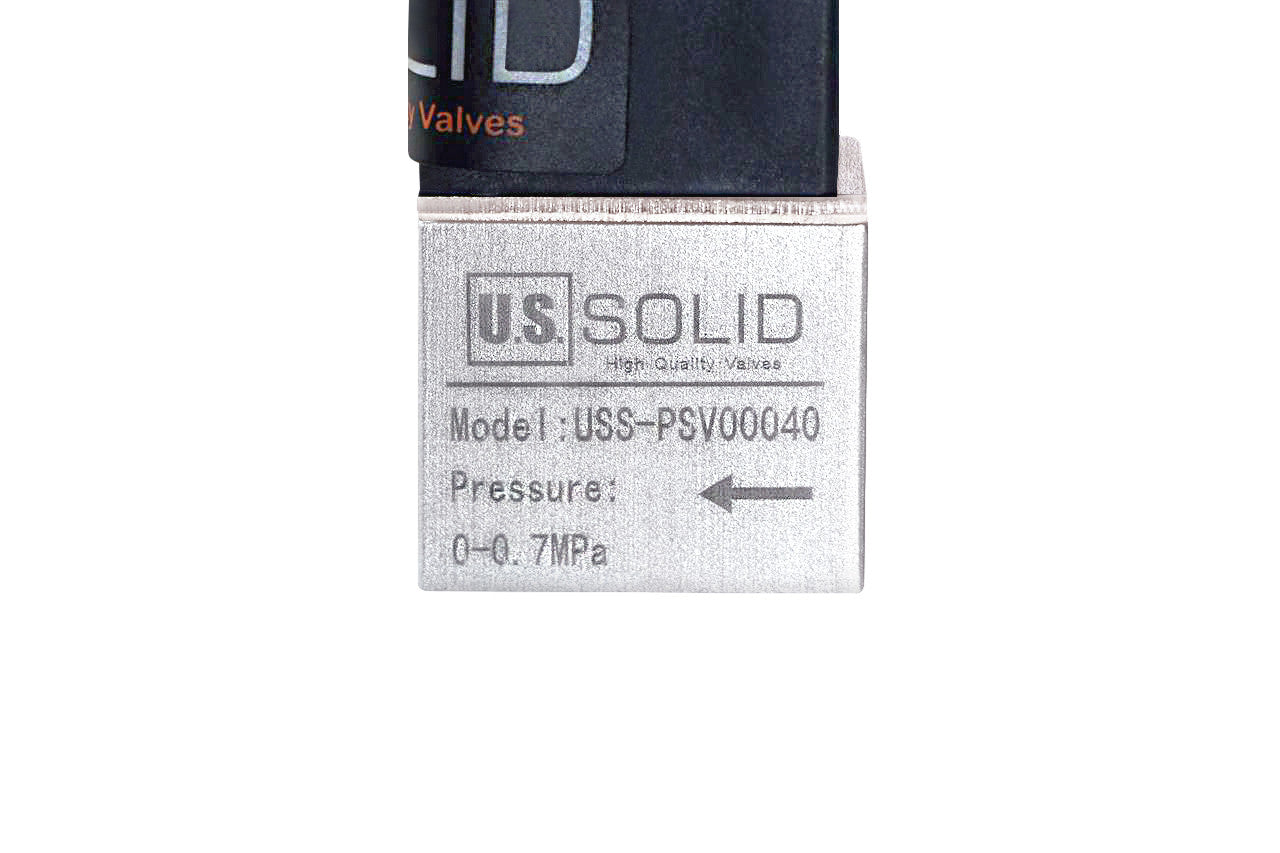

| Model | USS-PSV00040 | Brand | U.S. Solid |
|---|---|---|---|
| Size | 1/4" | Flow Aperture | 2.5 mm |
| Valve Material | Aluminum Alloy | Valve Type | 2 way 2 position |
| Rated Voltage | DC 12V ± 10% | Current | 0.2 A |
| Power Rating | 4.8 W | Applicable Media | Filtered Air |
| Level of protection | IP65 | Flow Value | 0.23 Cv |
| Working Pressure | 0-0.8 MPa | Operating Temperature | -5°C ~ 50°C |
| Maximum Operational temperature | NPT | Operating State | Normally Closed |
HOW to WIRE

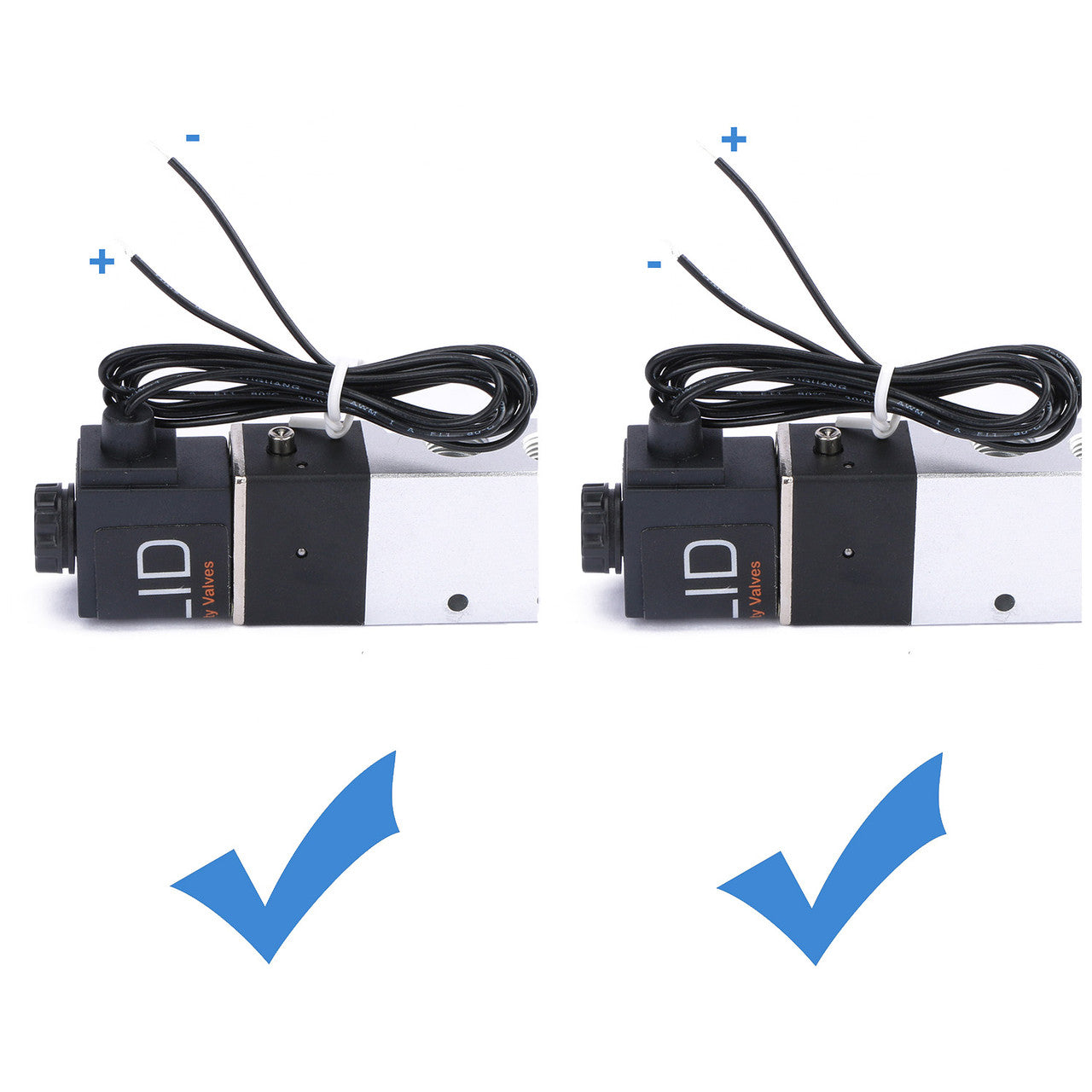

The product uses junction box wiring, and there is no need to distinguish between positive and negative poles—simply connect the wiring to the power supply.
Valve Attributes
Ingress - Protection Rating:
The valves have an ingress - protection rating of IP65. The first digit 6 indicates complete dust - tightness. The second digit 5 means protection against water jets from any direction. They are suitable for a variety of complex environments, effectively resisting the intrusion of dust and water to ensure reliable operation.
FAQ
1. What is the Waterproof Rating of this valve?
The motor's housing is rated at IP65 for ingress protection. If permanently installed outdoors, it is recommended to place it under a shelter or in a protective box to prevent prolonged exposure to rain.
2. Can these solenoid valves be used continuously for extended periods?
These valves should be energized for less than 8 hours. While most do not exceed 18W of power, the coils are in a contained area and can burn out if energized for too long. We recommend using a computer fan to keep the coil cool if continuous operation is necessary.
3.How long should you wait between two consecutive five-hour uses of our solenoid valve?
It is recommended to allow about 20 minutes of cooling time between two consecutive 5-hour operating sessions. The exact cooling time may vary depending on ambient temperature and operating conditions.
4.Can this be used for Drinking Water?
YES. This motorized ball valve is made of Aluminum Alloy, which is lead - free and suitable for use in drinking water systems.
5.Can it be used outdoors?
While the solenoid valves have an IP65 rating, making them resistant to water spray, it is recommended to enclose the valve in a protective housing if permanently installed outdoors to ensure long-term durability.
Download user manual here.
- Reviews
- Questions
Decent quality solenoid valves
I've used this brand extensively and had good luck with their solenoids. This one is no different. I think I had to return a single one that arrived broken out of a larger order a few years back because it didn't work, but I've had them work successfully over a long period of time in woodshop environments and other dusty, contaminated locations. I do supply dry, filtered air. Read more
Works just as it��s supposed to.
It seems to work well, just not enough air flow for train horns. I may use it for something else. Perhaps a drain for my air tank? Read more
