Introduction

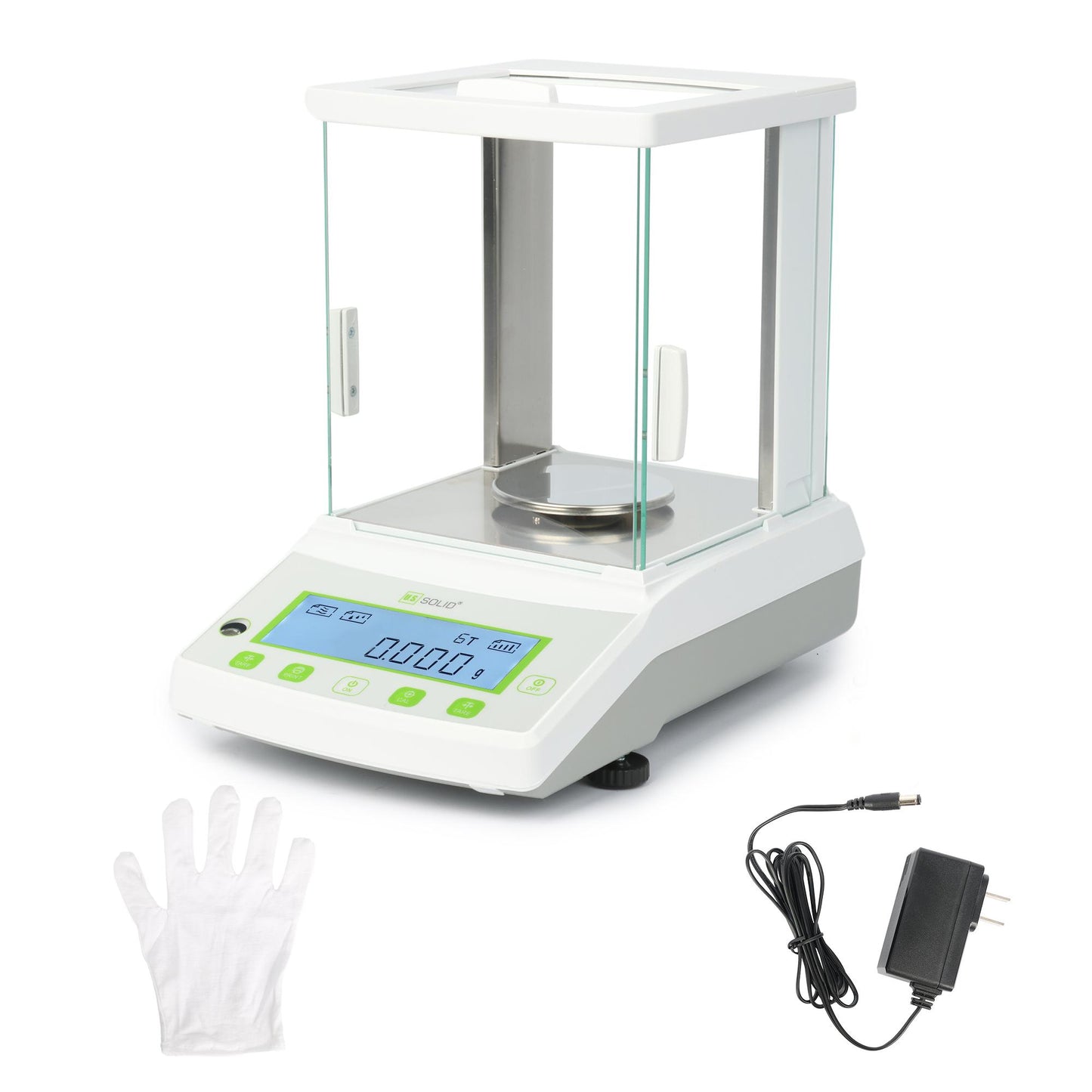

The USS-DBS73 Series Precision Balances are precision instruments designed for accurate weighing of small samples. With a maximum capacity ranging from 520g to 1000g and a readability of 1mg, these balances are widely used in scientific and industrial applications. Their robust construction features a cast aluminum alloy lower housing, plastic top housing, removable stainless steel weighing pan, and glass draftshield, ensuring durability and consistent performance. Equipped with functions such as simple weighing, piece counting, and percent weighing, they are ideal for weighing powders, solids, and liquids.
Applications
Features
- Readability: 1mg with electromagnetic force sensor
- Capacity: 20mg-1000g
- Stabilization Time: ≤3 seconds
- RS232 Interface: Enables connection to a printer or a computer for data transfer.
- External Calibration: Manual calibration with weights
- 4 Weighing Units Conversion: g, oz, ct, mg
- Built-in Applications: Piece counting, percentage weighing, tare function, overload protection, and density determination.(The density determination kit is not included in the set)
More Details
User Manual
To learn how to install, calibrate, set up, and use this product, please refer to the user manual.
Packing List
| ① | Balance Main Body | ② | Power Cable | ||
| ③ | Instruction Manual | ④ | Weighing Pan | ||
*To view the full table on mobile, please swipe left or right on the screen.
Technical Data
| Model | USS-DBS73-10 | Windshield | Yes | ||
| Weighing Sensor | Electromagnetic force | Stabilization Time | ≤3s | ||
| Calibration | External calibration | Calibration Weight | No | ||
| Capacity | 20mg-1000g | Units | g, oz, ct, mg | ||
| Readability | 1mg | Interface | RS232 | ||
| Repeatability | ±2mg | Power | AC100-240V 50/60Hz | ||
| Working Temperature | 59°F-86°F | Display Qty | 1 | ||
| Linearity | ±3mg | Packaging Dimensions | 16.34"x12.99"x17.91" | ||
| Pan Size | Φ90mm | Gross Weight | 15.28 lbs | ||
*To view the full table on mobile, please swipe left or right on the screen.
Precautions
- Leveling the Balance: Accurate horizontal positioning necessary for repeatable measurementsand exact results. Adjust the leveling feet of the analytical balance until the air bubbleinthe indicator is centered.
- Warm-Up Requirement: For accurate results, the balance must warm up for at least 30 minutes after being powered on or after a power outage longer than 30 minutes, to reach the proper operating temperature before calibration or use.(For warm-up time details, refer to the user manual or contact support.)
- Stability: Place the balance on a stable, vibration-free surface, away from drafts and electromagnetic interference. It's important to note that high-precision balances are more susceptible to environmental factors, which can affect reading stability.
- Calibration: Calibrate the balance if it is moved (even within the same room), when ambient conditions change, and before each use. If pressing the "CAL" button has no effect, ensure you are pressing and holding it. For most models, calibration requires a long press rather than a quick tap.(Refer to the manual for specific instructions).
Troubleshooting
| Problem | Cause | Solution | |||
| Display not working | No power supply | Plug in the adapter | |||
| Fuse Damaged | Replace fuse | ||||
| Damaged Transformer | Replace the power transformer. If problem persists, send to Technical Services for repair. | ||||
| Unstable display | Poor working conditions | Seek somewhere withless vibration and/or airflow | |||
| Wind or drafts affecting readings | Check to make sure draft shield is closed tightly | ||||
| Scale pan unsteady | Remove the pan and clean the surface of the balance well, making sure there are no lingering items | ||||
| Power exceeds permissible value | RConnect balance to power supply 110-220V AC | ||||
| Displayed mass is not the same as true mass | Balance has not been calibrated | Double check calibration, internal and/or external | |||
| Receptacle not being considered | Make sure the receptacle has been tared out | ||||
| Uneven surface | Make sure balance is ona flat, even surface | ||||
All Options
| Units | Readability | Model | Calibration | Calibration Weight | Capacity | Repeatability | Linearity | Pan Size | Interface | Stabilization Time | Power Supply |
| 4 types | 0.1mg | USS-DBS72-1.2 | external calibration | 100g*1 | 10mg-120g | ±0.1mg | ±0.2mg | Φ90 mm | RS232 | ≤3s | AC110-240V |
| USS-DBS72-1.2-IC | internal calibration | no | |||||||||
| USS-DBS72-2.2 | external calibration | 200g*1 | 10mg-220g | ||||||||
| USS-DBS72-2.2-IC | internal calibration | no | |||||||||
| USS-DBS72-3.2 | external calibration | 200g*1 | 10mg-320g | ||||||||
| USS-DBS72-3.2-IC | internal calibration | no | |||||||||
| 1mg | USS-DBS73-5.2 | external calibration | 200g*1 | 20mg-520g | ±2mg | ±3mg | |||||
| USS-DBS73-10 | no | 20mg-1000g | |||||||||
| * 4 Types: g, oz, ct, mg | |||||||||||
