U.S. Solid

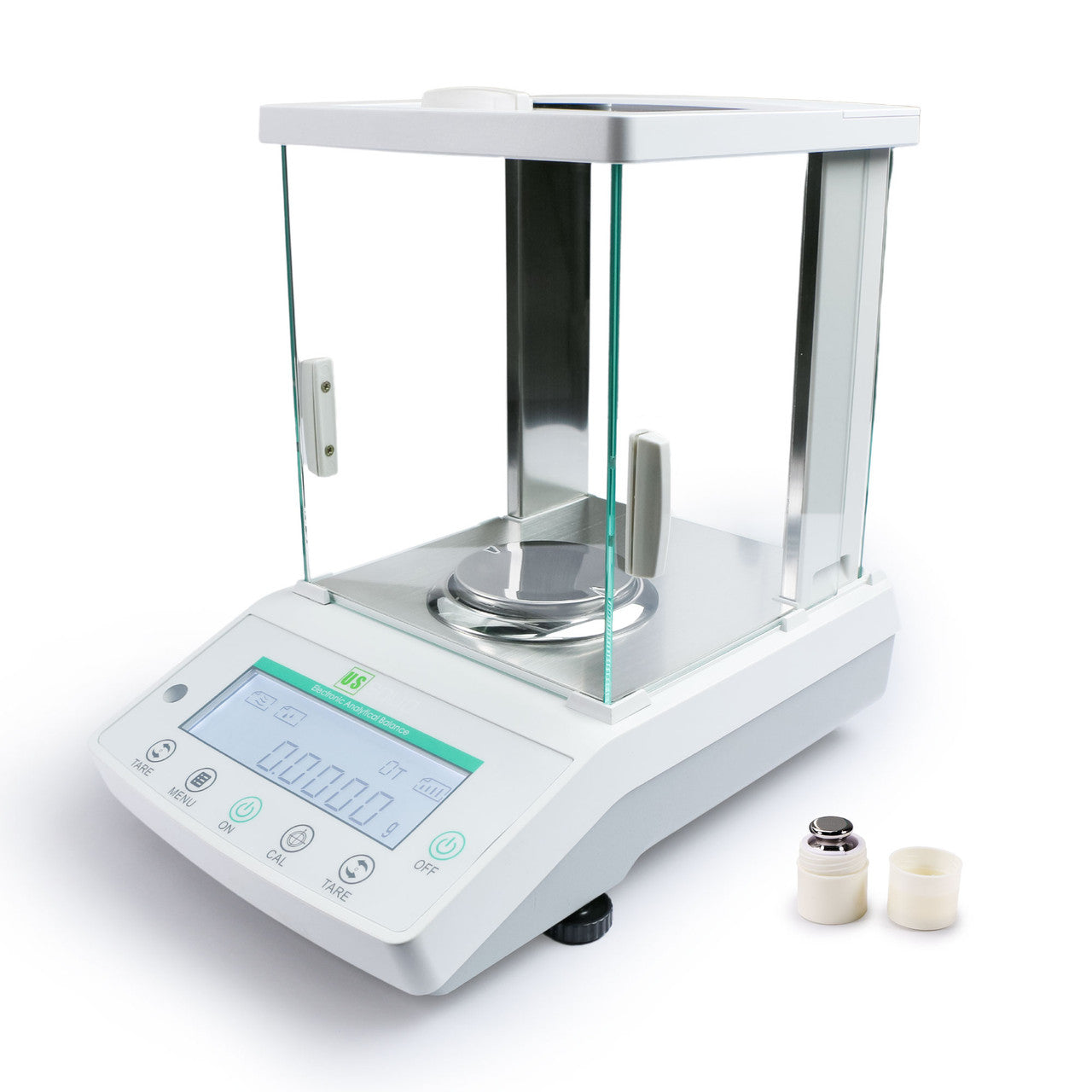

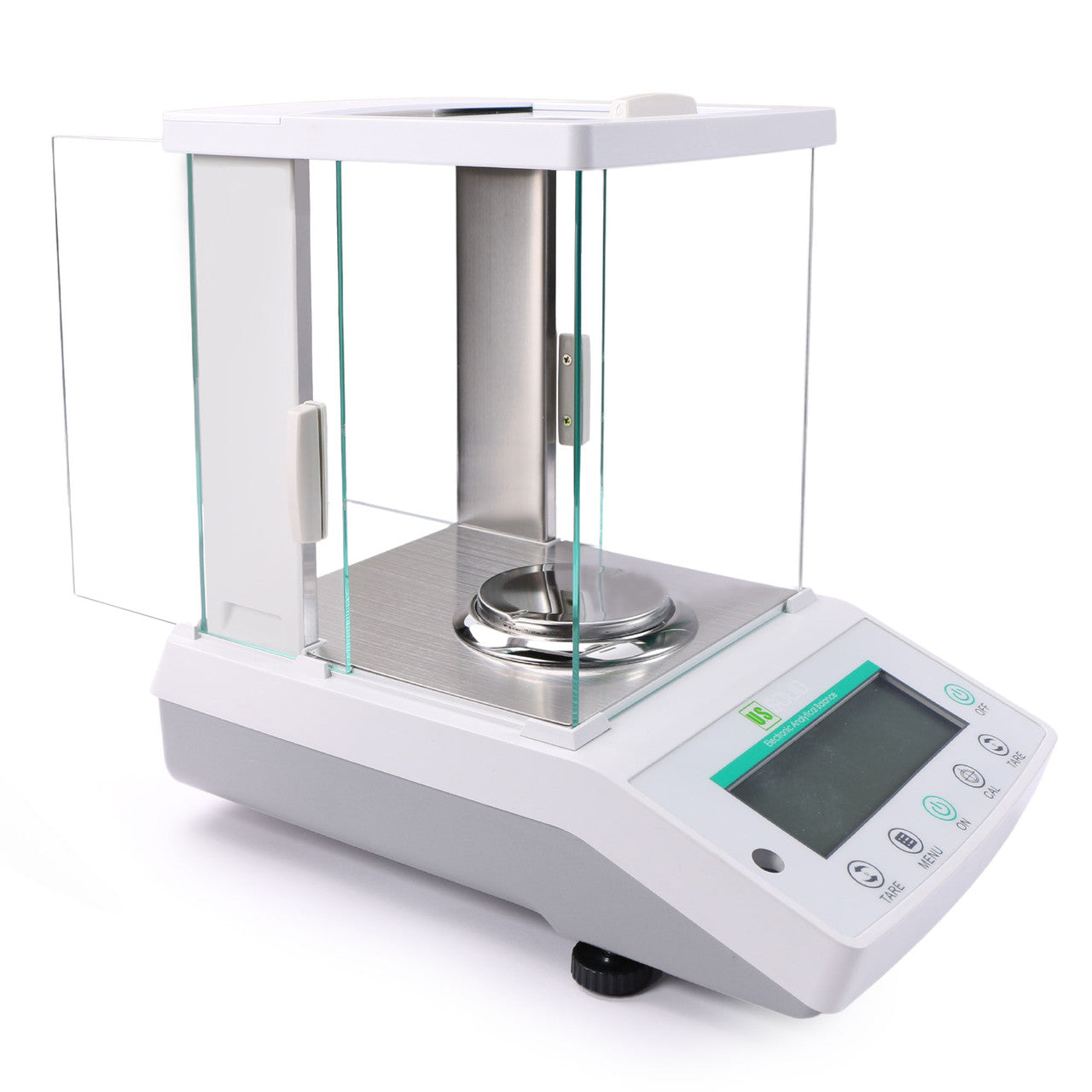

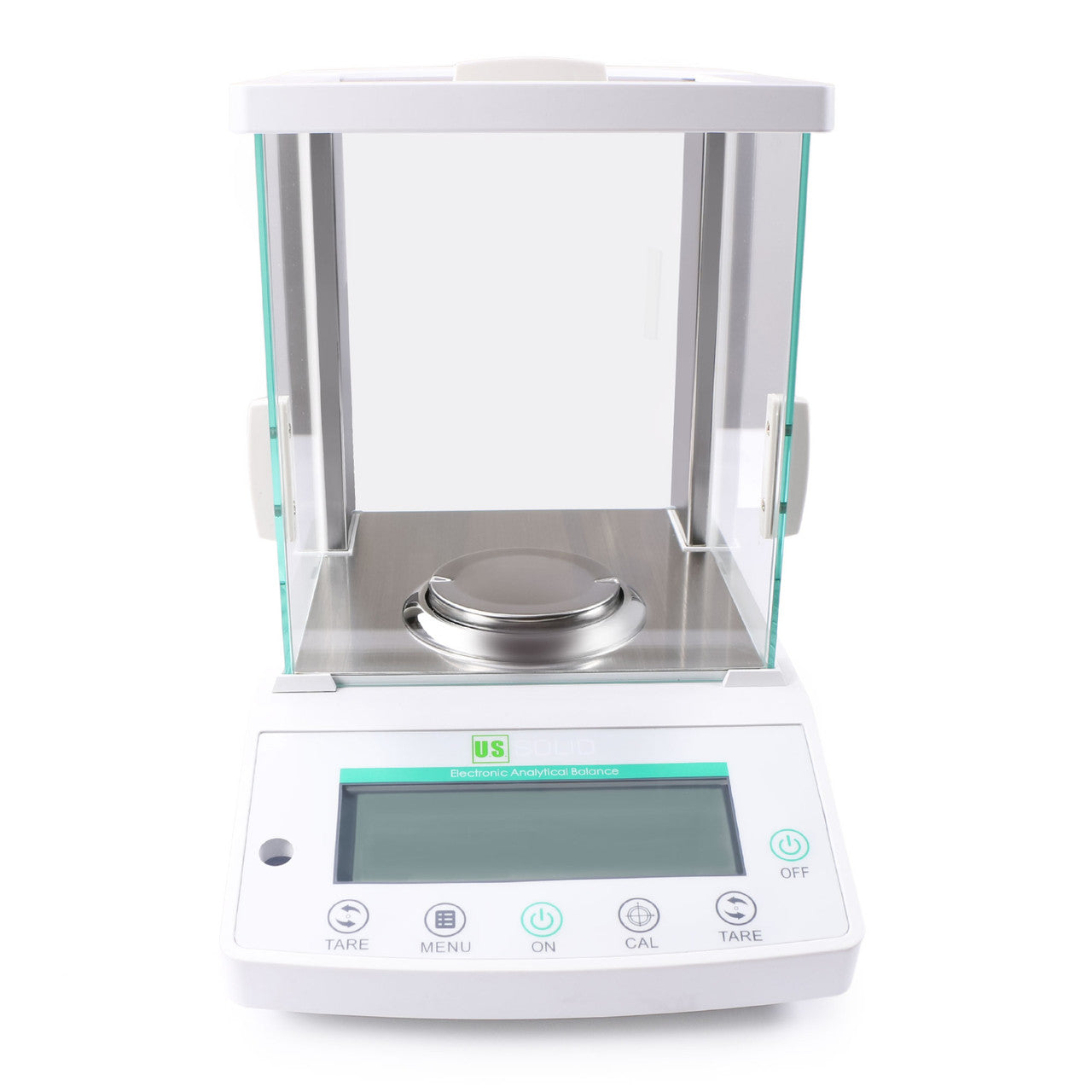

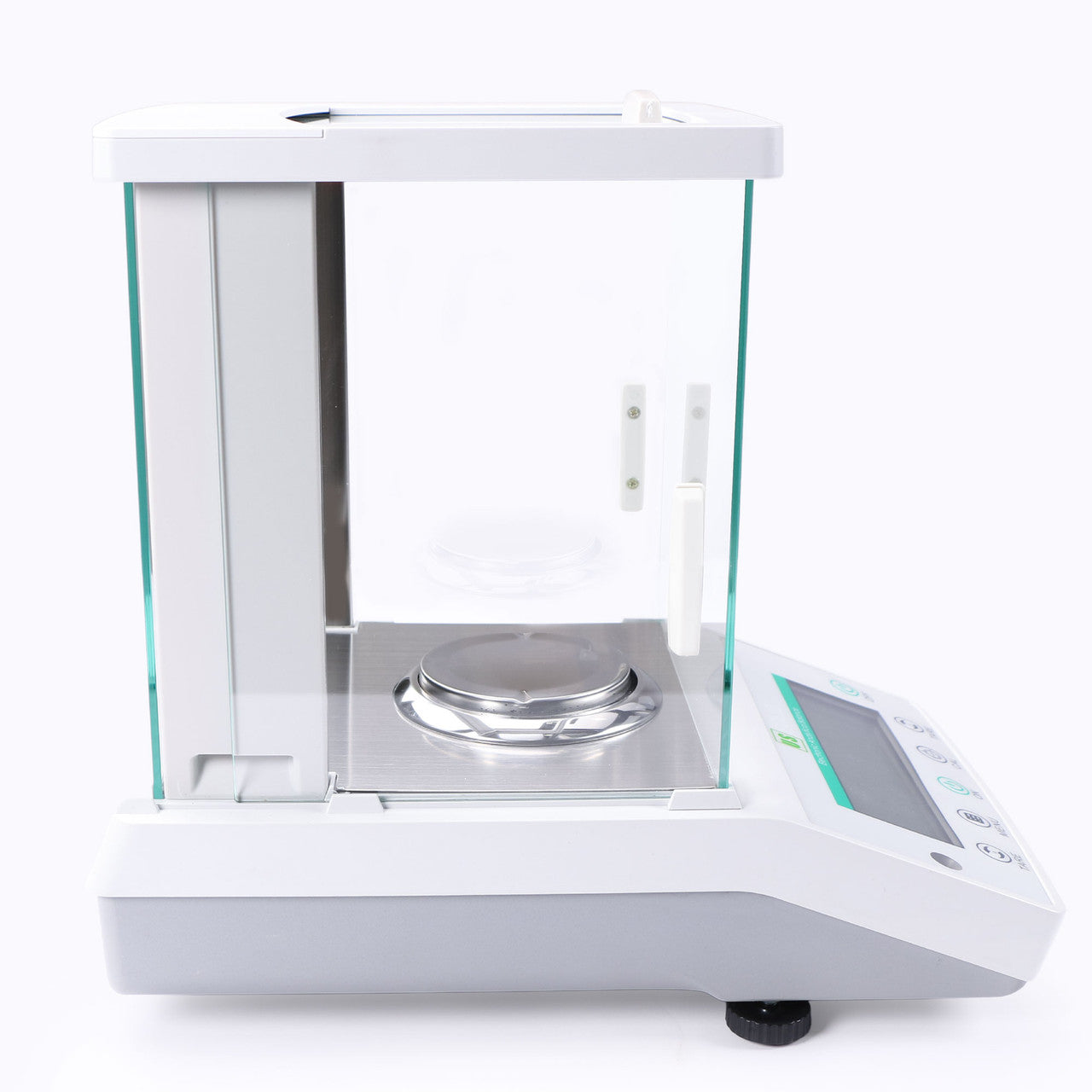

U.S. Solid 120 x 0.0001g Analytical Balance, 0.1 mg Lab Balance Digital Precision Scale - for Powder Types & Liquid

U.S. Solid 120 x 0.0001g Analytical Balance, 0.1 mg Lab Balance Digital Precision Scale - for Powder Types & Liquid

SKU: Product SKU: JFDBS00056-120G

21 in stock

Regular price $399.00 USD
Regular price Sale price $399.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
Responsive Page with Multiple Modules Desktop Image 1 Desktop Image 2

Introduction

The U.S. Solid USS-DBS56-1.2 Analytical Balance offers exceptional precision with 0.0001g accuracy and a 10mg to 120g capacity. Built with durable, high-quality materials, it is easy to use and highly sensitive, allowing for quick and efficient weighing of samples. Utilizing electromagnetic force compensation technology, it ensures reliable measurements for various laboratory applications. The balance also features an RS-232 port for convenient data transfer and supports a range of functions, including underhook weighing, to meet diverse laboratory needs.

Applications

Desktop Image 1 Desktop Image 2

Features

  • Readability: 0.0001g (0.1mg) with electromagnetic force compensation technology.
  • Capacity: 10mg - 120g
  • Stabilization Time: 3-5 seconds

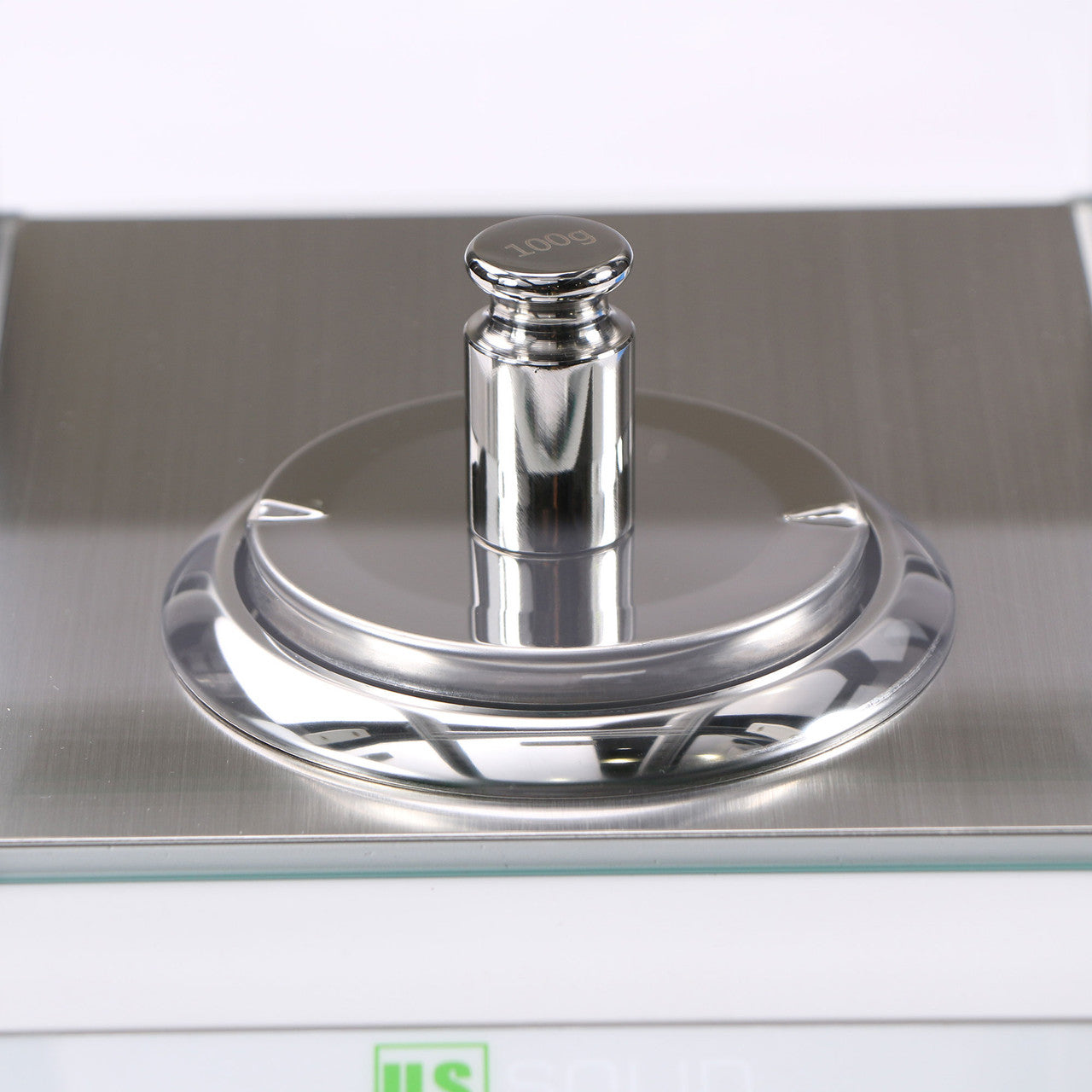

  • External Calibration: Manual calibration with weights

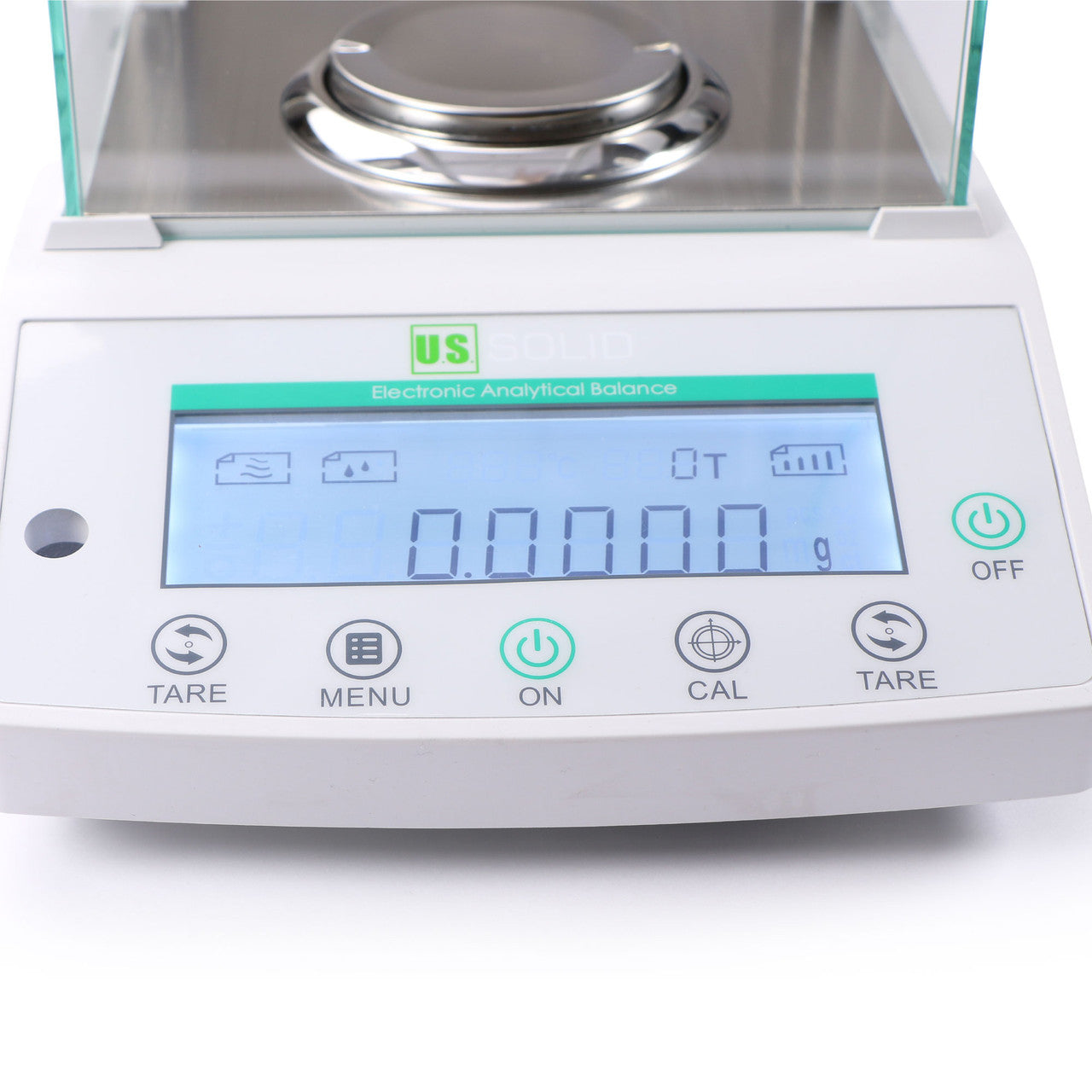

  • Four Weighing Units Conversion: g, mg, oz, ct

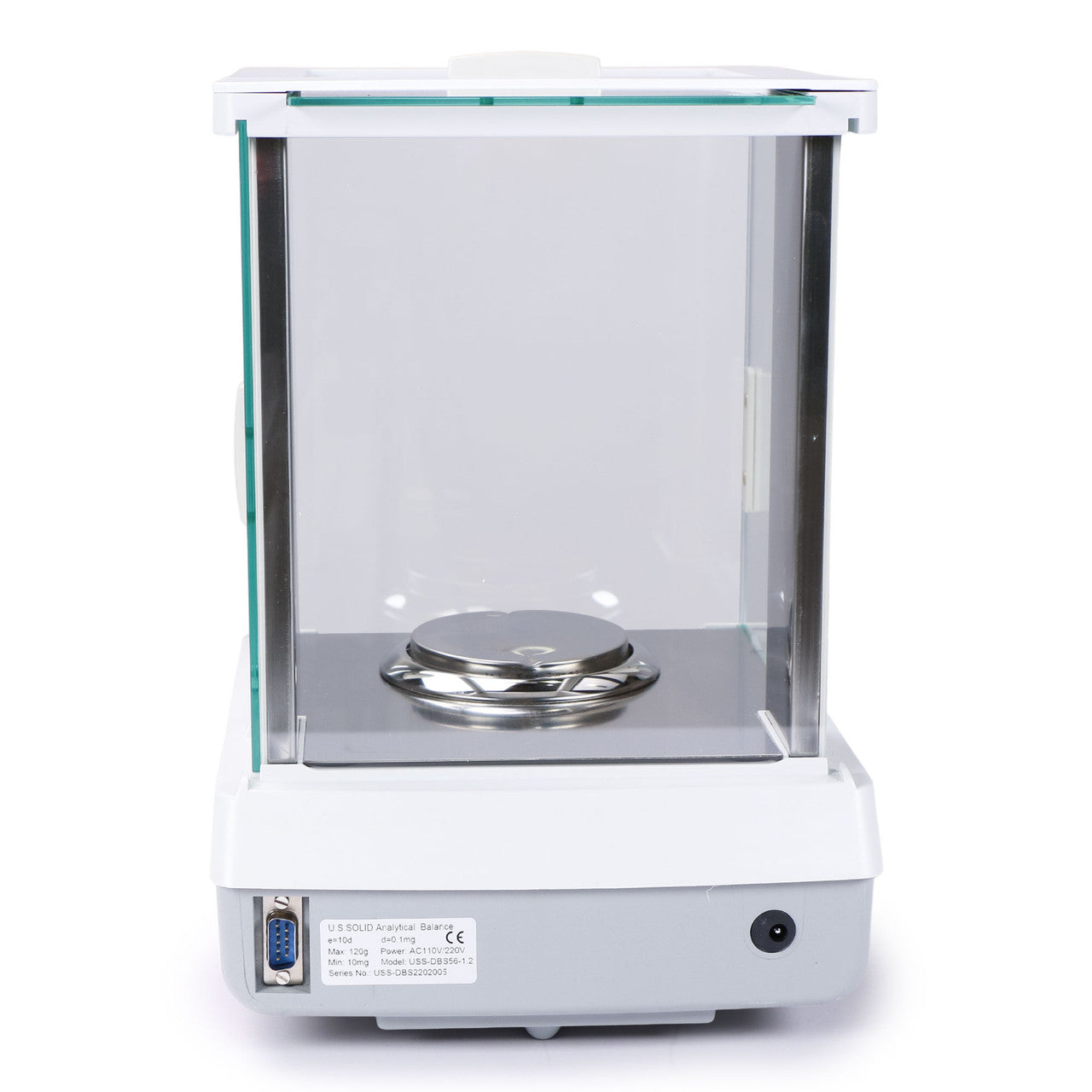

  • RS232 Interface: Enables connection to a printer or a computer for data transfer.
  • Multifunction: This balance offers multiple tares, overload protection, piece counting, and percentage weighing functions.

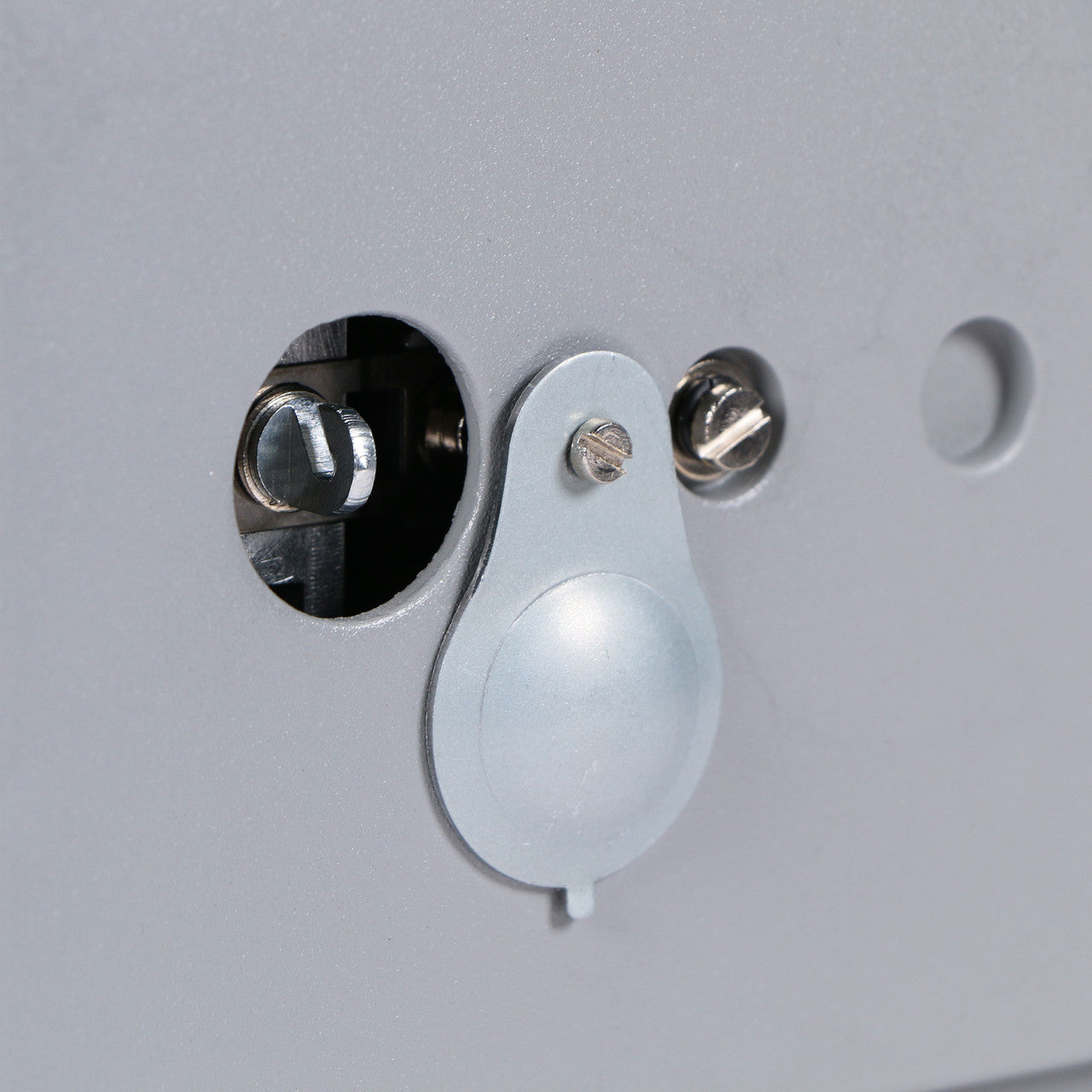

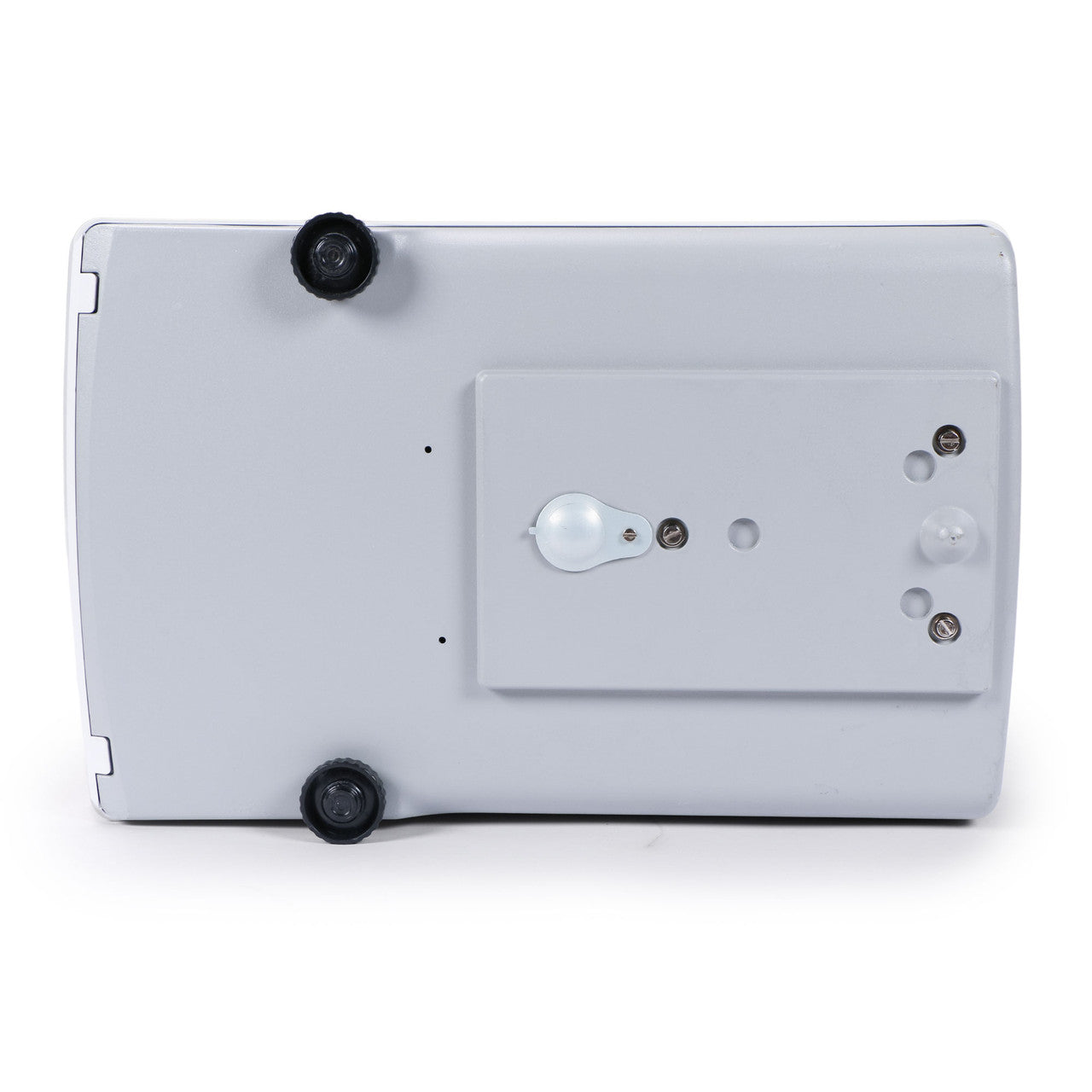

  • Underhook Weighing: Easily determine the mass of liquids, unstable samples, and other challenging substances—ideal for density calculations. (Includes a built-in hook for attaching custom hanging tools; sample hooks not included.)
  • Powered by AC (100V-240V)

More Details

Desktop Image 1 Desktop Image 2

User Manual

To learn how to install, calibrate, set up, and use this product, please refer to the user manual. For guidance on connecting the balance to a computer or a printer for data output, please watch our instructional video.

Packing List

Balance Main Body Power Cable
Calibration Weight (100g) Instruction Manual
Draft Shield Weighing Pan

*To view the full table on mobile, please swipe left or right on the screen.

Technical Data

Model USS-DBS56-1.2 Working Temperature 63.5℉ - 72.5
Weighing Sensor Electromagnetic Force Stabilization Time 3-5 s
Calibration External calibration Calibration Weight 100g*1
Capacity 10mg-120 g Units g, mg, ct, oz
Readability 0.0001g Interface RS232
Repeatability ±0.2mg Power AC100-240V 50/60Hz
Linearity ±0.3mg Packaging Dimensions 16.54"x14.17"x16.93"
Pan Size Φ80 mm Gross Weight 16.25 lbs
Number of Displays 1 Windshield Yes

*To view the full table on mobile, please swipe left or right on the screen.

Precautions

  • Leveling the Balance:Accurate horizontal positioning necessary for repeatable measurementsand exact results. Adjust the leveling feet of the analytical balance until the air bubbleinthe indicator is centered.
  • Warm-Up Requirement:For accurate results, the balance must warm up for at least one hour after being powered on or after a power outage longer than 30 minutes, to reach the proper operating temperature before calibration or use.
  • Stability:According to different operating environments, the balance is kept inarelatively stable state by adjusting its stability.
  • Calibration:Calibrate the balance if it is moved (even within the same room), when ambient conditions change, and before each use.

Troubleshooting

Problem Cause Solution
Display not working No power supply Plug in the adapter
Fuse damaged Replace the fuse
Damaged transformer Replace the power transformer. lf problem persists, send to Technical Services for repair.
Unstable Display Poor working conditions Seek somewhere with less vibration and/or airflow
Wind or drafts affecting readings Check to make sure draft shield is closed tightly
Scale pan unsteady Remove the pan and clean the surface of the balance well, making sure there are no lingering items
Power exceeds permissible value Connect balance to power supply AC110-220V
Displayed mass is not the same as true mass Balance has not been calibrated Double check calibration, internal and/or external
Receptacle not being considered Make sure the receptacle has been tared out
Uneven surface Make sure balance is on a flat, even surface

All Options

Readability Units Model Capacity Calibration Weight Calibration Draft Shield Stabilization Time Pan Linearity Repeatability Power Supply Interface
0.0001g 4 types USS-DBS56-1.2 10mg - 120g 100g*1 External calibration yes 3-5 s Φ80mm ± 0.3mg ± 0.2mg AC100-240V RS232
USS-DBS56-2.2 10mg - 220g 200g*1
USS-DBS56-3.2 10mg - 320g
* 4 Weighing Units Conversion: g, mg, oz, ct
