Introduction

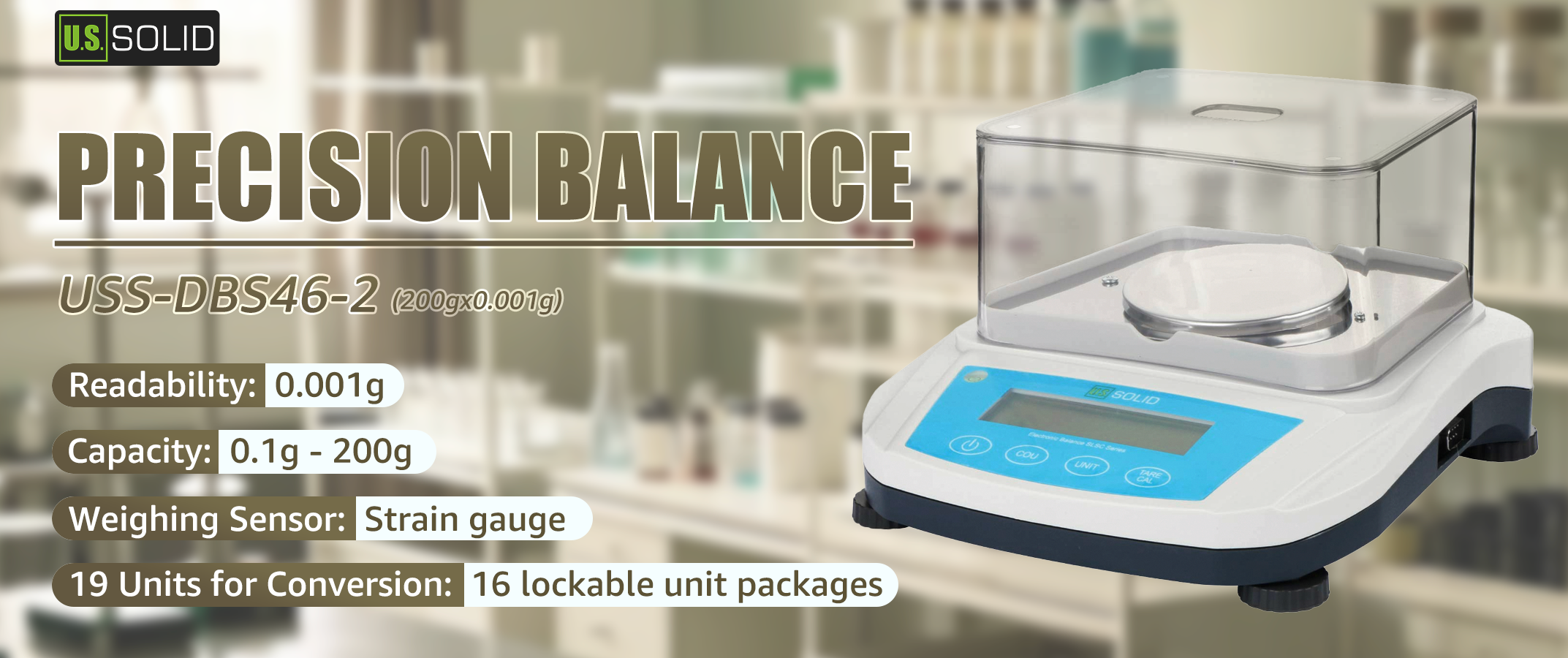

The USS-DBS46-2 precision balance offers a 200g capacity and 0.001g readability, designed for moderate to high precision applications. It features a strain gauge sensor for reliable results, a backlit LCD for clear readings. This model supports AC power and includes an RS232 interface for data transfer. Additionally, it comes with a draft shield to reduce environmental interference and ensure consistent weighing accuracy.
Applications
Features
- Readability: 0.001g with strain gauge
- Capacity: 20mg-200g
- Stabilization Time: ≤1.5 seconds
- External Calibration: Manual calibration with weights
- RS232 Interface: Enables connection to a printer or a computer for data transfer.
- Built-in Applications: Piece counting function, tare function, over load protection, percentage function, fault display and etc.
- 19 Weighing Units Conversion: g, kg, ct, T, TAR, dr, PKT, GN, TMR, gsm, tlJ, mo, dwt, oz, lb, tlT, ozt, tlH, %.(In addition, 16 different built-in unit packages are lockable, e.g., you can lock g,t,ct,oz,lb and hide other uncommon units.)
More Details
User Manual
To learn how to install, calibrate, set up, and use this product, please refer to the user manual.
For more information on RS232, please click here.
Packing List
| ① | Balance Main Body | ② | Power Cable | ||
| ③ | Plastic Dust Cover | ④ | Instruction Manual | ||
| ⑤ | Calibration Weight (100g) | ⑥ | Wind Shield | ||
*To view the full table on mobile, please swipe left or right on the screen.
Technical Data
| Model | USS-DBS46-2 | Working Temperature | 41℉ - 95℉ | ||
| Weighing Sensor | Strain Gauge | Stabilization Time | ≤1.5s | ||
| Calibration | External calibration | Calibration Weight | 100g*1 | ||
| Capacity | 20mg-200 g | Units | g, kg, ct, T, TAR, dr, PKT, GN, TMR, gsm, tlJ, mo, dwt, oz, lb, tlT, ozt, tlH, % | ||
| Readability | 0.001g | Interface | RS232 | ||
| Repeatability | ±0.002g | Power | AC 100V-240V power | ||
| Linearity | ±0.003g | Packaging Dimensions | 11.81"x10.04"x6.69" | ||
| Pan Size | Φ90 mm | Gross Weight | 3.55 lbs | ||
| Number of Displays | 1 | Windshield | Yes | ||
*To view the full table on mobile, please swipe left or right on the screen.
Precautions
- Leveling the Balance: Accurate horizontal positioning necessary for repeatable measurementsand exact results. Adjust the leveling feet of the analytical balance until the air bubbleinthe indicator is centered.
- Warm-Up Requirement: For accurate results, the balance must warm up for at least 30 minutes after being powered on or after a power outage longer than 30 minutes, to reach the proper operating temperature before calibration or use.(For warm-up time details, refer to the user manual or contact support.)
- Stability: Place the balance on a stable, vibration-free surface, away from drafts and electromagnetic interference. It's important to note that high-precision balances are more susceptible to environmental factors, which can affect reading stability.
- Calibration: Calibrate the balance if it is moved (even within the same room), when ambient conditions change, and before each use. If pressing the "CAL" button has no effect, ensure you are pressing and holding it. For most models, calibration requires a long press rather than a quick tap.(Refer to the manual for specific instructions).
All Options (0.01g)
| Units | Readability | Model | Capacity | Calibration Weight | Pan Size | Power Supply | Wind Shield | Interface | Repeatability | Linearity | Stabilization Time |
| 19 types | 0.01g | USS-DBS61-12 | 0.1g-1200g | no | 128x157 mm | AC/DC | no | RS232 | ±0.02g | ±0.03g | ≤1.5s |
| USS-DBS61-22 | 0.1g-2200g | ||||||||||
| USS-DBS61-32 | 0.1g-3200g | ||||||||||
| USS-DBS61-50 | 0.1g-5000g | 143x192 mm | AC | ||||||||
| USS-DBS28-2 | 0.1g-200g | 100g*1 | 128x157 mm | AC/DC | yes | RS232 and USB | |||||
| USS-DBS28-3 | 0.1g-300g | 200g*1 | |||||||||
| USS-DBS28-6 | 0.1g-600g | 500g*1 | |||||||||
| USS-DBS28-10 | 0.1g-1000g | 500g*1 | |||||||||
| USS-DBS28-20 | 0.1g-2000g | 1000g*1 | |||||||||
| USS-DBS28-30 | 0.1g-3000g | 1000g*2 | |||||||||
| USS-DBS28-50 | 0.1g-5000g | no | 143x192 mm | AC | no |
All Options (0.1g/0.001g)
| Units | Readability | Model | Capacity | Calibration Weight | Pan Size | Power Supply | Wind Shield | Interface | Repeatability | Linearity | Stabilization Time |
| 19 types | 0.1g | USS-DBS51-30 | 1g-3000g | no | 143x192 mm | AC | no | RS232 and USB | ±0.2g | ±0.3g | ≤1.5s |
| USS-DBS51-50 | 1g-5000g | ||||||||||
| USS-DBS51-100 | 1g-10kg | ||||||||||
| 0.001g | USS-DBS46-1 | 20mg-100g | 50g*1 | Φ90mm | yes | RS232 | ±0.002g | ±0.003g | |||
| USS-DBS46-2 | 20mg-200g | 100g*1 | |||||||||
| USS-DBS46-3 | 20mg-300g | 200g*1 |
- Reviews
- Questions
Home use of the 200 gm X 0.001 Analytic Balance
The scale was simple to use; the adjustable feet & centering bubble feature allows for making sure the balance is level. I am, confused as to why the display continually flashes a battery pack sign when there are no batteries to the unit, nor does the manual mention batteries as a topic. That part is annoying when using the balance. I am pleased to be able to find a analytical balance with this level of precision for this price with the range of scales of measurements available.
