Introduction

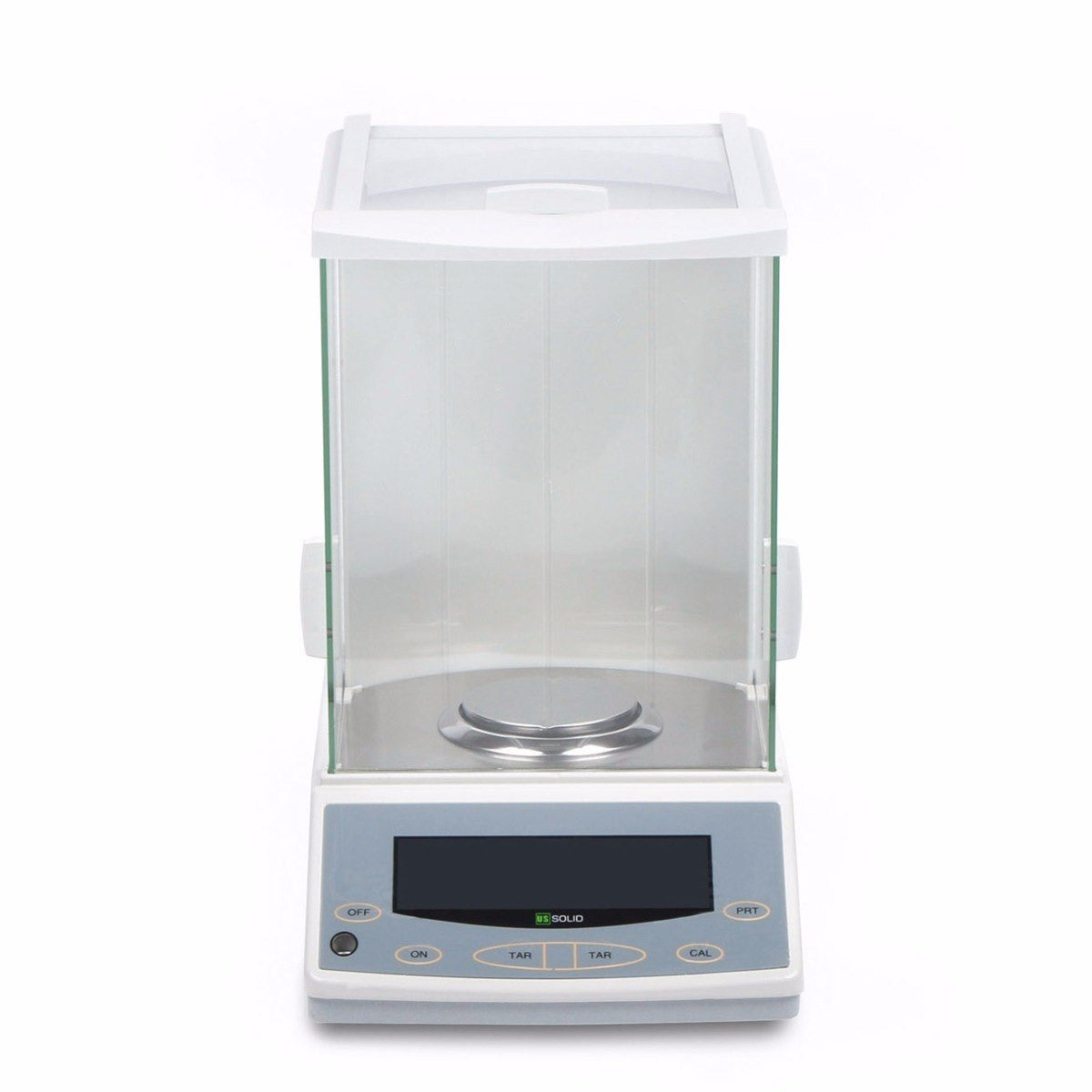

The U.S. Solid USS-DBS10 Analytical Balance offers exceptional precision with 0.0001g accuracy and a 10mg to 220g capacity. Built with durable, high-quality materials, it is easy to use and highly sensitive, allowing for quick and efficient weighing of samples. Utilizing electromagnetic force compensation technology, it ensures reliable measurements for various laboratory applications. The balance also features an RS-232 port for convenient data transfer and supports a range of functions, including piece counting, percentage weighing, dynamic weighing, and density determination, to meet diverse laboratory needs.
Applications
Features
- Readability: 0.0001g (0.1mg) with electromagnetic force compensation technology.
- Capacity: 10mg - 220g
- Stabilization Time: ≤3 seconds
- External Calibration: Manual calibration with weights
- Eight Weighing Units Conversion: g,oz,ct,mg,lb,gn,ozt,dwt

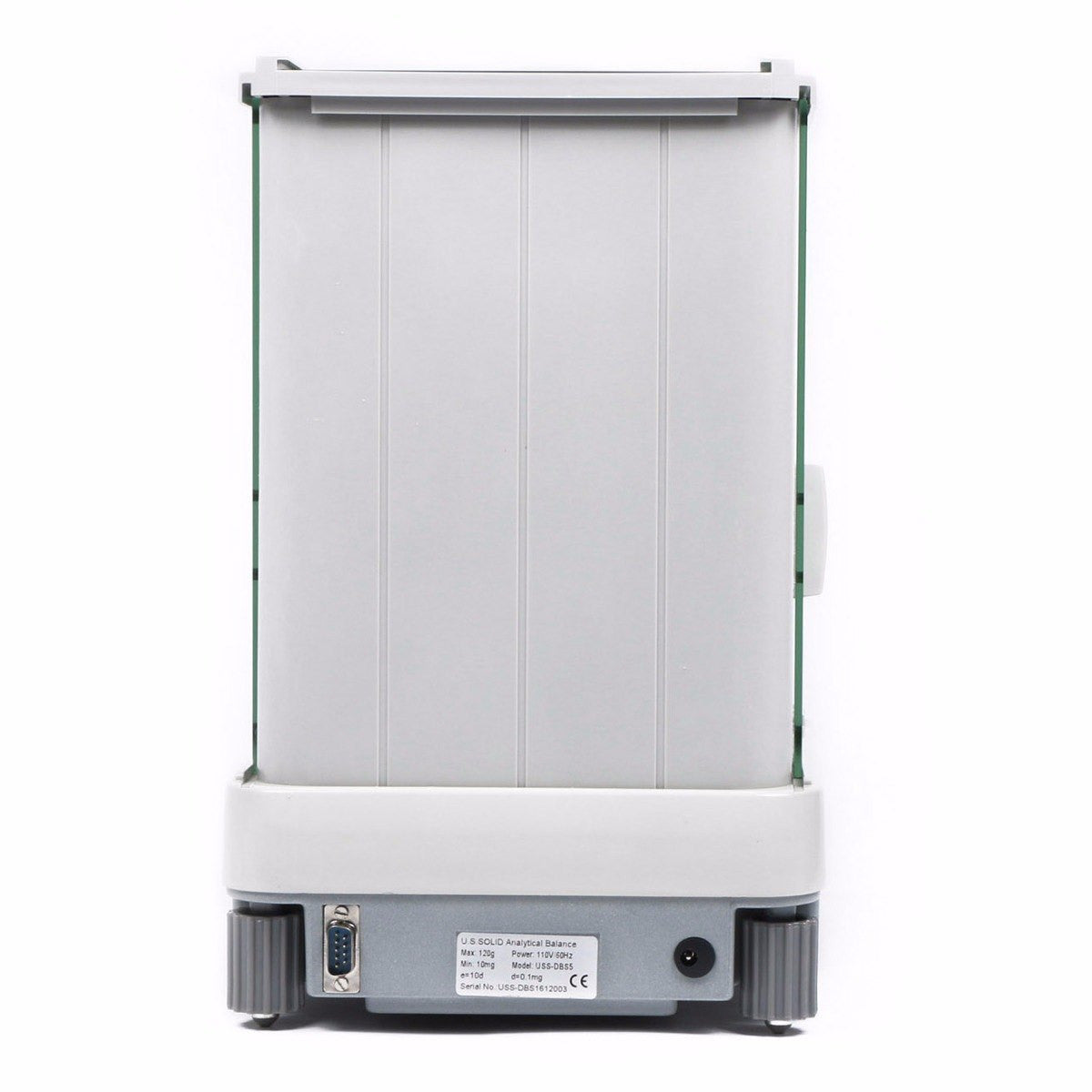

- RS232 Interface: Enables connection to a printer or a computer for data transfer.
- Multifunction:This balance offers a wide range of functions, including full capacity taring, overload protection, piece counting, percentage weighing, dynamic weighing, and density determination.

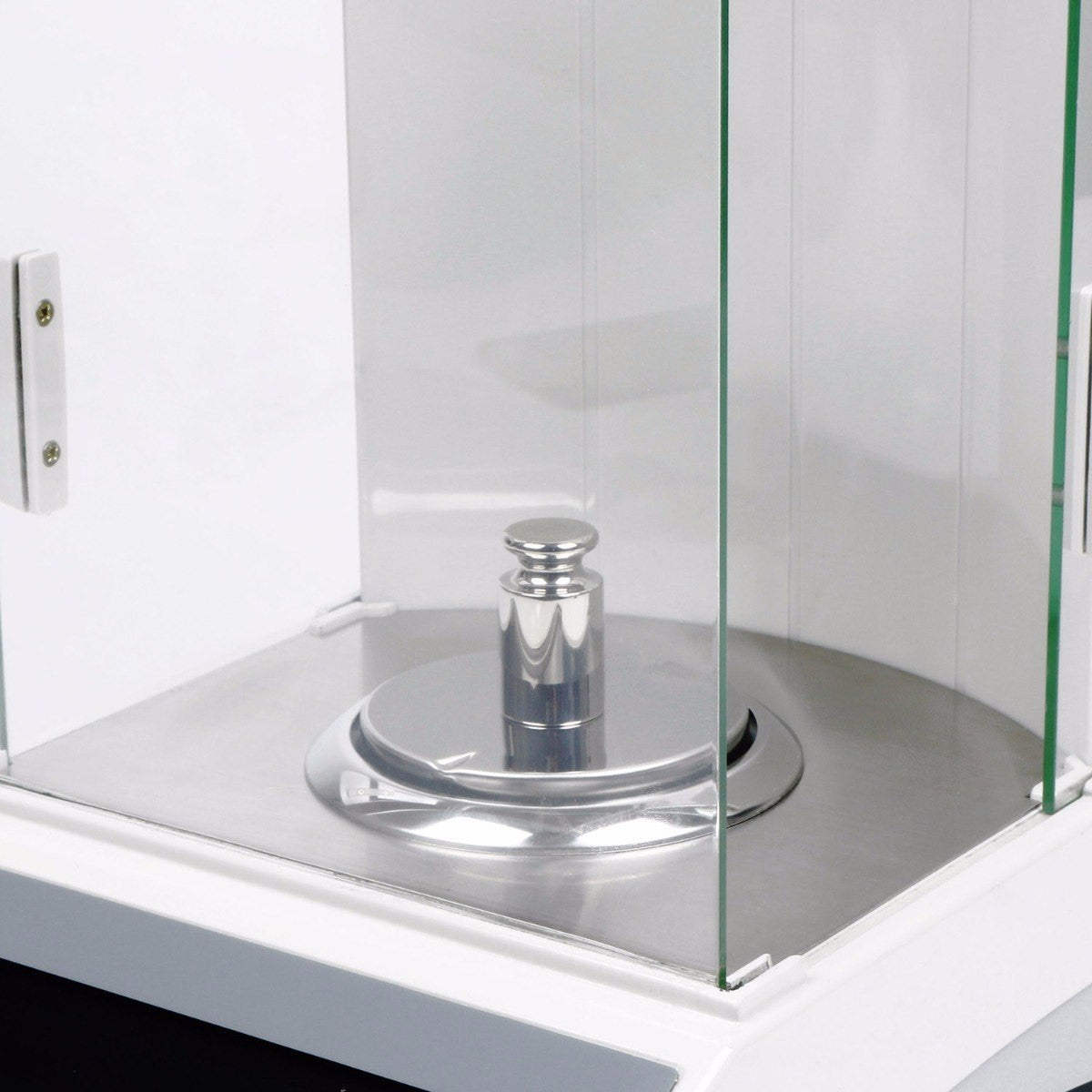

- Unique Pan Draft Ring: The balance features an oversized draft ring with a widened rim, enhancing performance over standard designs. It reduces air current interference and captures spills from the weighing platform, while remaining easy to remove and clean.
- Power Supply: AC110V-240V 50Hz/60Hz; DC9V-2.2A by using the universal adapter
More Details
*The density determination kit is not included in the set.
User Manual
To learn how to install, calibrate, set up, and use this product, please refer to the user manual.
Packing List
| ① | Balance Main Body | ② | Power Cable | ||
| ③ | Calibration Weight (200g) | ④ | Instruction Manual | ||
| ⑤ | AC Universal Adaptor | ⑥ | Weighing Pan | ||
*To view the full table on mobile, please swipe left or right on the screen.
Technical Data
| Model | USS-DBS10 | Working Temperature | 63.5℉ - 72.5℉ | ||
| Weighing Sensor | Electromagnetic Force | Stabilization Time | ≤3s | ||
| Calibration | External calibration | Calibration Weight | 200g*1 | ||
| Capacity | 10mg-220g | Units | g,oz,ct,mg,lb,gn,ozt,dwt | ||
| Readability | 0.0001g | Interface | RS232 | ||
| Repeatability | ±0.2mg | Power | AC100-240V 50/60Hz | ||
| Linearity | ±0.2mg | Packaging Dimensions | 20.08"x13.78"x19.88" | ||
| Pan Size | Φ80 mm | Gross Weight | 20.75 lbs | ||
| Number of Displays | 1 | Windshield | Yes | ||
*To view the full table on mobile, please swipe left or right on the screen.
Precautions
- Leveling the Balance: Accurate horizontal positioning necessary for repeatable measurementsand exact results. Adjust the leveling feet of the analytical balance until the air bubbleinthe indicator is centered.
- Warm-Up Requirement: For accurate results, the balance must warm up for at least 30 minutes after being powered on or after a power outage longer than 30 minutes, to reach the proper operating temperature before calibration or use.(For warm-up time details, refer to the user manual or contact support.)
- Stability: Place the balance on a stable, vibration-free surface, away from drafts and electromagnetic interference. It's important to note that high-precision balances are more susceptible to environmental factors, which can affect reading stability.
- Calibration: Calibrate the balance if it is moved (even within the same room), when ambient conditions change, and before each use. If pressing the "CAL" button has no effect, ensure you are pressing and holding it. For most models, calibration requires a long press rather than a quick tap.(Refer to the manual for specific instructions).
Troubleshooting
| Problem | Cause | Solution | |||
| Display not working | No power supply | Plug in the adapter | |||
| Fuse damaged | Replace the fuse | ||||
| Damaged transformer | Replace the power transformer. lf problem persists, send to Technical Services for repair. | ||||
| Unstable Display | Poor working conditions | Seek somewhere with less vibration and/or airflow | |||
| Wind or drafts affecting readings | Check to make sure draft shield is closed tightly | ||||
| Scale pan unsteady | Remove the pan and clean the surface of the balance well, making sure there are no lingering items | ||||
| Power exceeds permissible value | Connect balance to power supply AC110-220V | ||||
| Displayed mass is not the same as true mass | Balance has not been calibrated | Double check calibration, internal and/or external | |||
| Receptacle not being considered | Make sure the receptacle has been tared out | ||||
| Uneven surface | Make sure balance is on a flat, even surface | ||||
All Options
| Readability | Model | Capacity | Calibration Weight | Stabilization Time | Units | Linearity | Repeatability | Pan | Draft Shield | Calibration | Power Supply | Interface |
| 0.0001g | USS-DBS55 | 10mg - 110g | 100g*1 | ≤3 s | 8 types | ± 0.2mg | ± 0.2mg | Φ80mm | yes | External calibration | AC100-240V | RS232 |
| USS-DBS8 | 10mg - 200g | 200g*1 | ||||||||||
| USS-DBS10 | 10mg - 220g | USS-DBS16 | 10mg - 300g | 3-5s | 4 types | ± 0.3mg | ||||||
| * 8 Types: g, oz, ct, mg, lb, gn, ozt, dwt; 4 Types: g, mg, ct, oz | ||||||||||||
