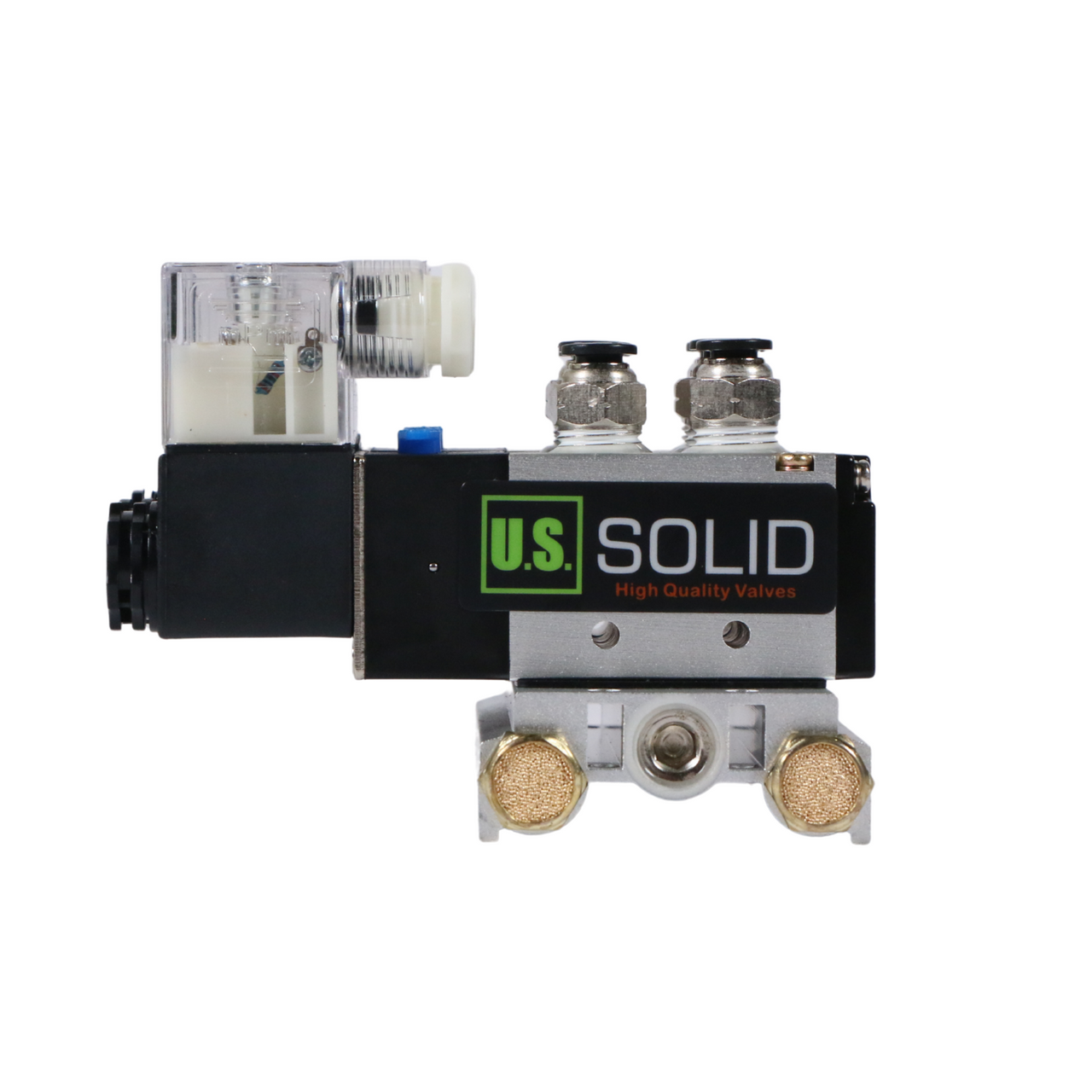

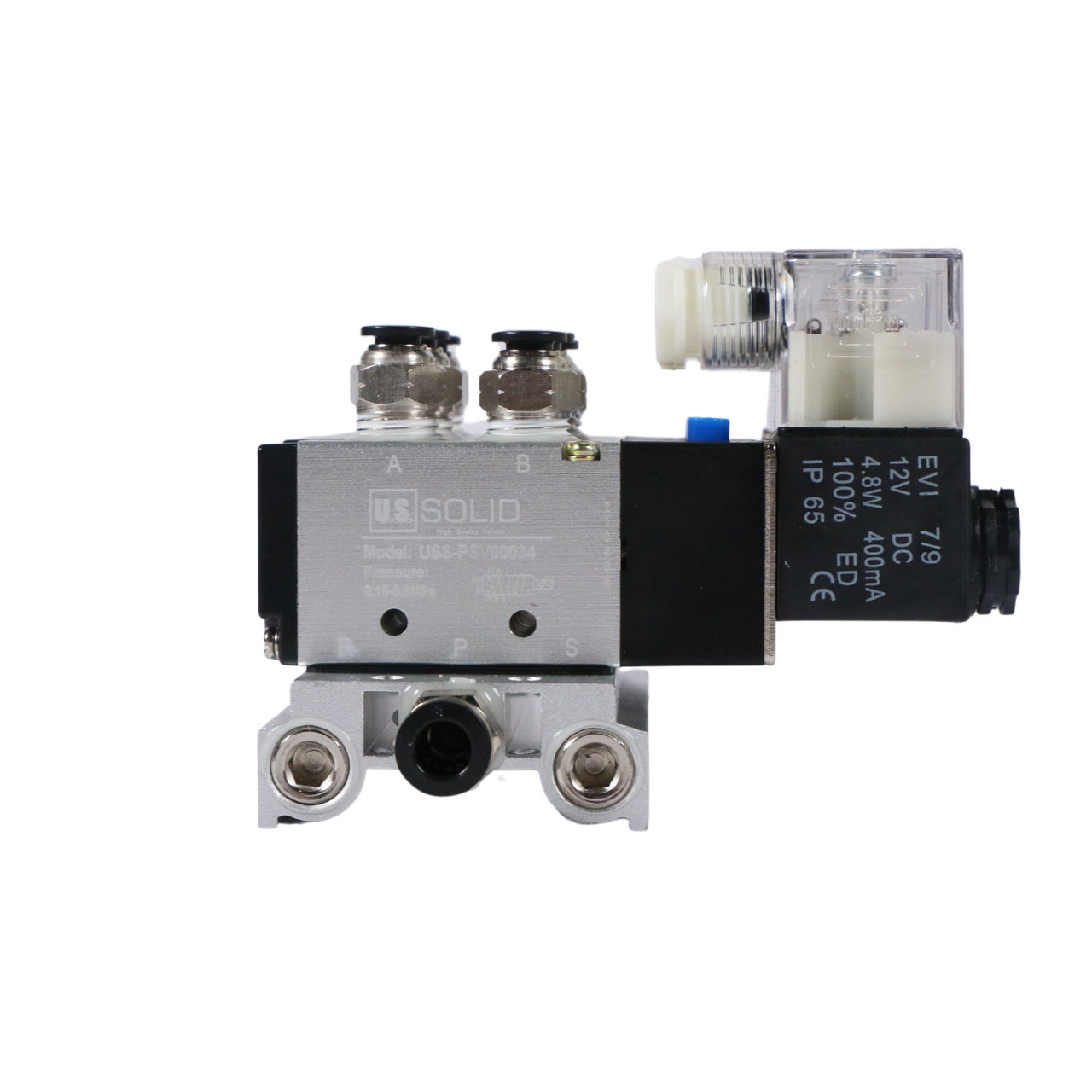

It is a switch for routing air to any pneumatic device, allowing a relatively small signal to control a large device. It is also the interface between electronic controllers and pneumatic systems.
These valves are made with an aluminum alloy and has an aperture of 1/4”. These valves allow pneumatic control of position, flow, pressure and temperature. Pneumatic types of valves can be found in a wide array of industries. They are used in Pneumatic Artificial Muscles (PAM) for robotics and automation. Manufacturing companies that use conveyors belts uses pneumatic valves in their conveyor belt systems.
U.S. Solid pneumatic valves offer reliability, low power consuming, and have a long life. They are have prewired connections that makes installation, maintenance, and control simple.
Specifications:
Model: 4V210-08

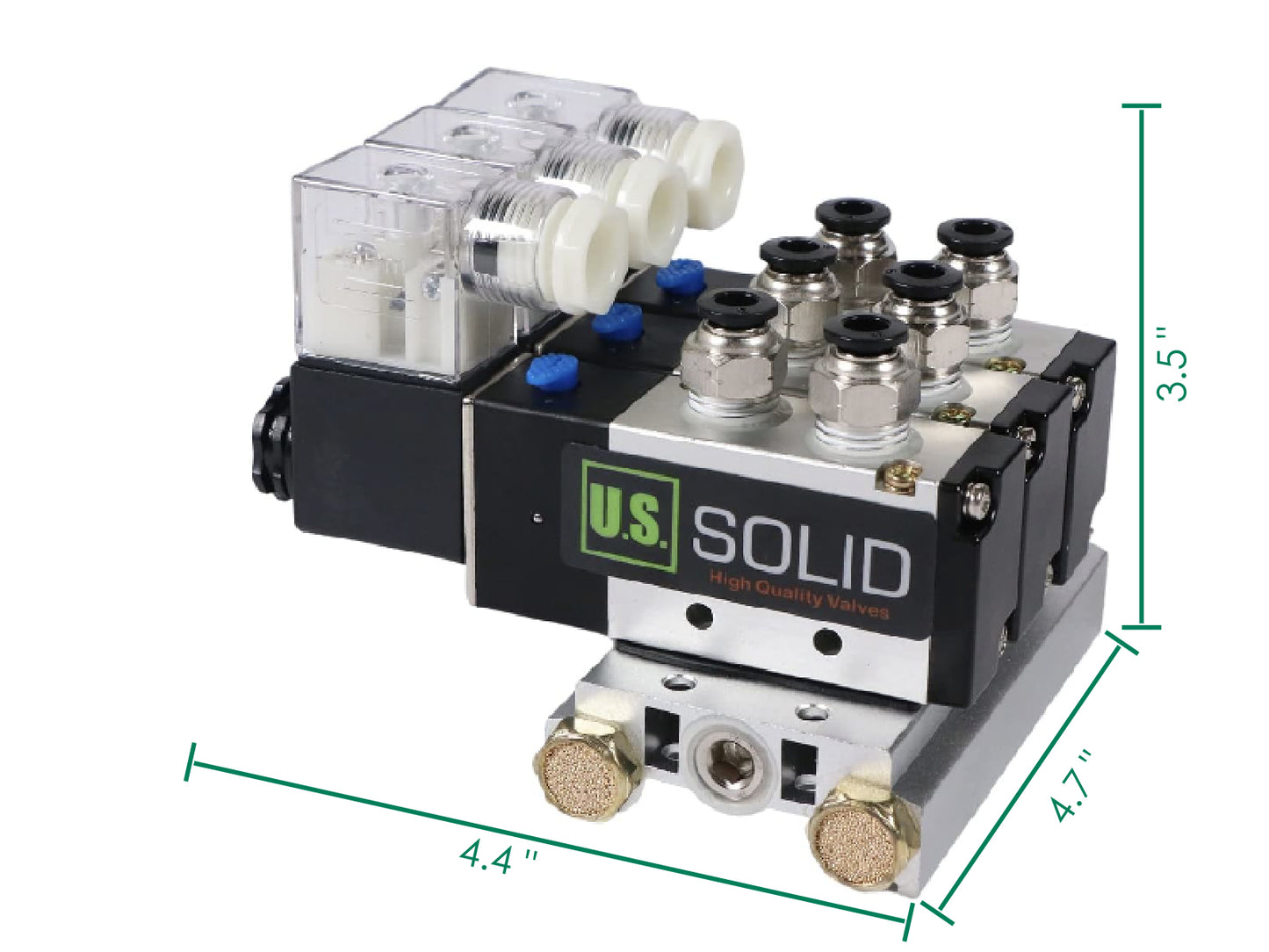

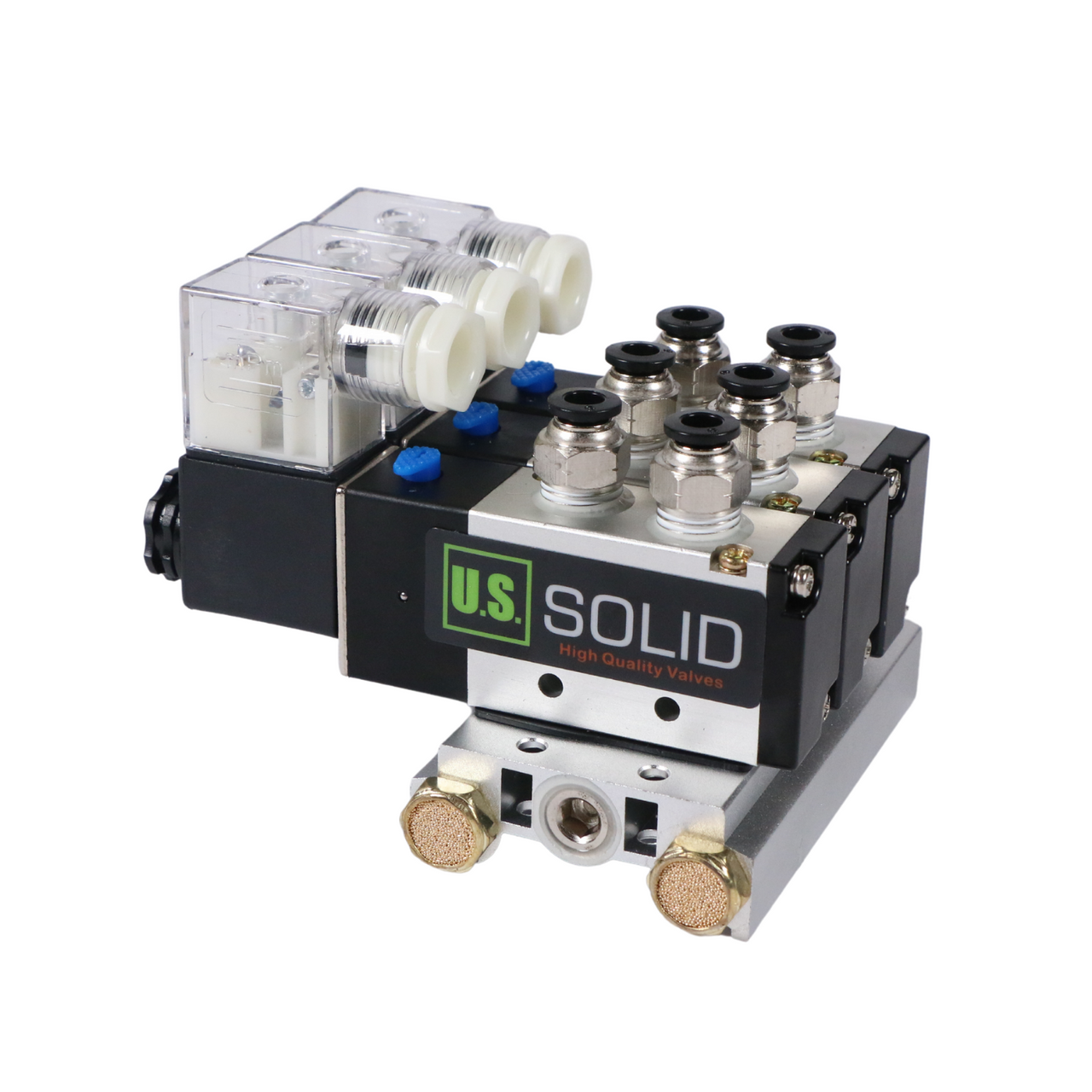

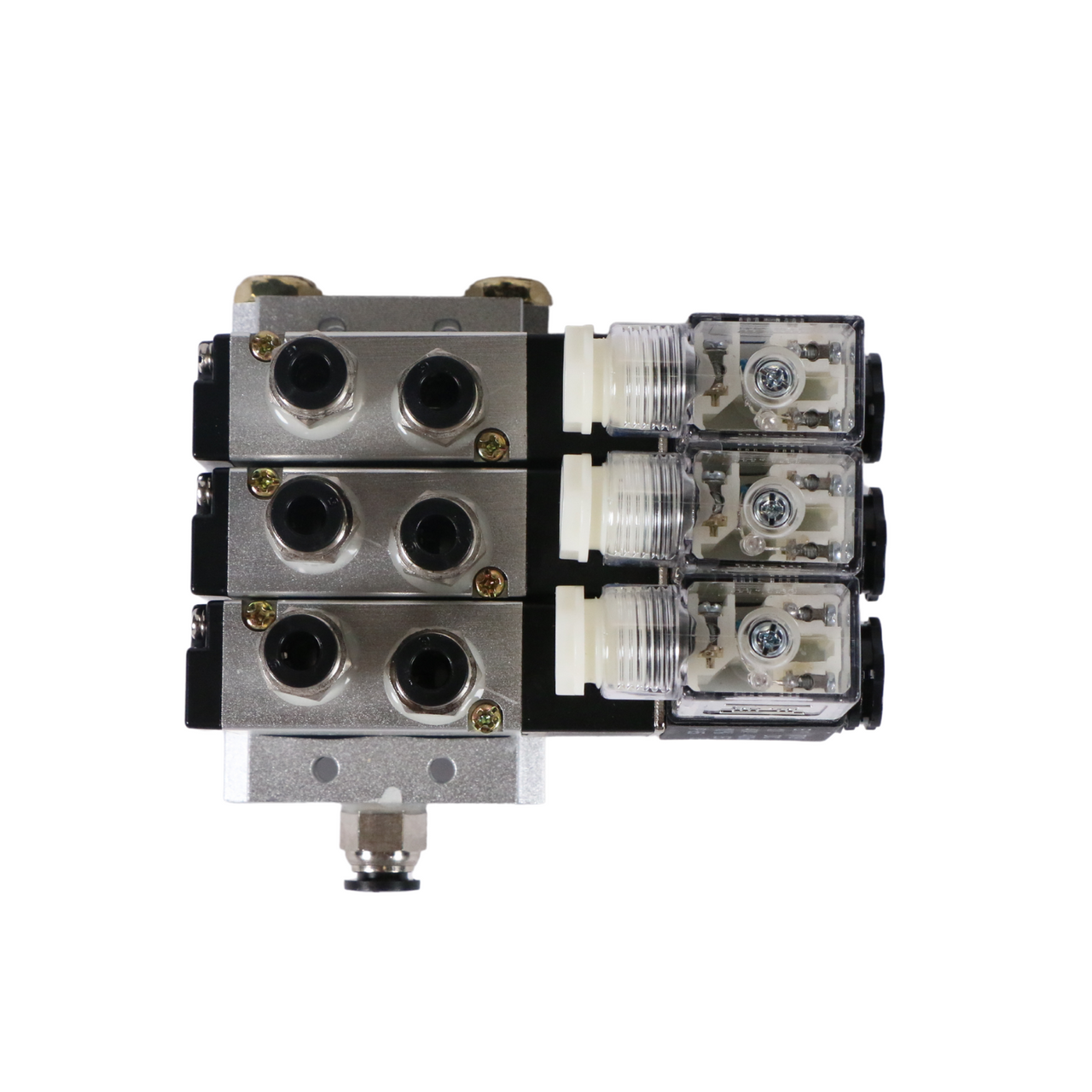

Valve Type: 2 position 5 way, 3 valves
Voltage: DC 12V
Base Diameter: 8mm
Valve Diameter: 6mm
Thread Type: NPT
Operation/ Property: Normally Closed
Material: Aluminum Alloy
Size: 1/4"
Applicable Media: Filtered Air
Insulation & Protection: Class F; IP 65
Working Pressure: 0.15 ~ 0.8 Mpa
Max. Pressure Resistance: 1.2 Mpa
Direct Operated/ Pilot Operated: Pilot Acting
Operation Temperature: -5℃ - 50℃
