Introduction
The USS-DBS95 industrial bench scale delivers high-capacity weighing up to 61kg with 1g readability. Featuring a robust 304 stainless steel pan, a strain gauge sensor for reliability, and an RS232 interface for data transfer, it’s built for industrial environments. With AC/Rechargeable Battery Operation, use it plugged into AC 110V or charge the built-in battery for flexibility in postal, industrial, shipping, agriculture, and recycling applications.
Applications
Features
- Readability: 1g with strain gauge
- Capacity: 10g-61kg
- Stabilization Time: ≤3 seconds

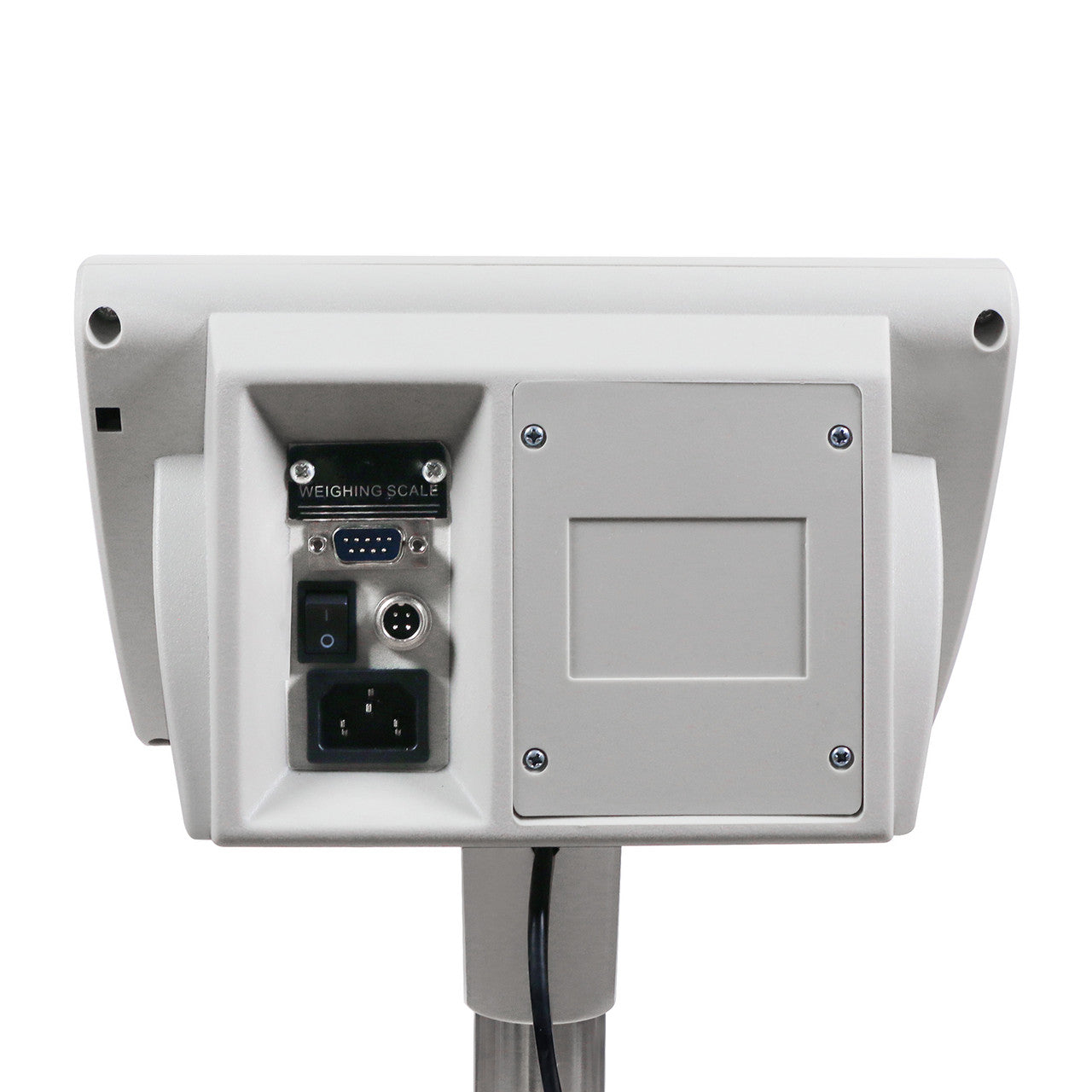

- RS232 Interface: Enables connection to a printer or a computer for data transfer.
- External Calibration: Manual calibration with weights
- 2 Weighing Units Conversion: kg, lb
- AC/Rechargeable Battery Operation: Plug into AC 110V for direct use or charge the built-in battery for cordless operation.
- Large size 304 stainless steel rectangular pan: 400x500mm
- Built-in Applications: Piece counting function, tare function and over load protection.
More Details
User Manual
To learn how to install, calibrate, set up, and use this product, please refer to the user manual.
Packing List
| ① | Scale Platform and Base | ② | Weighing Indicator | ||
| ③ | Instruction Manual | ④ | Column Assembly | ||
| ⑤ | Mounting Bracket | ⑥ | Leveling Feet(4) | ||
| ⑦ | Quality Certification | ⑧ | AC Adapter | ||
| ⑨ | Rechargeable Battery | ||||
*To view the full table on mobile, please swipe left or right on the screen.
Technical Data
| Model | USS-DBS95-61 | Windshield | No | ||
| Weighing Sensor | Strain gauge | Stabilization Time | ≤3s | ||
| Calibration | External calibration | Calibration Weight | No | ||
| Capacity | 10g-61kg | Units | kg, lb | ||
| Readability | 1g | Interface | RS232 | ||
| Repeatability | ±2g | Power | AC 110V/Rechargeable Battery | ||
| Linearity | ±3g | Packaging Dimensions | 33.46"x16.34"x7.48" | ||
| Pan Size | 400x500 mm | Gross Weight | 28.79 lbs | ||
*To view the full table on mobile, please swipe left or right on the screen.
Precautions
- Leveling the Balance: Accurate horizontal positioning necessary for repeatable measurementsand exact results. Adjust the leveling feet of the analytical balance until the air bubbleinthe indicator is centered.
- Warm-Up Requirement: For accurate results, the balance must warm up for at least 30 minutes after being powered on or after a power outage longer than 30 minutes, to reach the proper operating temperature before calibration or use.(For warm-up time details, refer to the user manual or contact support.)
- Calibration: Calibrate the balance before each use. If pressing the "CAL" button has no effect, ensure you are pressing and holding it. For most models, calibration requires a long press rather than a quick tap.(Refer to the manual for specific instructions).
Troubleshooting
Problem 1: Display remains off after switching on.
Possible causes: Power cord is not connected/ Power line fuse blown/ Power supply interrupted/ Instrument faulty
Problem 2: Displayed value and actual weight are not consistent.
Possible causes: Not returned to zero before weighing/ Scale not leveled well
Problem 3: Weight display is constantly changing or unstable.
Possible causes: Power supply instability/ Test bench vibration/ Electromagnetic field interference
All Options
| Units | Readability | Model | Capacity | Repeatability | Linearity | Calibration | Pan Size | Interface | Stabilization Time | Power Supply |
| 2 types | 10g | USS-DBS92-110 | 100g-110kg | ±20g | ±30g | external calibration | 400x500 mm | RS232 | ≤3s | AC |
| USS-DBS92-160 | 100g-160kg | |||||||||
| USS-DBS92-210 | 100g-210kg | |||||||||
| USS-DBS92-310 | 100g-310kg | |||||||||
| 1g | USS-DBS95-61 | 10g-61kg | ±2g | ±3g | ||||||
| USS-DBS95-110 | 10g-110kg | |||||||||
| USS-DBS95-160 | 10g-160kg | |||||||||
| * 2 Types: kg, lb | ||||||||||
