INTRODUCTION

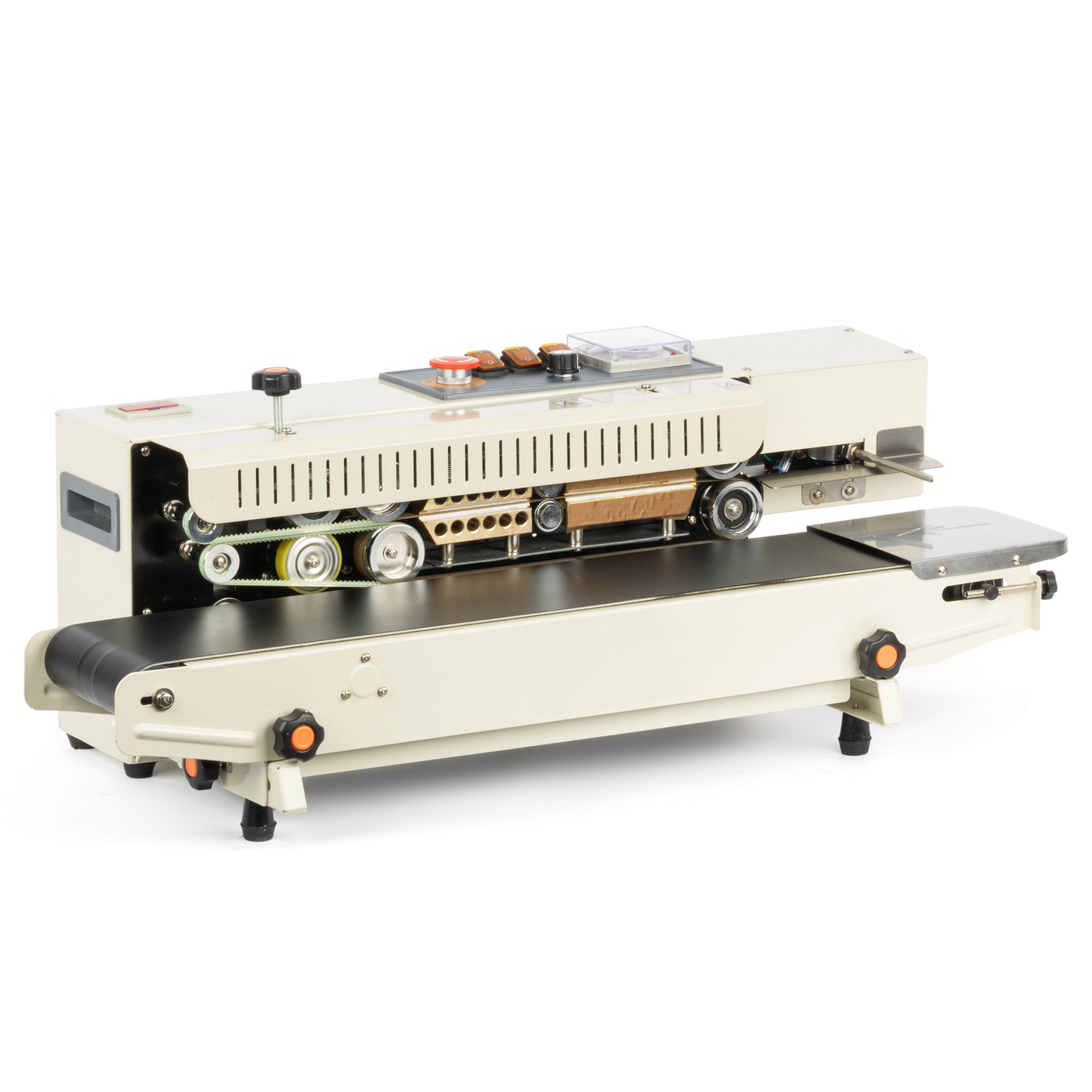

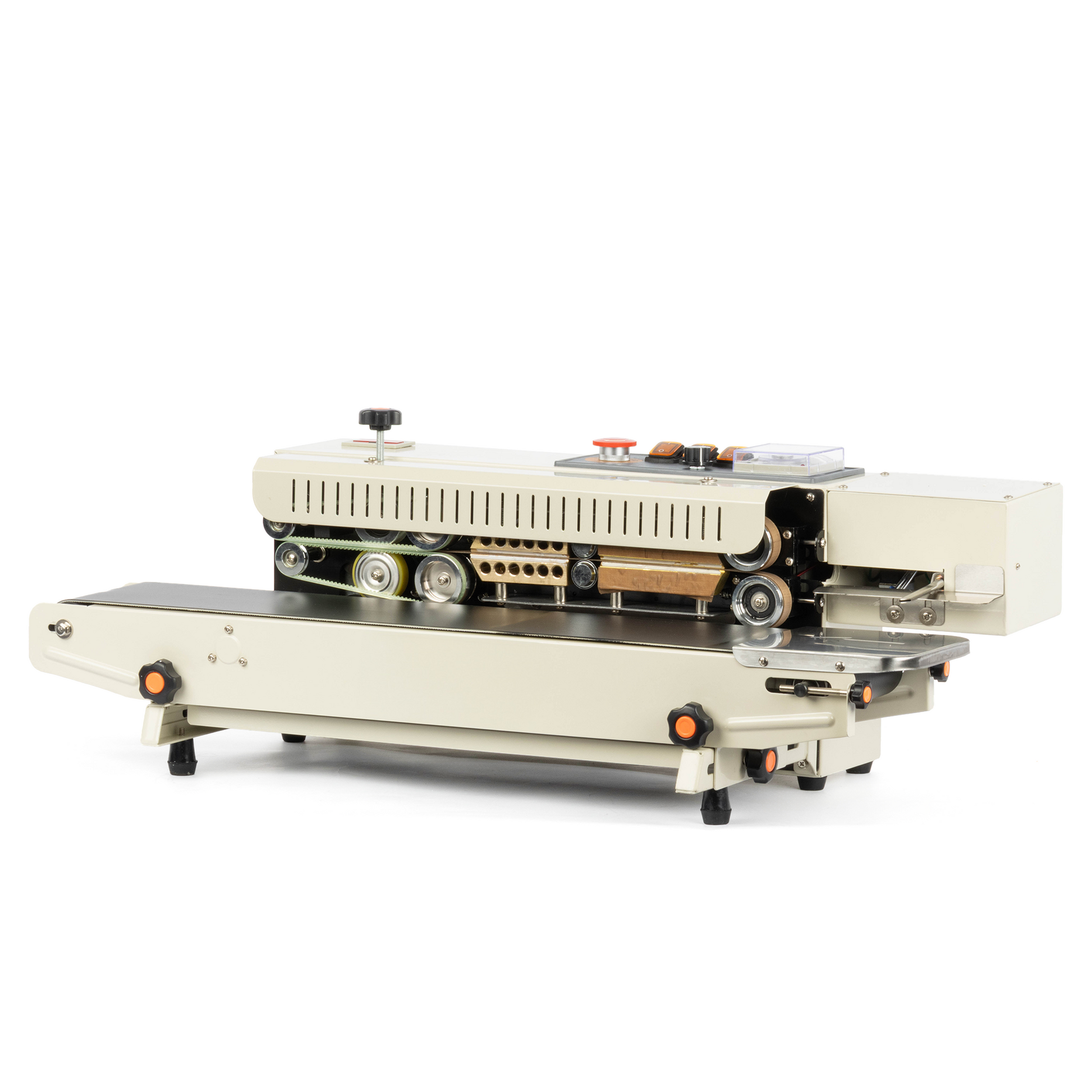

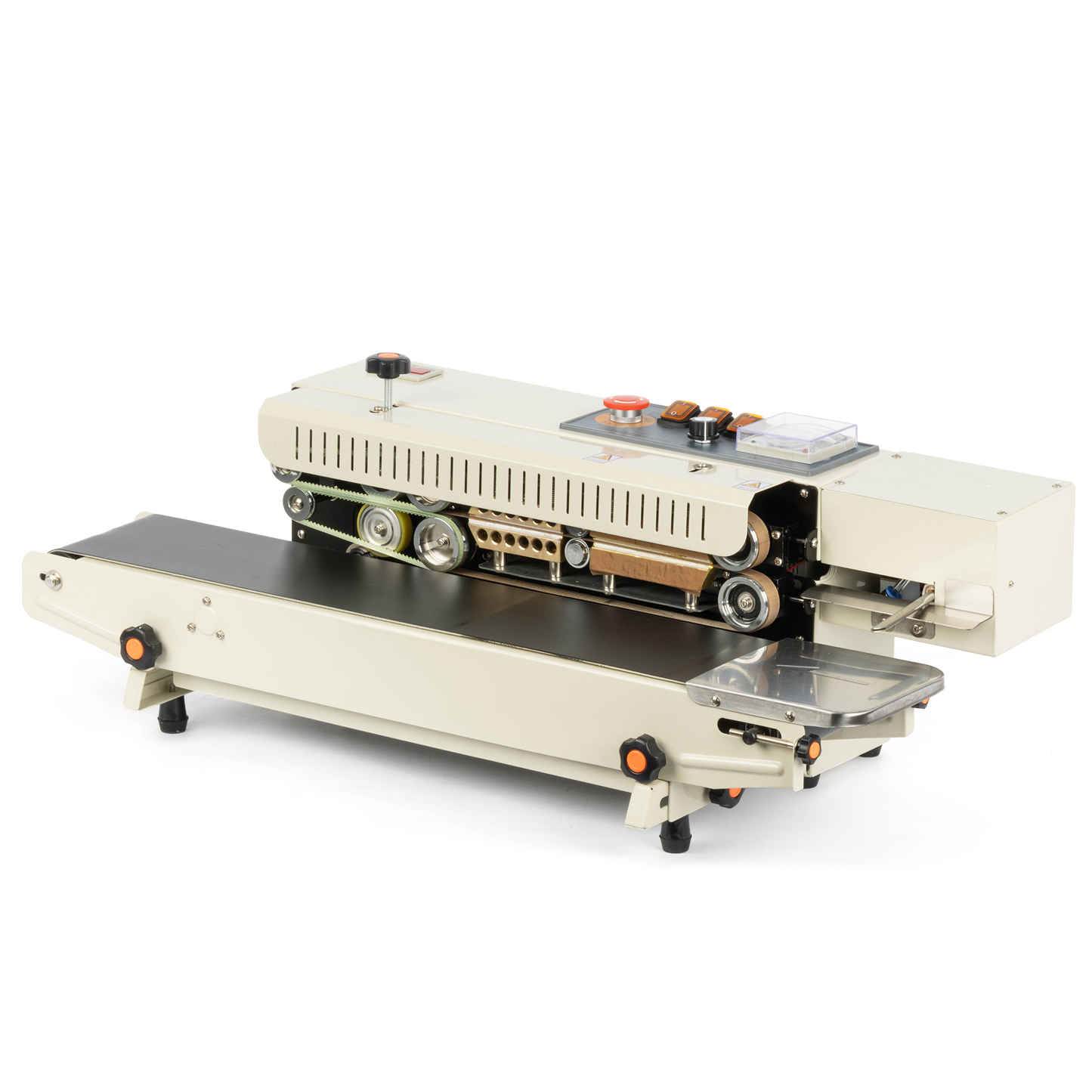

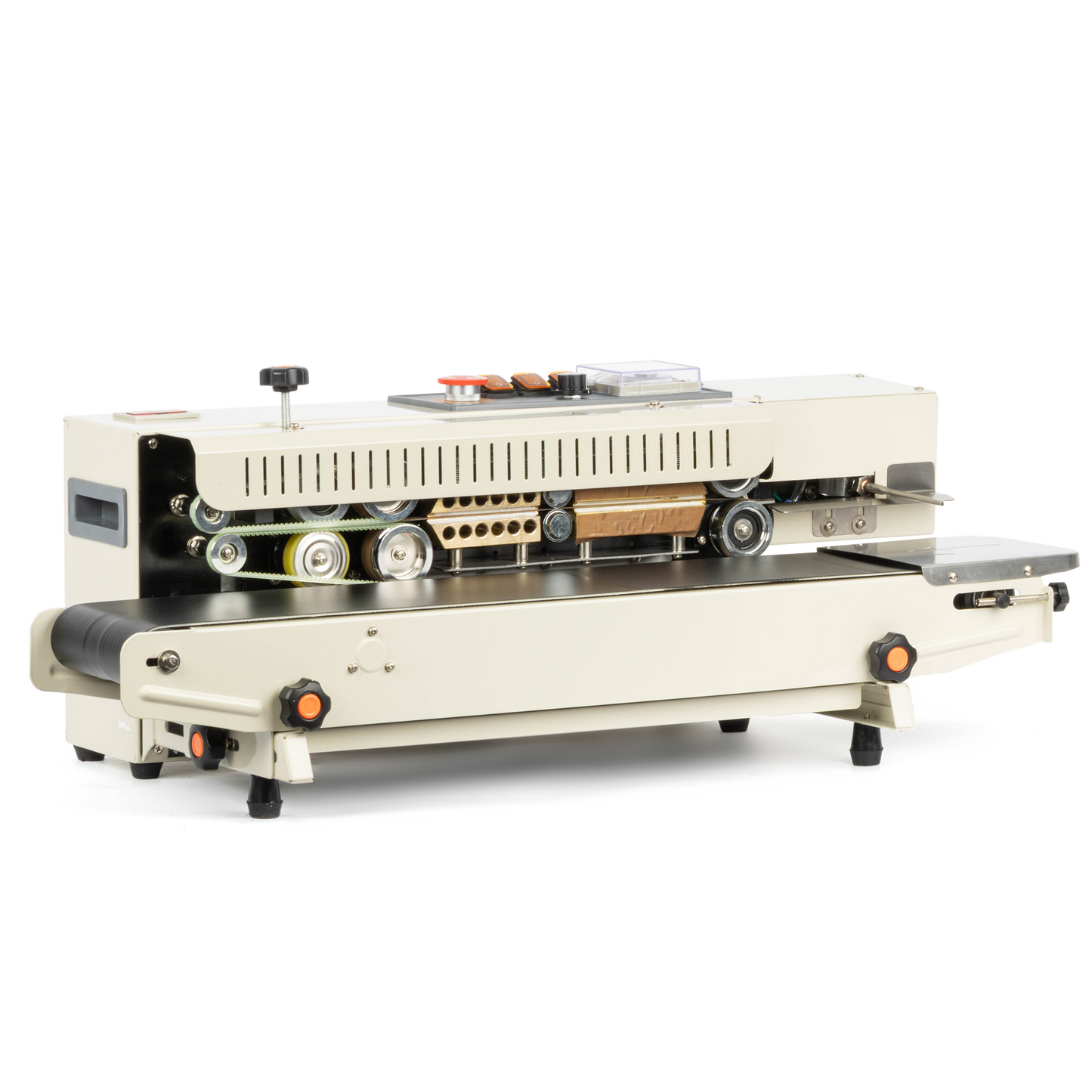

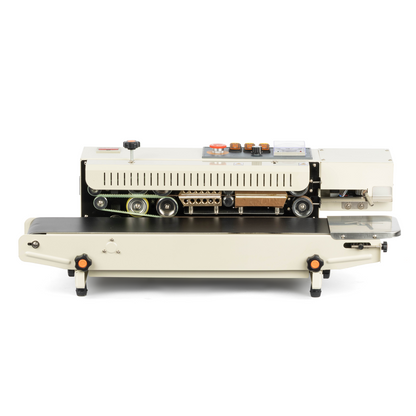

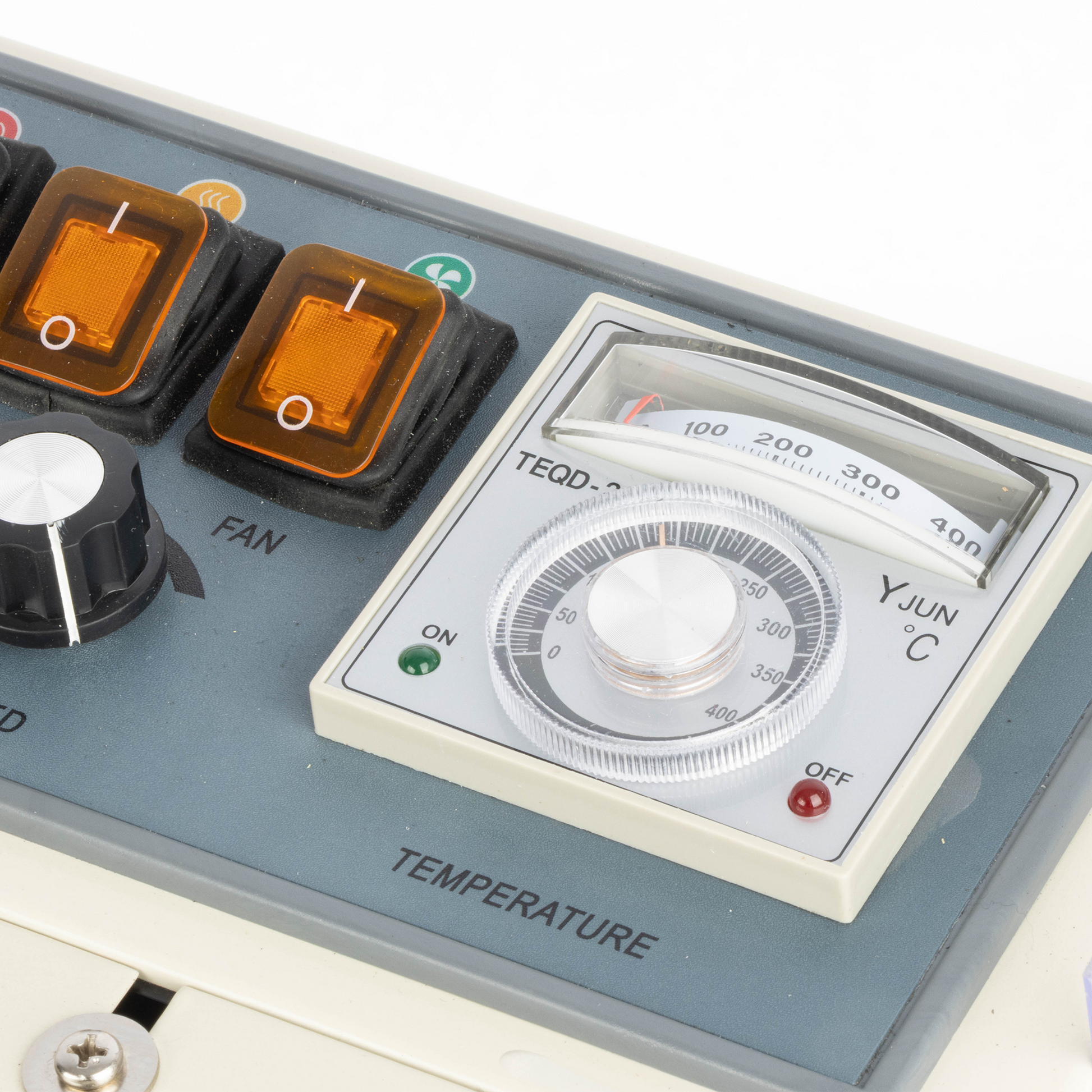

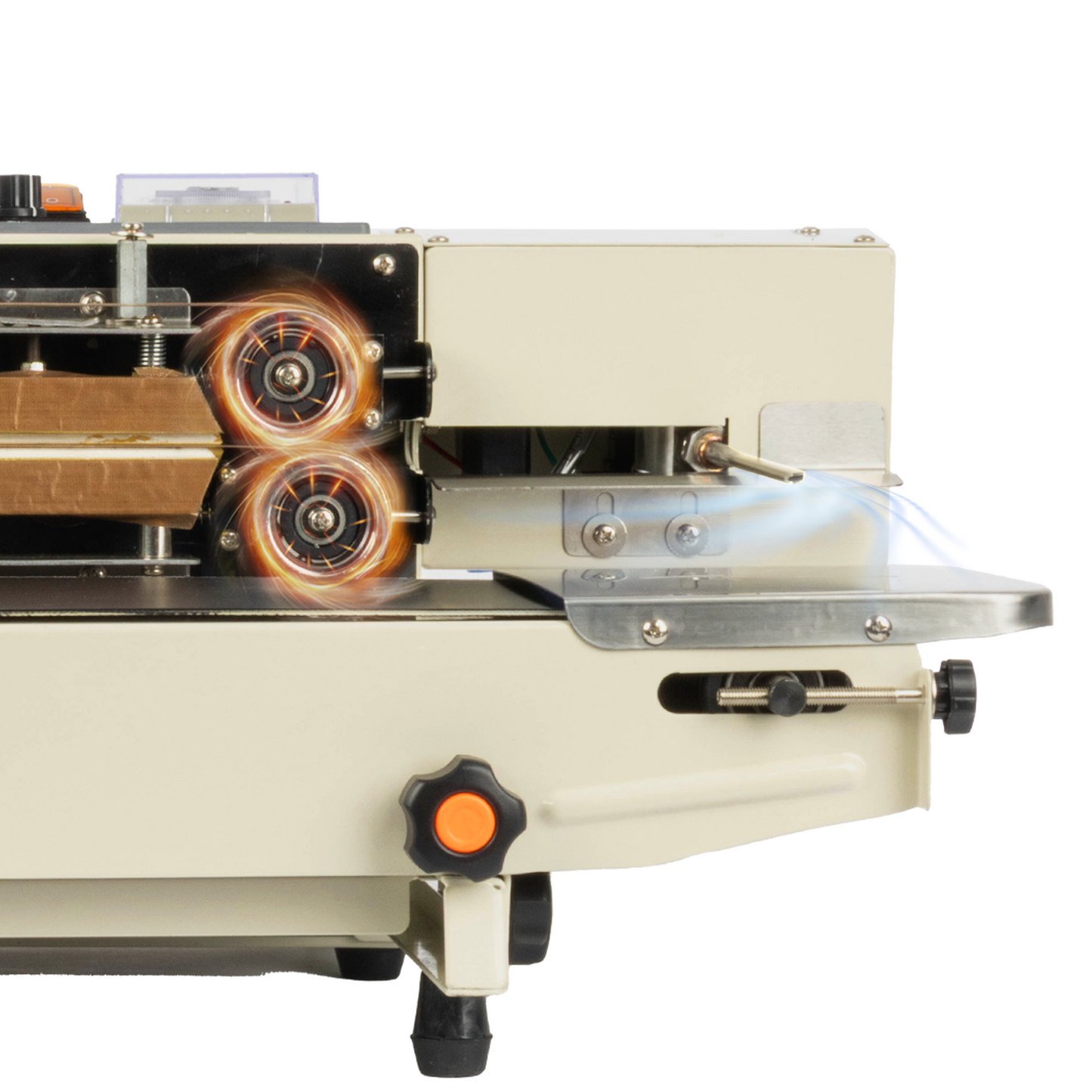

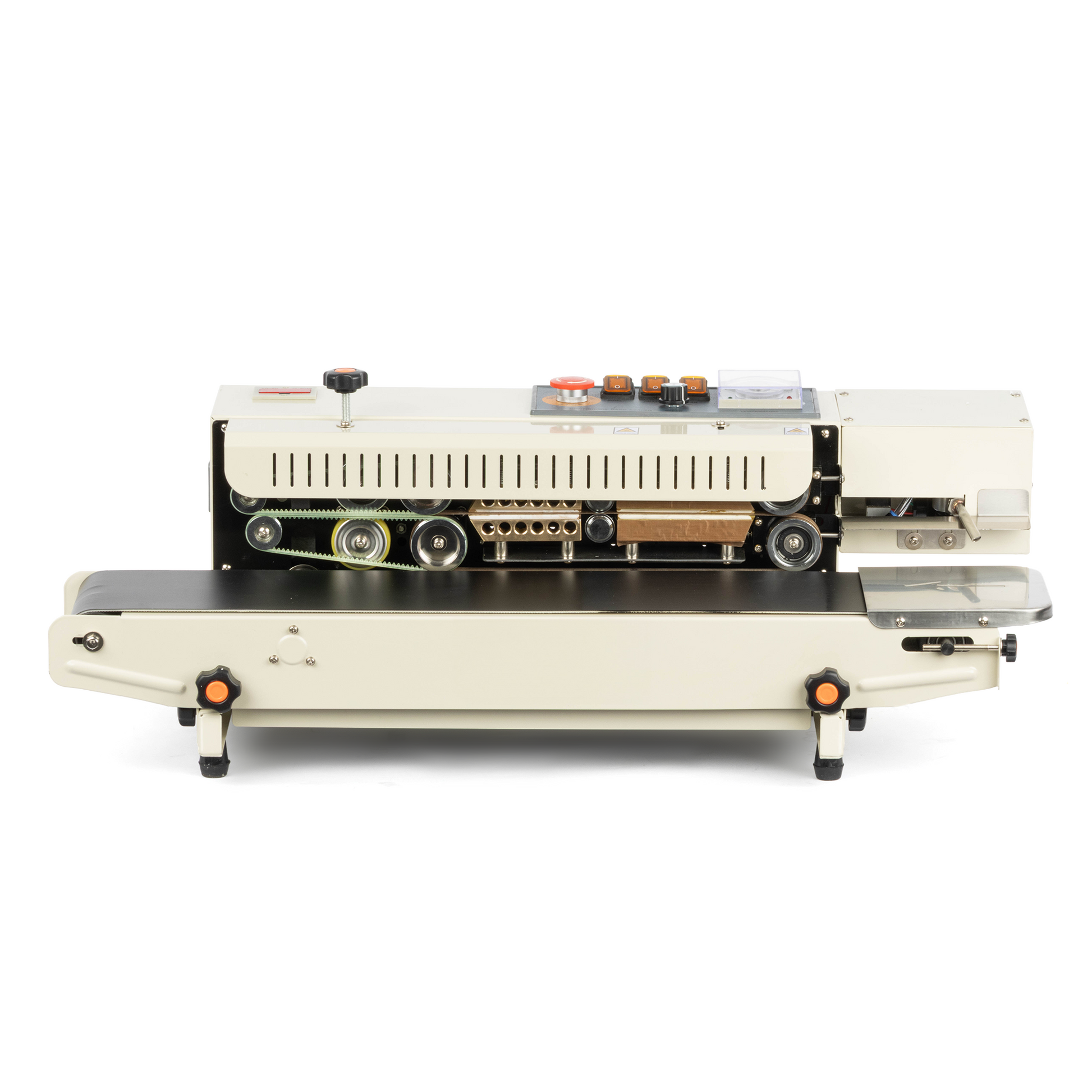

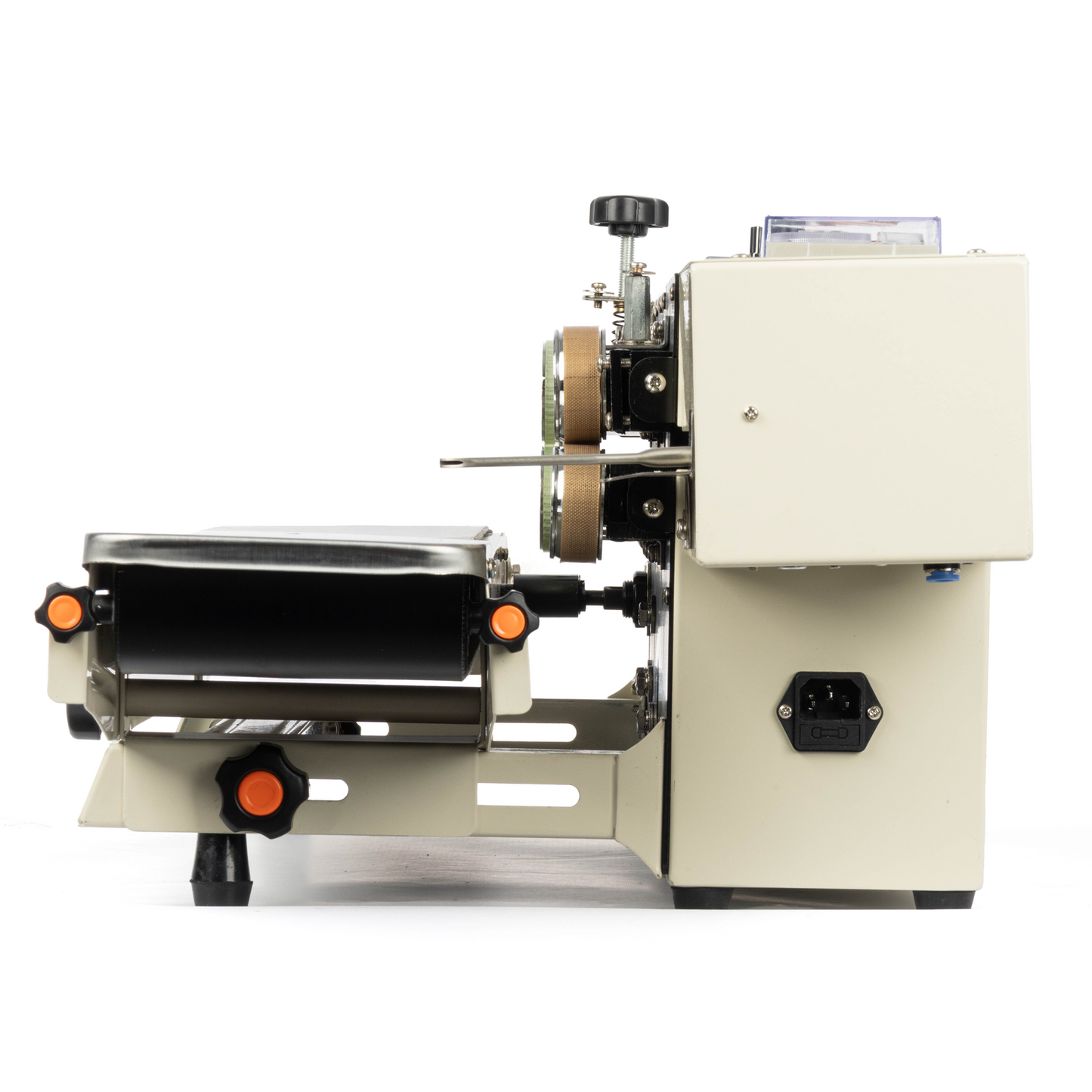

Our U.S. Solid Continuous Band Sealer with Inflation is a versatile solution for food, pharmaceutical, and electronics packaging. It seals plastic and compound films of unlimited length at speeds up to 52.49 ft/min, with precise temperature control (32°F–572°F). Its key feature is an integrated air nozzle that inflates bags before sealing, providing essential cushioning and preserving freshness. The machine also includes a built-in counter, a customizable letter wheel for branding, and an adjustable conveyor table. Designed for safety and ease of use, this durable sealer streamlines your packaging workflow.
FEATURES
APPLICATIONS
SPECIFICATIONS
| Model | USS-CBB00012 | Brand | U.S. Solid |
|---|---|---|---|
| Power Supply | 110V,60HZ | Power | 750W |
| Sealing Speed | 0 - 16M/min (adjustable) | Sealing Width | 0.47 inch |
| Max. Seal Thickness | 0.011 inch | Temp. range | 0 - 300°C (adjustable) |
| Counting Function | Yes | Conveyor Belt Color | Black |
| Max. Load Weight | 13 lb | Dimensions of Conveyor Table（L*W*H) | 33.07"*17.72"*12.4" |
WARNING

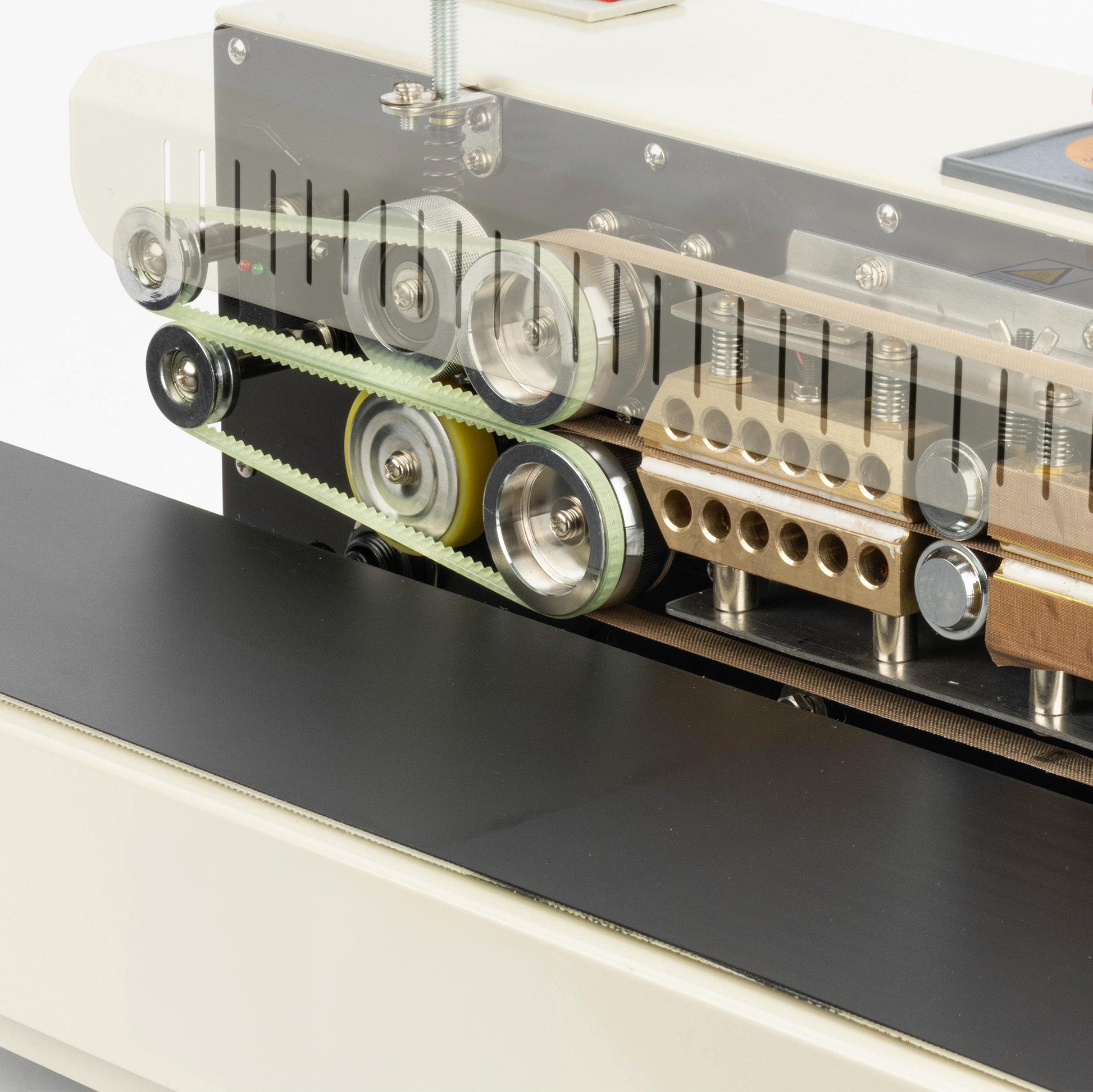

1.Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.
2.Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.
3.Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.
4.Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.
5.Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

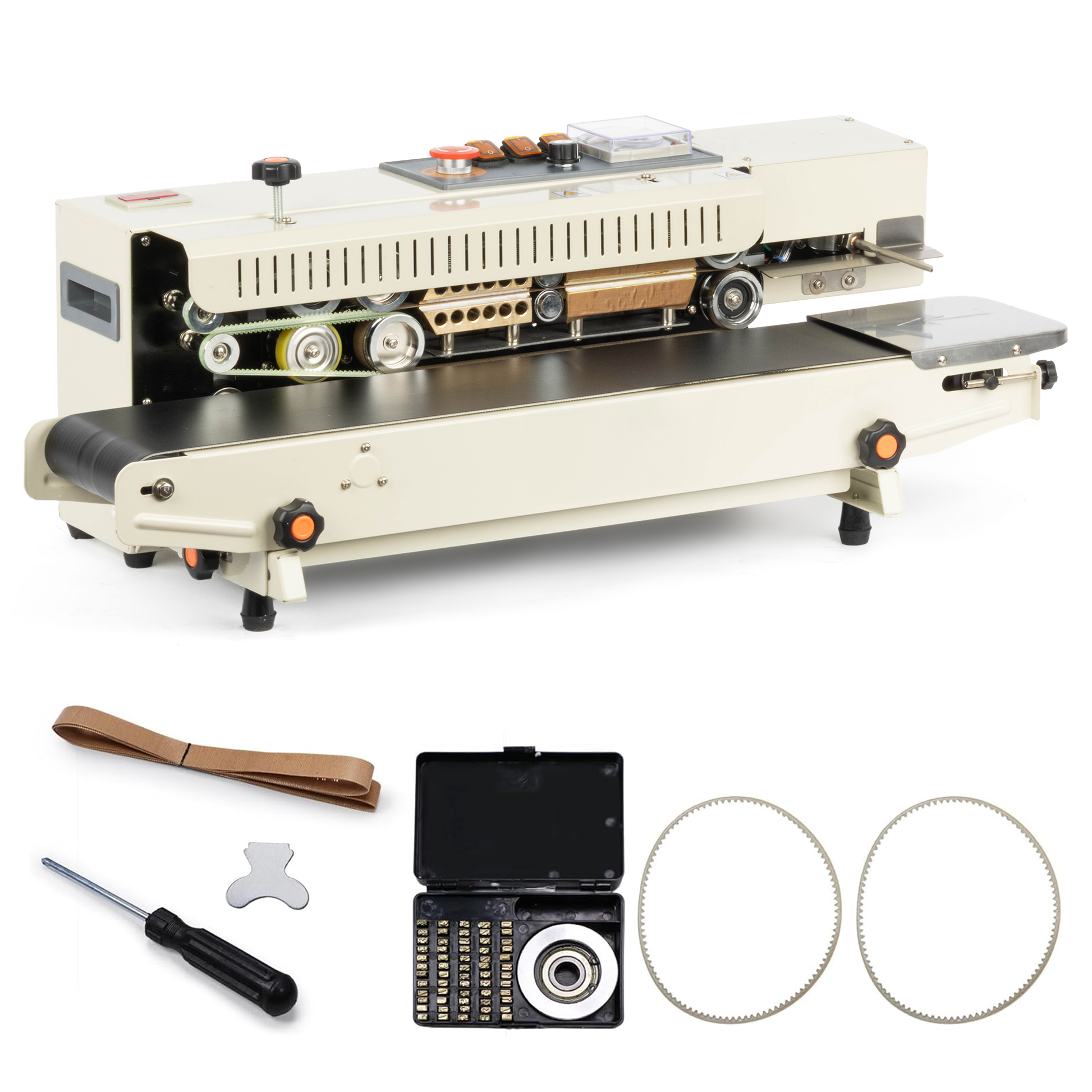

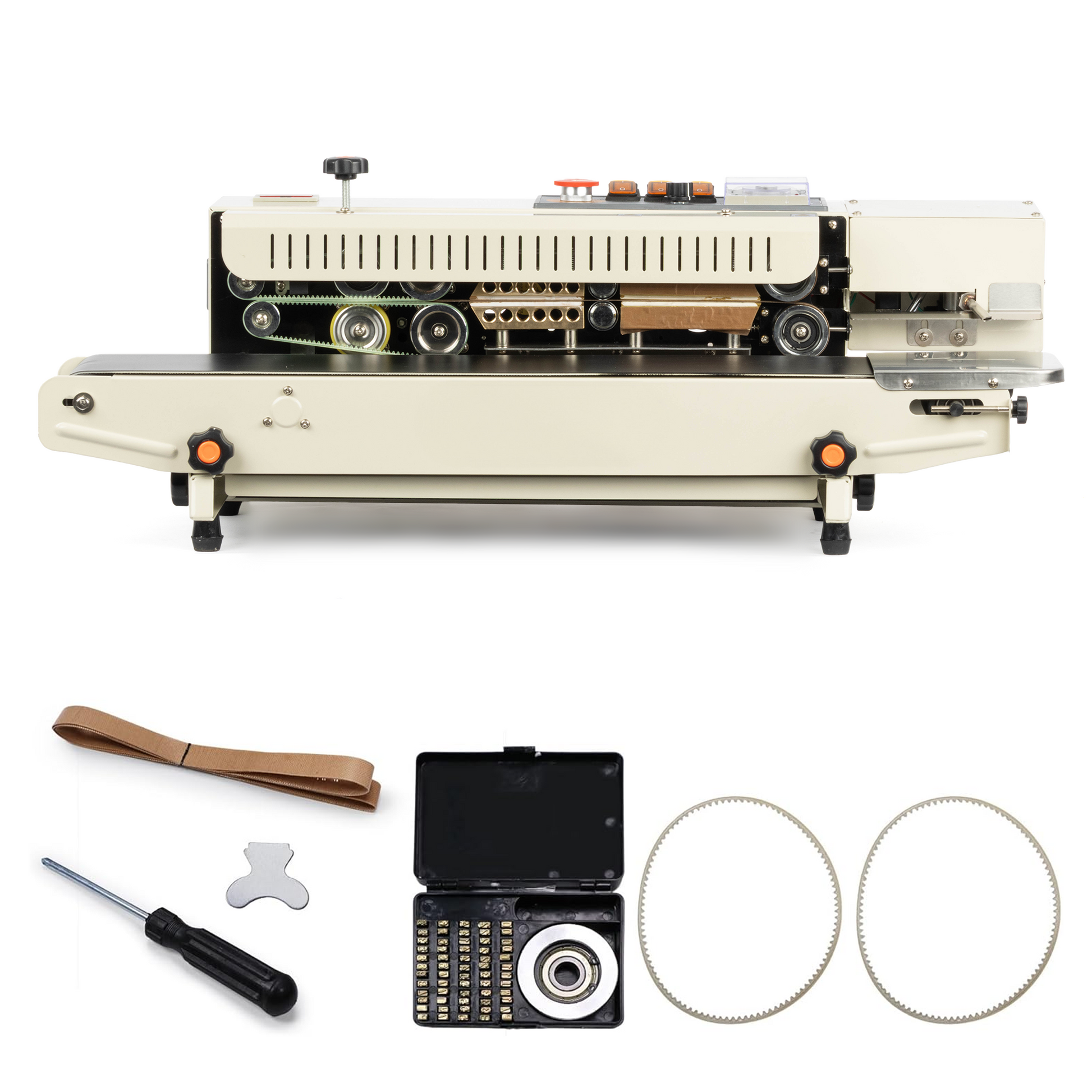

PACKING LIST
- Main Machine x1
- Accessory Bag x1
- User Manual x1
OTHER MODELS
| SKU | JFESM00005 | JFCBB00003 | JFCBB00002 | JFCBB00001 | JFCBB00006-BLACK | JFCBB00005 |
|---|---|---|---|---|---|---|
| Seal Width | 0.47 inch | 0.47 inch | 0.39 inch | 0.47 inch | 0.47 inch | 0.39 inch |
| Speed | 0 ~ 12 m/min | 0 ~ 12 m/min | 0 ~ 12 m/min | 0 ~ 12 m/min | 0 ~ 12 m/min | 0 ~12 m/min |
| Max. Seal Thickness | 0.03 inch | 0.03 inch | 0.019 inch | 0.03 inch | 0.03 inch | 0.019 inch |
| Max. Temperature | 572°F | 572°F | 572°F | 572°F | 572°F | 572°F |
| Max. Load Weight | 6.6 lb | 22 lb | 2.2 lb | 11 lb | 6.6 lb | 2.2 lb |
| Conveyor Table | √ | √ | × | √ | √ | √ |
| SKU | JFCBB00006 | JFCBB00007 | JFCBB00008 | JFCBB00009 | JFCBB00010 | JFCBB00011 |
|---|---|---|---|---|---|---|
| Seal Width | 0.47 inch | 0.39 inch | 0.39 inch | 0.39 inch | 0.47 inch | 0.39 inch |
| Speed | 0 ~ 12 m/min | 0 ~ 12 m/min | 0 ~ 16 m/min | 0 ~ 16 m/min | 0 ~ 16 m/min | 0 ~24 m/min |
| Max. Seal Thickness | 0.03 inch | 0.03 inch | 0.015 inch | 0.015 inch | 0.011 inch | 0.015 inch |
| Max. Temperature | 572°F | 572°F | 572°F | 572°F | 572°F | 572°F |
| Max. Load Weight | 6.6 lb | 2.2 lb | 22 lb | 22 lb | 13 lb | 2.2 lb |
| Conveyor Table | √ | × | √ | √ | √ | √ |
See More ▼
| SKU | JFCBB00012 | JFCBB00013 | JFCBB00014 | JFCBB00015 | JFCBB00016 | JFCBB00017 |
|---|---|---|---|---|---|---|
| Seal Width | 0.47 inch | 0.47 inch | 0.39 inch | 0.5 inch | 0.5 inch | 0.39 inch |
| Speed | 0 ~ 16 m/min | 0 ~ 12 m/min | 0 ~ 12 m/min | 0 ~ 16 m/min | 0 ~ 16 m/min | 0 ~ 7 m/min |
| Max. Seal Thickness | 0.011 inch | 0.03 inch | 0.01 inch | 0.03 inch | 0.03 inch | 0.006 inch |
| Max. Temperature | 572°F | 572°F | 572°F | 572°F | 572°F | 572°F |
| Max. Load Weight | 13 lb | 6 lb | 6.6 lb | 13 lb | 13 lb | 2.2 lb |
| Conveyor Table | √ | √ | √ | √ | √ | × |
| SKU | JFCBB00018 | JFCBB00019 | JFCBB00020 | |||
|---|---|---|---|---|---|---|
| Seal Width | 0.39 inch | 0.39 inch | 0.39 inch | |||
| Speed | 0 ~ 16 m/min | 0 ~ 12 m/min | 0 ~ 24 m/min | |||
| Max. Seal Thickness | 0.003 inch | 0.03 inch | 0.03 inch | |||
| Max. Temperature | 572°F | 572°F | 572°F | |||
| Max. Load Weight | 22 lb | 2.2 lb | 6.6 lb | |||
| Conveyor Table | √ | √ | √ |
Download user manual here
