INTRODUCTION

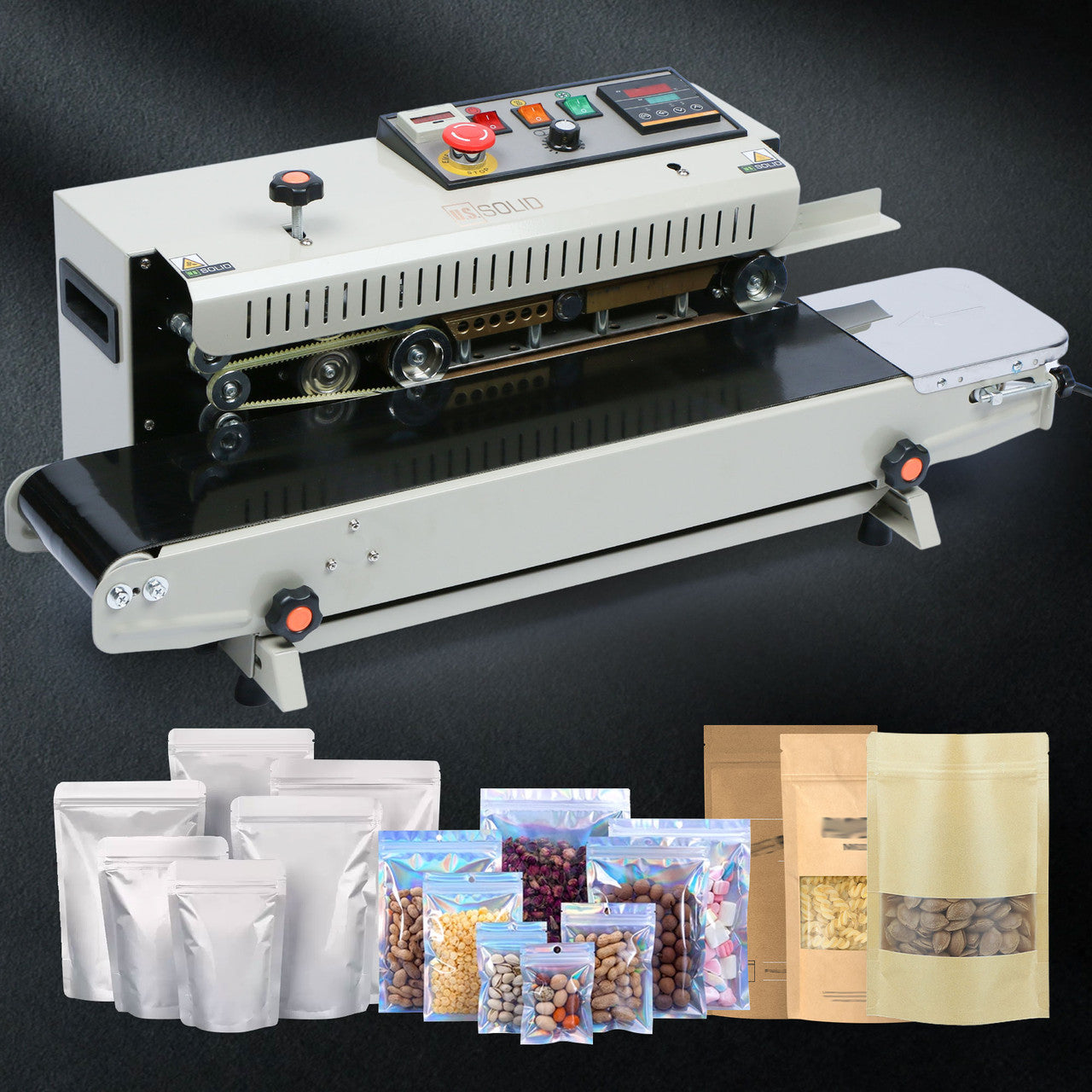

The horizontal automatic continuous sealing machine is a high-efficiency and multi-functional packaging device applied across diverse industries for sealing bags or pouches. It is engineered to enable a continuous, automated sealing process, guaranteeing airtight and reliable packaging. Its robust frame is made of powder-coated carbon steel (not stainless steel) , providing excellent resistance to scratches, rust, and wear for outstanding durability at a great value.
FEATURES
APPLICATIONS
SPECIFICATIONS
| Model | USS-ESM00005 | Brand | U.S. Solid |
|---|---|---|---|
| Power Supply | 110V,60HZ | Power | 500W |
| Sealing Speed | 0 - 12M/min (adjustable) | Sealing Width | 0.47 inch |
| Max. Seal Thickness | 0.03 inch | Temp. range | 0 - 300℃ (adjustable) |

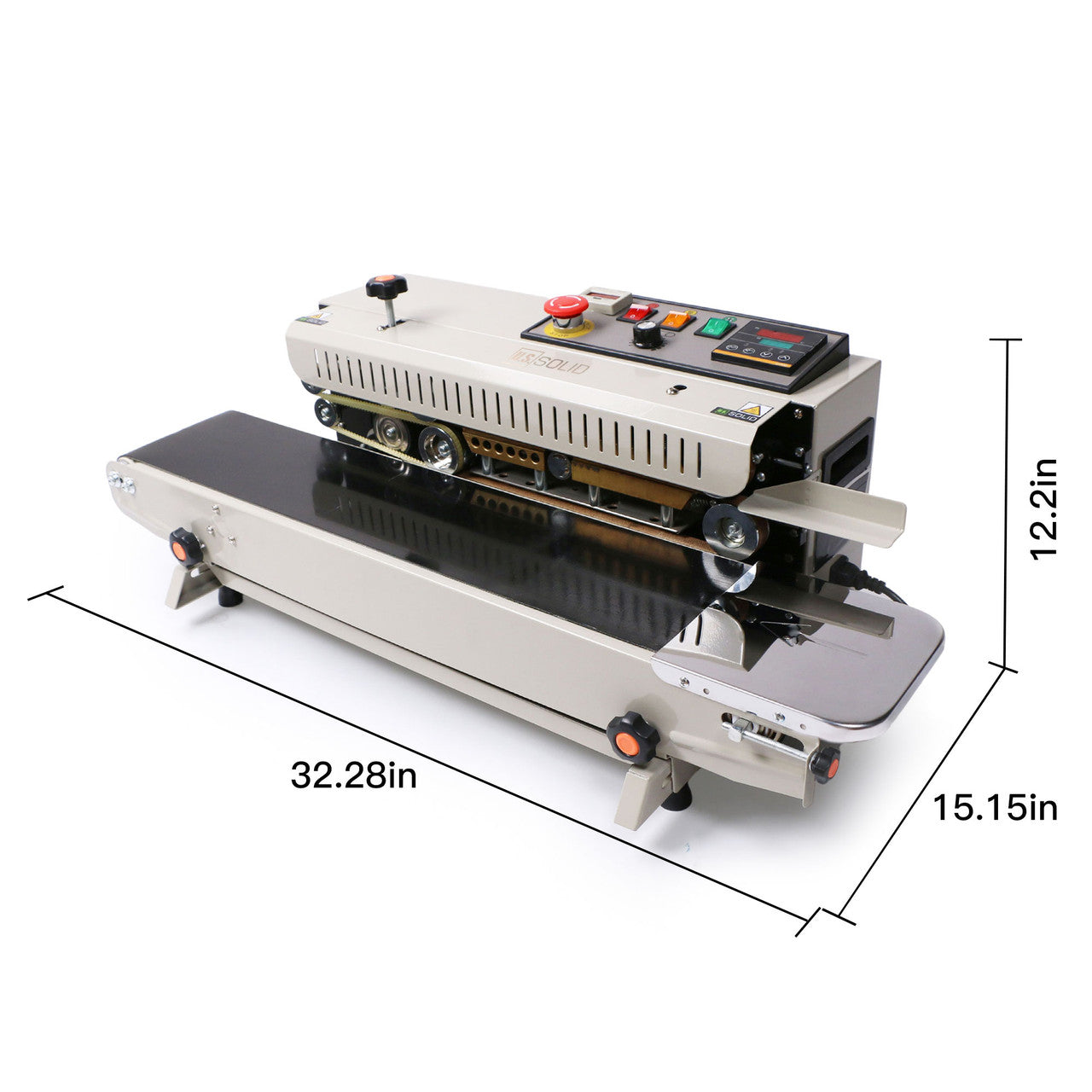

| Max. Load Weight | 6.6 lb | Dimensions of Conveyor Table（L*W*H) | 33.46"*15.75"*12" |
WARNING
1. Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.
2. Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

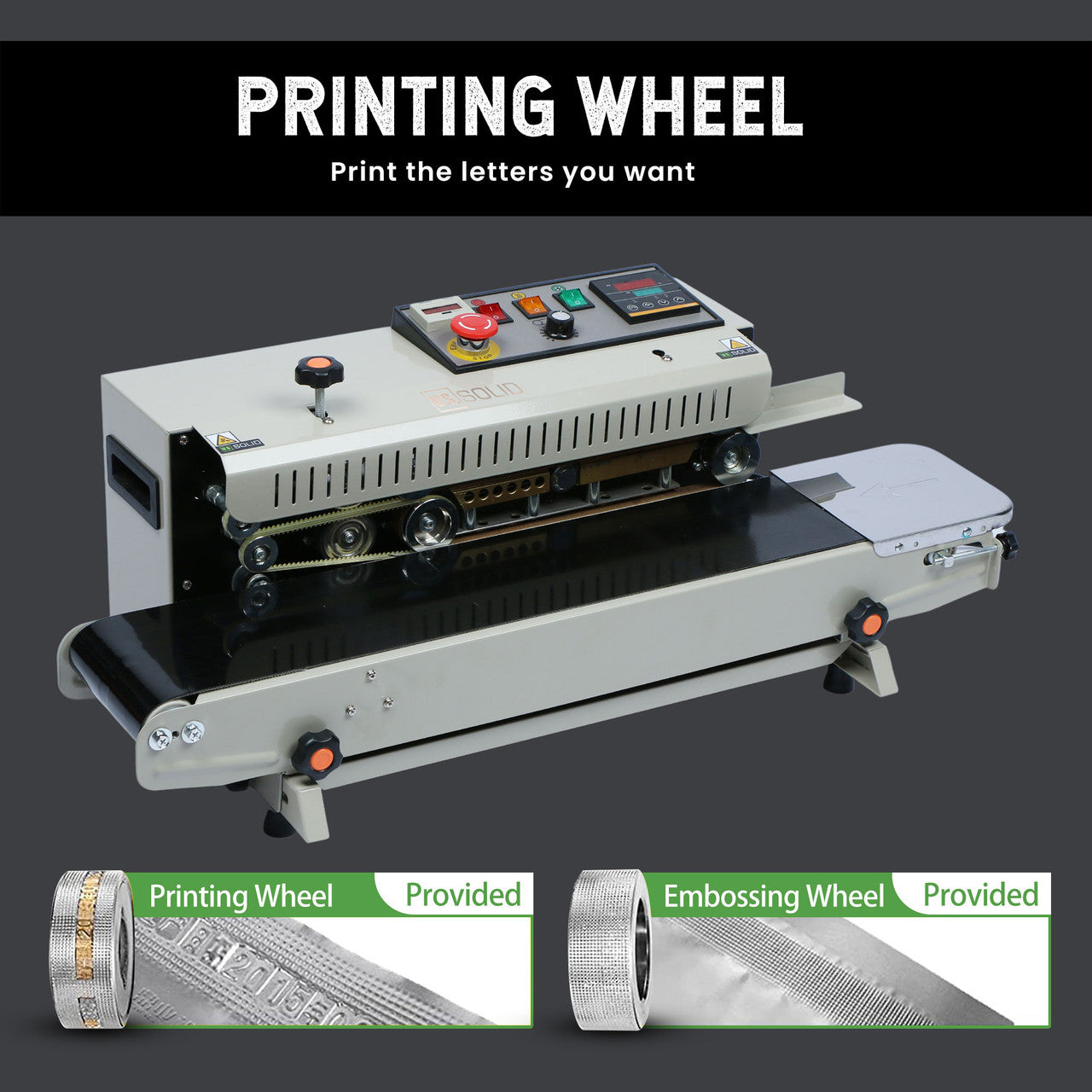

3. Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

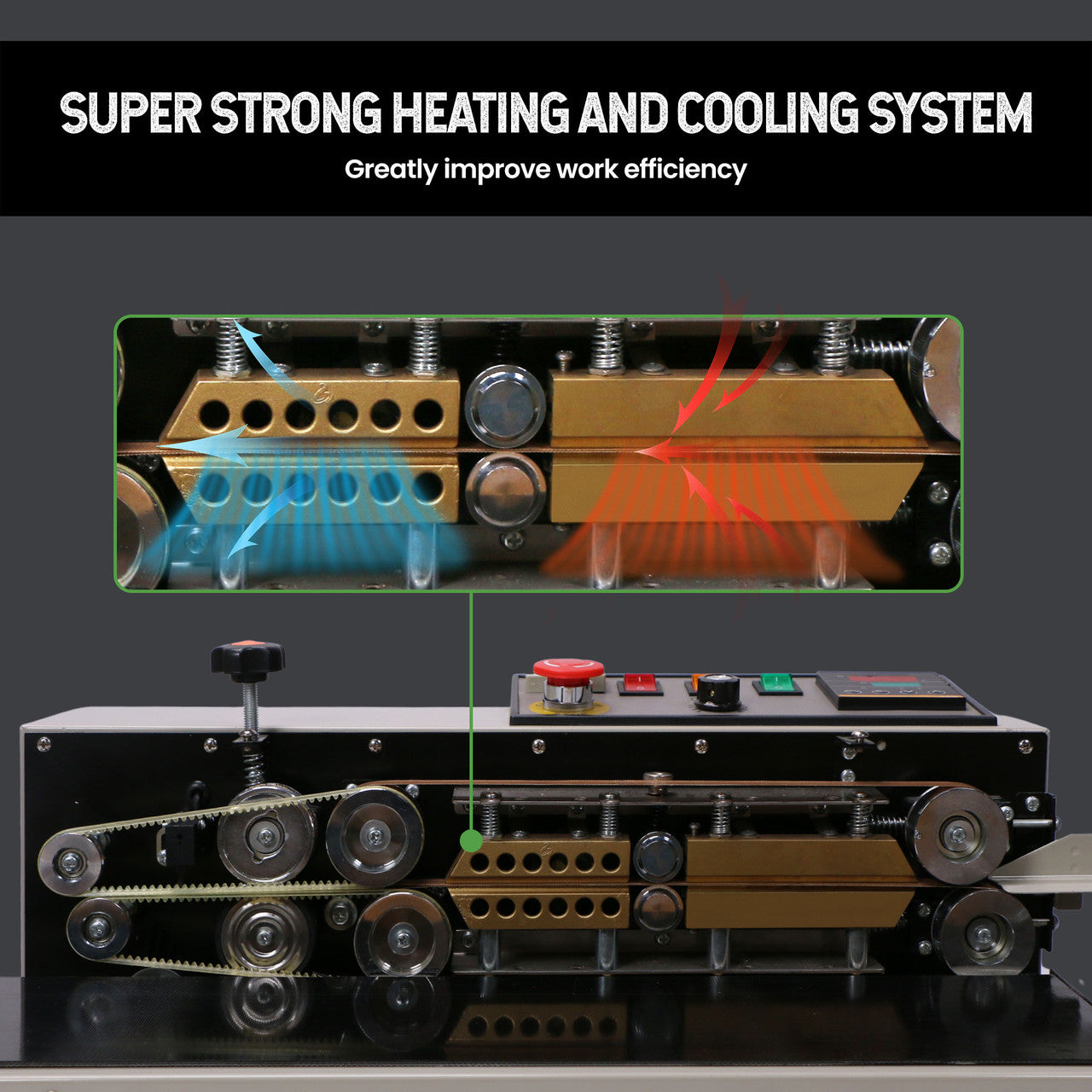

4. Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.
5. Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

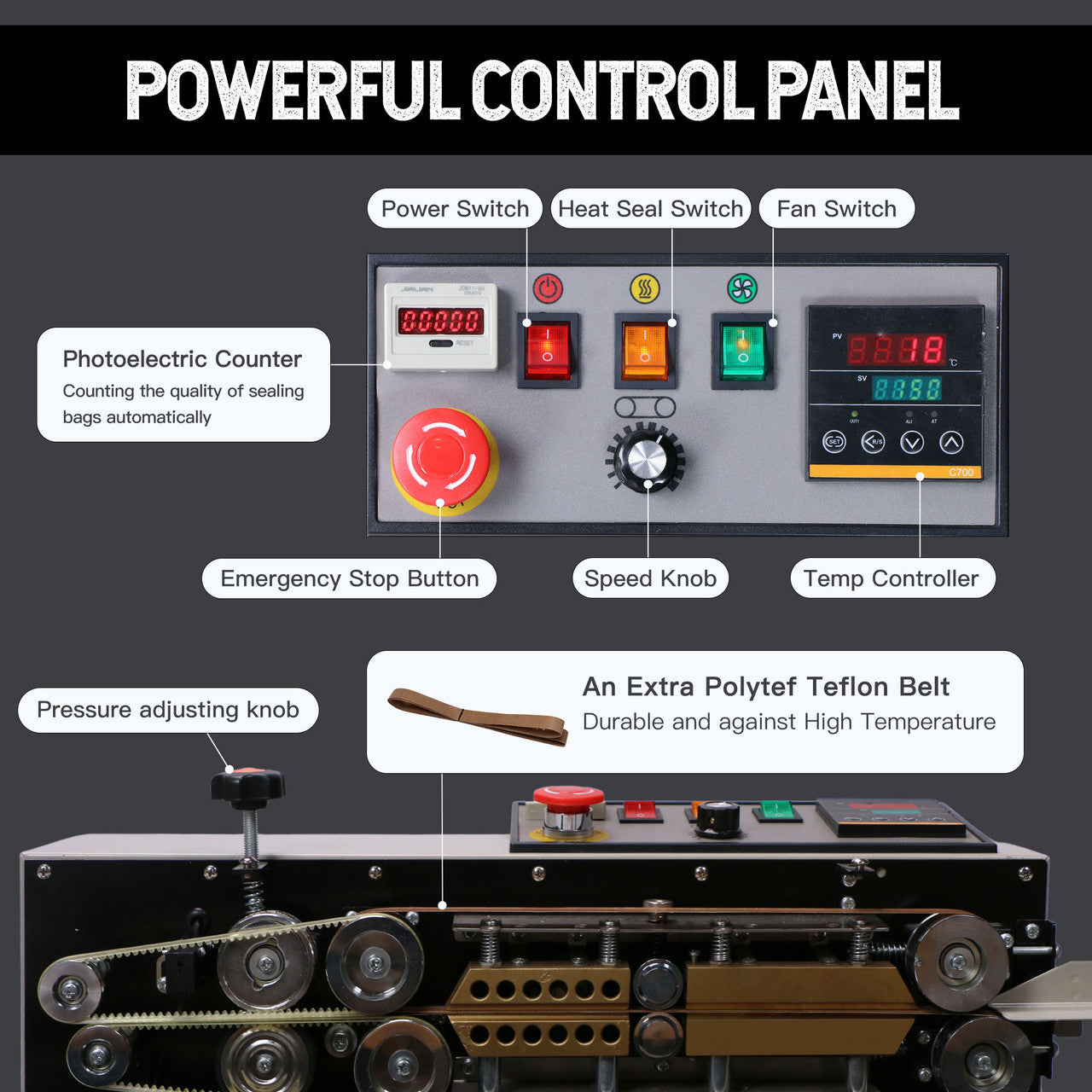

6. When using the machine for the first time, please turn the emergency switch upward to unlock it.
PACKING LIST
- Main Machine x1
- Accessory Bag x1
- User Manual x1
OTHER MODELS
Explore Our Full Range of Band Sealers
We offer a variety of models with different speeds, sealing widths, and load capacities to meet your specific packaging requirements.
VIEW MODEL SELECTION TABLEDownload user manual here
