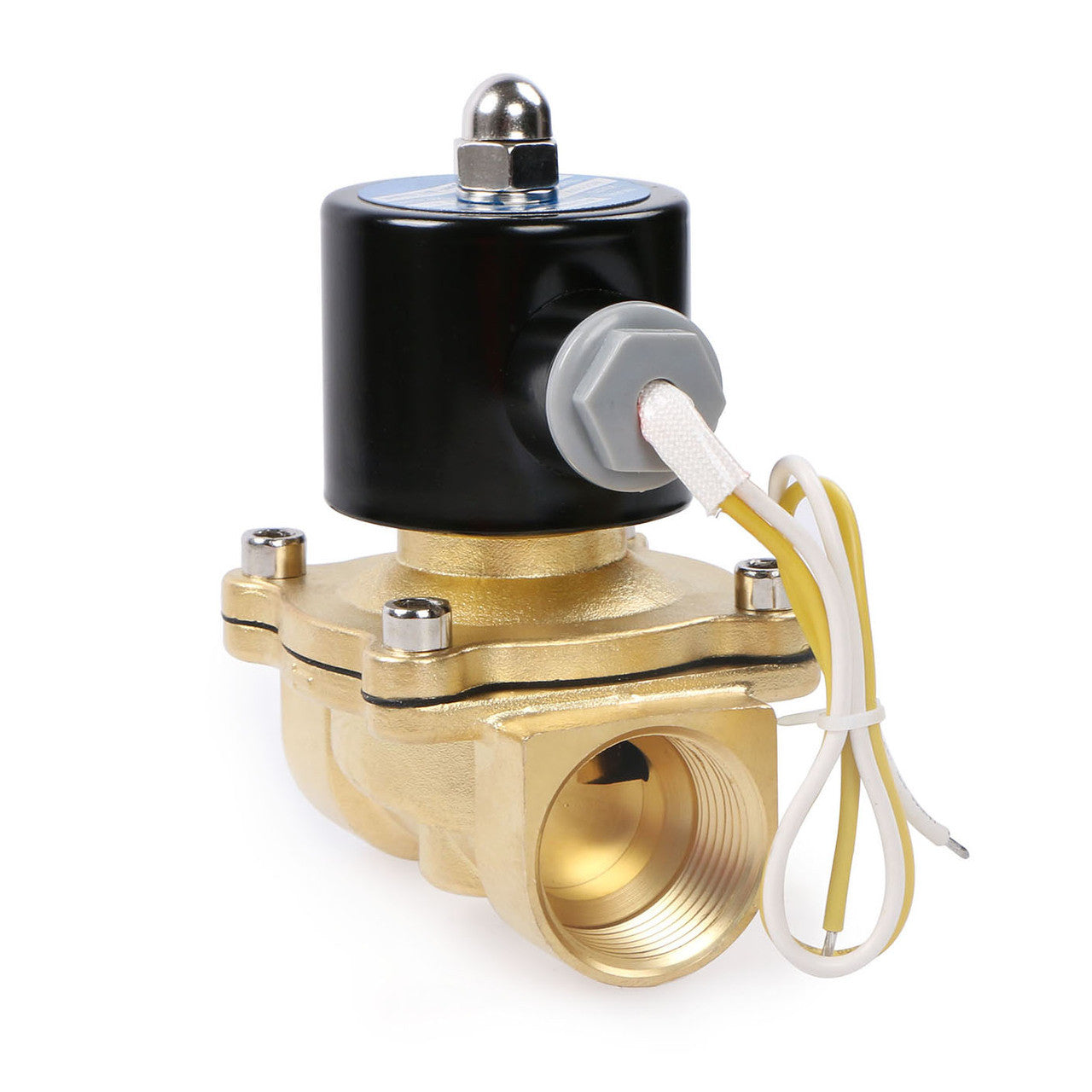

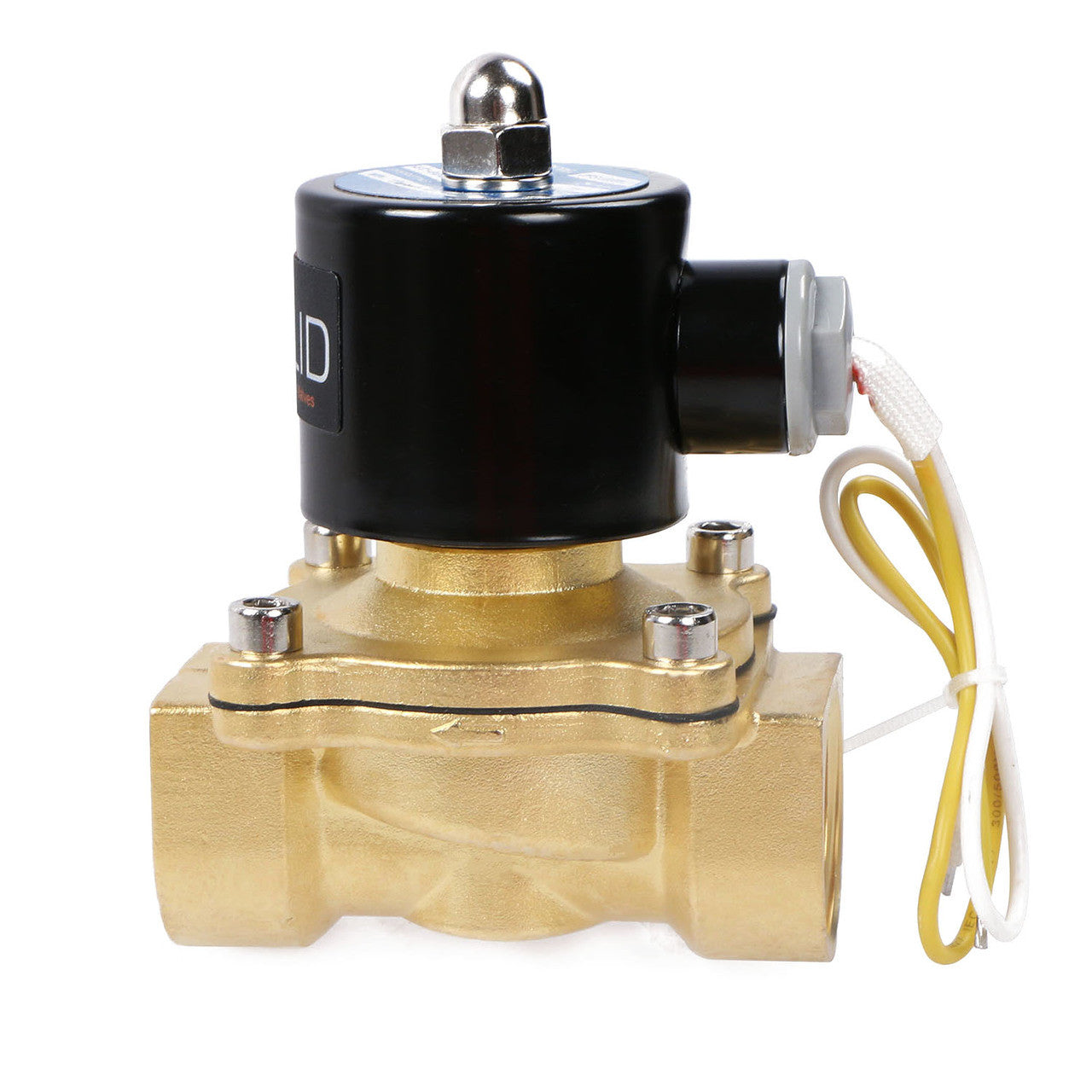

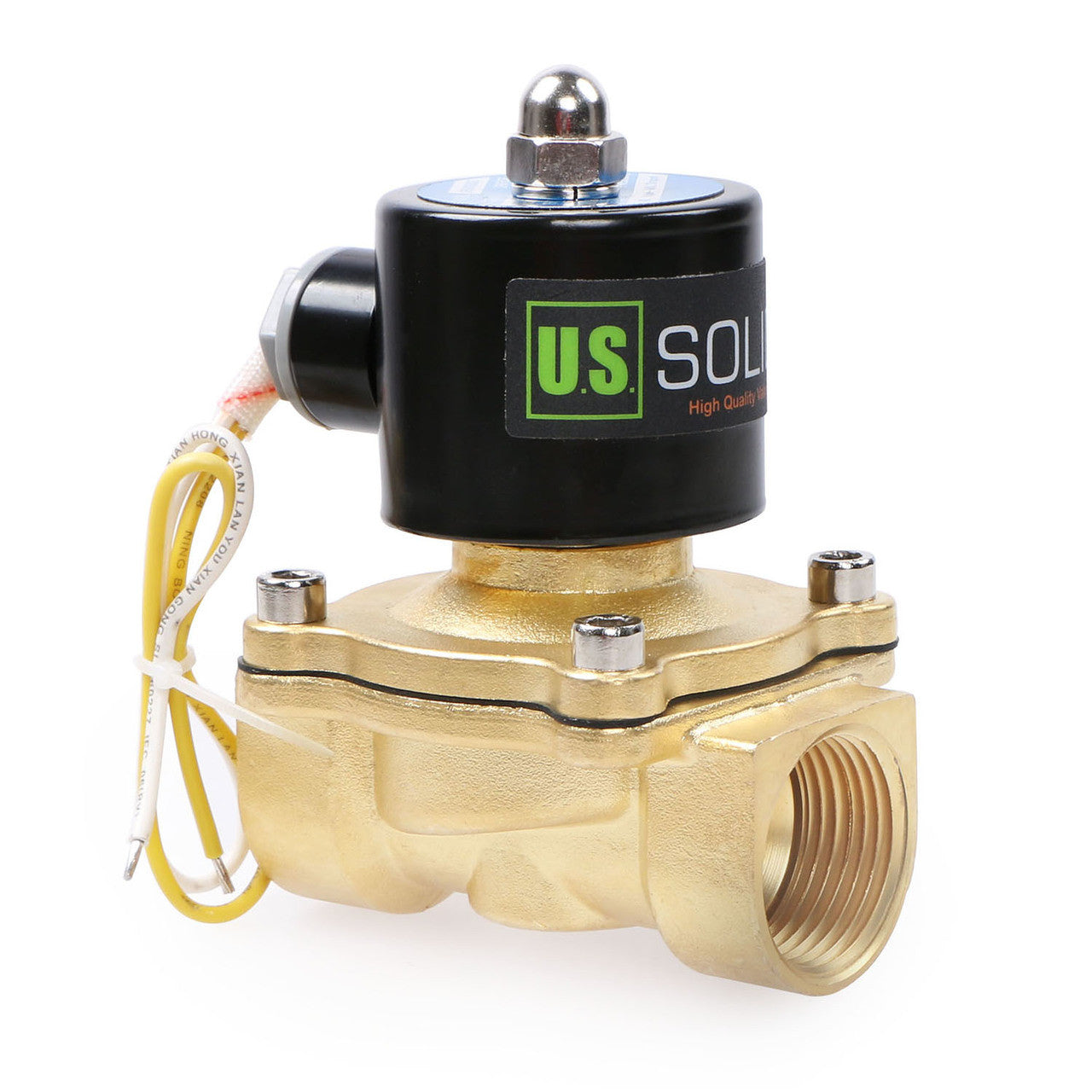

U.S. Solid Electric Solenoid Valve- 1" 110V AC Solenoid Valve Brass Body Normally Closed, NBR SEAL

U.S. Solid Electric Solenoid Valve- 1" 110V AC Solenoid Valve Brass Body Normally Closed, NBR SEAL

$36.49 USD
$36.49 USD
Sale Sold out
Shipping calculated at checkout.
View full details
U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, 1" female threaded (NPT) connections, and heat and oil resistant NBR seals. Suitable for use with hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst) and oils, e.g.. The solenoid valves have a rating of IP65, which means they can withstand spray from water. However, if permanently installed outdoors, it is recommended that you enclose the valves in some protective housing. Not for use underwater. Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, water exchange for aquarium, air horn, or bleeding moisture from an air tank.

Specifications

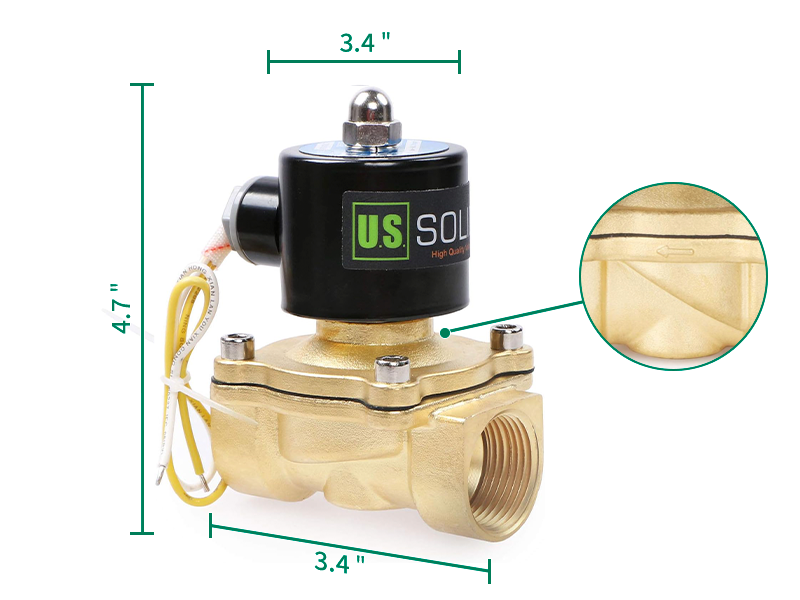

Pipe Size: 1"
Flow Aperture: 25 mm
Body Material: Brass
Gasket / Diaphragm / Seal: NBR
Operation Type: Semi-direct Lift Valve
Operation Mode: Normally Closed
Voltage: AC 110V ± 10%
Power rating: 22 VA
Suitable Media: Air, water, diesel oil, kerosene, etc.
Operational pressure range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
Flow capacity: 12 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 12 Cv
Temperature, Minimum: 23 degrees Fahrenheit (-5 degrees Celsius)
Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)

OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80℃), which is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8 hours the coil may burn.
