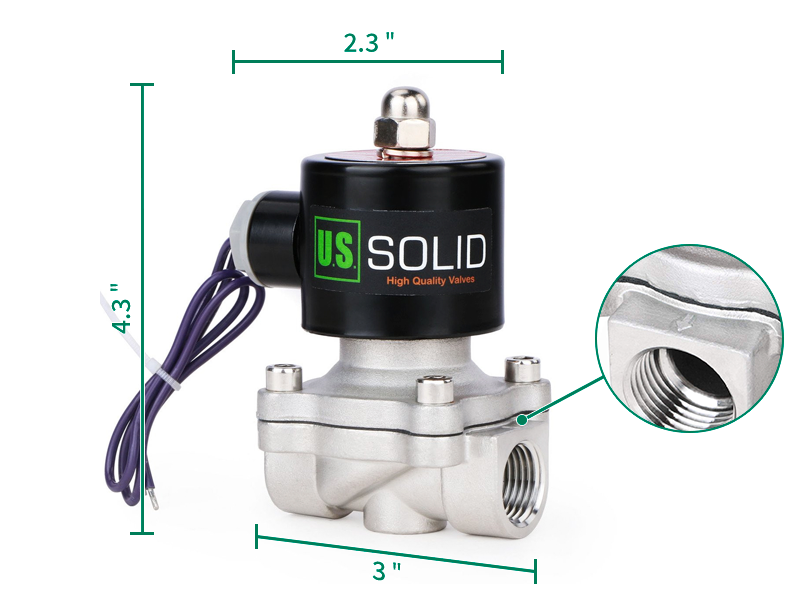

Specifications
Pipe Size: 1/2"
Flow Aperture: 16 mm
Body Material: Stainless Steel
Gasket / Diaphragm / Seal: VITON
Operation Type: Semi-direct Lift Valve
Operation Mode: Normally Closed
Voltage: DC 12V ± 10%
Power rating: 20 W
Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
Flow capacity: 4.8 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 4.8 Cv
Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80°C), which is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8 hours the coil may burn.
