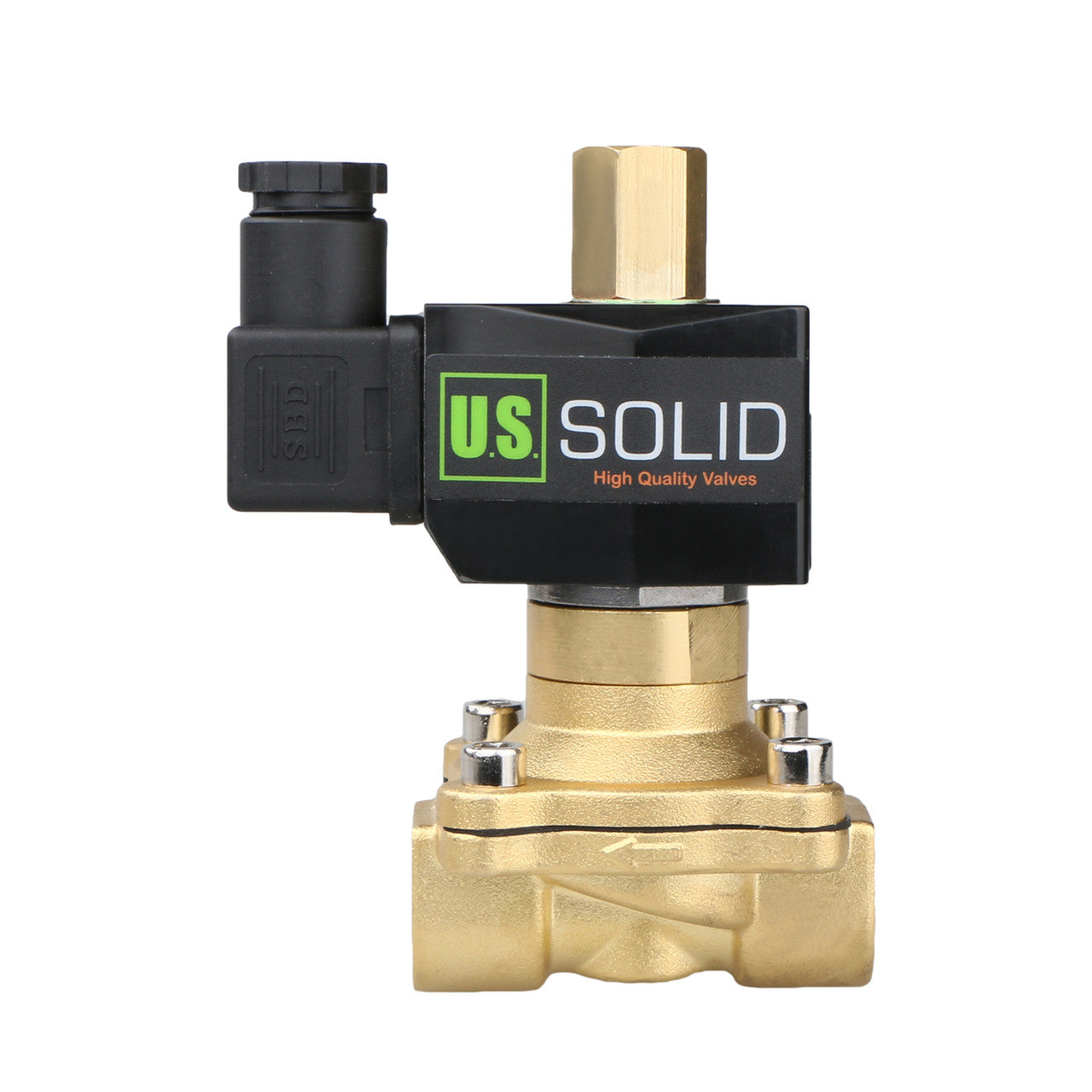

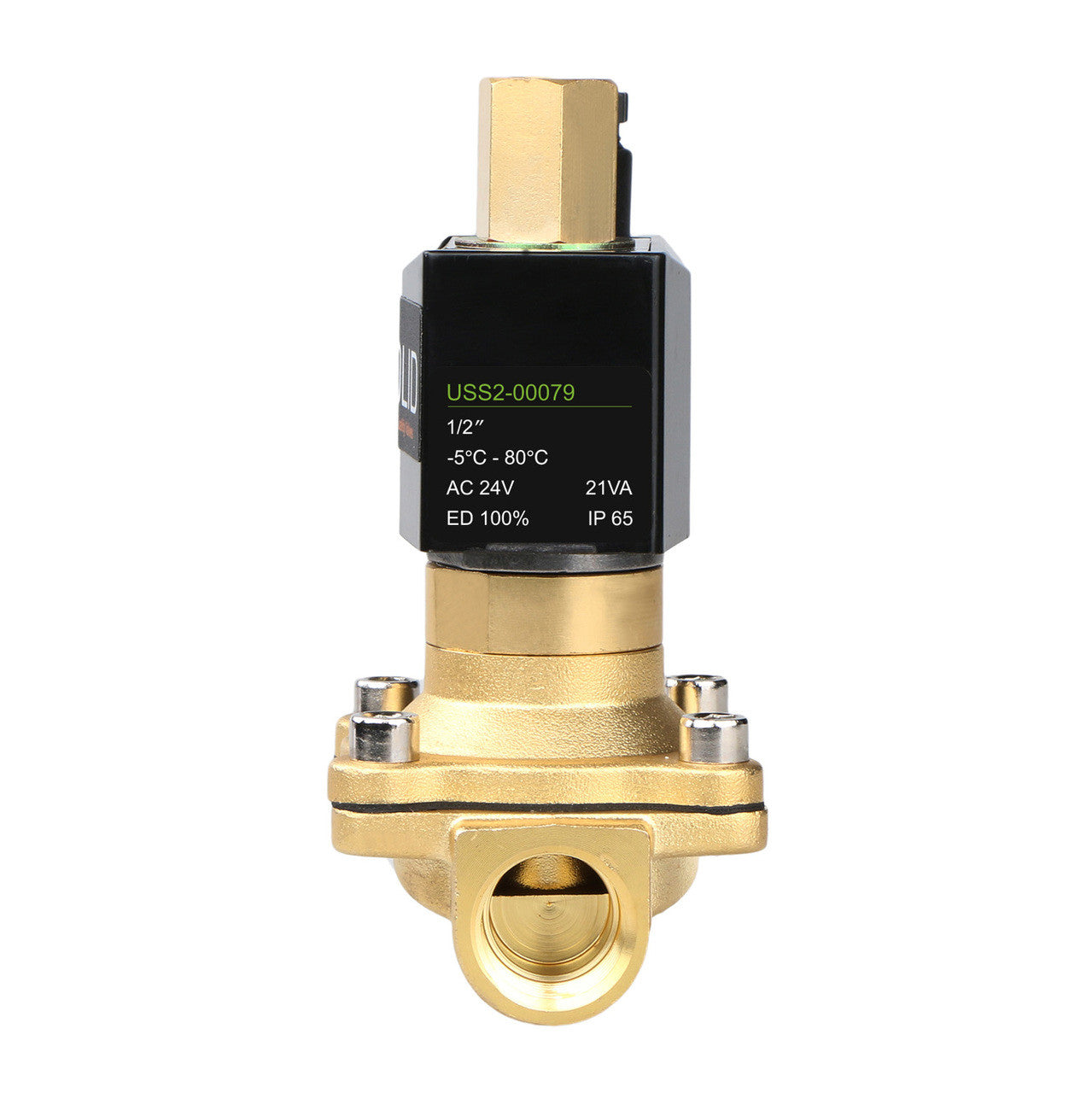

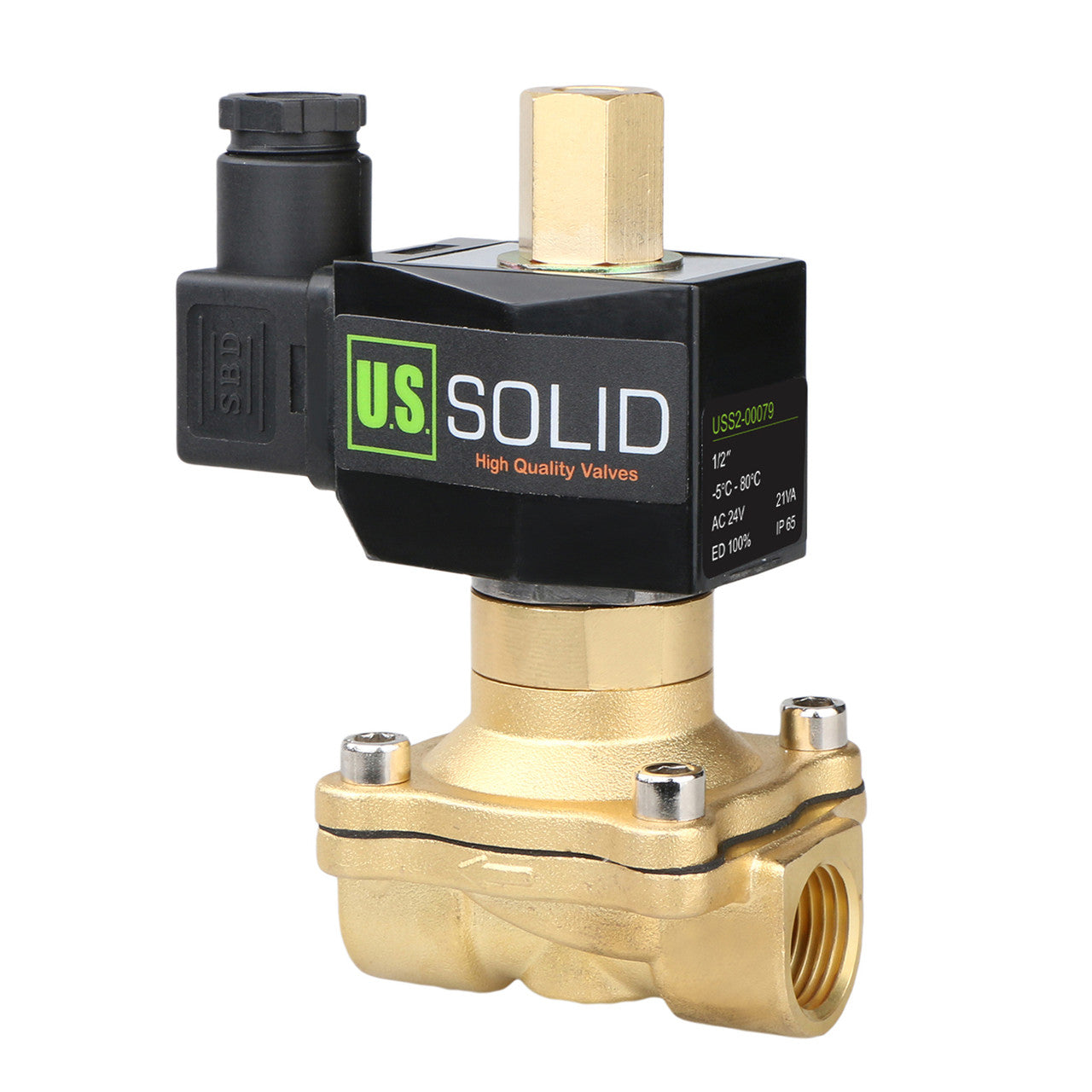

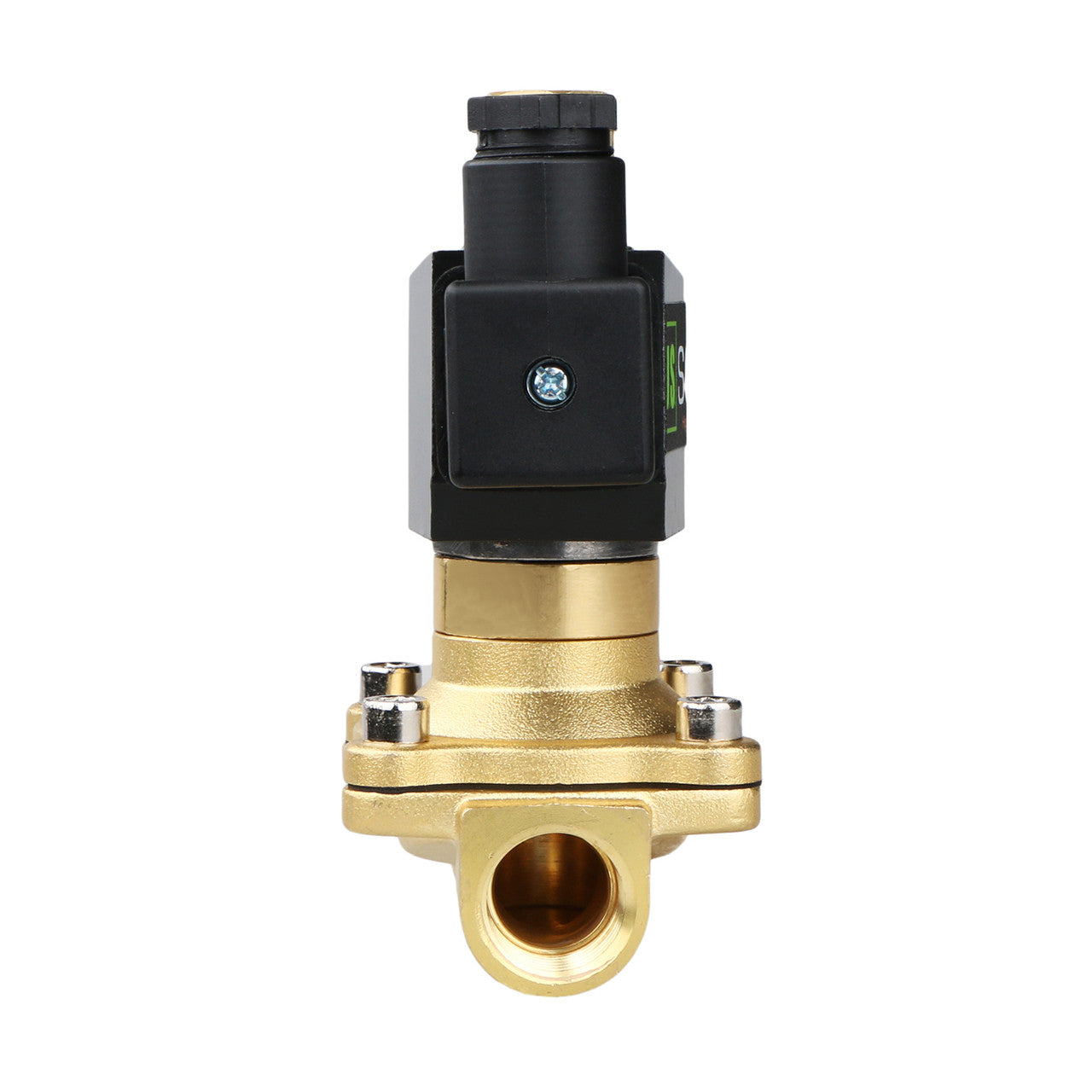

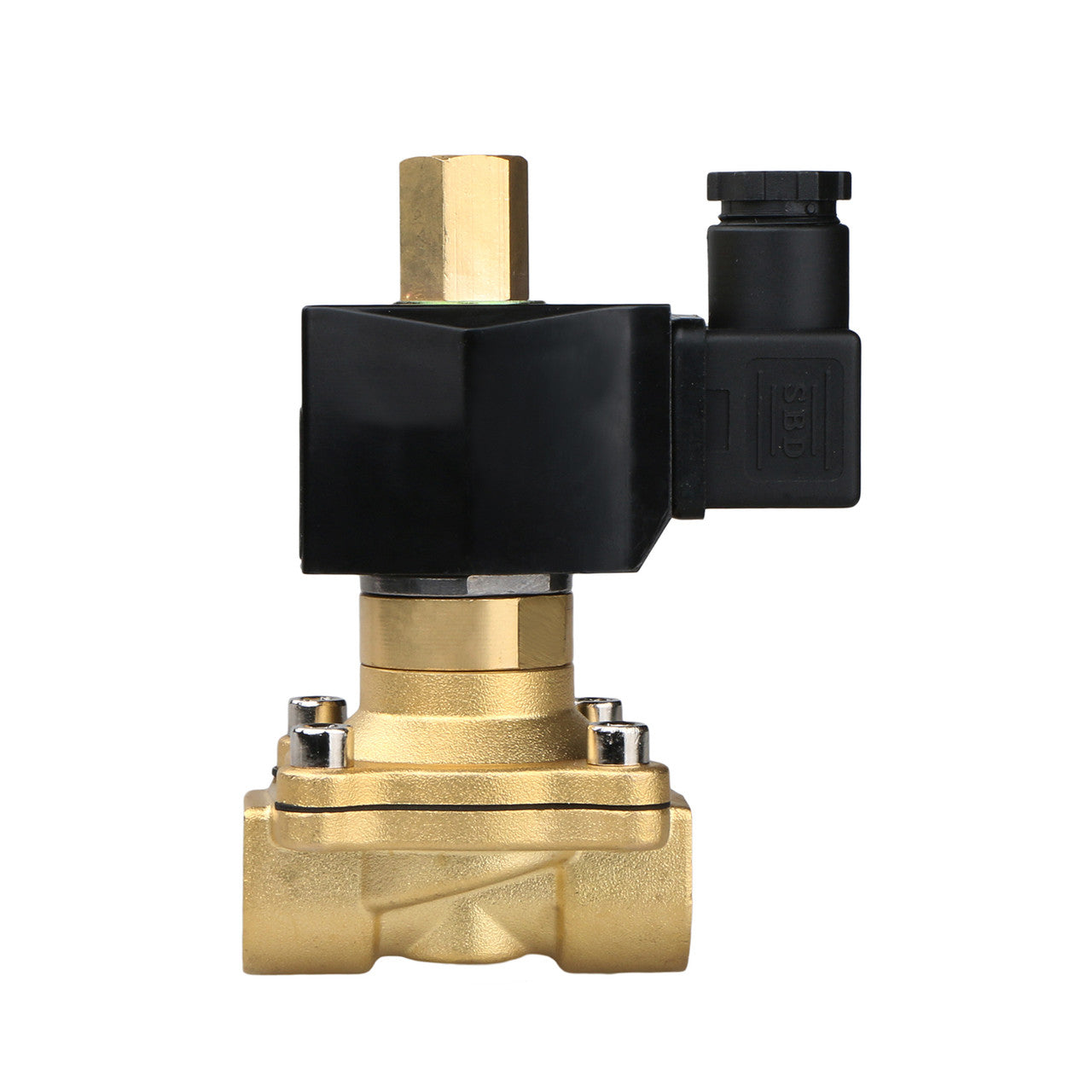

Specifications
Pipe Size: 1/2"
Flow Aperture: 16 mm
Body Material: Brass
Gasket / Diaphragm / Seal: NBR
Operation Type: Semi-Direct Lift Valve
Operation Mode: Normally Open
Voltage: AC 24V ± 10%
Power rating: 21 VA
Suitable Media: Air, water, diesel oil, kerosene, etc.
Operational pressure range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
Flow capacity: 4.8 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 4.8 Cv
Temperature, Minimum: 23 degrees Fahrenheit (-5 degrees Celsius)
Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80°C), which is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8 hours the coil may burn.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Reviews
- Questions
Solenoid valve review
They all seem to be working great. They are a bit large and a bit heavy for my need but I am happy with the product. I will be buying more soon. If there was a similar valve, which could be three-quarter inch as well, that is normally open but Possibly smaller and/or lighter and a bit cheaper I would be interested in checking that product out.
