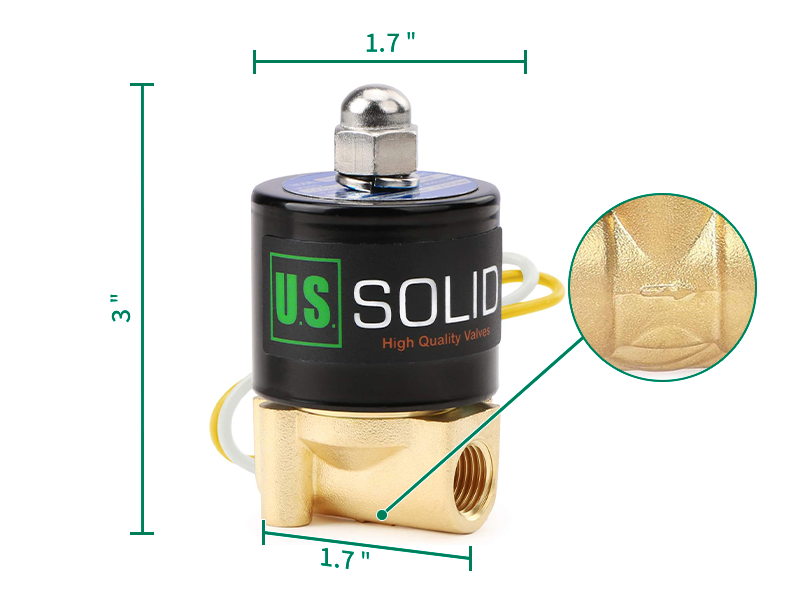

1/4" 110V AC Solenoid Valve, Brass, Normally Closed, VITON Seal

1/4" 110V AC Solenoid Valve, Brass, Normally Closed, VITON Seal

SKU: Product SKU: JFSV00054

360 in stock

Regular price $18.99 USD
Regular price Sale price $18.99 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
U. S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, two-way inlet and outlet ports with one-quarter inch (1/4") female threaded (NPT) connections, and heat and oil resistant Viton seals. Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. The solenoid valves have a rating of IP65, which means they can withstand spray from water. However, if permanently installed outdoors, it is recommended that you enclose the valves in some protective housing. Not for use underwater. Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, water exchange for aquarium, air horn, or bleeding moisture from an air tank.

Specifications
Pipe Size: 1/4"
Flow Aperture: 2.5 mm
Body Material: Brass
(Also available with Stainless Steel body: Item # USS2-00066)
Gasket / Diaphragm / Seal: VITON
Operation Type: Direct Lift Valve
Operation Mode: Normally Closed
Voltage: AC 110V ± 10%
Power rating: 16 VA
Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
Flow capacity: 0.23 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 0.23 Cv
Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)

OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80°C), which is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8 hours the coil may burn.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
