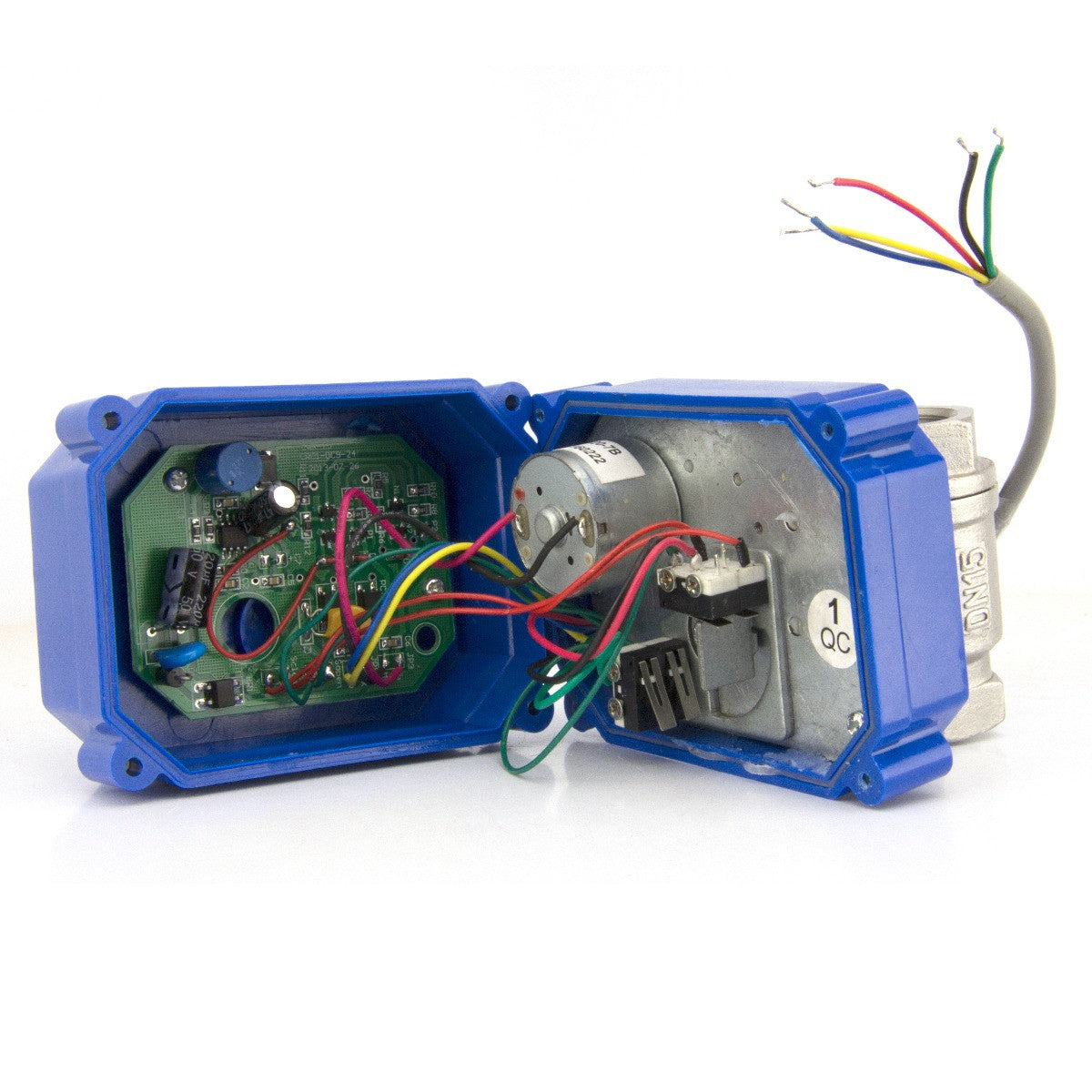

The 5 wire model is perfect for situations where it is important for the status of the valve to be displayed. Convenient wiring diagrams and instructions will walk you through the process of connecting the valve to power, and connecting the status indicator wires. This 5 wire model is an ideal fit for home automation systems.
The stainless steel ball valve is NSF certified, which means you can install it in the drinking water pipeline.
Specifications
U.S. Solid Model: USS-MSV00015
Valve Material : SS304
Ball Seal: PTFE
Operating Time : 6-8 Seconds
Working Voltage : 9-24V DC
Max Power : 5 W
Max Torque : 6 N m
Max Medium Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 90°C
Ambient Temperature Range : -5°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles

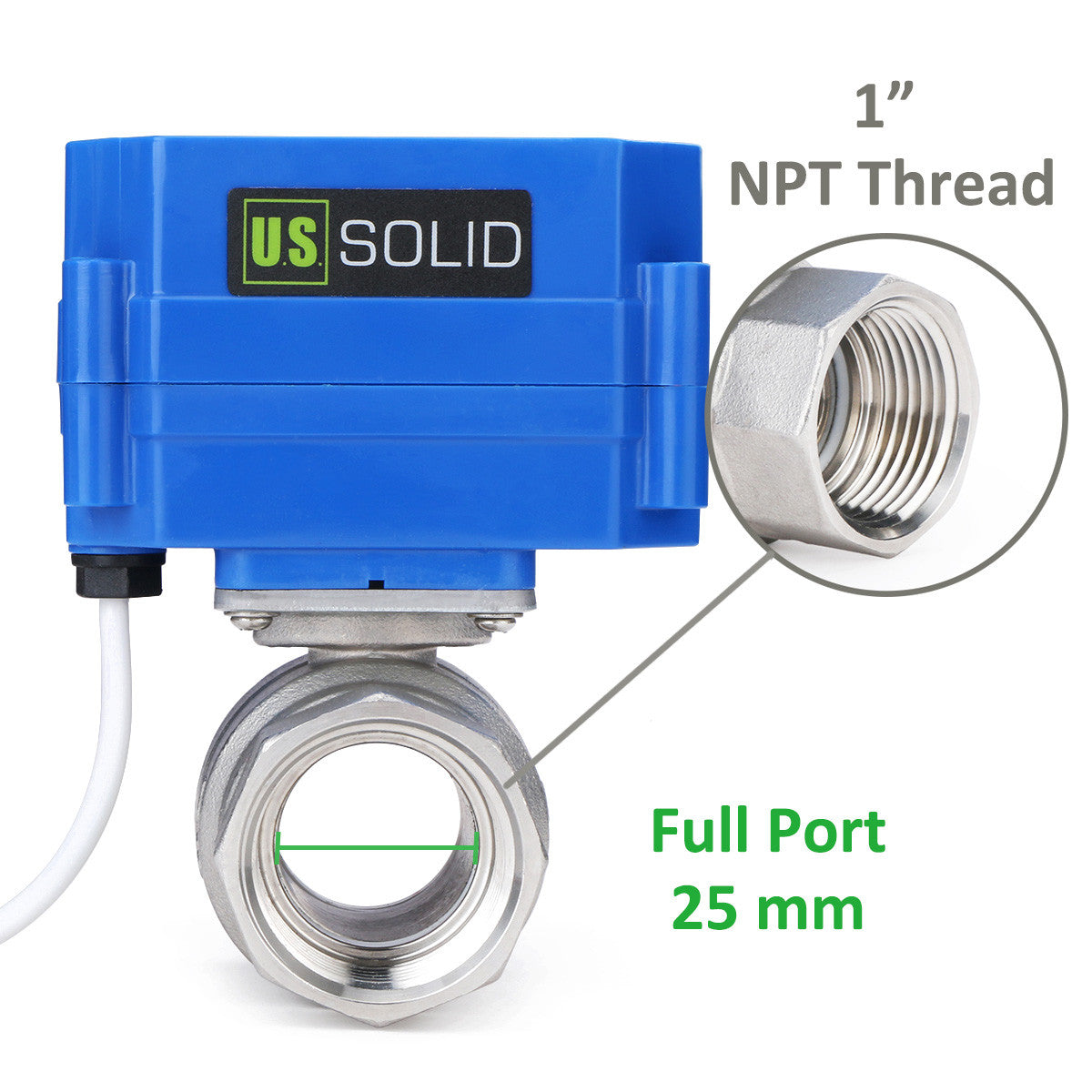

Bore Type : Full

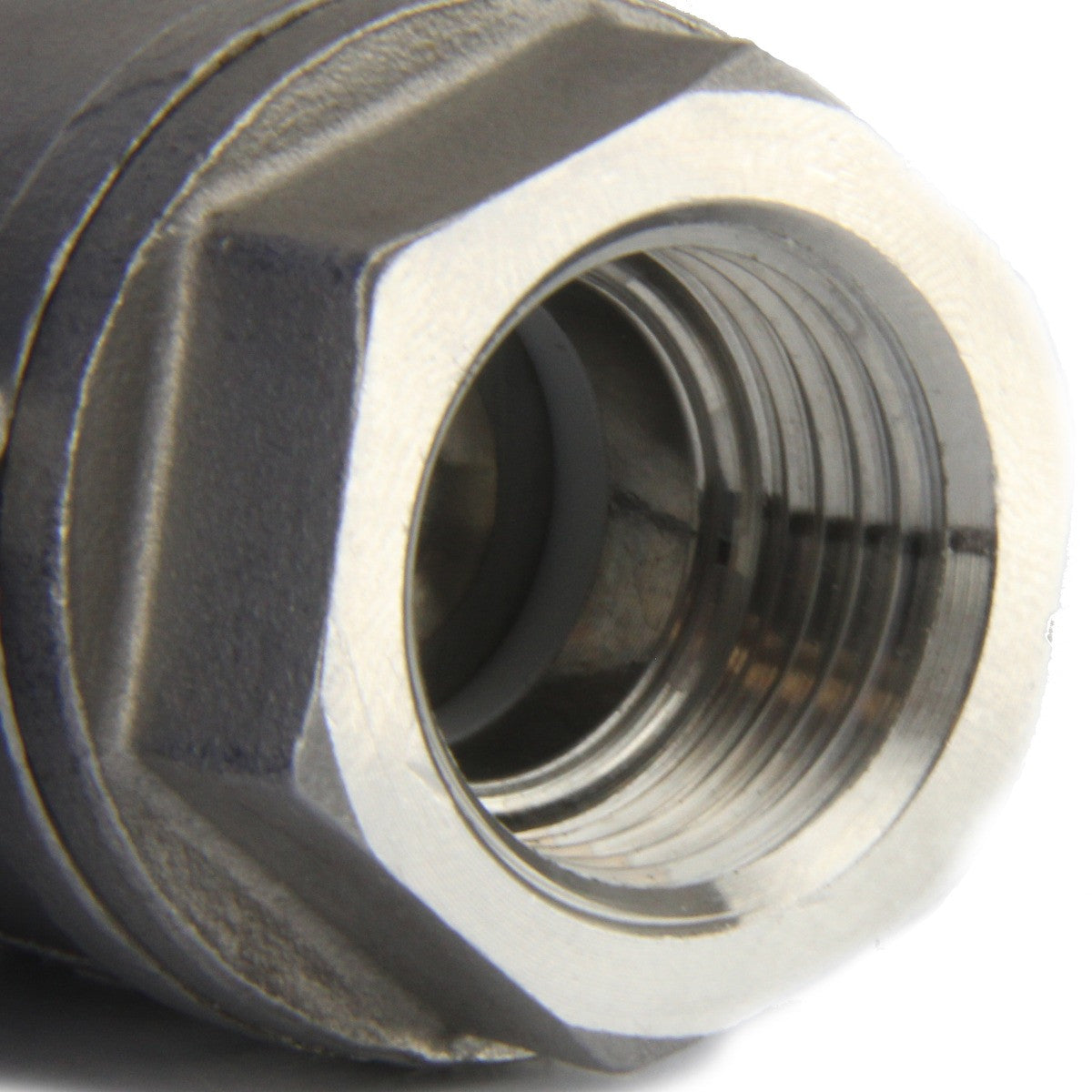

Thread Type : NPT
Wiring Type : 5 Wire Setup Video
