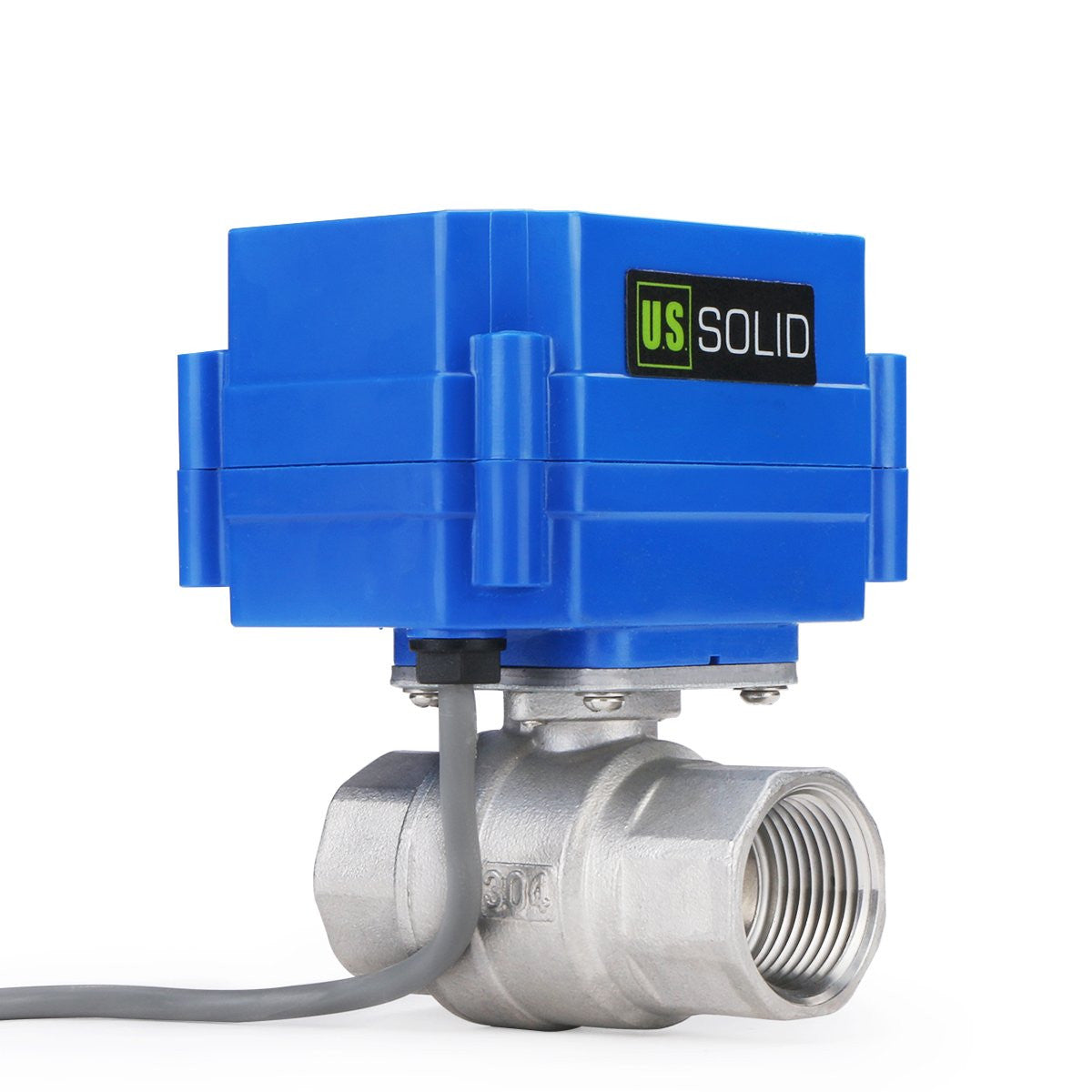

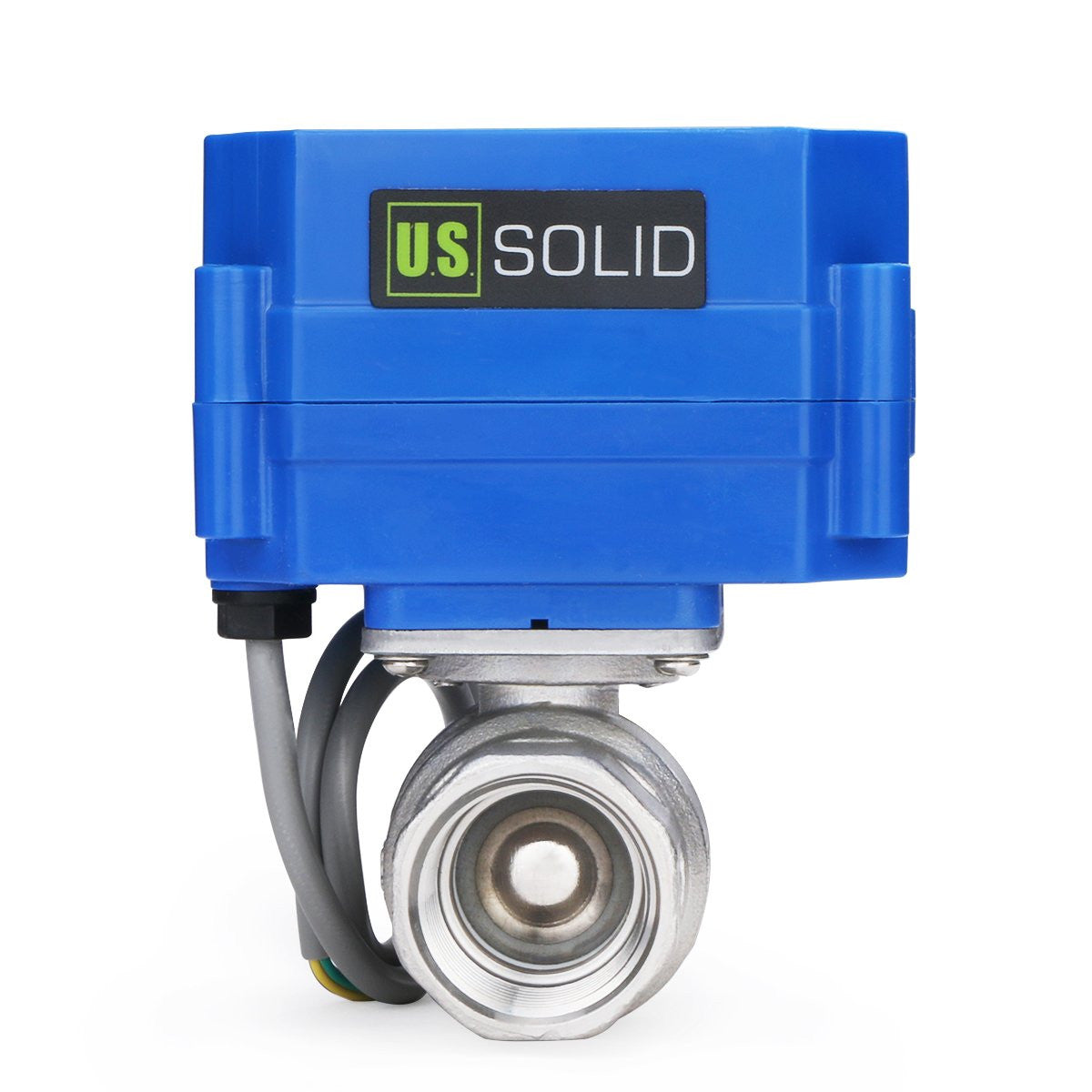

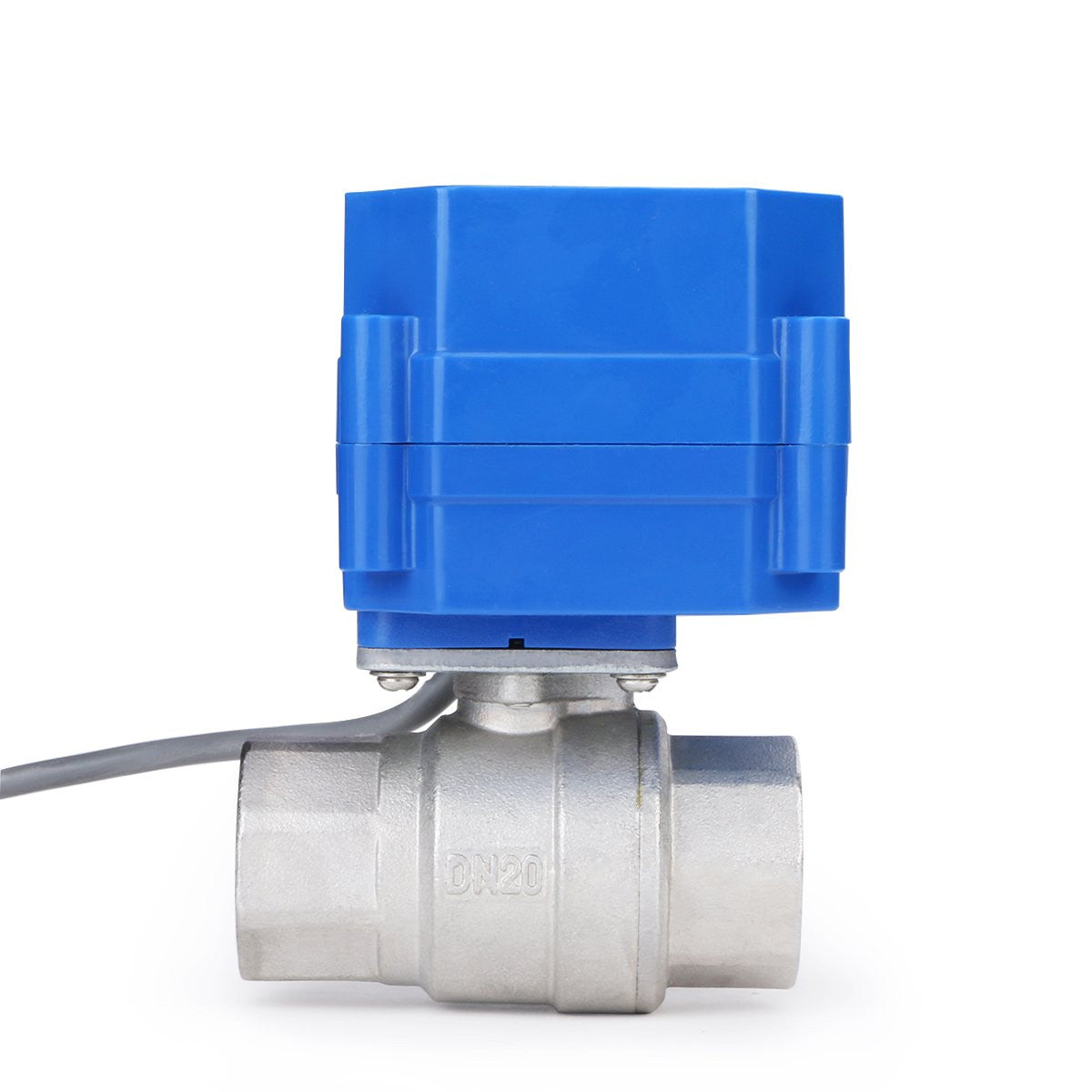

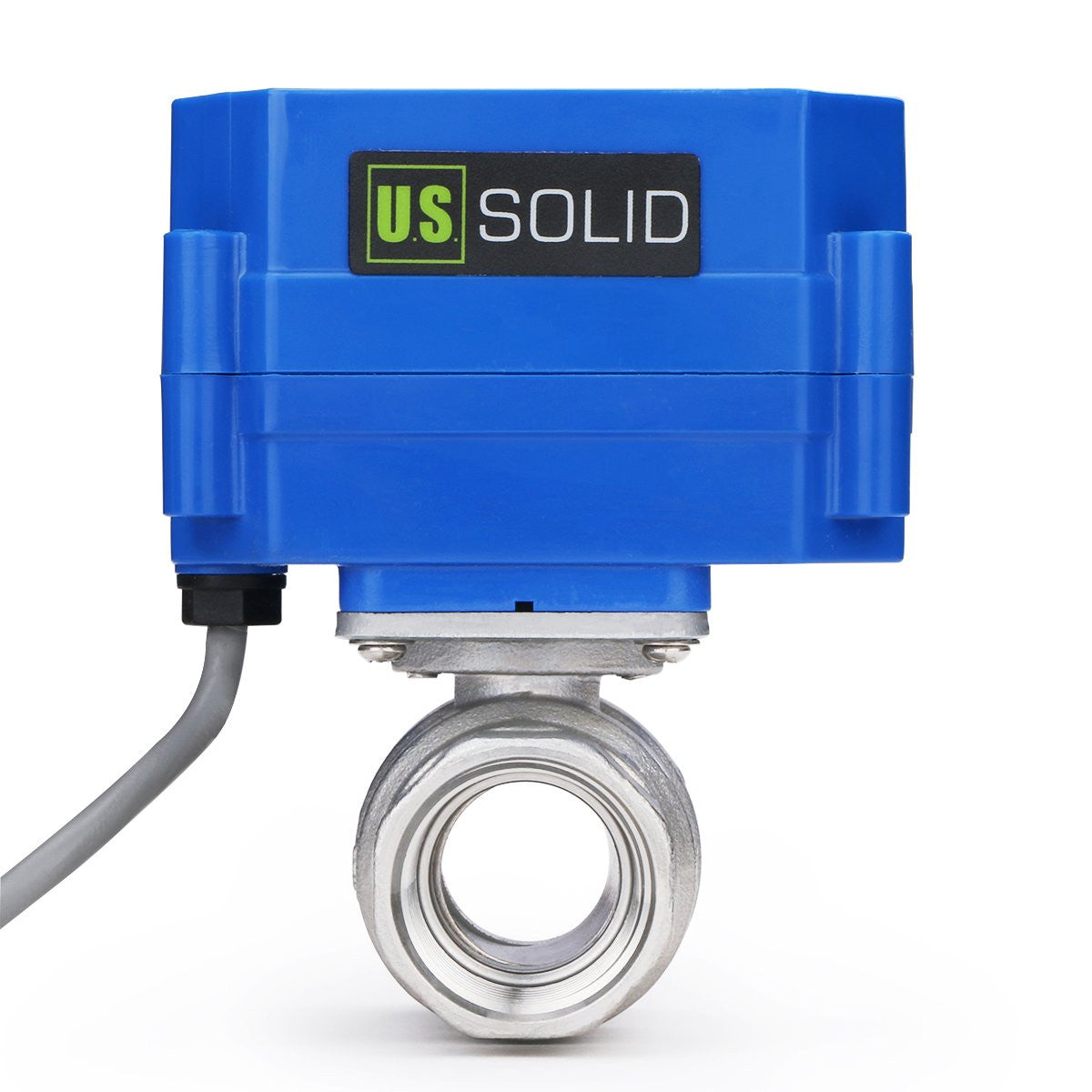

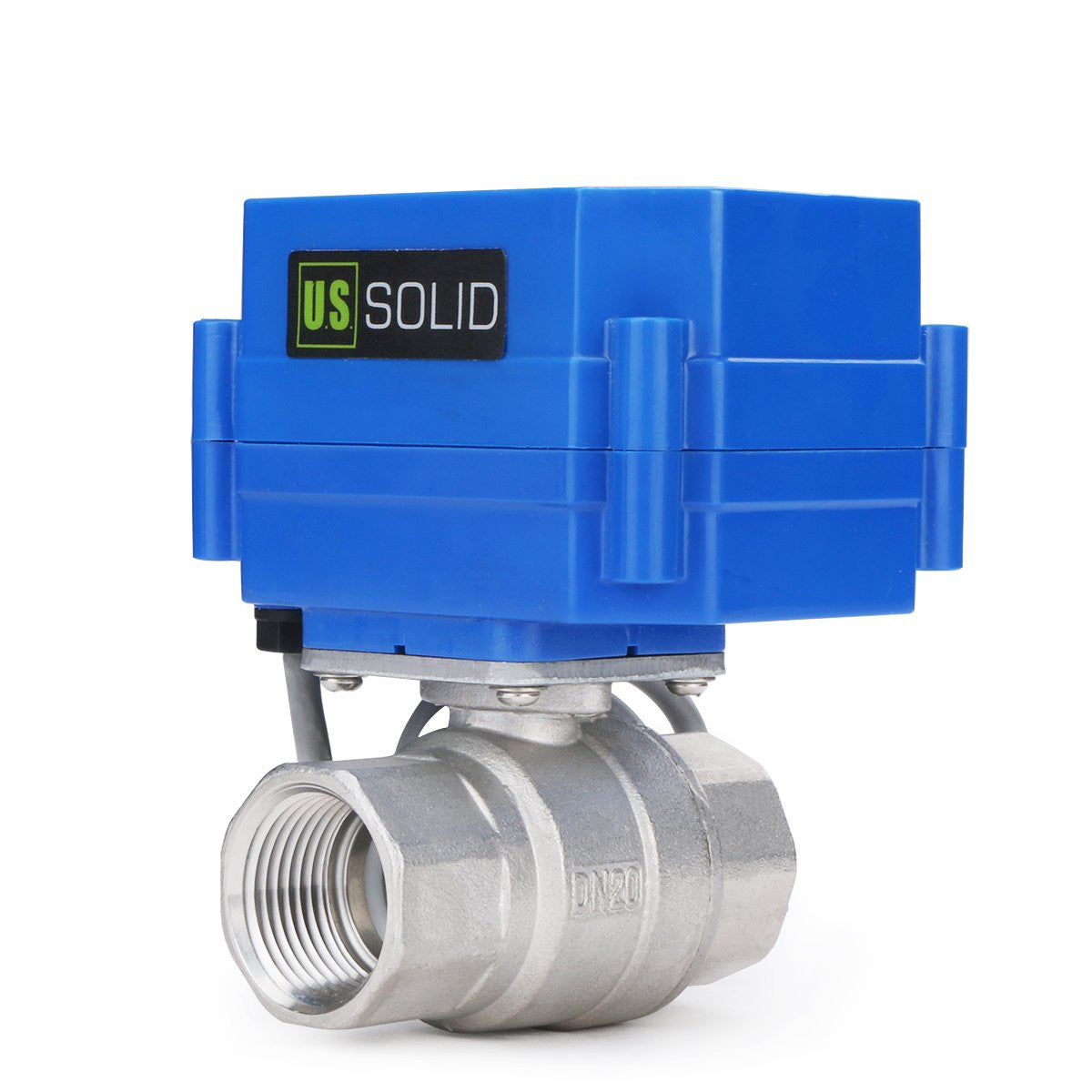

U.S. Solid Motorized Ball Valve- 3/4” Stainless Steel Electrical Ball Valve with Full Port, 9-24 V DC, 5 Wire Setup

U.S. Solid Motorized Ball Valve- 3/4” Stainless Steel Electrical Ball Valve with Full Port, 9-24 V DC, 5 Wire Setup

Regular price $37.99 USD
Regular price Sale price $37.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details
Motorized ball valves are a vital piece of equipment in numerous applications. This model opens and closes in 6-8 seconds, and remains in its new position while expending almost no energy. This is a key difference between motorized ball valves and many solenoid valves. Most solenoid valves are energized continuously when in a new position, while motorized ball valves expend energy only when changing from open to close, or vice versa.


The 5 wire model is perfect for situations where it is important for the status of the valve to be displayed. Convenient wiring diagrams and instructions will walk you through the process of connecting the valve to power, and connecting the status indicator wires. This 5 wire model is an ideal fit for home automation systems.

The stainless steel ball valve is NSF certified, which means you can install it in the drinking water pipeline.

Specifications
U.S. Solid Model: USS-MSV00014
Valve Material : SS304
Ball Seal: PTFE
Operating Time : 6-8 Seconds
Working Voltage : 9-24V DC
Max Power : 5 W
Max Torque : 6 N m
Max Medium Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 90°C
Ambient Temperature Range : -5°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles

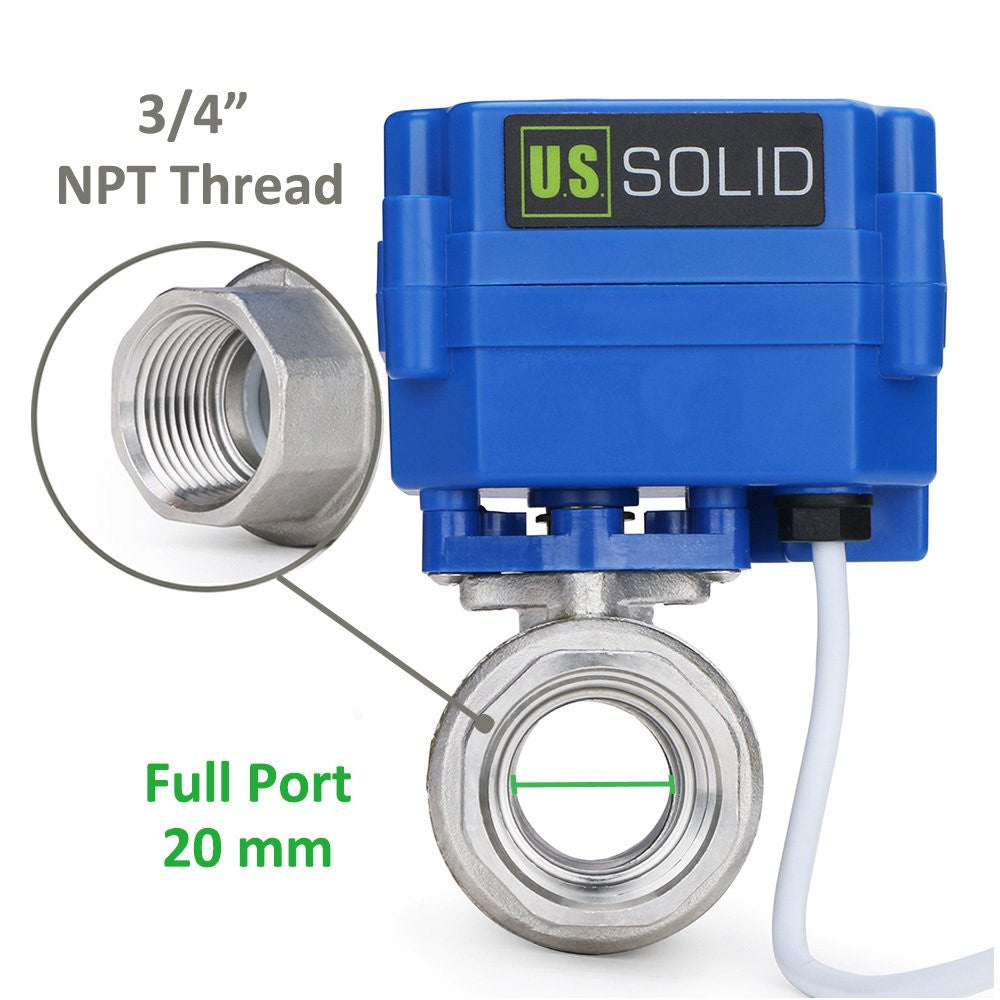

Bore Type : Full
Thread Type : NPT
Wiring Type : 5 Wire Setup Video
