Model: M6-3L
Flow rate range: 0.211 - 3600 mL/min
Speed range: 0.5 - 600 rpm
Speed resolution: 0.1 rpm (when 0-100rpm); 1 rpm (when 100-600rpm)
Display: LED
Control method: pure import button and digital knob
Button life: 300,000 times
External control speed signal: 0-5 V(standard) 0-10 V, 4-20 mA(optional)
Communication interface: RS232 (standard) RS485 (optional), with MODBUS protocol(RTU mode)
Power consumption: <80 W
Operating condition: temperature 0 to 40 ℃
Power supply: 110V
Relative humidity: < 80 %
Drive dimension: 230 x 152 x 199 mm
Drive weight: 5.02 kg
IP rate: IP31
Housing material: stainless steel
Motor type: servo motor

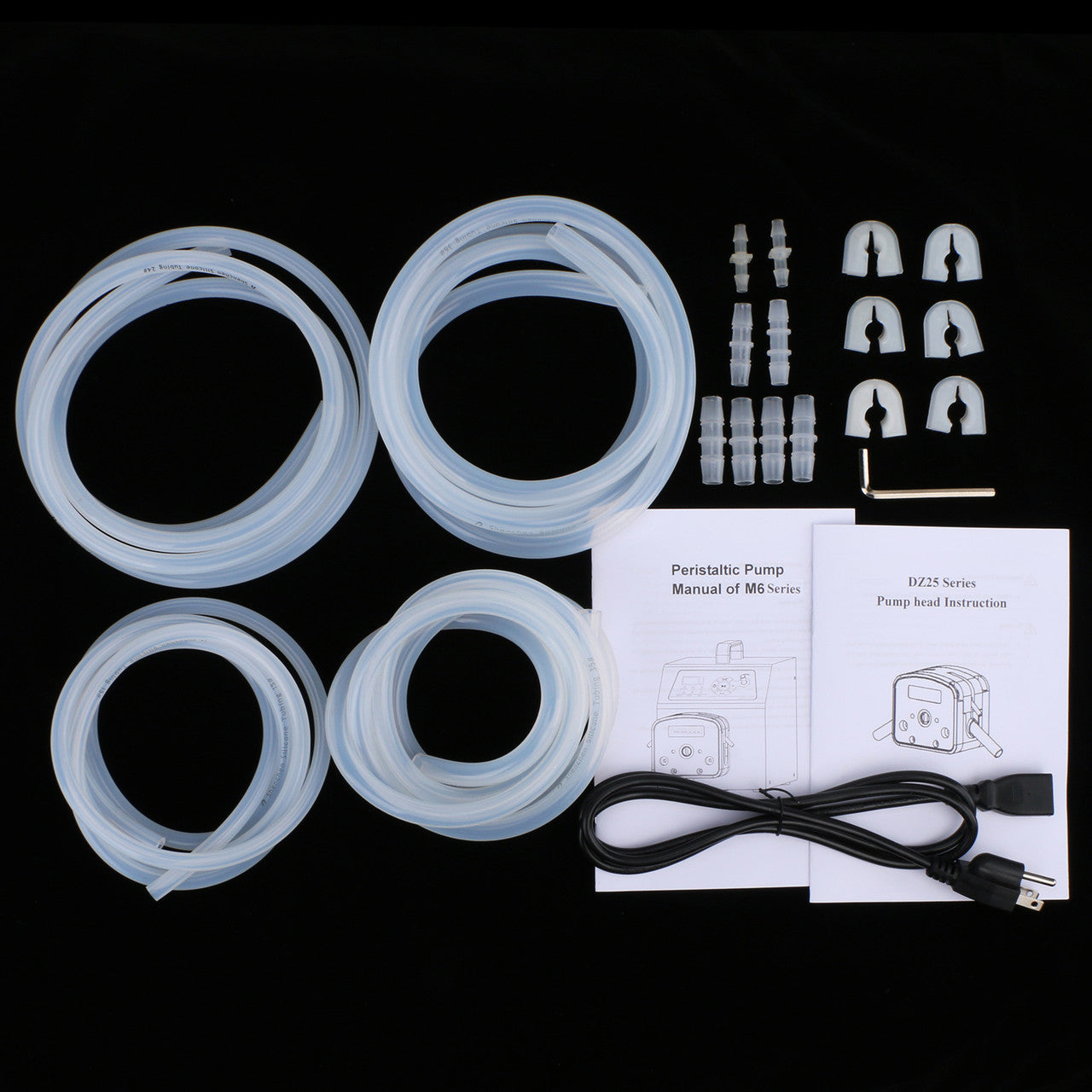

Packing List:
1 x Drive (N6-3L)

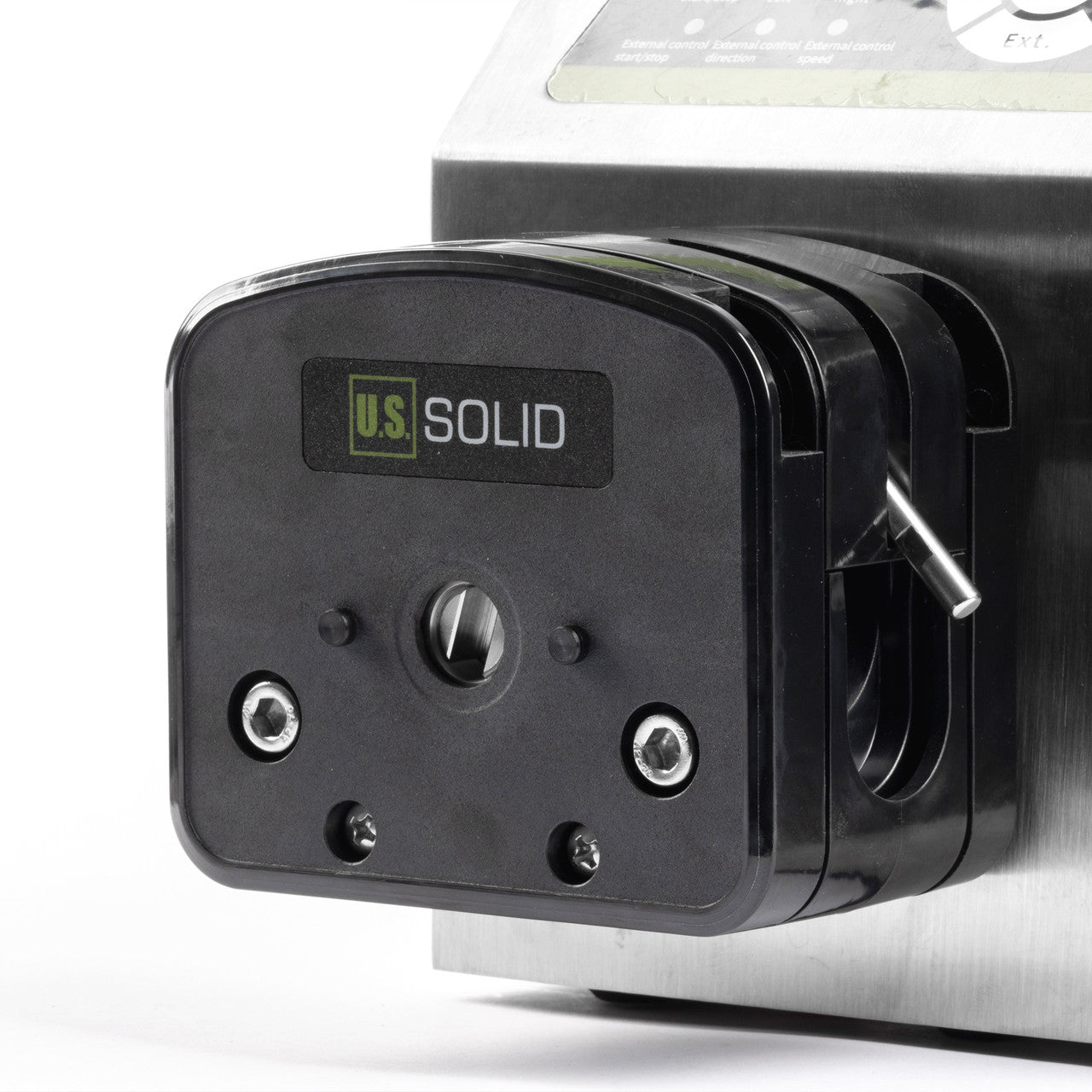

1 x Pump Head (DZ25-3L)
1 x 15# Tubing (2 m)
1 x 24# Tubing (2 m)
1 x 35# Tubing (2 m)
1 x 36# Tubing (2 m)
1 x Power Cable
2 x English Manual
