Introduction

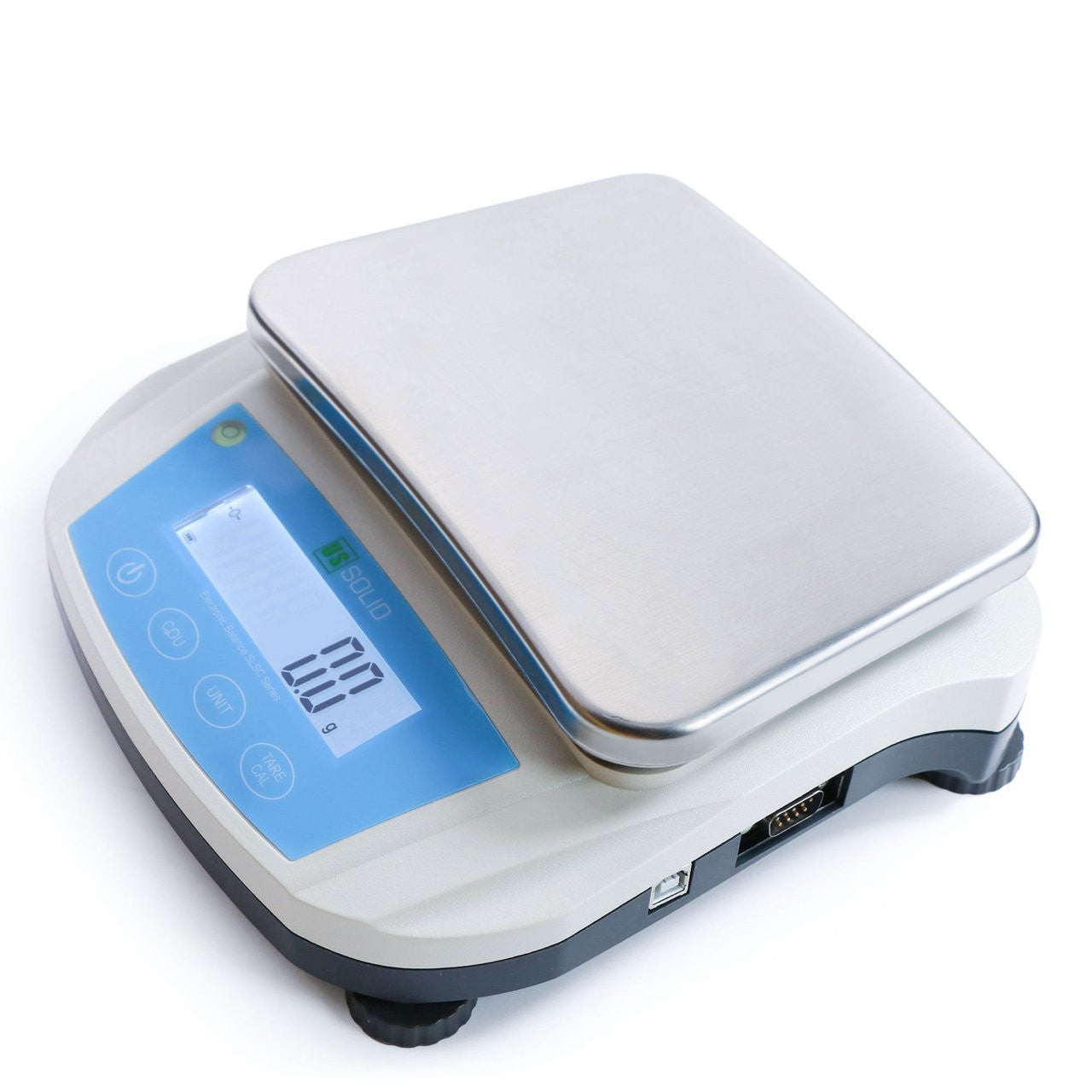

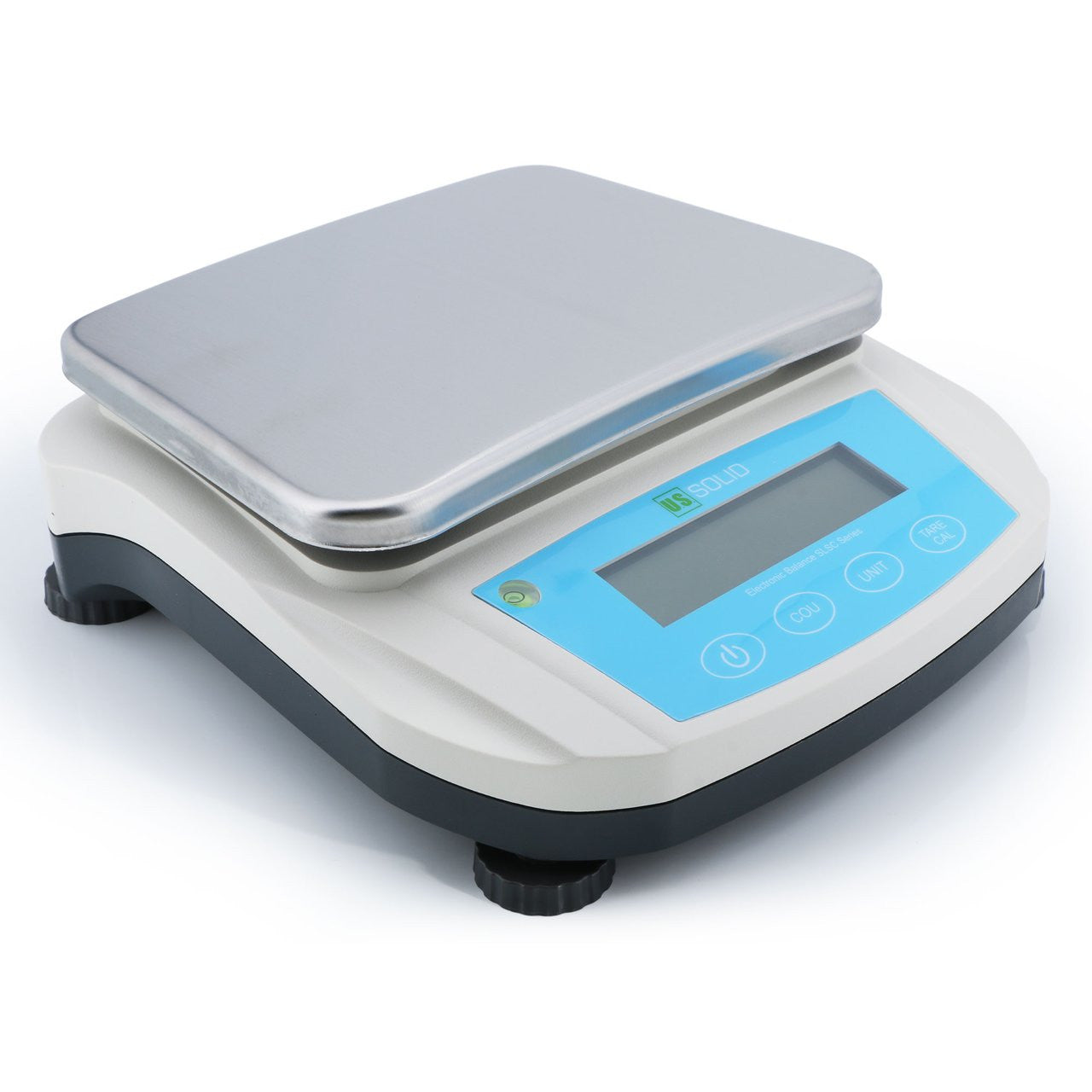

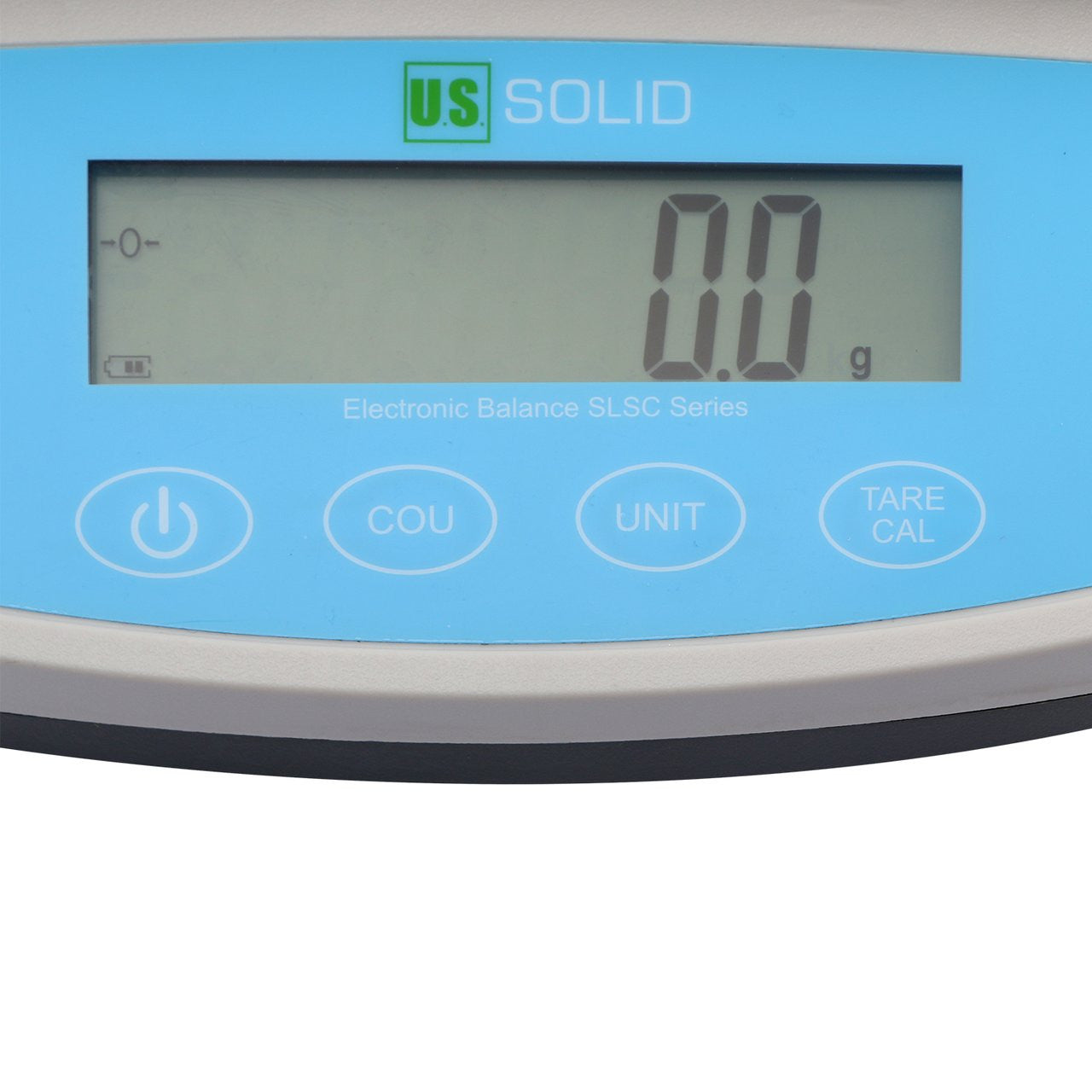

The USS-DBS51 Series precision balances offer a high range of capacities (3000g, 5000g, and 10000g) with 0.1g readability. Featuring a strain gauge sensor for reliable results, a backlit LCD for clear readings, and a large rectangular pan for bigger samples, these balances are designed to meet diverse weighing needs. The series includes RS232 and USB interfaces for versatile data transfer. Please note that this model does not include a draft shield.
Applications
Features
- Readability: 0.1g with strain gauge
- Capacity: 1g-3000g(USS-DBS51-30)/ 1g-5000g(USS-DBS51-50)/ 1g-10000g(USS-DBS51-100)
- Stabilization Time: ≤1.5 seconds
- External Calibration: Manual calibration with weights

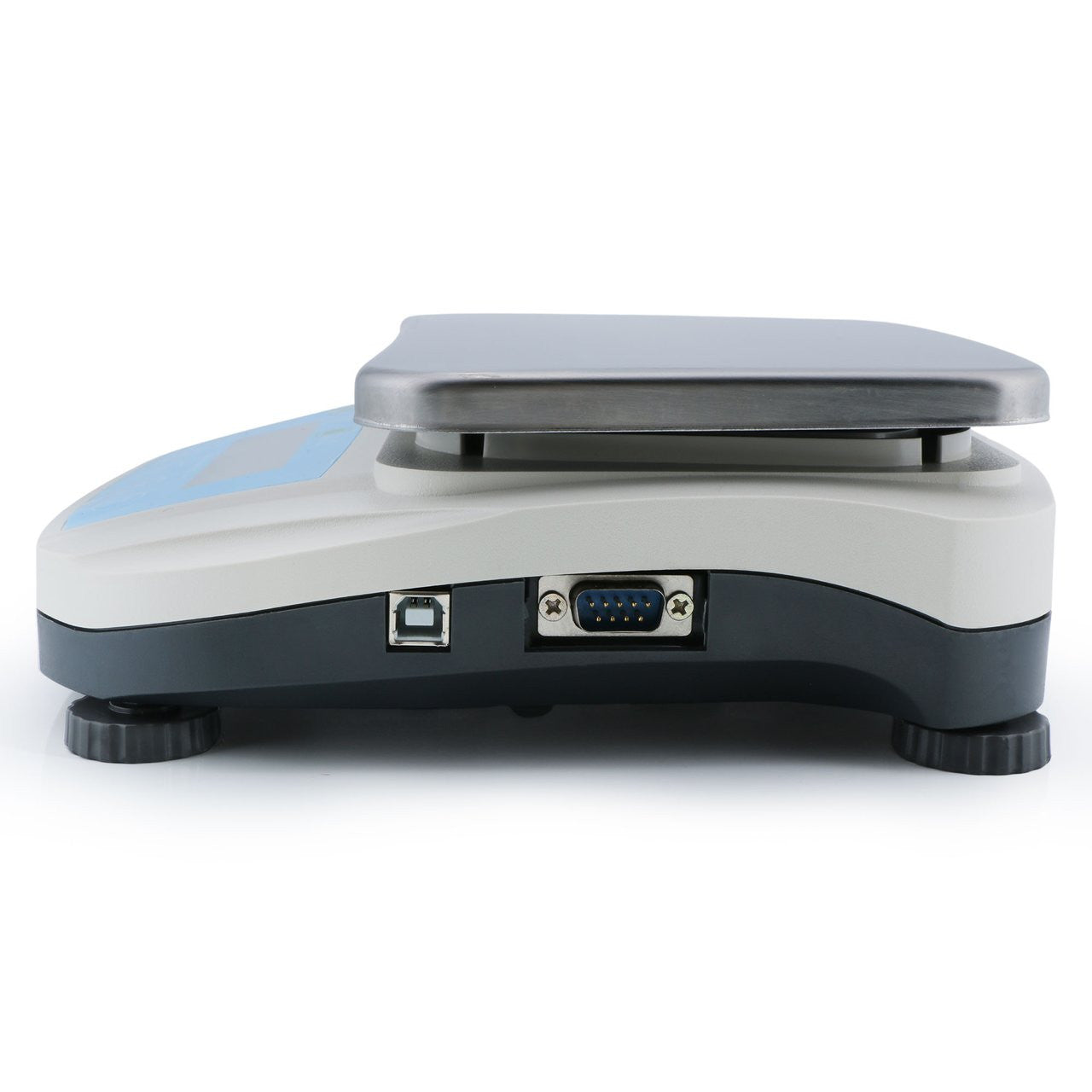

- Interface: RS232 and USB
- Built-in Applications: Piece counting function, tare function, over load protection, percentage function, fault display and etc.
- 19 Weighing Units Conversion: g, kg, ct, T, TAR, dr, PKT, GN, TMR, gsm, tlJ, mo, dwt, oz, lb, tlT, ozt, tlH, %.(In addition, 16 different built-in unit packages are lockable, e.g., you can lock g,t,ct,oz,lb and hide other uncommon units.)
- Large size stainless steel rectangular pan: 143x192mm
More Details
User Manual
To learn how to install, calibrate, set up, and use this product, please refer to the user manual.
Packing List
| ① | Balance Main Body | ② | Power Cable | ||
| ③ | Plastic Dust Cover | ④ | Instruction Manual | ||
*To view the full table on mobile, please swipe left or right on the screen.
Technical Data
| Model 1 | USS-DBS51-30 | Capacity 1 | 1g-3000g | ||
| Model 2 | USS-DBS51-50 | Capacity 2 | 1g-5000g | ||
| Model 3 | USS-DBS51-100 | Capacity 3 | 1g-10000g | ||
| Calibration Weight | No | Number of Displays | 1 | ||
| Weighing Sensor | Strain Gauge | Stabilization Time | ≤1.5s | ||
| Calibration | External calibration | Working Temperature | 41℉ - 95℉ | ||
| Readability | 0.1g | Interface | RS232 and USB | ||
| Repeatability | ±0.2g | Linearity | ±0.3g | ||
| Gross Weight | 3.06 lbs | Packaging Dimensions | 12.01"x9.84"x4.33" | ||
| Pan Size | 143x192 mm | Windshield | No | ||
| Power | AC 100V-240V power | Units | g, kg, ct, T, TAR, dr, PKT, GN, TMR, gsm, tlJ, mo, dwt, oz, lb, tlT, ozt, tlH, % | ||
*To view the full table on mobile, please swipe left or right on the screen.
Precautions
- Leveling the Balance: Accurate horizontal positioning necessary for repeatable measurementsand exact results. Adjust the leveling feet of the analytical balance until the air bubbleinthe indicator is centered.
- Warm-Up Requirement: For accurate results, the balance must warm up for at least 30 minutes after being powered on or after a power outage longer than 30 minutes, to reach the proper operating temperature before calibration or use.(For warm-up time details, refer to the user manual or contact support.)
- Stability: Place the balance on a stable, vibration-free surface, away from drafts and electromagnetic interference. It's important to note that high-precision balances are more susceptible to environmental factors, which can affect reading stability.
- Calibration: Calibrate the balance if it is moved (even within the same room), when ambient conditions change, and before each use. If pressing the "CAL" button has no effect, ensure you are pressing and holding it. For most models, calibration requires a long press rather than a quick tap.(Refer to the manual for specific instructions).
All Options (0.01g)
| Units | Readability | Model | Capacity | Calibration Weight | Pan Size | Power Supply | Wind Shield | Interface | Repeatability | Linearity | Stabilization Time |
| 19 types | 0.01g | USS-DBS61-12 | 0.1g-1200g | no | 128x157 mm | AC/DC | no | RS232 | ±0.02g | ±0.03g | ≤1.5s |
| USS-DBS61-22 | 0.1g-2200g | ||||||||||
| USS-DBS61-32 | 0.1g-3200g | ||||||||||
| USS-DBS61-50 | 0.1g-5000g | 143x192 mm | AC | ||||||||
| USS-DBS28-2 | 0.1g-200g | 100g*1 | 128x157 mm | AC/DC | yes | RS232 and USB | |||||
| USS-DBS28-3 | 0.1g-300g | 200g*1 | |||||||||
| USS-DBS28-6 | 0.1g-600g | 500g*1 | |||||||||
| USS-DBS28-10 | 0.1g-1000g | 500g*1 | |||||||||
| USS-DBS28-20 | 0.1g-2000g | 1000g*1 | |||||||||
| USS-DBS28-30 | 0.1g-3000g | 1000g*2 | |||||||||
| USS-DBS28-50 | 0.1g-5000g | no | 143x192 mm | AC | no |
All Options (0.1g/0.001g)
| Units | Readability | Model | Capacity | Calibration Weight | Pan Size | Power Supply | Wind Shield | Interface | Repeatability | Linearity | Stabilization Time |
| 19 types | 0.1g | USS-DBS51-30 | 1g-3000g | no | 143x192 mm | AC | no | RS232 and USB | ±0.2g | ±0.3g | ≤1.5s |
| USS-DBS51-50 | 1g-5000g | ||||||||||
| USS-DBS51-100 | 1g-10kg | ||||||||||
| 0.001g | USS-DBS46-1 | 20mg-100g | 50g*1 | Φ90mm | yes | RS232 | ±0.002g | ±0.003g | |||
| USS-DBS46-2 | 20mg-200g | 100g*1 | |||||||||
| USS-DBS46-3 | 20mg-300g | 200g*1 |
