INTRODUCTION

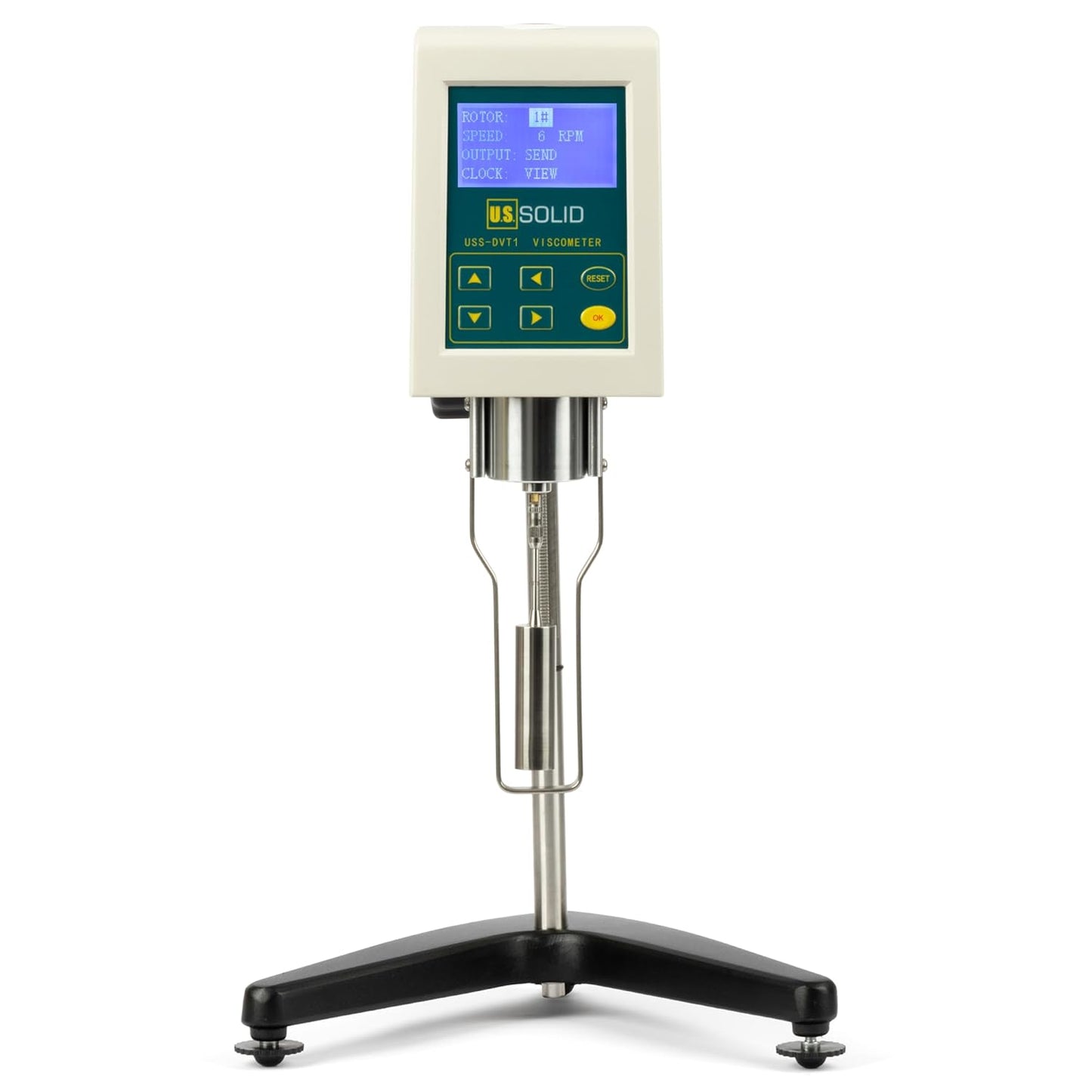

The U.S. Solid Rotary Viscometer leverages microcomputer technology to accurately measure liquid viscosity with ±2% measuring accuracy, displaying viscosity, rotor speed and other parameters on its LCD screen for clear visibility. Equipped with 4 rotors and adjustable speeds across 60-0.3 Rpm, it covers a wide viscosity range to ensure products meet specifications, while its 100-240 V voltage compatibility makes it suitable for global use. Featuring a user-friendly design, compact and portable build for easy transport and storage, this viscometer combines precise measurement, versatile application and convenient operation to deliver reliable viscosity readings for various liquids.
FEATURES
APPLICATIONS
SPECIFICATIONS
| Model | USS-DVT1 | Brand | U.S. Solid |
|---|---|---|---|
| Rotor Types | 1#,2#,3#,4# | Rotor Velocity (rpm) | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm and Auto |
| Measurement Accuracy | ±2% (Newton liquid) | Power Supply | AC 110 V |
| Ambient Temperature | 5°C- 35°C, Relative humidity: ≤ 80% | Measurement Range | 1-2×10^6 mPas |
HOW TO CHOOSE THE RIGHT VISCOMETER AND ROTOR?

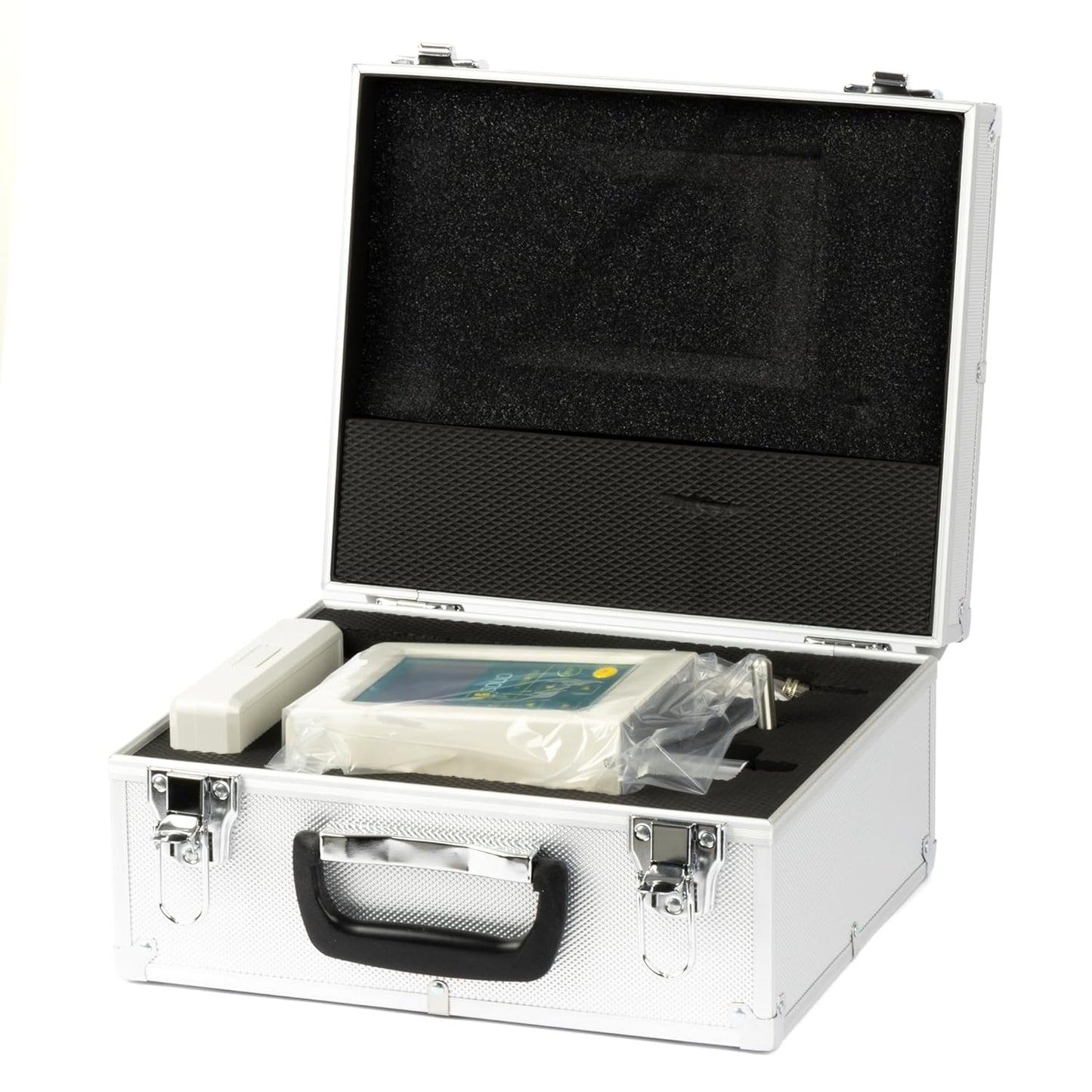

PACKING LIST
- Main Machine x1
- Packaging Box x1
- Rotor x4
- Wrench x2
- Power Supply x1
- User Manual x1
OTHER MODELS
| Model | USS-DVT1 | USS-DVT4 | USS-DVT5 | USS-DVT6 | USS-DVT8 |
|---|---|---|---|---|---|
| Measuring Range | 10 to 2x10^6 mPa·s | 10 to 1x10^5 mPa·s | 10 to 1x10^5 mPa·s | 10 to 1x10^5 mPa·s | 10 to 2x10^6 mPa·s |
| With Temperature Probe | ✘ | ✘ | ✔ | ✔ | ✔ |
| With RS232 | ✘ | ✘ | ✔ | ✘ | ✔ |
| Rotor Speed1 | 0.3, 0.6, 1.5, 3 rpm | - | - | - | 0.3, 0.6, 1.5, 3 rpm |
| Rotor Speed2 | 6,12,30, 60 rpm and Auto | 6,12,30, 60 rpm and Auto | 6,12,30, 60 rpm and Auto | 6,12,30, 60 rpm and Auto | 6,12,30, 60 rpm and Auto |
| Measurement Accuracy | ±2% (Newtonian Liquid) | ±2% (Newtonian Liquid) | ±2% (Newtonian Liquid) | ±2% (Newtonian Liquid) | ±2% (Newtonian Liquid) |
| Power Supply | AC 110V±10, 60Hz±10% | AC 110V±10, 60Hz±10% | AC 110V±10, 60Hz±10% | AC 110V±10, 60Hz±10% | AC 110V±10, 60Hz±10% |
| Working Temperature | 41 ℉ to 95 ℉ | 41 ℉ to 95 ℉ | 41 ℉ to 95 ℉ | 41 ℉ to 95 ℉ | 41 ℉ to 95 ℉ |
| Working Humidity | ≤80% | ≤80% | ≤80% | ≤80% | ≤80% |
FAQ
1. What are the requirements for placing the instrument?
Place it on a stable, clean, dry, fireproof, and non-slip surface, away from corrosive gases. Keep it away from magnetic fields and vibration-free workbenches.
2. How to select the appropriate rotor and speed?
If the liquid viscosity is unknown, treat it as a high-viscosity sample. Start with a higher-numbered spindle, such as the #4 spindle, at a low speed, such as 6 rpm, and gradually adjust the spindle and speed according to the measured torque and viscosity range. General principle: Use a higher-numbered spindle at a low speed for high-viscosity liquids, and a lower-numbered spindle at a higher speed for low-viscosity liquids. Always refer to the instrument’s Measurement Range Table. For example, on the USS-DVT4, the #4 spindle at 6 rpm can measure viscosities up to 100,000 mPa·s, subject to the actual instrument specifications.
3.How to level the instrument?

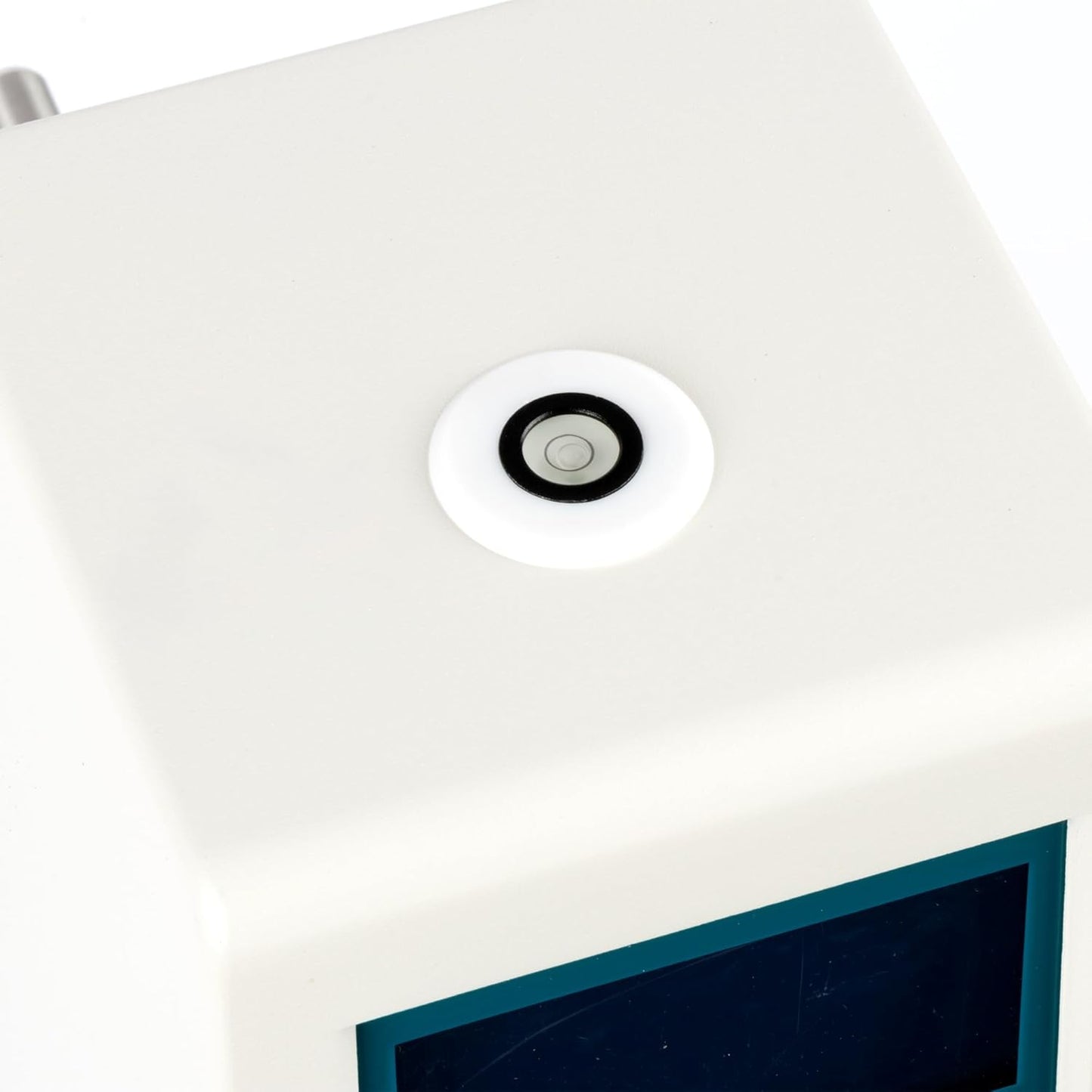

Rotate the base leveling screws until the bubble in the level indicator is centered, and recheck after installing the protection frame.
4.How to clean the rotor?
Disassemble the rotor after each use and clean it with a suitable organic solvent.
5.How to ensure measurement accuracy?
Strictly control the liquid temperature and immerse the rotor in the liquid for sufficient time at a consistent temperature. Avoid air bubbles in the liquid, keep the rotor centered, and use the protection frame. The measurement accuracy for Newtonian liquids is ±2%.
Download user manual here.
