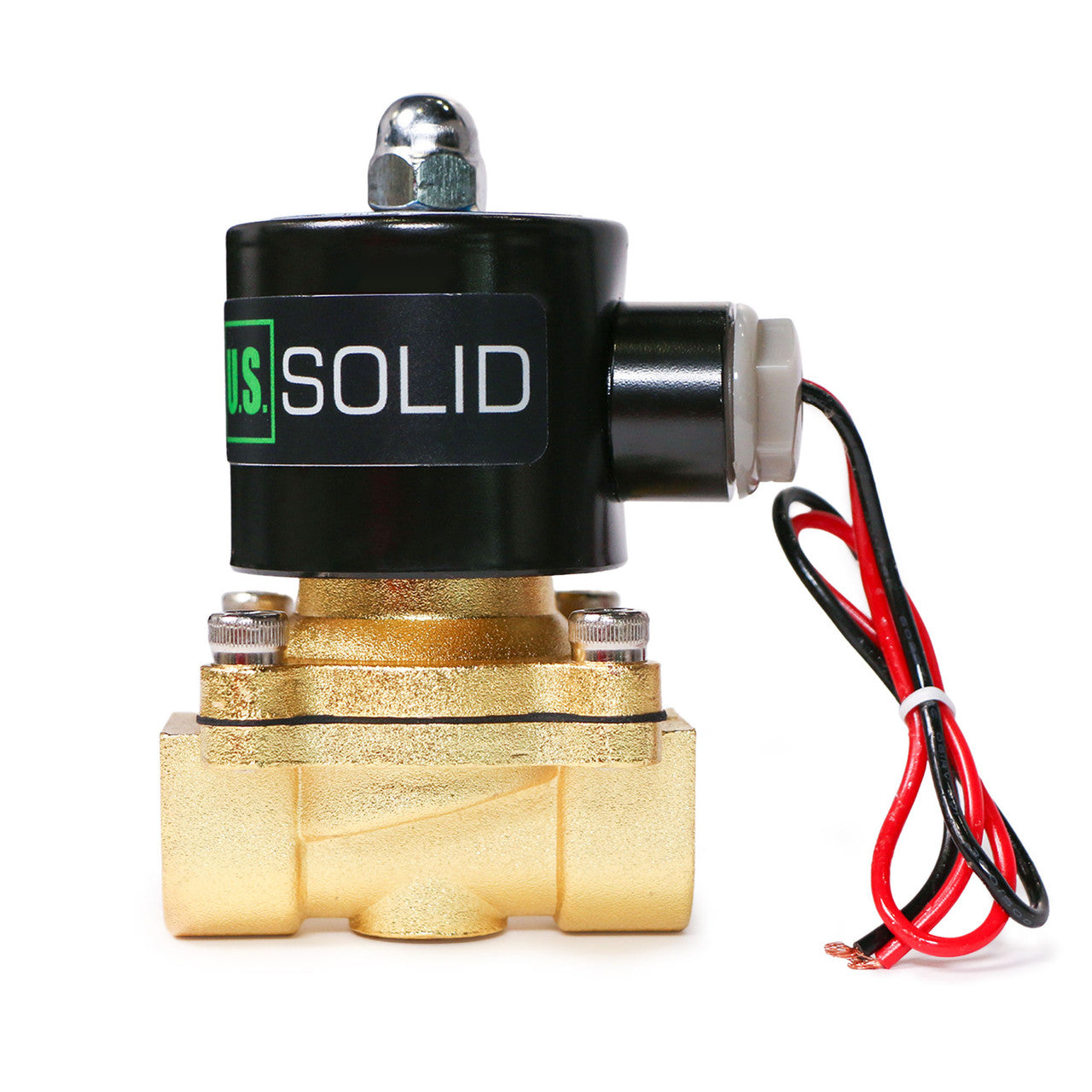

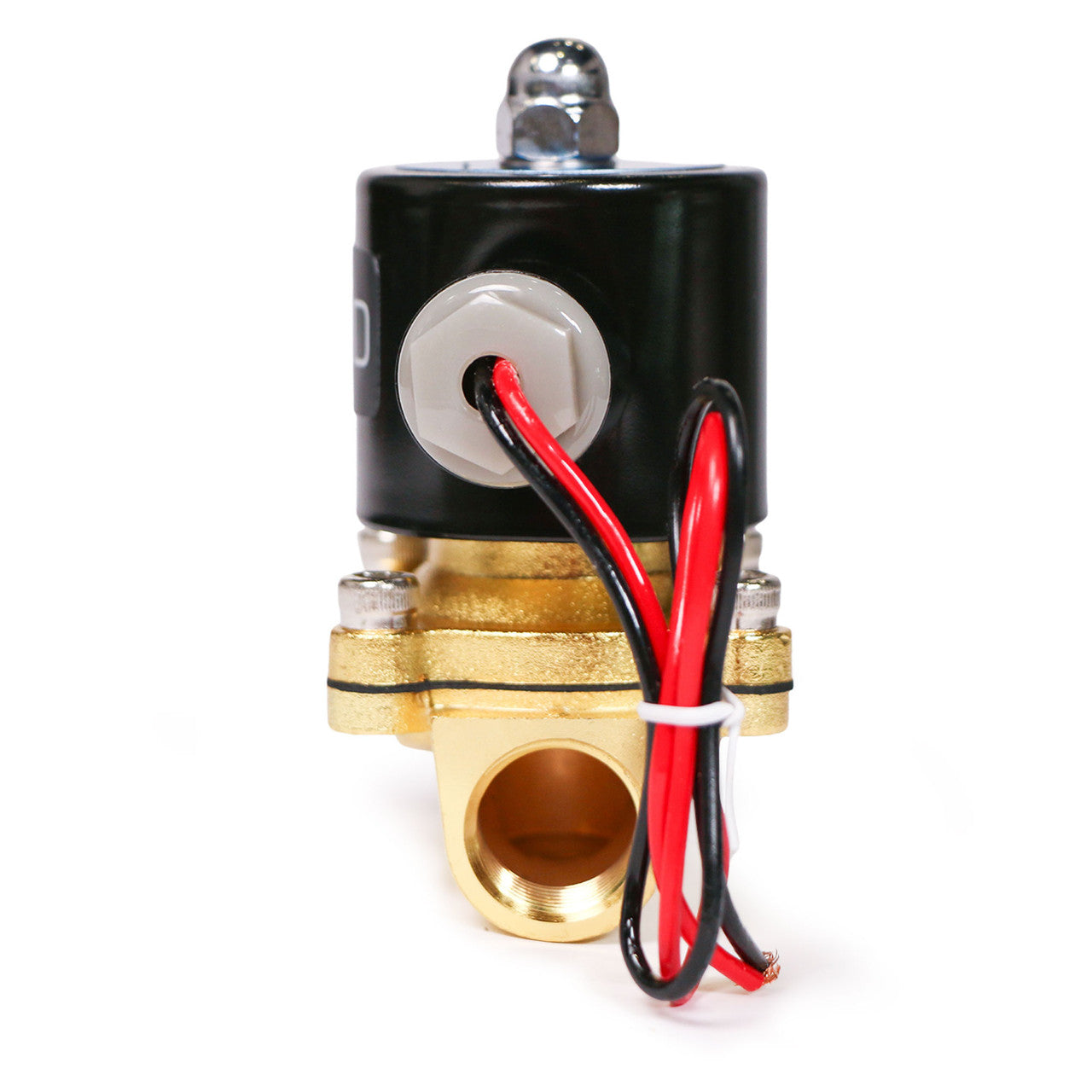

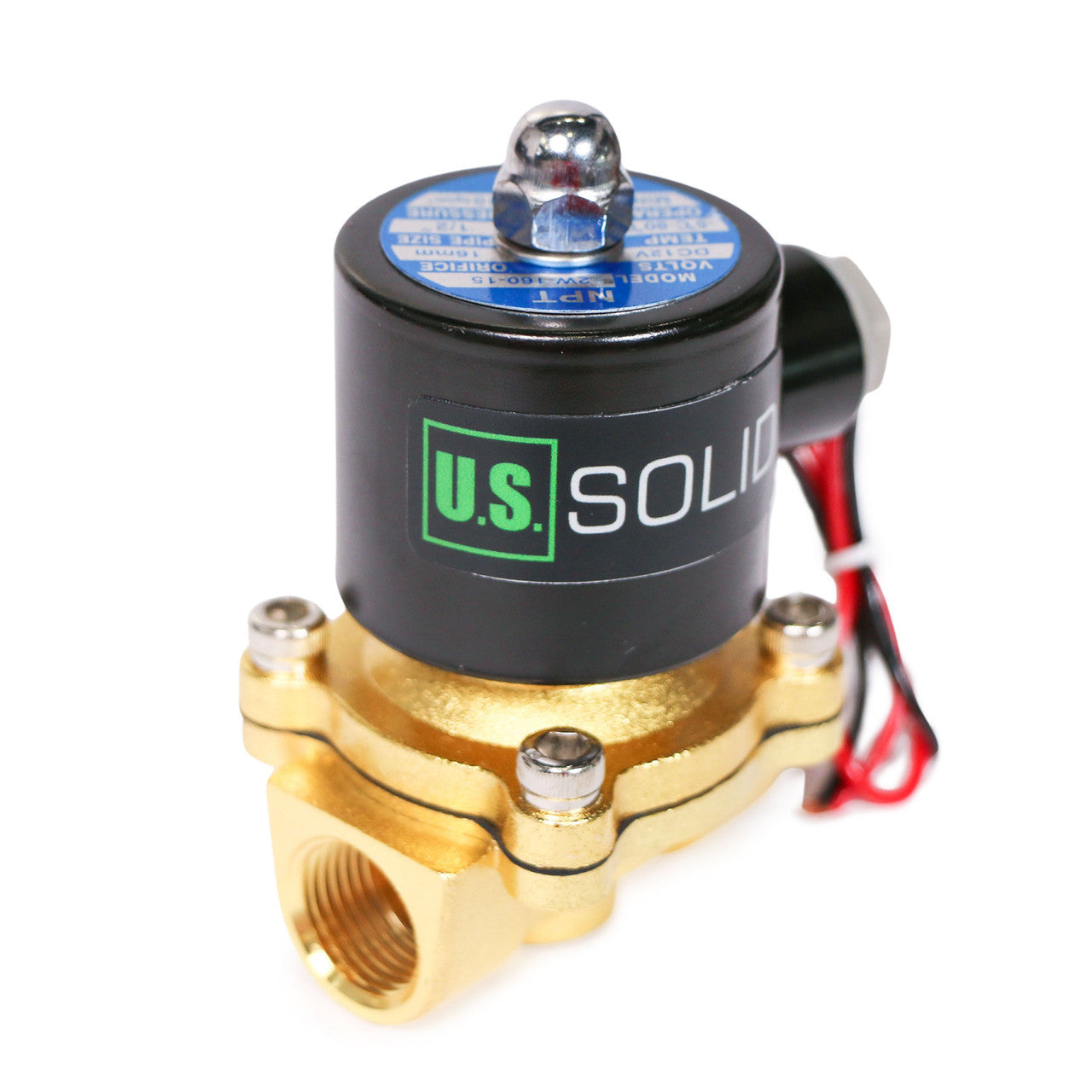

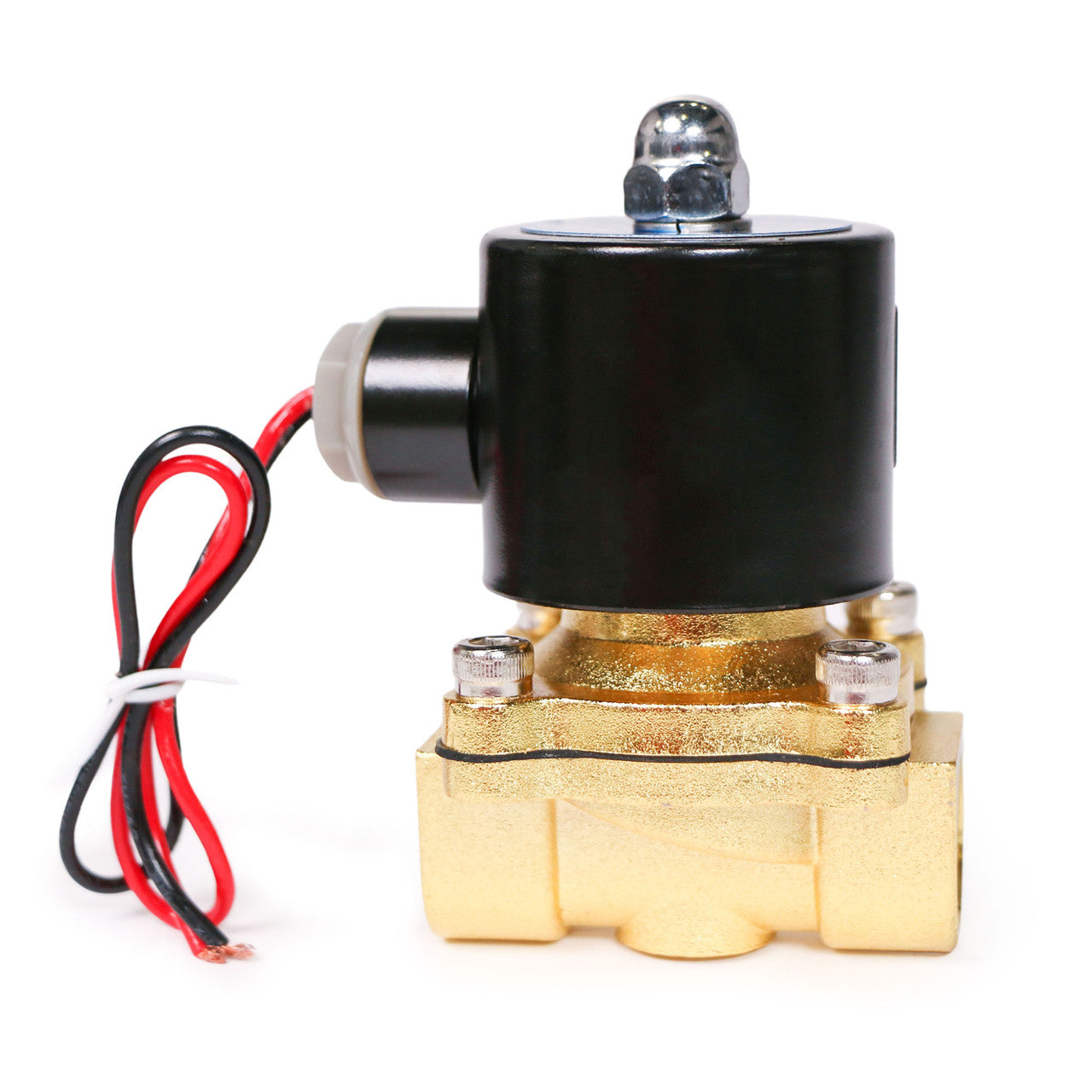

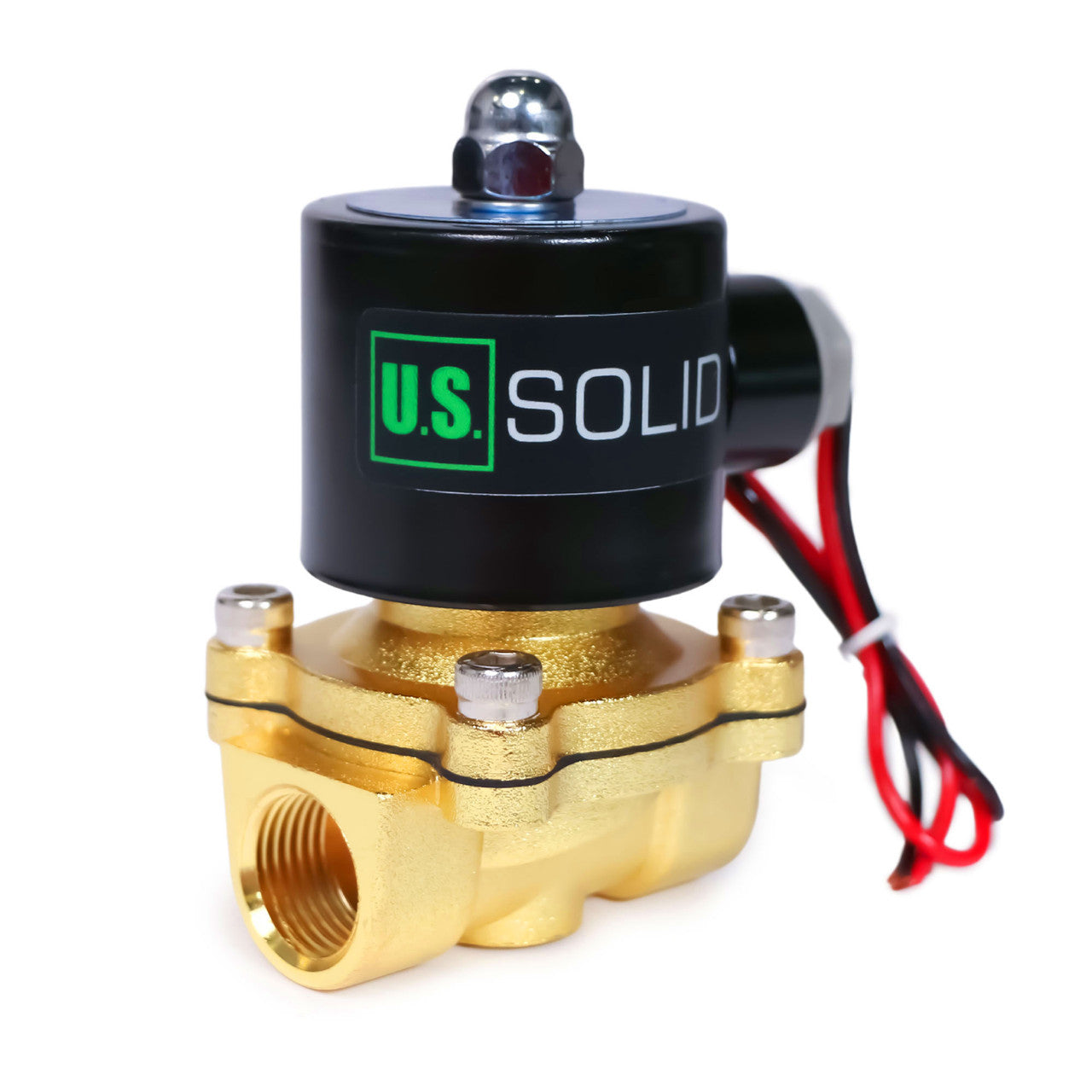

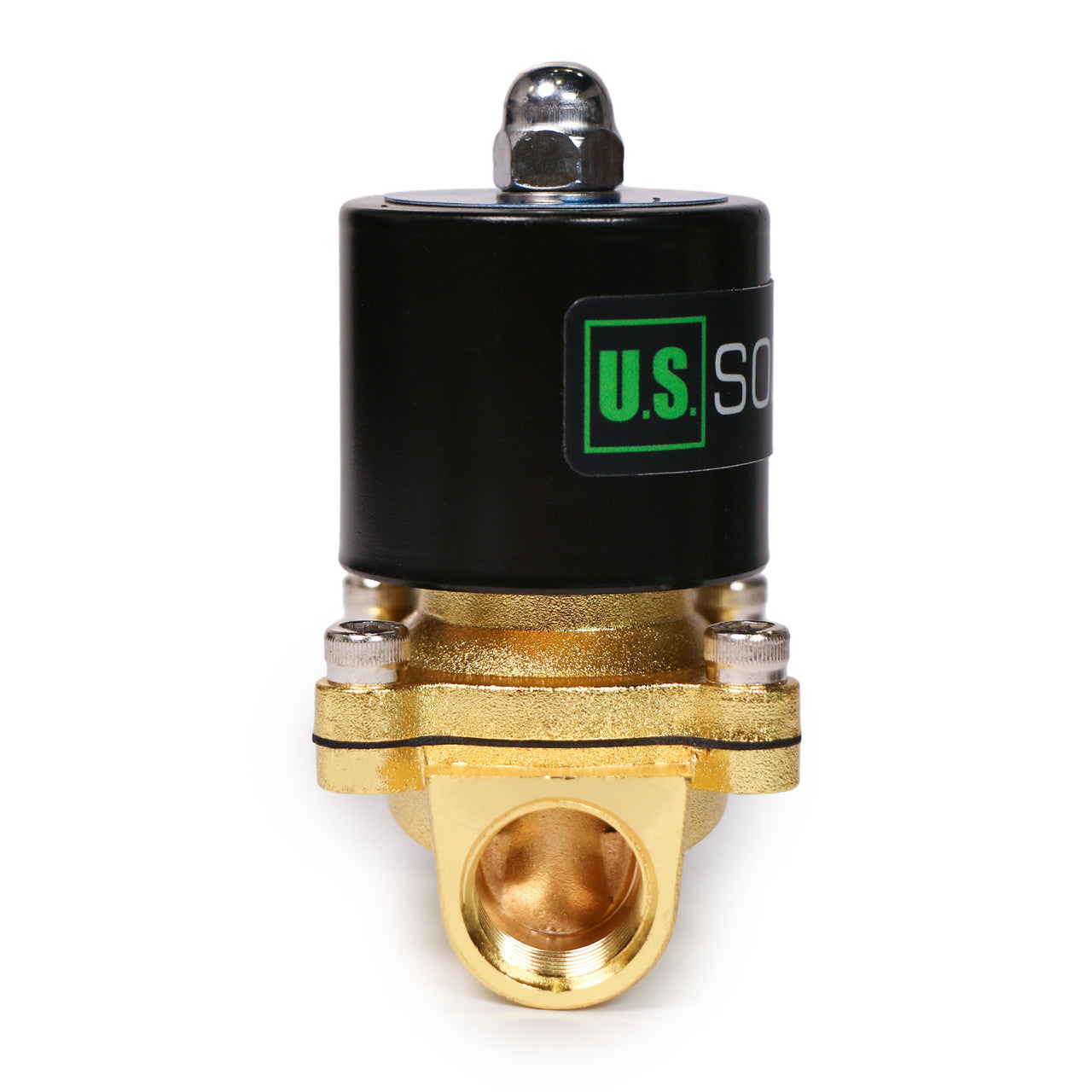

At U.S. Solid, we work with the latest technologies available to create top-quality valves with reasonable price. The USS-ZSV Series Zinc-alloy Solenoid Valves will be your excellent tool in your applications.

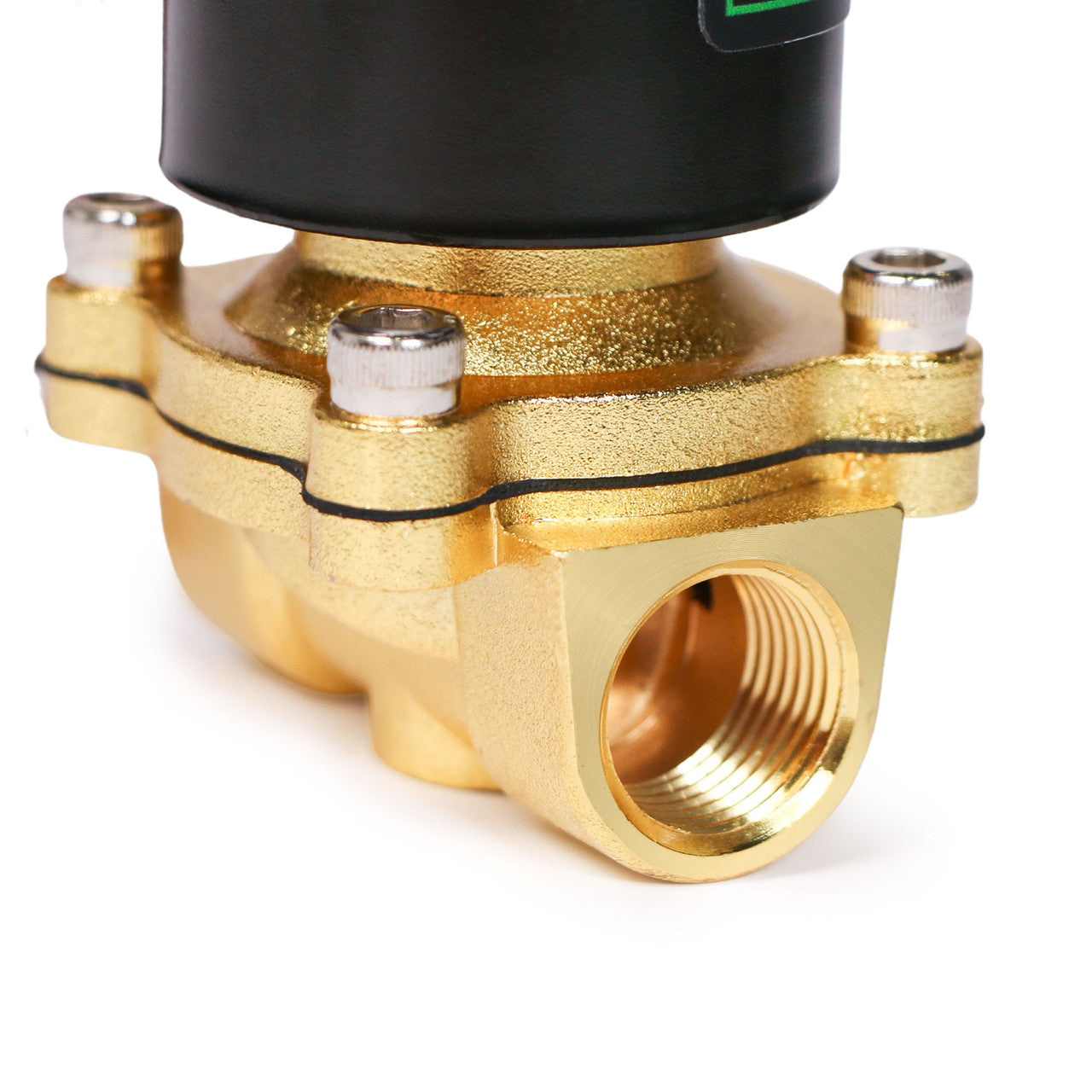

The USS-ZSV solenoid valves feature a zinc alloy valve body, which cost you less but offer enough pressure resistance in comparison with brass or stainless steel body.
Specifications:
Pipe Size: 1/2"
Flow Aperture: 16 mm
Body Material: Zinc Alloy
Gasket / Diaphragm / Seal: NBR
Operation Type: Direct Lift Valve
Operation Mode: Normally Closed
Voltage: AC 24V
Power rating: 22 VA
Suitable Media: Water, oil, Diesel fuel, kerosene etc.
Operational pressure range: Air/Water: 0-8 Bar (0 to 116 PSI); Oil: 0-5 Bar(0 to 72 PSI)
Flow value: 4.8 Cv
Temperature Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80°C), which is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8 hours the coil may burn.
