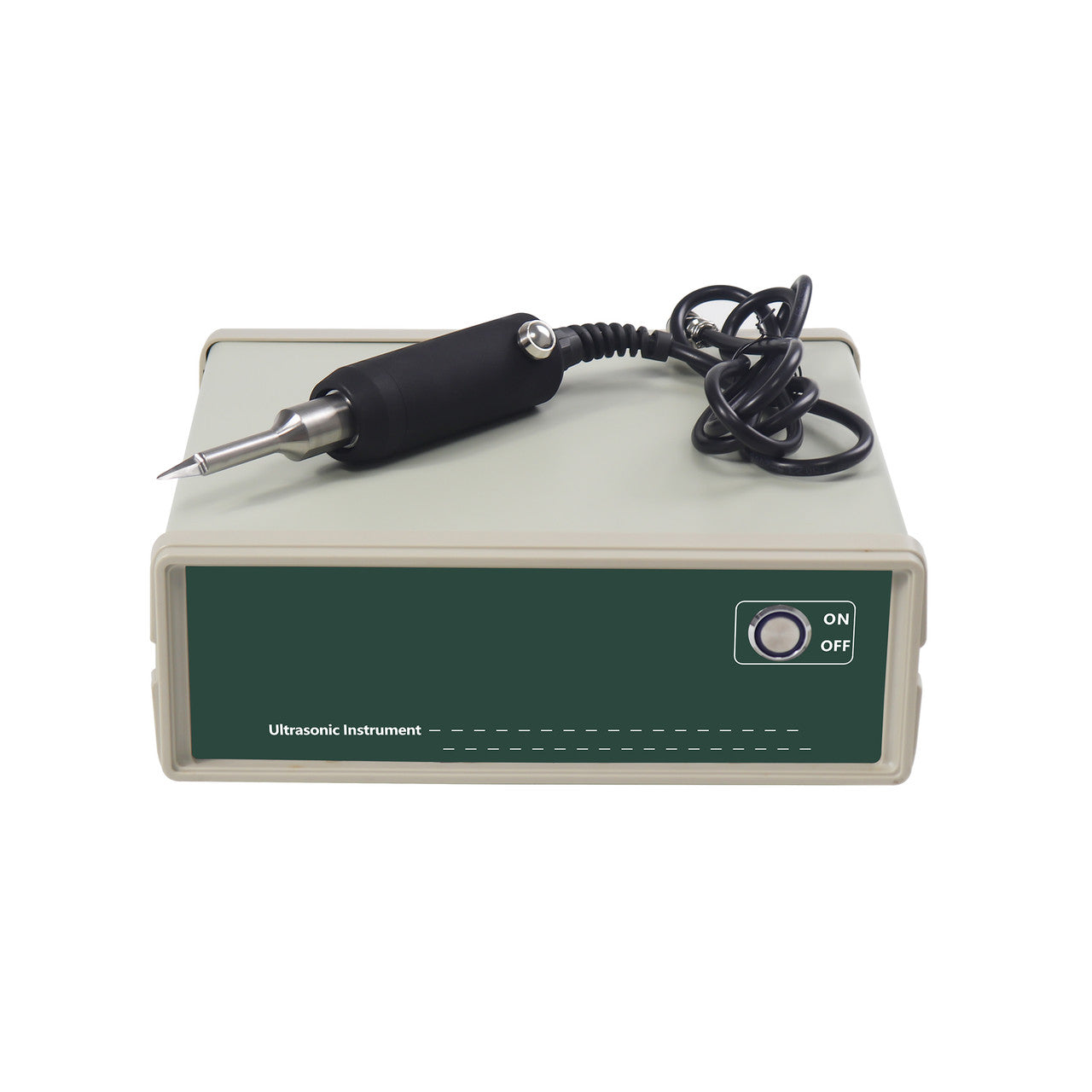

Product Introduction
Ultrasonic cutting machine is designed for high-precision cutting of various thermoplastic films and sheets, including but not limited to plastics, silicone, acrylic, corrugated paper, rubber, fabrics, and leather. It is suitable for use in automotive repair shops, textile factories, injection molding plants, rubber factories, engineering research and development labs, circuit board factories, DIY maintenance, and more.
Product Features
- Split design, simple and elegant appearance, easy operation.

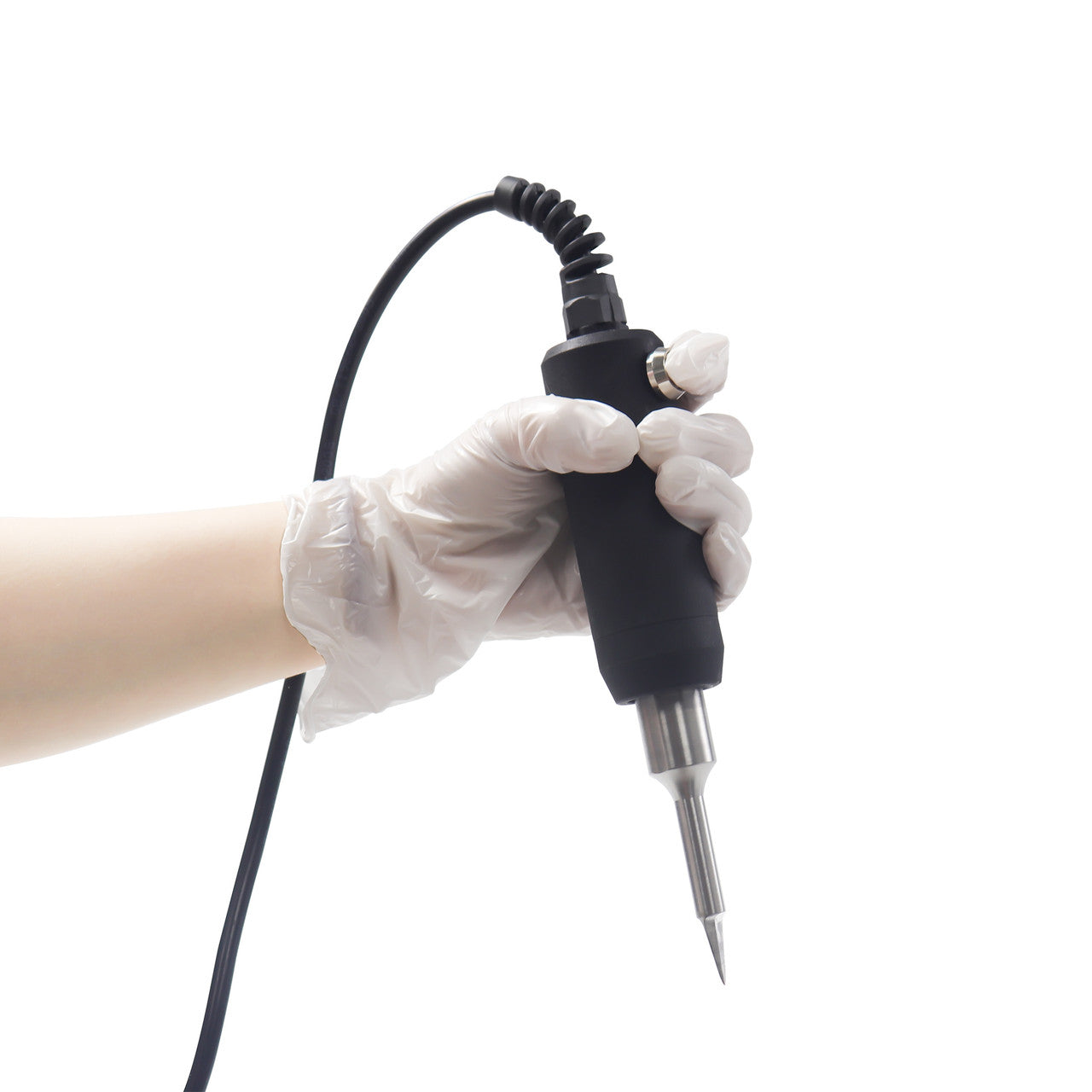

- Sandblasted texture handle provides better grip and enhanced safety.
- The cutting blade is designed for quick replacement, making it suitable for environments with frequent changing needs, extending the service life and reducing maintenance costs, and improving production efficiency.
- Ultrasonic technology enables these cutting tools to significantly reduce material adhesion and burrs during cutting, ensuring clean and smooth cutting surfaces.
- Ultrasonic technology enhances cutting efficiency, ensuring environmental protection and safety.
Product Parameters
|
Model |
QG-100 |
Cutting Blade Thickness |
2 mm |
|
Power Supply |
AC 110 V, 60 Hz |

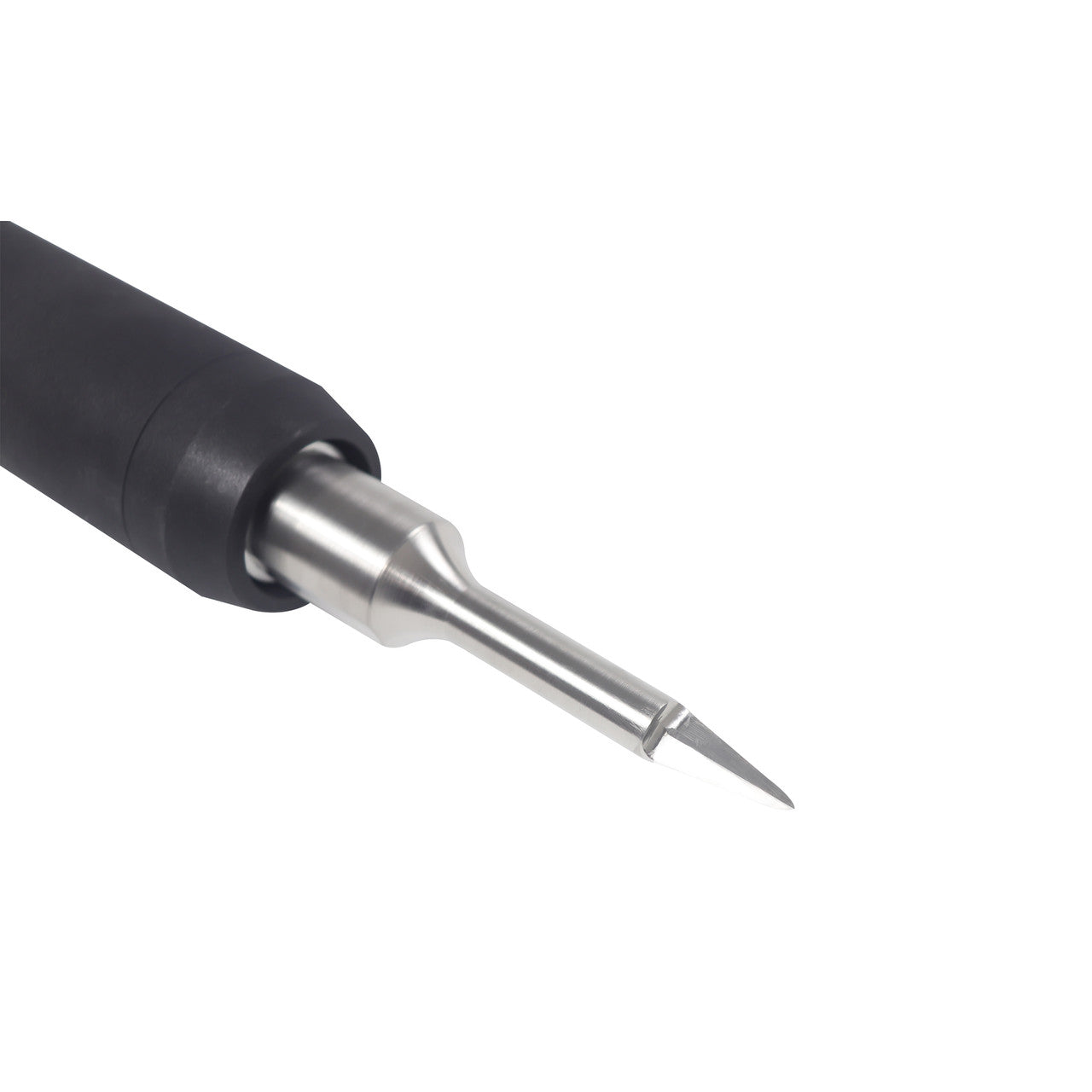

Cutting Blade Length |
25 mm |
|
Power Consumption |
100 W |
Cutting Blade Material |
Titanium Alloy |
|
Ultrasonic Power |
500 W |
Cable Length |
200 cm |
|
Ultrasonic Frequency |
28 ± 3 kHz Frequency Sweep |

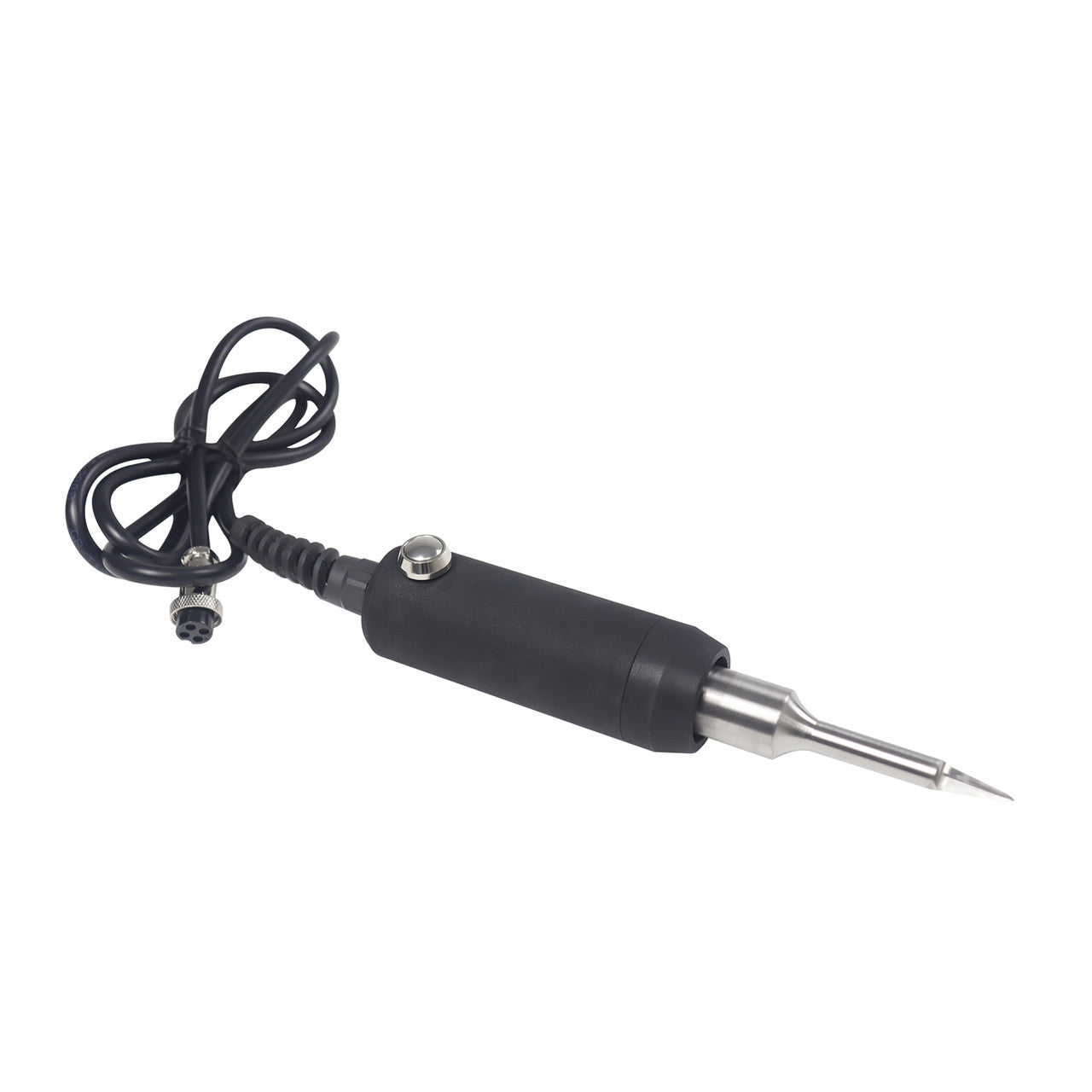

Cutting Handle |
211 x 42 x 42 mm / 0.4 kg |
|
Piezoelectric Frequency Converter |
CV33, PZT Lead Zirconate Titanate Piezoelectric Ceramic |

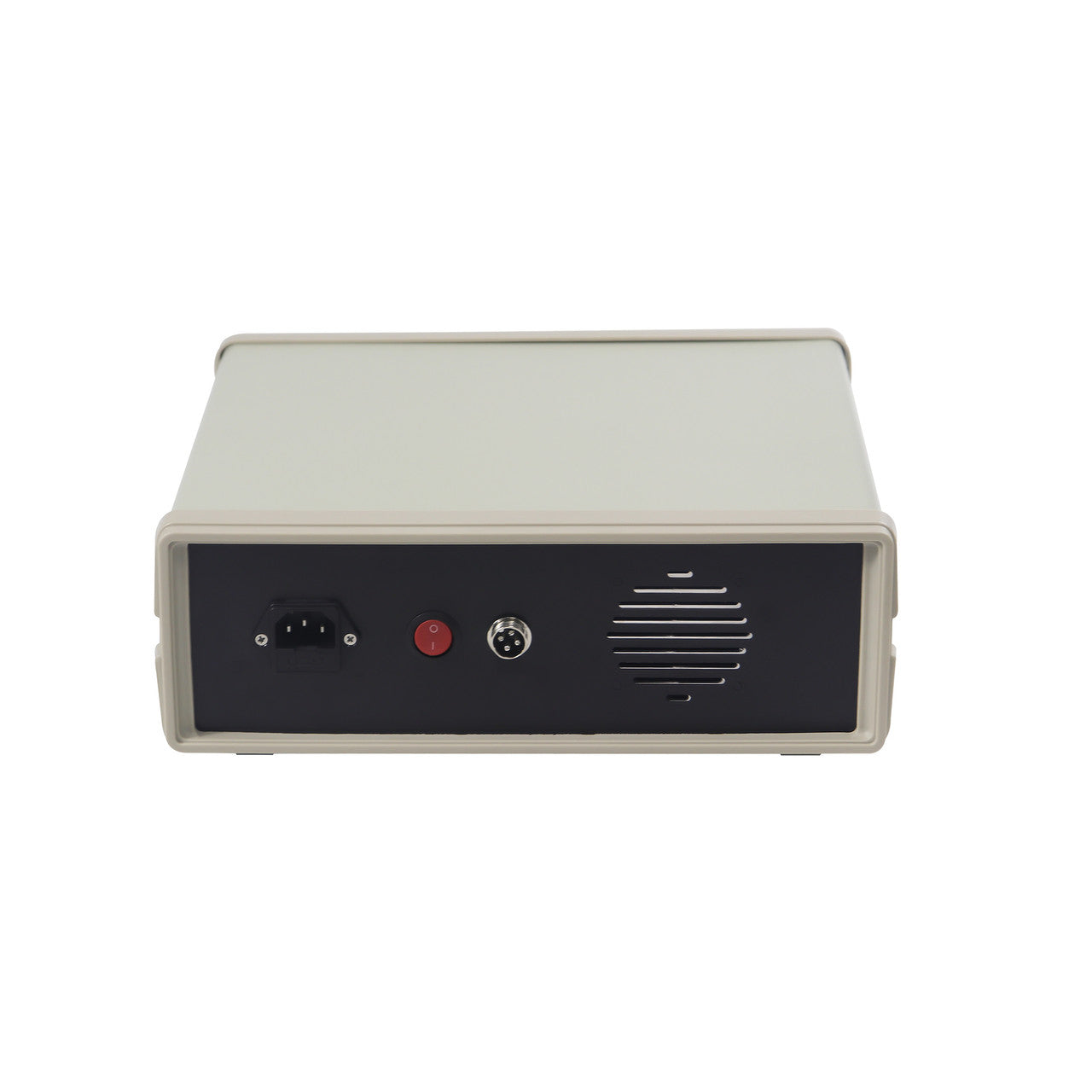

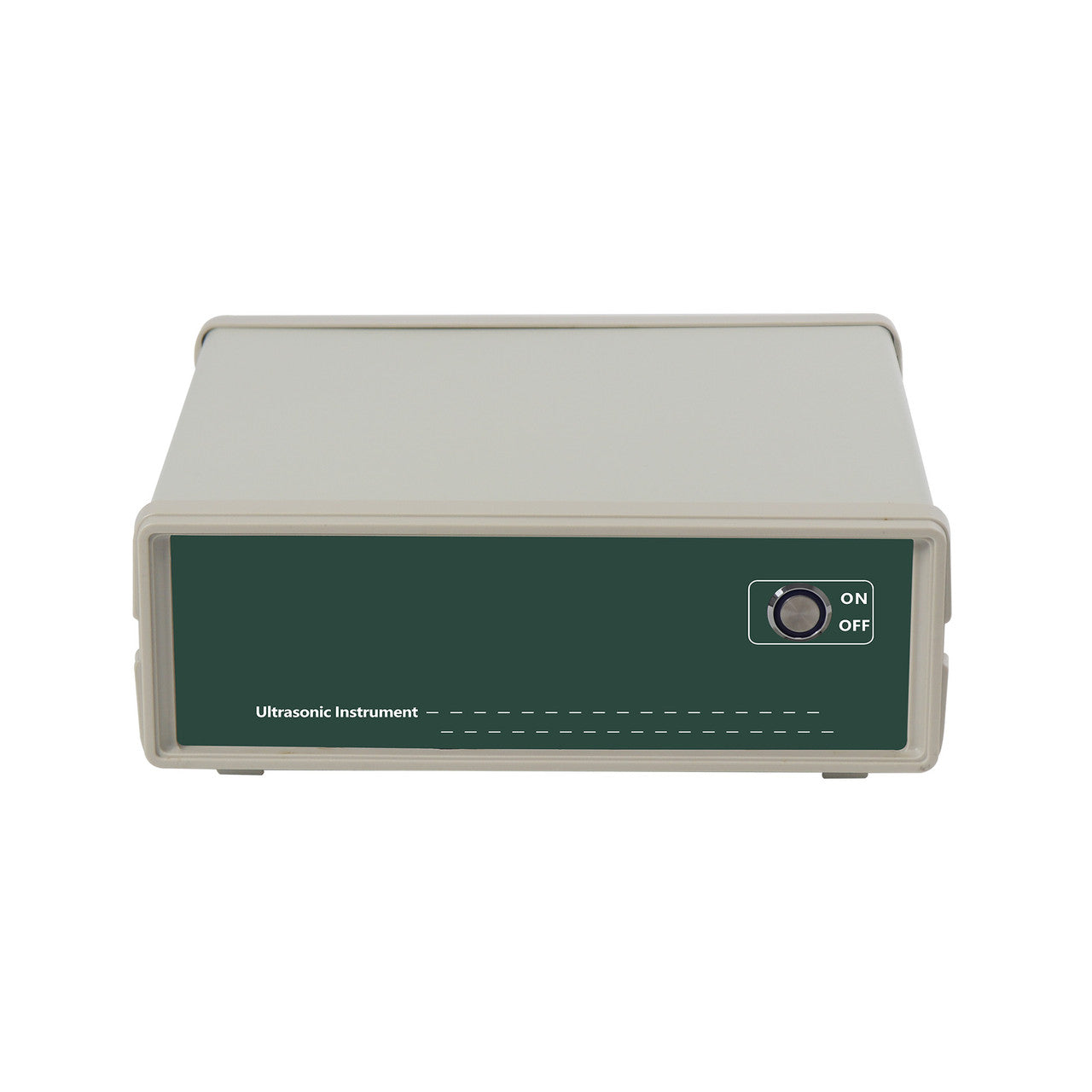

Machine |
300 x 268 x 104 mm / 3.6 kg |
Materials Cutting Reference
| Material | Thickness | Cutting Speed |
| ABS / PE | 2 mm | 4 mm/s |
| 3 mm | 2 mm/s | |
| 4 mm | 1 mm/s | |
| Acrylic | 2 mm | 3 mm/s |
| Corrugated Paper | 8 mm | Easy |
| Nylon Fabric | 1 mm | Easy |
| Backpack Belt | 1.5 mm | Easy |
| Pure Copper Sheet | 0.02 mm | Easy |
| Pure Aluminum Sheet | 0.02 mm | Easy |
| Linen Mesh Fabric | 1 mm | Easy |
| PVC Plastic | 1 mm | Easy |
Cutting Blade Replacement
