Product Description
Ultrasonic welding machines can be used for welding of thermoplastic materials, suitable for welding or riveting of plastics, welding of various fabrics, rubber welding, and forming of thermoplastic plastics.
Product Features
- Split-type design, simple and elegant appearance, easy operation.

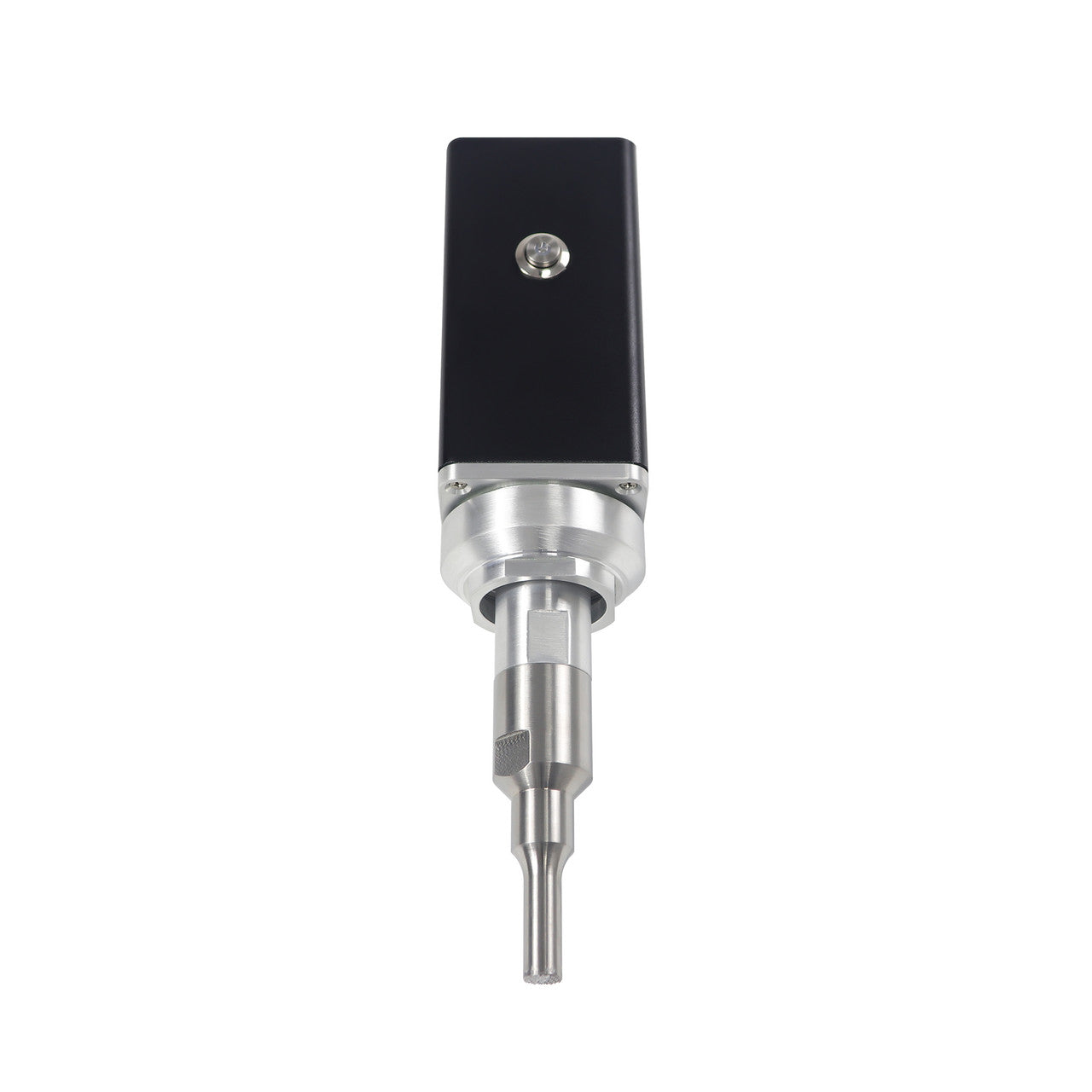

- Handheld welding, flexible and convenient, with ergonomic design for easy control and use.
- Stable ultrasonic generator that can automatically, quickly, and accurately perform ultrasonic welding tasks.

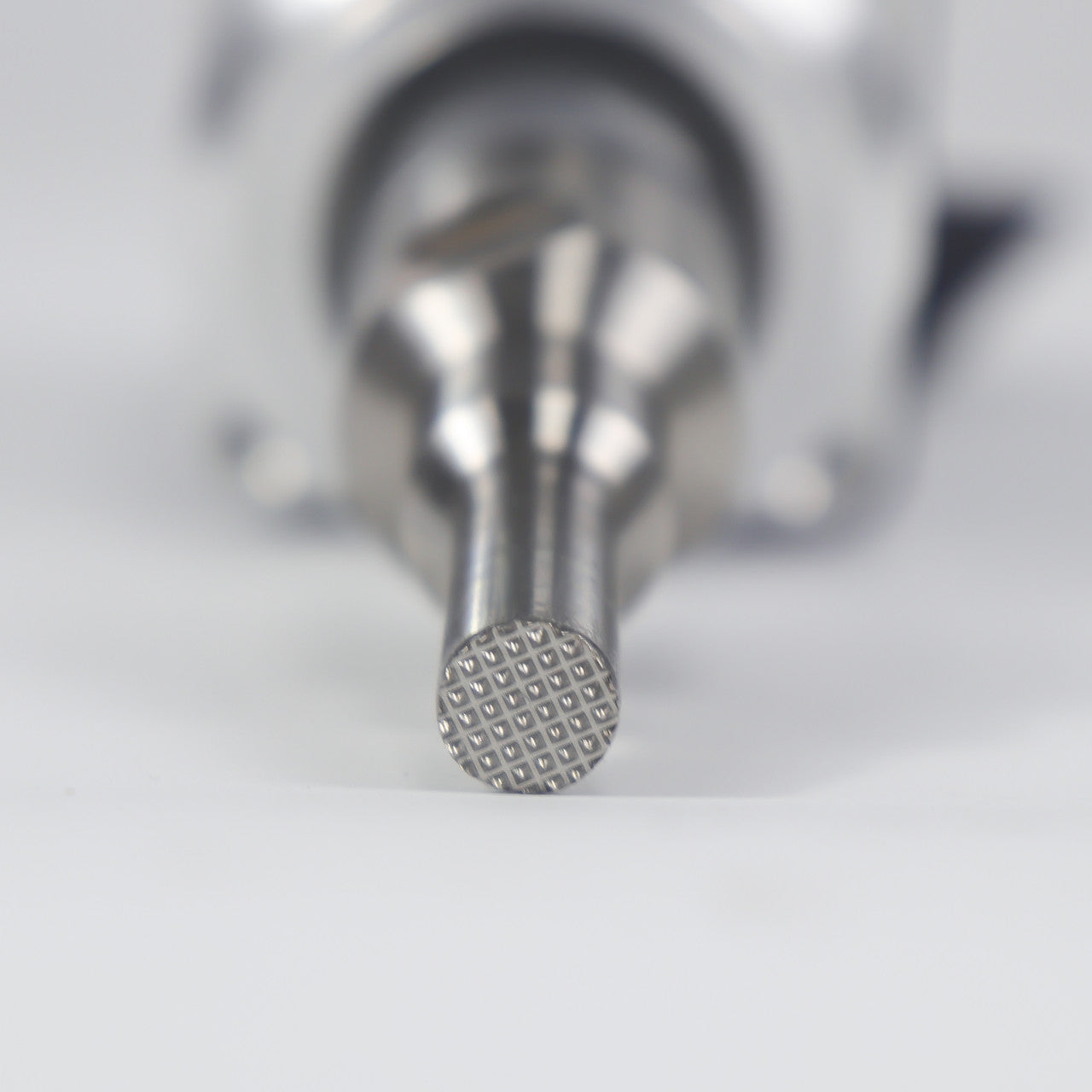

- Grid-like welding joint, larger welding area, more secure.
- Automatic amplitude compensation, which can automatically compensate for the optimal resonant output according to samples of different materials.
- Ultrasonic technology optimizes the thermal welding defects (avoiding yellowing, edge burning, and virtual lack of welding).
- Portable operation, fast, clean, safe, and stable.
- The circuit comes with protective devices.
Product Parameters
| Model | DH-80W | Piezoelectric Frequency Converter | CV33, PZT Lead Zirconate Titanate Piezoelectric Ceramic |
| Power Supply | AC 110 V, 60 Hz | Welding Head Diameter | 9 mm |
| Power Consumption | 80 W | Welding Head Material | Titanium Alloy |
| Ultrasonic Power | 500 W | Cable Length | 200 cm / 78.7 inches |

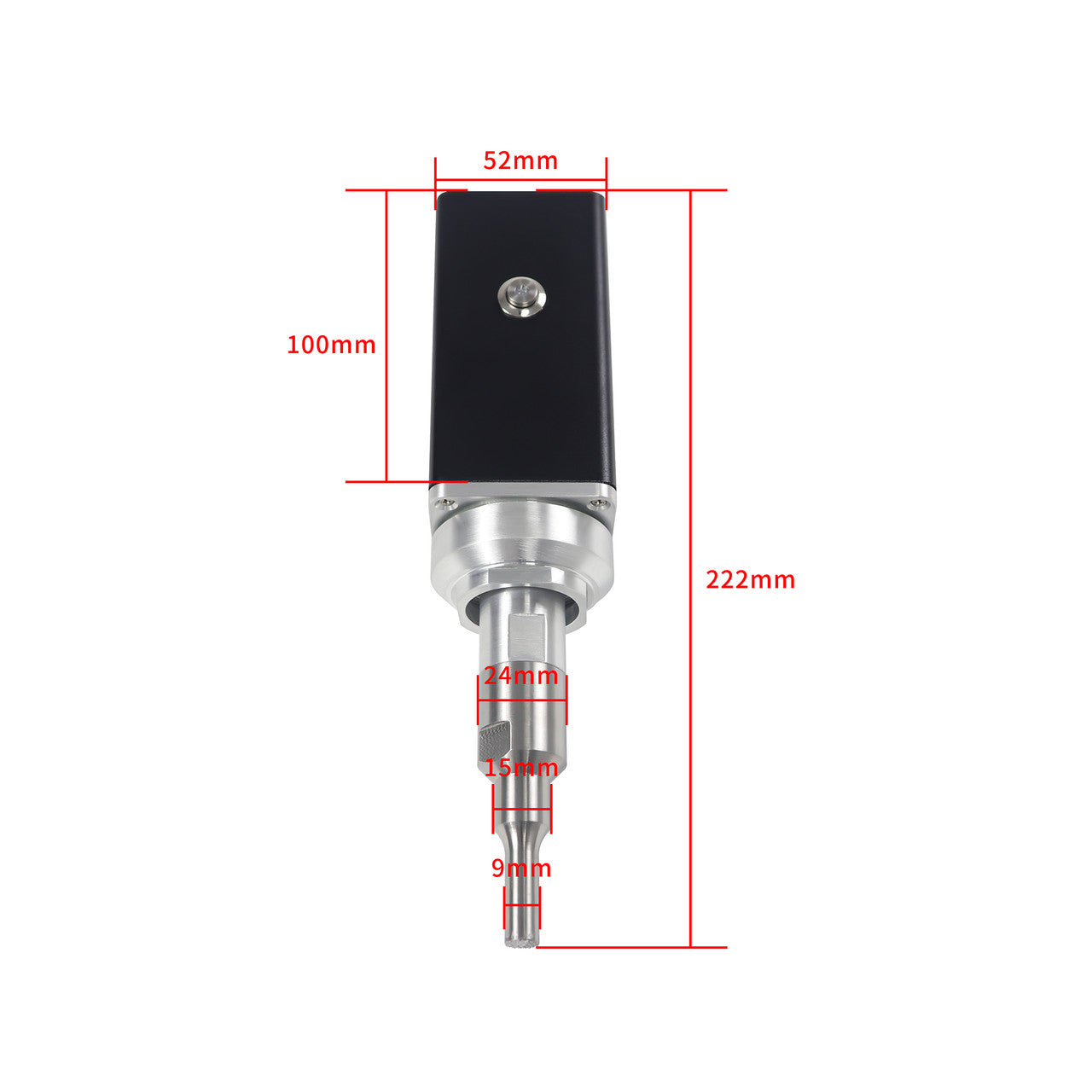

| Ultrasonic Frequency | 28 ± 3 kHz Frequency Sweep | Welding Handle | 222 x 52 x 52 mm / 0.5 kg |
| Power Adjustment | 10%-100% (knob) | Machine | 300 x 268 x 104 mm / 3.6 kg |
Welding Head Replacement
