U.S. Solid

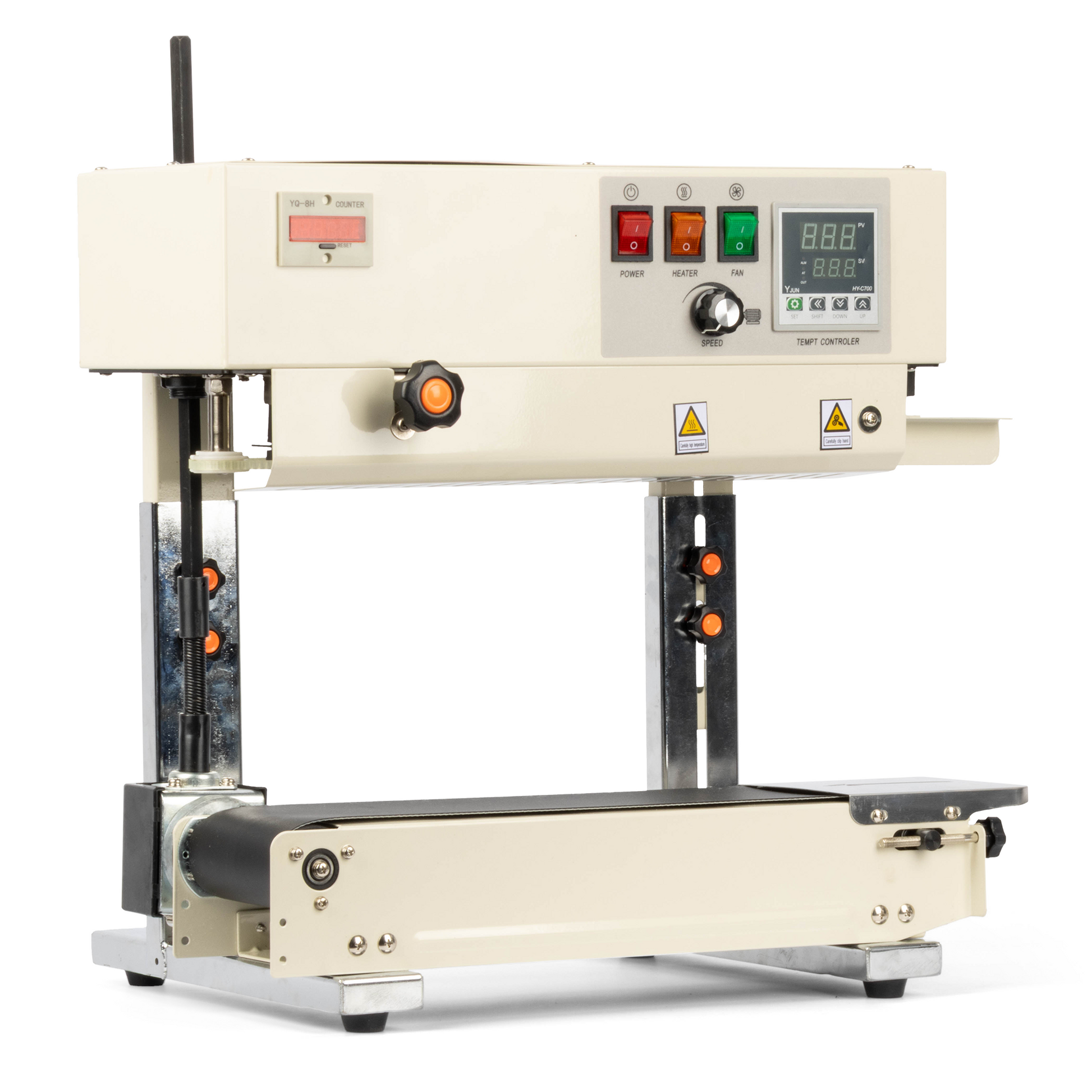

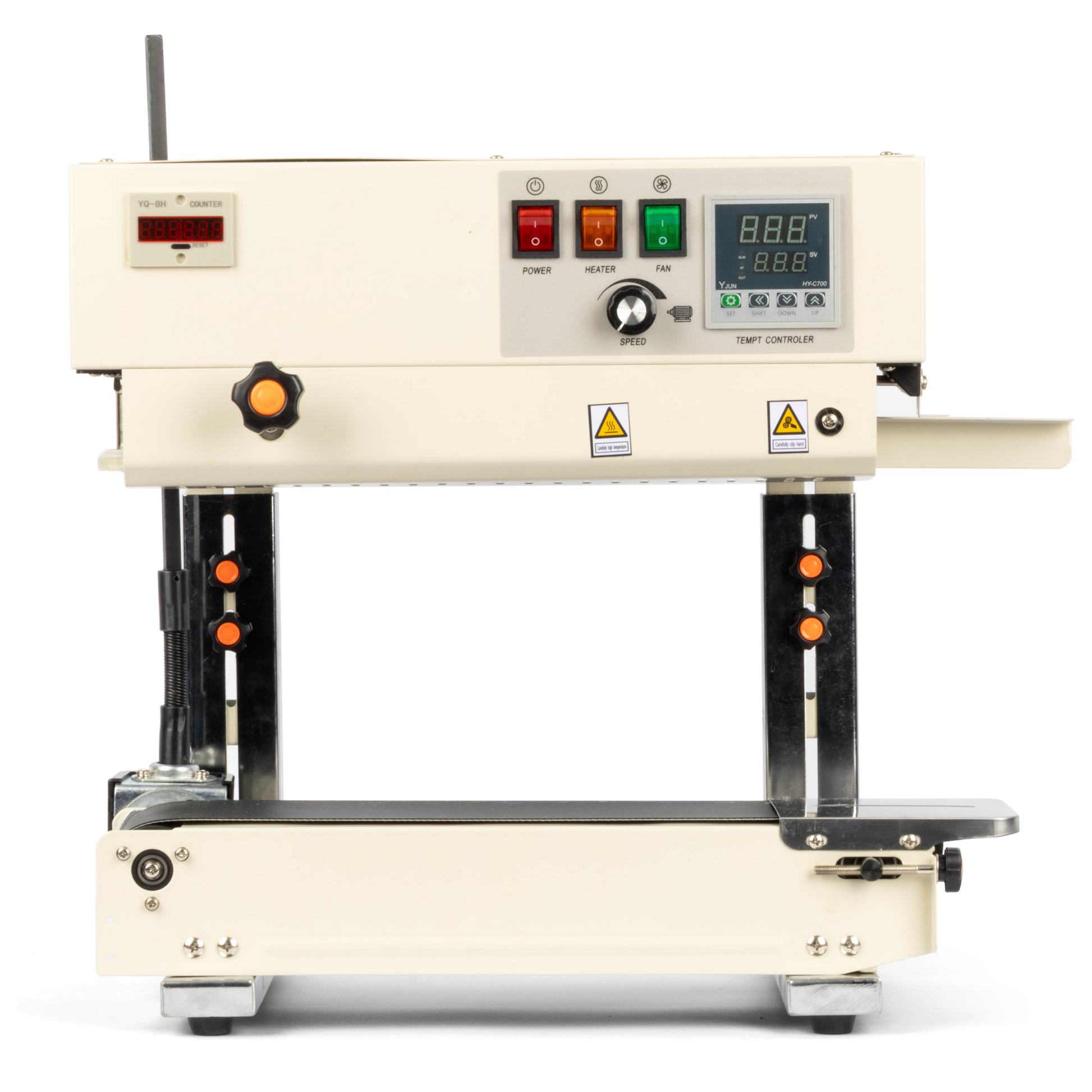

Vertical Continuous Bag Band Sealer Sealing Machine

Vertical Continuous Bag Band Sealer Sealing Machine

Product SKU: JFCBB00013

102 in stock

$229.99 USD
$229.99 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

Estimated Shipping Widget will be displayed here!
View full details

INTRODUCTION

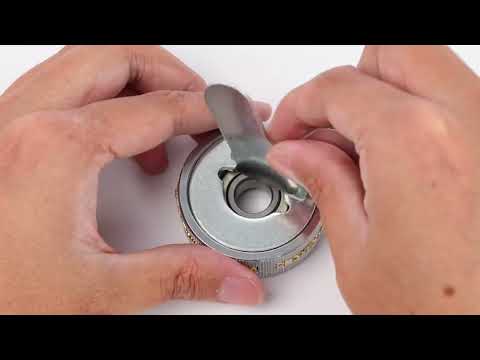

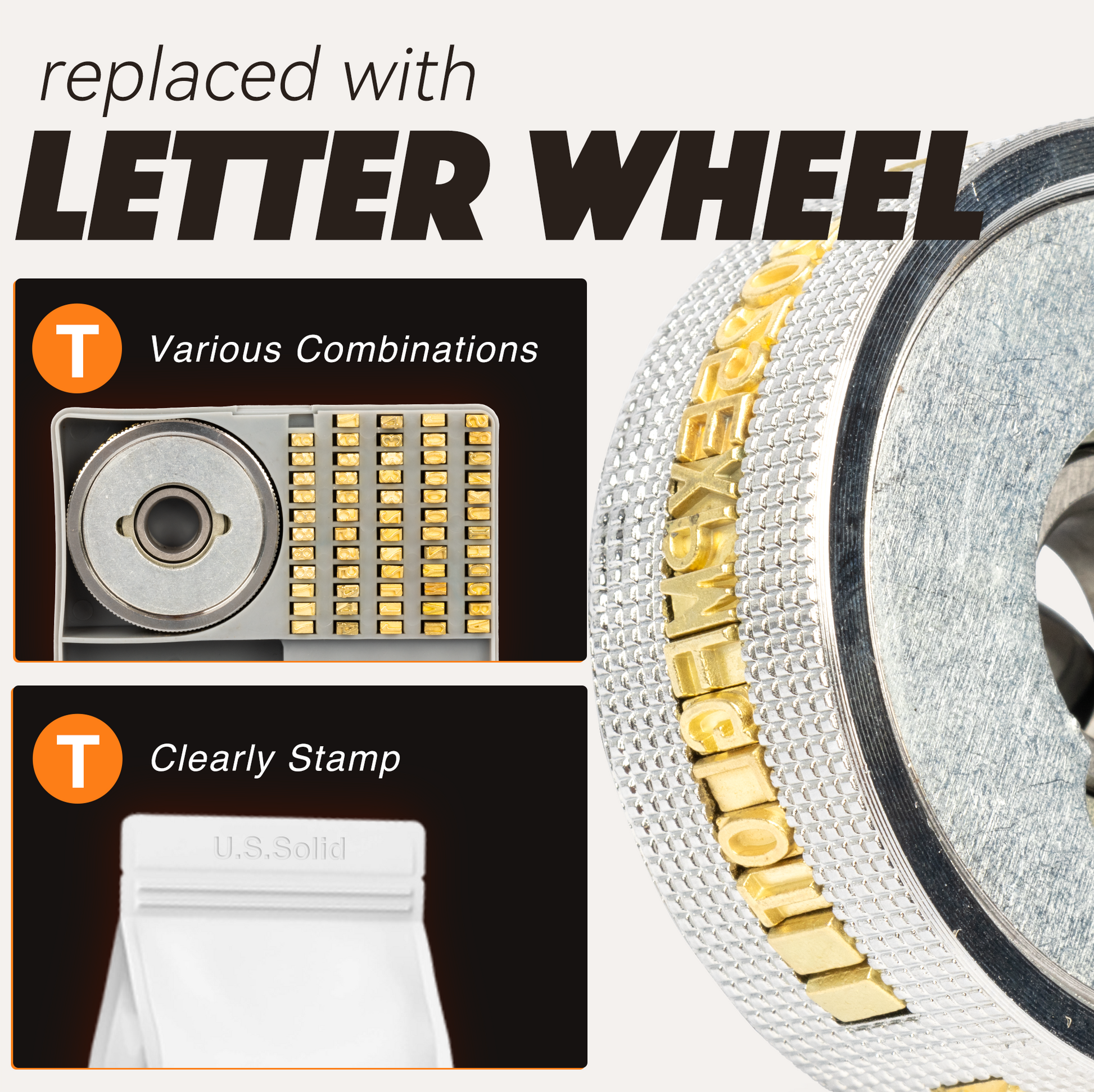

This continuous sealer offers a speed of 0-12 m/min, handles bag thicknesses from 0.02-0.8 mm, and has a temperature range of 0-572℉. It can bear loads up to 6.6 lbs. Easy to operate with simple dial adjustments, it also prints dates, comments, or logos while sealing, thanks to its embossing and type wheels. Built with an all-metal frame, electrostatic paint, and pure copper heating/cooling blocks, this durable sealer is designed for long-lasting performance.

FEATURES

APPLICATIONS

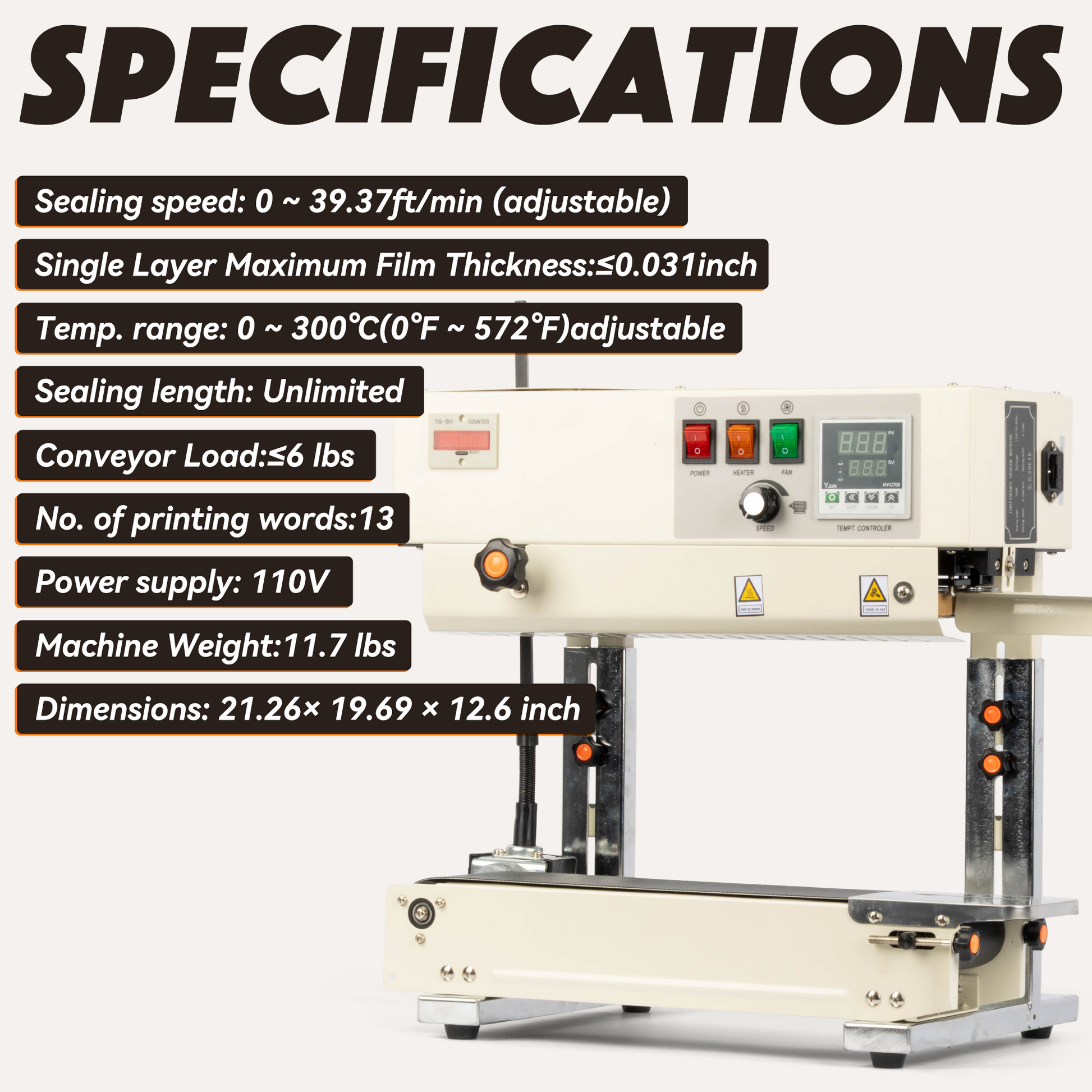

SPECIFICATIONS

Model USS-CBB00013 Brand U.S. Solid
Power Supply 110V,60HZ Power 650W
Sealing Speed 0 - 12M/min (adjustable) Sealing Width 0.47 inch
Max. Seal Thickness 0.03 inch Temp. range 0 - 300°C (adjustable)
Counting Function Yes Max. Load Weight 6 lb

WARNING

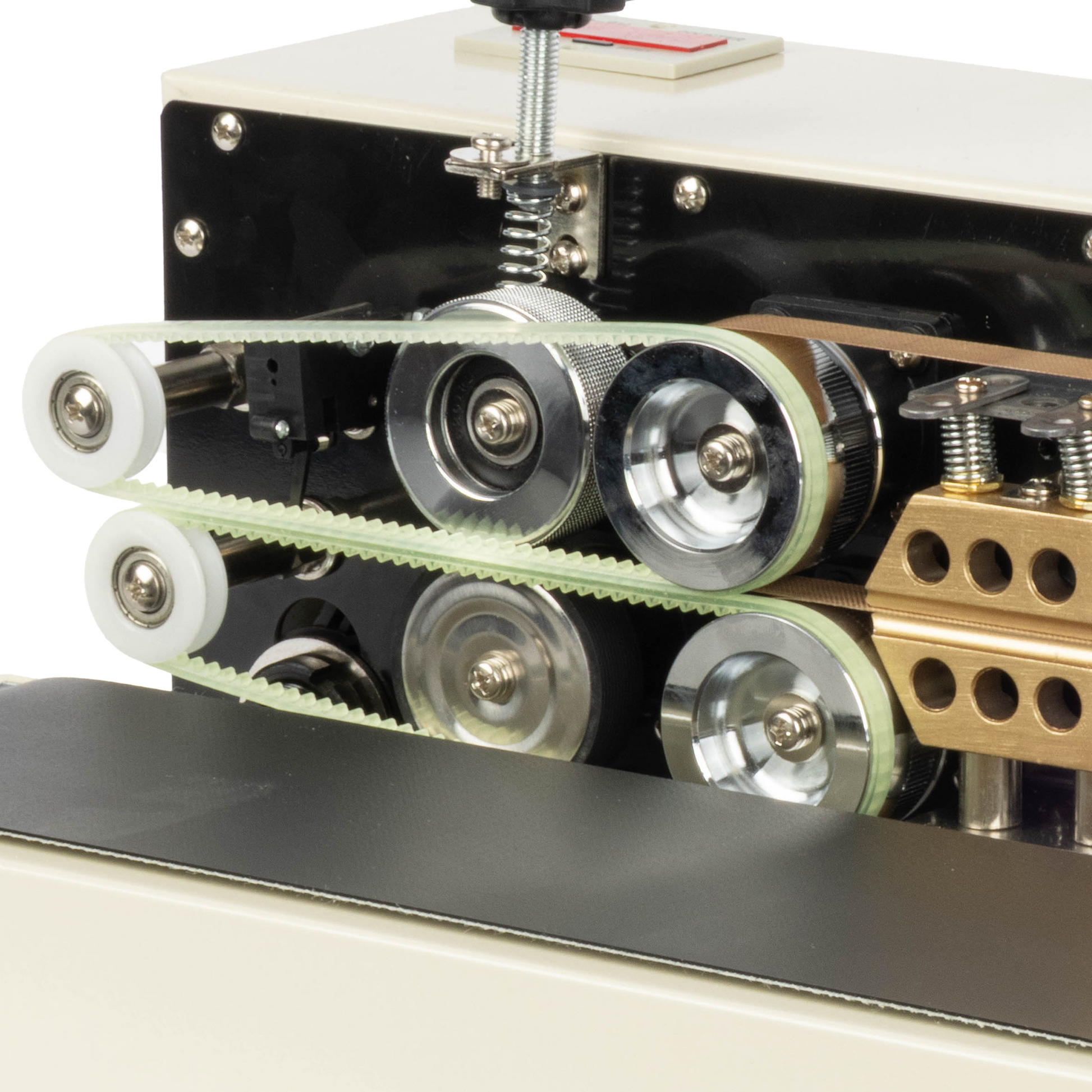

1. Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2. Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

3. Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

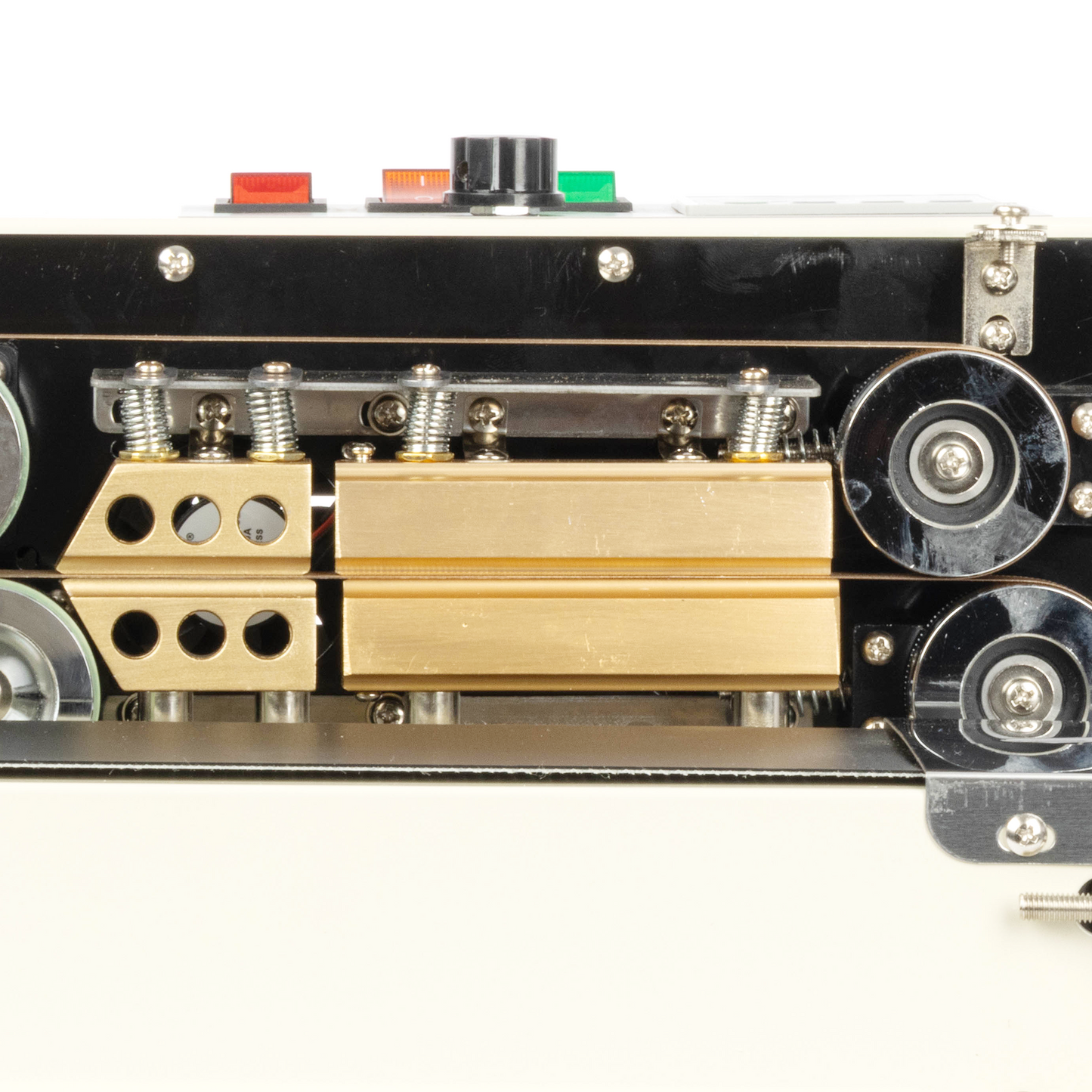

4. Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5. Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

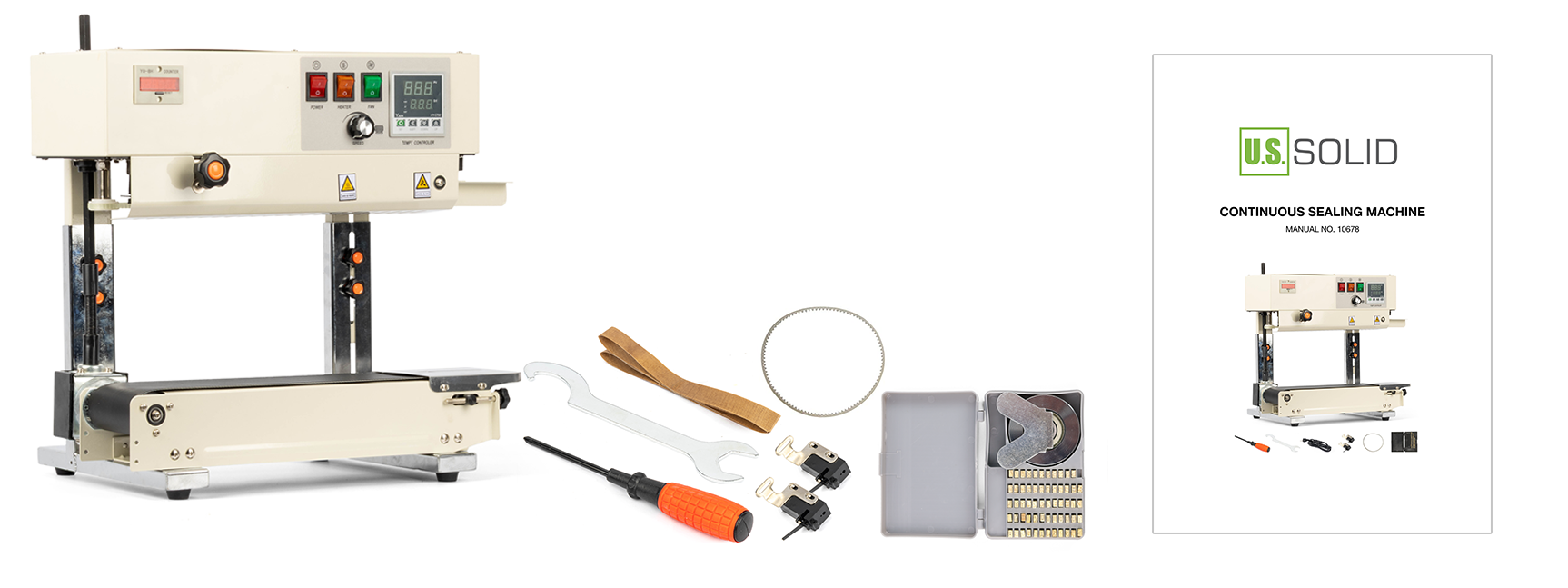

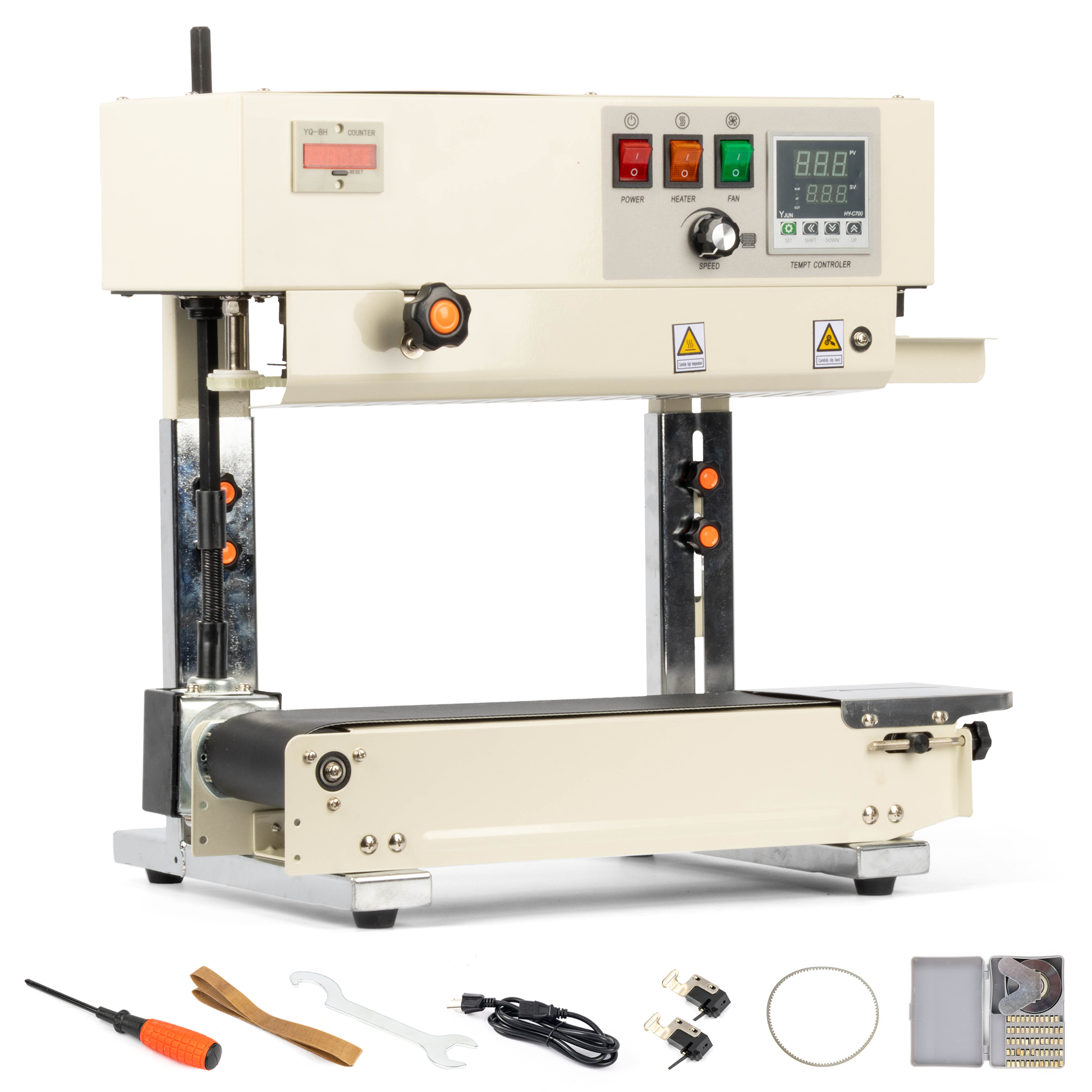

PACKING LIST

  1. Main Machine x1
  2. Accessory Bag x1
  3. User Manual x1

OTHER MODELS

SKU USS-CBB00005 USS-CBB00003 USS-CBB00002 USS-CBB00001 USS-CBB00006-BLACK USS-CBB00005
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.47 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~12 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.019 inch 0.03 inch 0.03 inch 0.019 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 22 lb 2.2 lb 11 lb 6.6 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function × × × × × ×
Conveyor Table √ √ × √ √ √
SKU USS-CBB00006 USS-CBB00007 USS-CBB00008 USS-CBB00009 USS-CBB00010 USS-CBB00011
Seal Width 0.47 inch 0.39 inch 0.39 inch 0.39 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~24 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.015 inch 0.015 inch 0.011 inch 0.015 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 2.2 lb 22 lb 22 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × √ ×
Inflation Function × × √ √ × ×
Conveyor Table √ × √ √ √ √
See More ▼
SKU USS-CBB00012 USS-CBB00013 USS-CBB00014 USS-CBB00015 USS-CBB00016 USS-CBB00017
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.5 inch 0.5 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 7 m/min
Max. Seal Thickness 0.011 inch 0.03 inch 0.01 inch 0.03 inch 0.03 inch 0.006 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 13 lb 6 lb 6.6 lb 13 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function √ × × × × ×
Conveyor Table √ √ √ √ √ ×
SKU USS-CBB00018 USS-CBB00019 USS-CBB00020 USS-CBB00021
Seal Width 0.39 inch 0.39 inch 0.39 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 24 m/min 0 ~ 24 m/min
Max. Seal Thickness 0.003 inch 0.03 inch 0.03 inch 0.03 inch
Max. Temperature 572°F 572°F 572°F 572°F
Max. Load Weight 22 lb 2.2 lb 6.6 lb 6.6 lb
Intelligent Inkjet Coding Function × × × ×
With an Ink Wheel × × √ ×
Inflation Function × × × ×
Conveyor Table √ √ √ √

Download user manual here

INTRODUCTION

This continuous sealer offers a speed of 0-12 m/min, handles bag thicknesses from 0.02-0.8 mm, and has a temperature range of 0-572℉. It can bear loads up to 6.6 lbs. Easy to operate with simple dial adjustments, it also prints dates, comments, or logos while sealing, thanks to its embossing and type wheels. Built with an all-metal frame, electrostatic paint, and pure copper heating/cooling blocks, this durable sealer is designed for long-lasting performance.

FEATURES

APPLICATION

SPECIFICATIONS

Model USS-CBB00013 Brand U.S. Solid
Power Supply 110V,60HZ Power 650W
Sealing Speed 0 - 12M/min (adjustable) Sealing Width 0.47 inch
Max. Seal Thickness 0.03 inch Temp. range 0 - 300°C (adjustable)
Counting Function Yes Max. Load Weight 6 lb

WARNING

1. Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2. Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

3. Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

4. Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5. Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

OTHER MODELS

SKU USS-CBB00005 USS-CBB00003 USS-CBB00002 USS-CBB00001 USS-CBB00006-BLACK USS-CBB00005
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.47 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~12 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.019 inch 0.03 inch 0.03 inch 0.019 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 22 lb 2.2 lb 11 lb 6.6 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function × × × × × ×
Conveyor Table √ √ × √ √ √
SKU USS-CBB00006 USS-CBB00007 USS-CBB00008 USS-CBB00009 USS-CBB00010 USS-CBB00011
Seal Width 0.47 inch 0.39 inch 0.39 inch 0.39 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~24 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.015 inch 0.015 inch 0.011 inch 0.015 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 2.2 lb 22 lb 22 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × √ ×
Inflation Function × × √ √ × ×
Conveyor Table √ × √ √ √ √
See More ▼
SKU USS-CBB00012 USS-CBB00013 USS-CBB00014 USS-CBB00015 USS-CBB00016 USS-CBB00017
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.5 inch 0.5 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 7 m/min
Max. Seal Thickness 0.011 inch 0.03 inch 0.01 inch 0.03 inch 0.03 inch 0.006 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 13 lb 6 lb 6.6 lb 13 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function √ × × × × ×
Conveyor Table √ √ √ √ √ ×
SKU USS-CBB00018 USS-CBB00019 USS-CBB00020 USS-CBB00021
Seal Width 0.39 inch 0.39 inch 0.39 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 24 m/min 0 ~ 24 m/min
Max. Seal Thickness 0.003 inch 0.03 inch 0.03 inch 0.03 inch
Max. Temperature 572°F 572°F 572°F 572°F
Max. Load Weight 22 lb 2.2 lb 6.6 lb 6.6 lb
Intelligent Inkjet Coding Function × × × ×
With an Ink Wheel × × √ ×
Inflation Function × × × ×
Conveyor Table √ √ √ √

PACKING LIST:

  1. Main Machine x1
  2. Accessory Bag x1
  3. User Manual x1
Product Image

Download user manual here
