Introduction

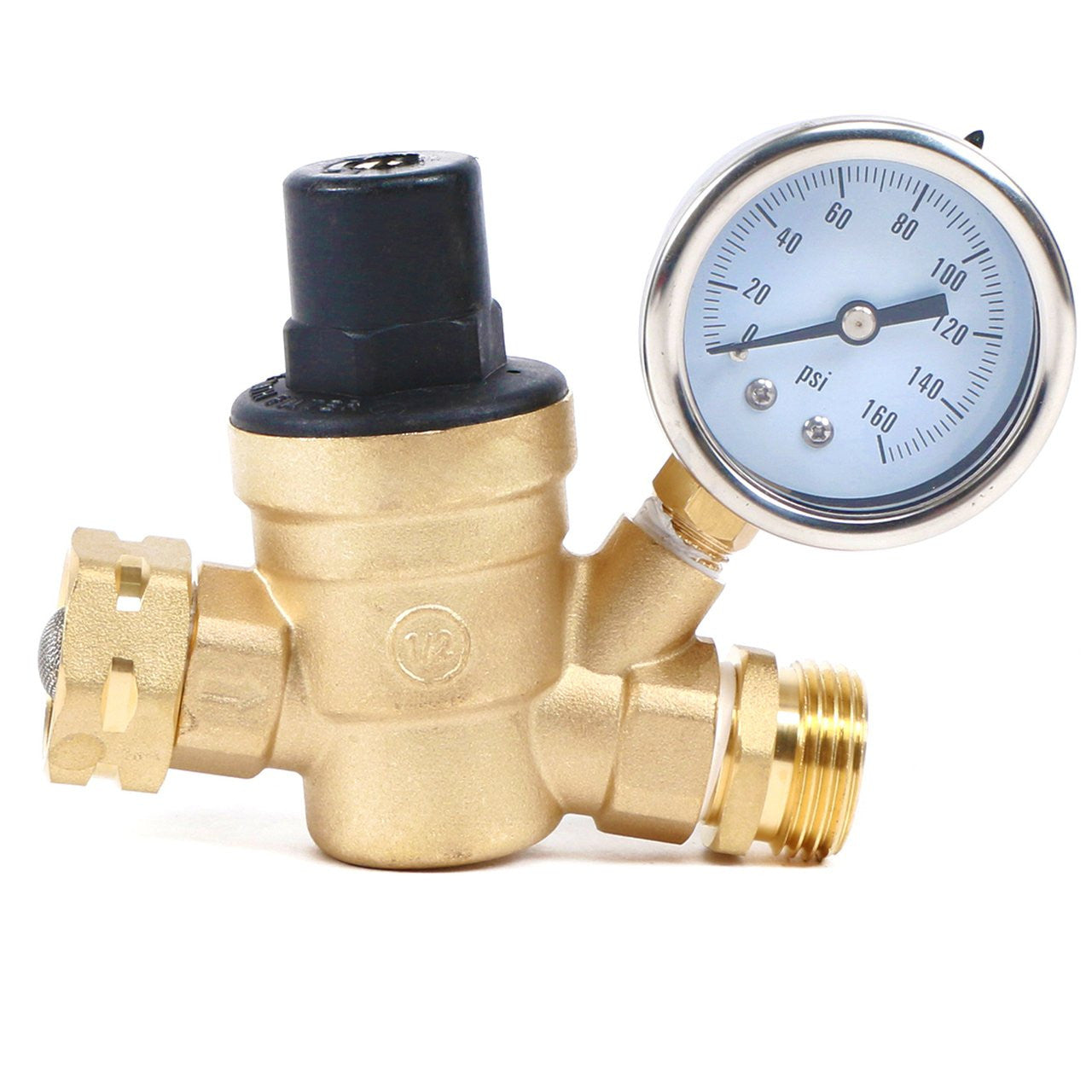

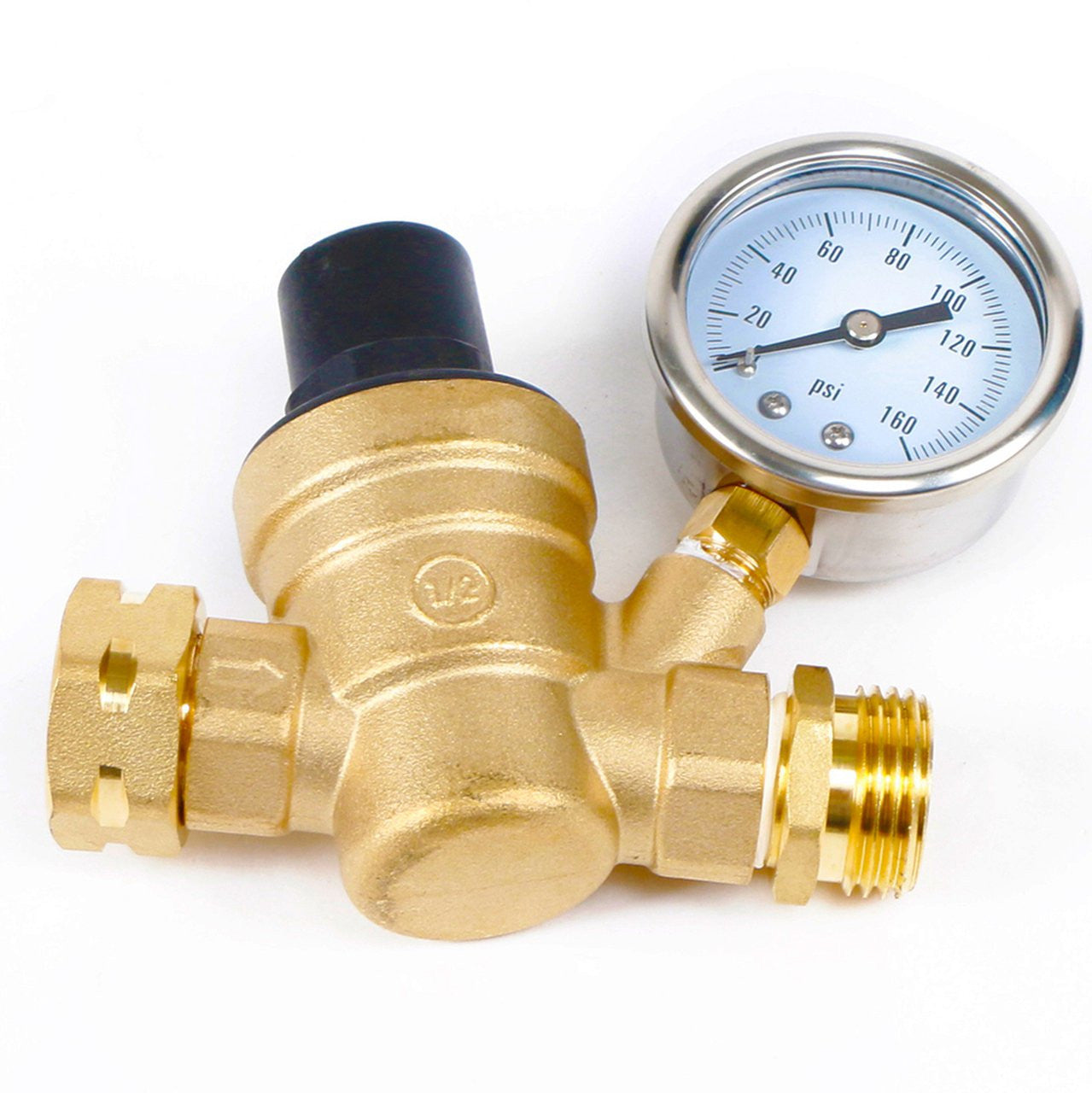

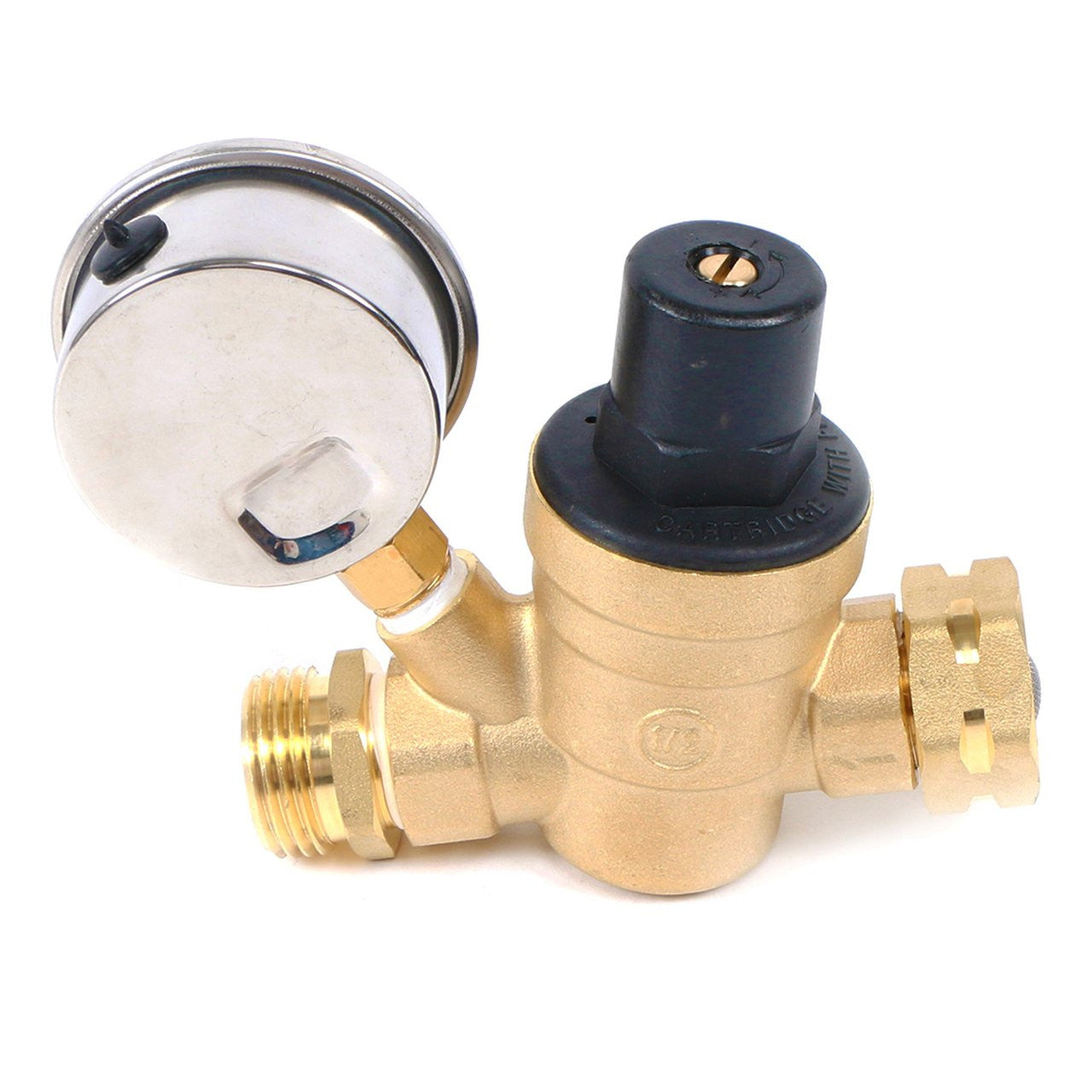

The U.S. Solid 3/4" GHT RV Water Pressure Regulator is designed to protect your RV and outdoor plumbing systems from unstable or excessive water pressure. Made from lead-free brass and compliant with NSF lead-free standards, it ensures safe and reliable water use.
Featuring an adjustable pressure range up to 160 PSI, a built-in pressure gauge, and an integrated inlet filter, this regulator allows easy monitoring and control while helping prevent damage from debris and high pressure. Compatible with standard U.S. hose connections, it’s an ideal solution for RVs, campers, and garden hoses.
We proudly announce that our product is selected as top pick on rvexpertise.com
Applications
Features
How to Operate
- Connect: Attach the regulator to the water source. The female end features a captive nut and washer designed to fit standard spigots without leaking.

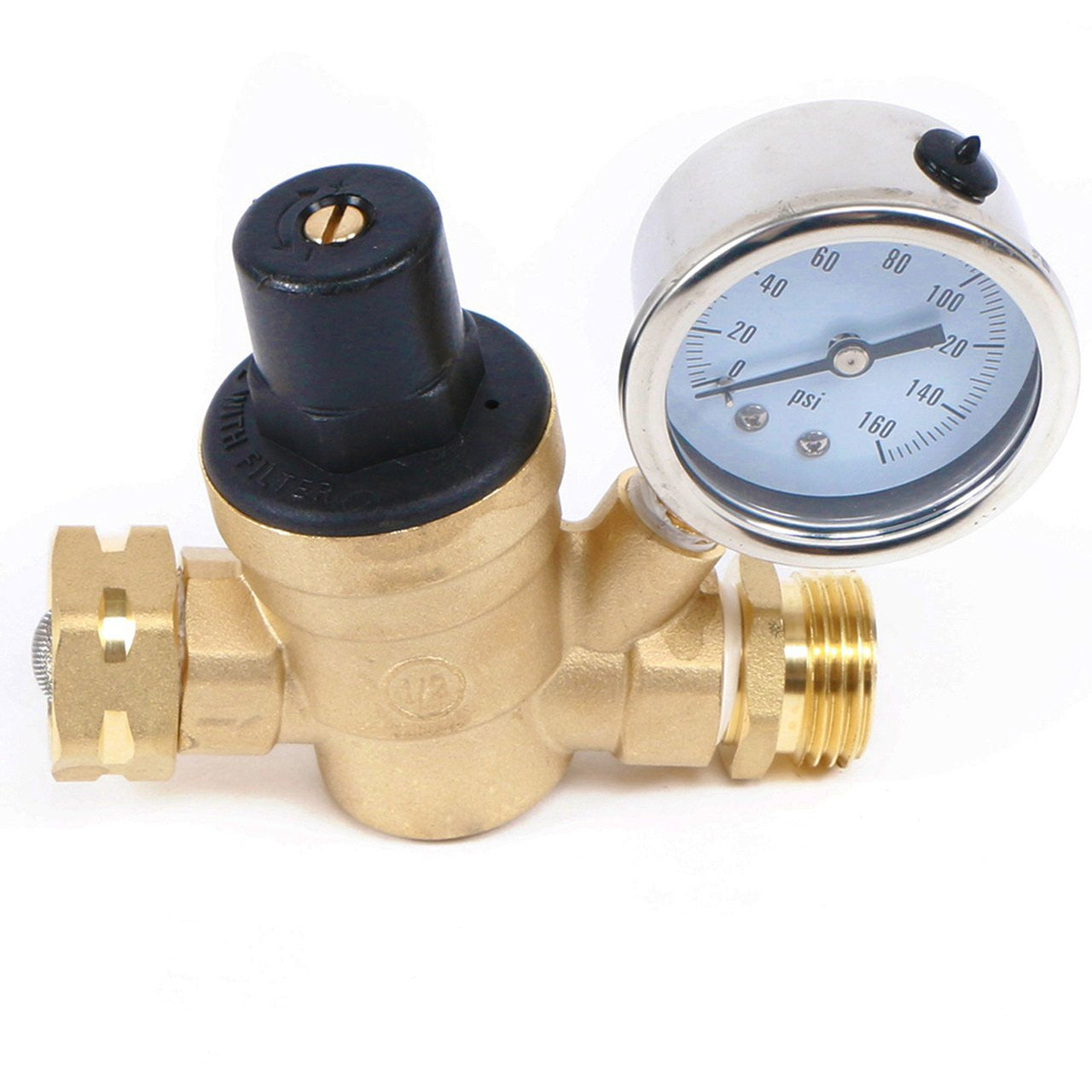

- Monitor: Turn on the water and observe the needle gauge to determine the current inlet pressure.

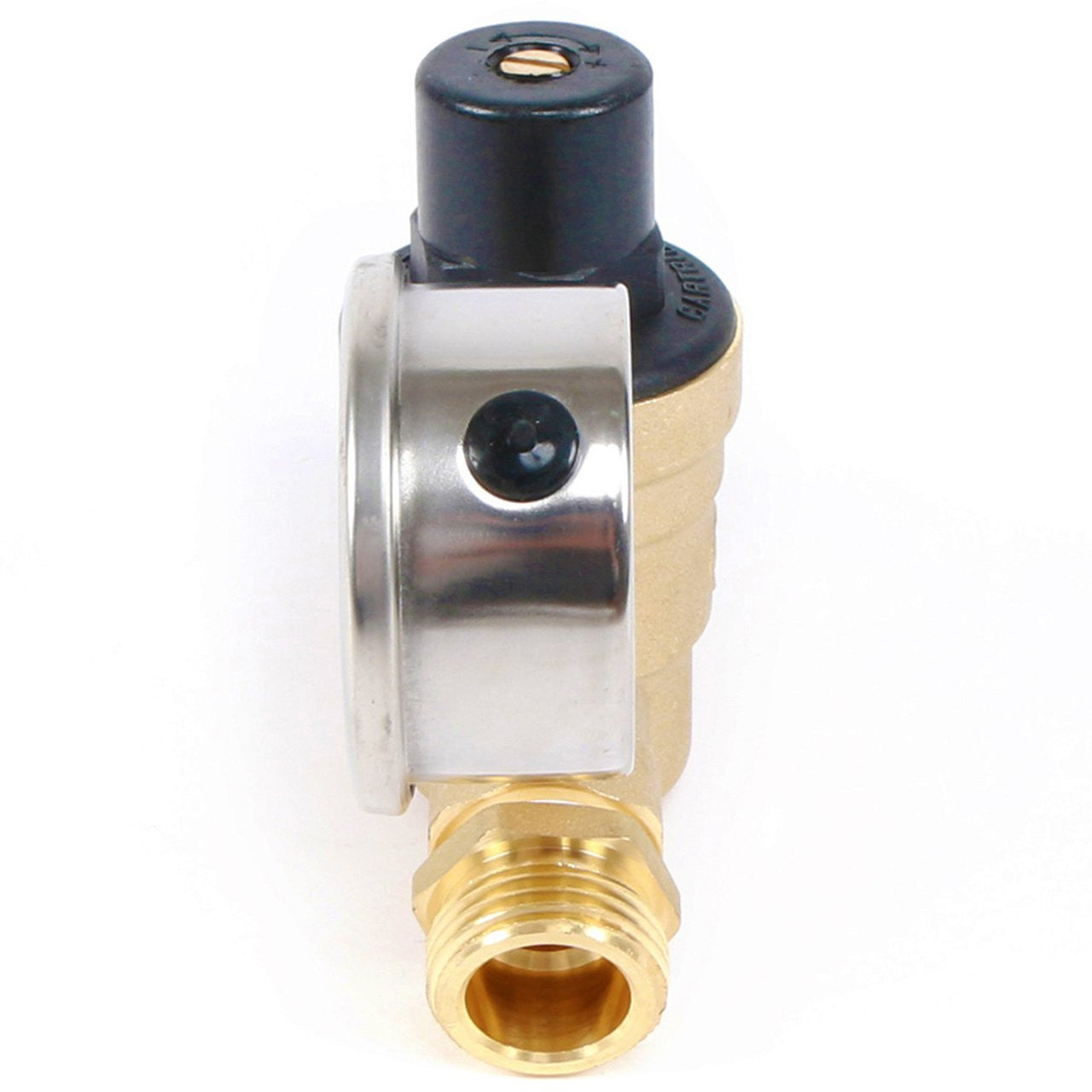

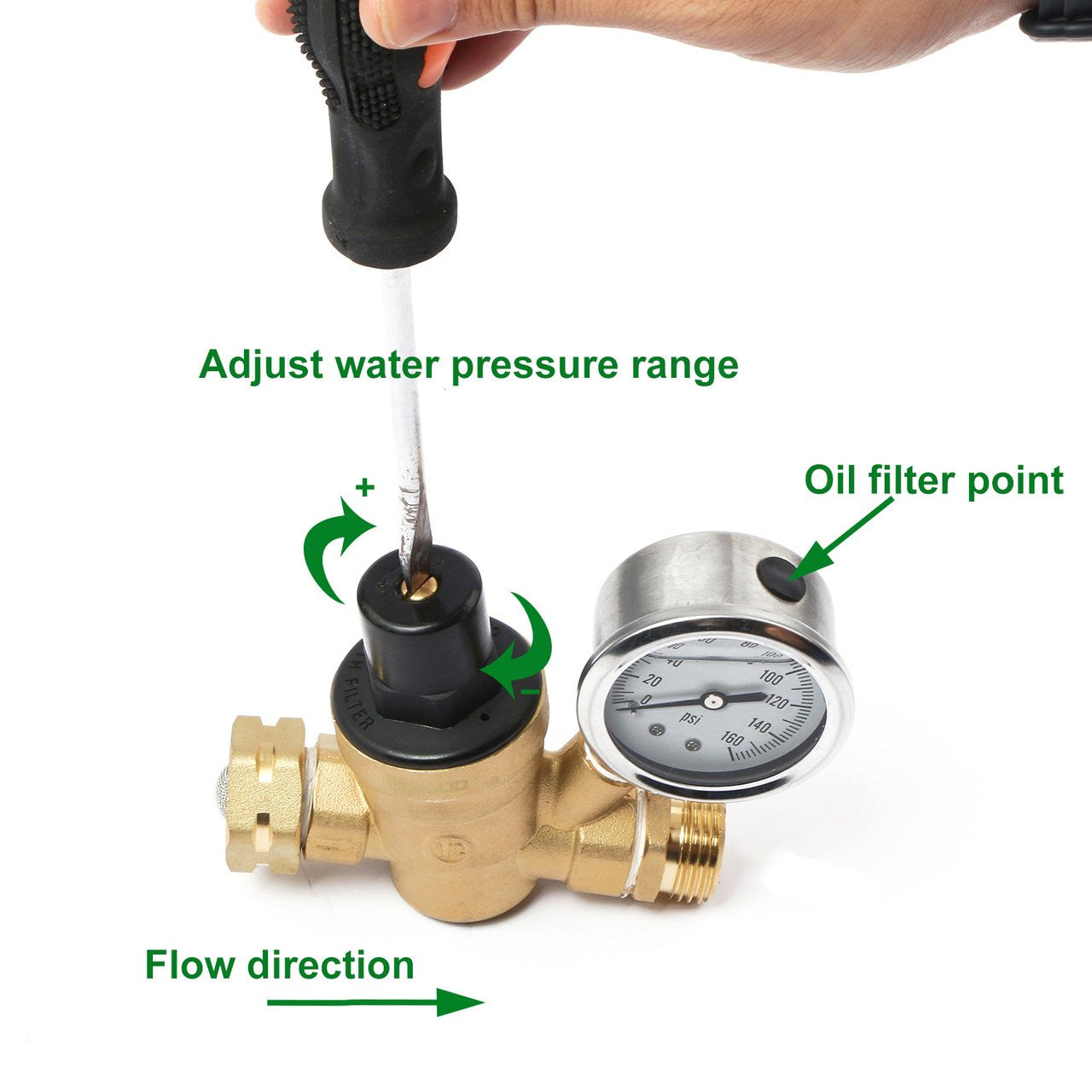

- Adjust: Use a screwdriver to turn the adjustment screw on the top of the valve: Turn Clockwise to increase the pressure and turn Counter-clockwise to reduce the pressure.
- Finalize: Set the pressure to the recommended safety range of 60–65 PSI, or adhere to your specific RV manufacturer's recommendation (often 40–50 PSI).
Specifications
| Model | USS-WR00001 | Brand | U.S. Solid | ||

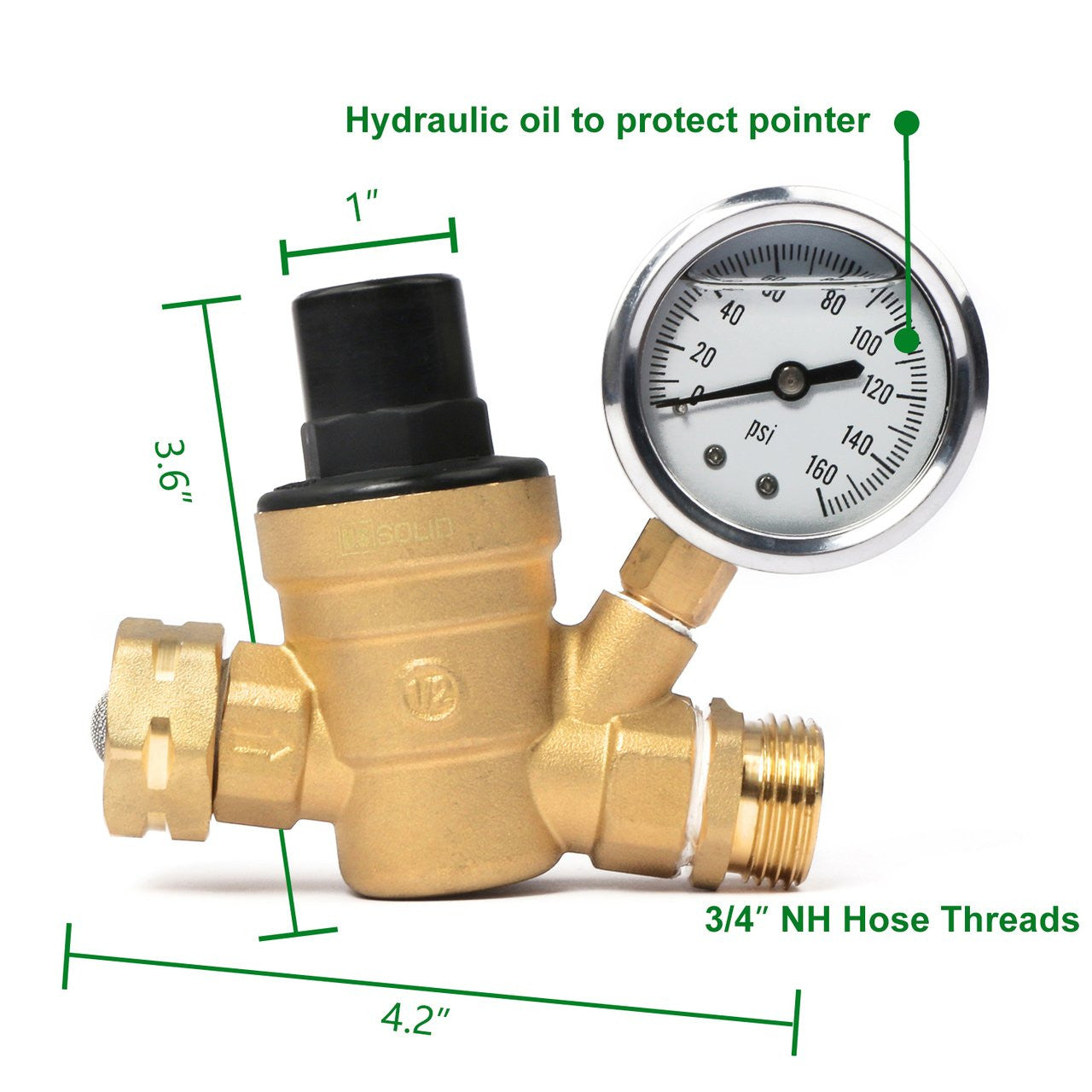

| Connection Size | 0.75 Inches (3/4") | Thread Type | NH / GHT | ||
| Material | Brass | Pressure Range | 0 - 160 PSI | ||
| Adjustment | Screwdriver Adjustable | Weight | 1.3 Pounds | ||
*To view the full table on mobile, please swipe left or right on the screen.
FAQ
Problem 1: Why do I need a pressure regulator if my RV is tested for high pressure?
Even if an RV system is tested to 100-125 PSI, continuously running water at that pressure risks expensive plumbing failures. Manufacturers often recommend maintaining 40-50 PSI to avoid damage and warranty problems.
Problem 2: Is this product safe for drinking water?
Yes. The regulator is made using a hot casting process and is tested to be lead-free, meeting the NSF requirement of containing less than 0.25% lead.
Problem 3: Will this fit my campsite water hookup?
Yes. It features standard 3/4" NH (National Hose) threads, which are universally compatible with U.S. garden hoses and outdoor spigots.
Problem 4: How do I prevent debris from clogging the valve?

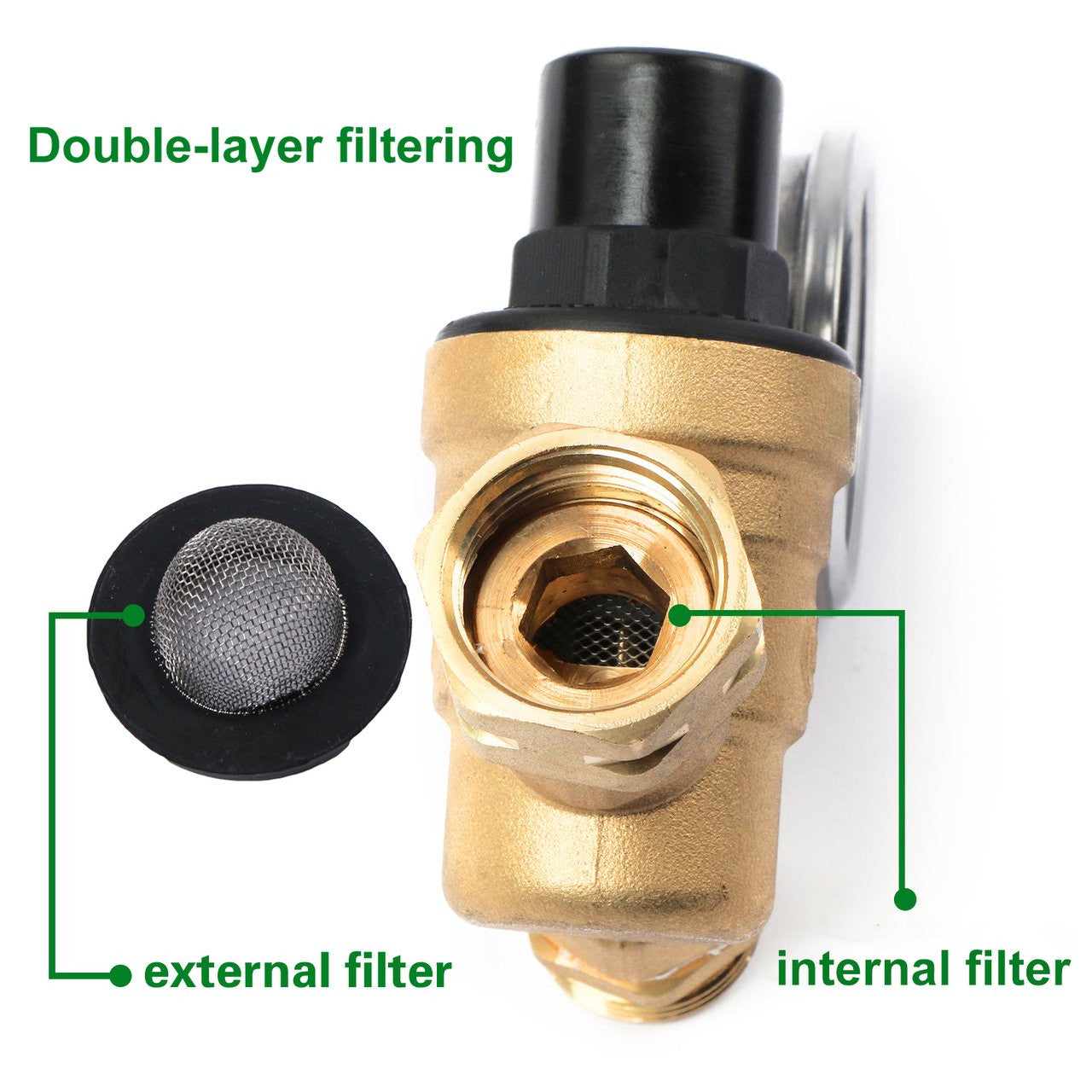

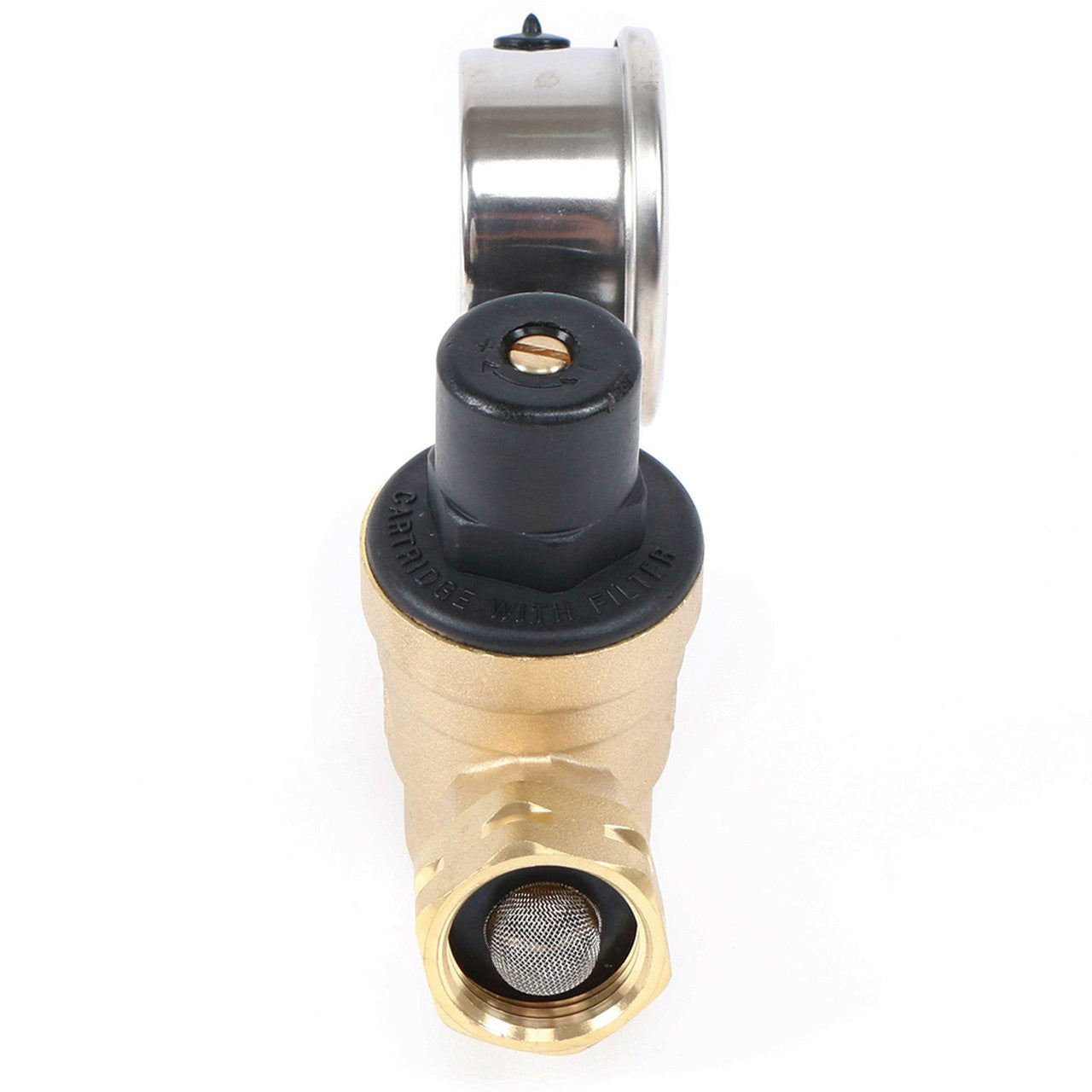

The unit contains an inlet screened filter specifically designed to keep out gravel and large particles. Check this screen periodically to ensure consistent flow.
