Introduction

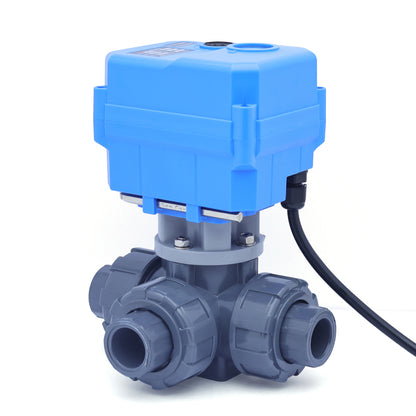

This UPVC 3-way motorized ball valve provides an alternative solution to our standard brass/stainless steel threaded ball valves currently available. Distinguished from NPT/G threaded connections, it adopts American standard socket end & union connection, which balances stable sealing performance with the convenience of quick disassembly and maintenance.
Equipped with a 3-wire, single-control configuration, the valve does not automatically reset upon power loss; instead, it maintains its last position to ensure stable operation for specific flow control requirements. The 3-wire design consists of a common wire, a power wire, and a single control wire—users can easily switch the valve ON or OFF by toggling the control wire. A manual override function is also provided for emergency operation during power outages. With EPDM seals ensuring reliable performance, it is the ideal choice for water treatment, HVAC, and low-pressure industrial fluid handling applications. For other connection standards, please contact our customer service.
This 3-way valve series offers L-type and T-type configurations (2 options for T-type: T1/T2). Please note the distinction when purchasing (refer to the main images for flow path type details).
NOTE: For the detailed wiring diagram and the corresponding flow directions of the 3-way valve in ON/OFF status, please refer to the main image.
Specifications
Valve Port Type: 3 Way (T1 Type)
Model: USS-MSV637
Size: 3/4"
Connection: Union & Socket End
Socket Inside Diameter: 26.7mm
Socket Inside Diameter: 26.7mm
Material: UPVC
Working Voltage: DC 24V
Max Power: 15W
Max Torque: 20 N·m
Max. Pressure: 232 psi
Medium Temp: 33.8℉ to 104℉
IP Rating: IP65
Life Expectancy: 20,000Cycles
Close/Open Time: 10-12s
Wiring: 3-wire single-control
Manual Function: Yes
Signal feedback function: No
Seal: EPDM
NOTE: Three-way valves are not categorized as normally open (NO) or normally closed (NC). ON/OFF status has its corresponding flow direction.
