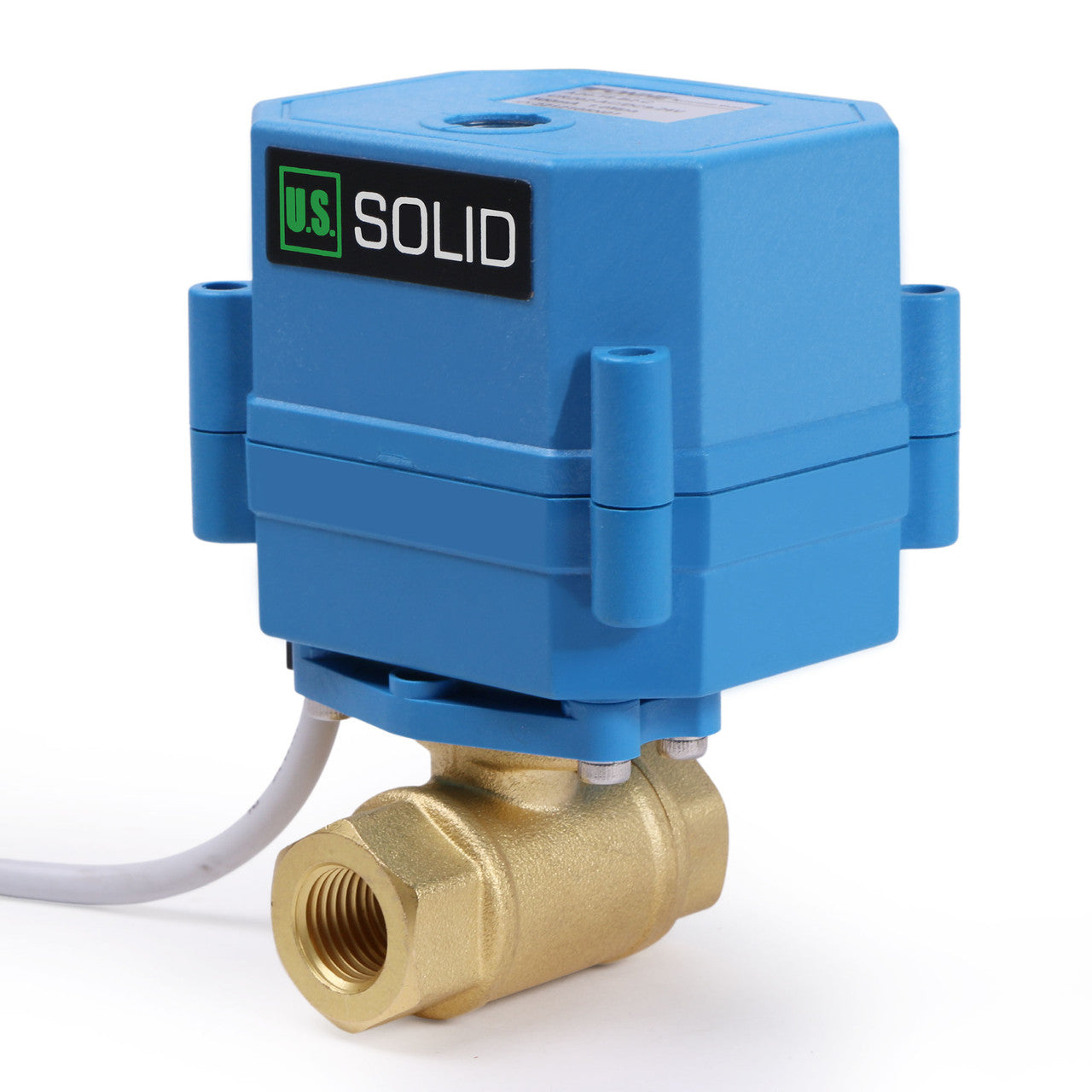

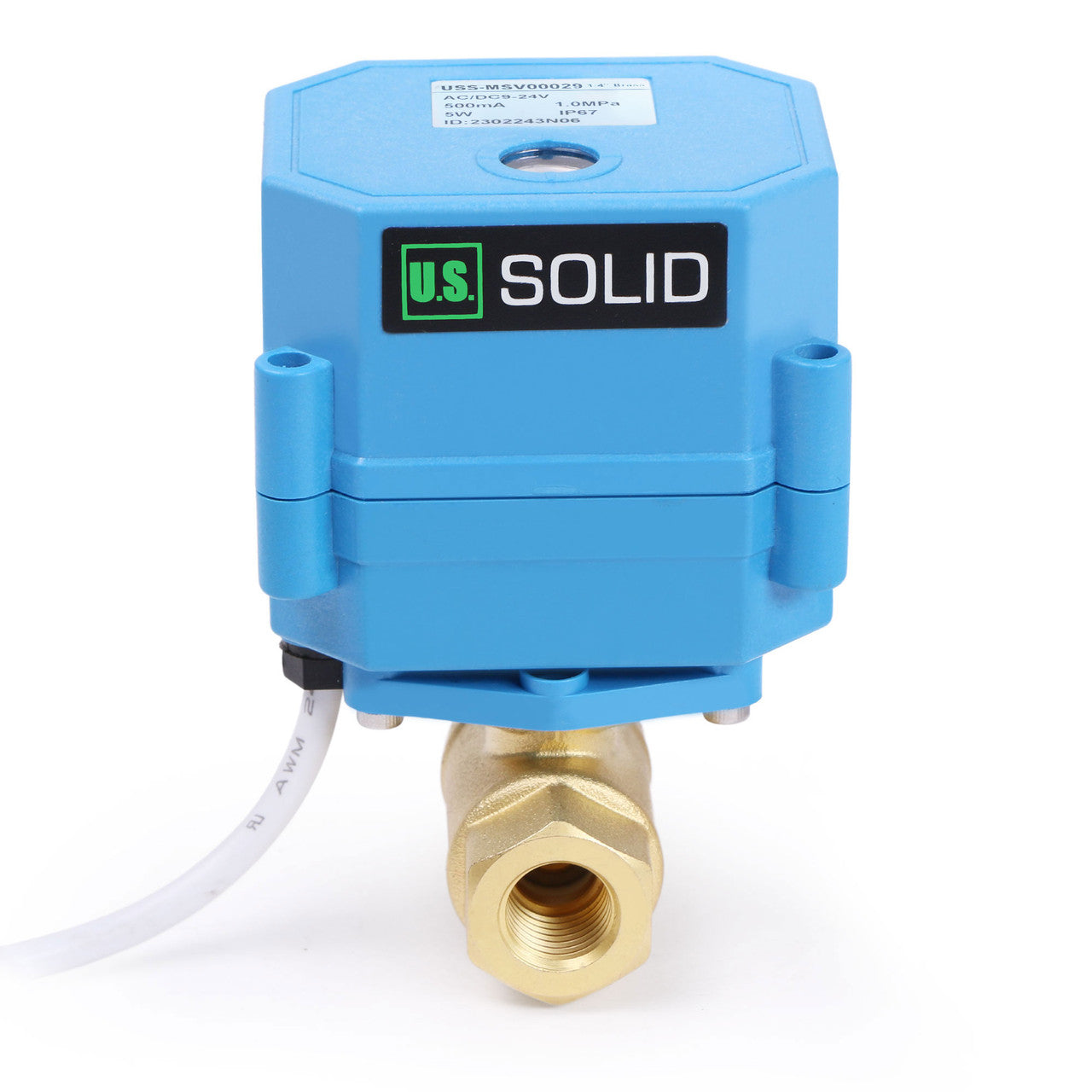

30 Packs Motorized Ball Valve- 1/4” Brass Electrical Ball Valve with Full Port, 9-24 V AC/DC, 2 Wire Auto Return by U.S. Solid

The 2 wire auto return model is perfect for situations where the valve needs to be closed in case of power loss. The valve can be energized to open, and left hooked up, with negligible energy used once fully opened. To close, simply shutoff power to the valve. This valve is convenient because it can be operated with a simple on off switch. When on, it will remain open, when turned off (or power is lost for some other reason) the valve automatically closes.

Specifications

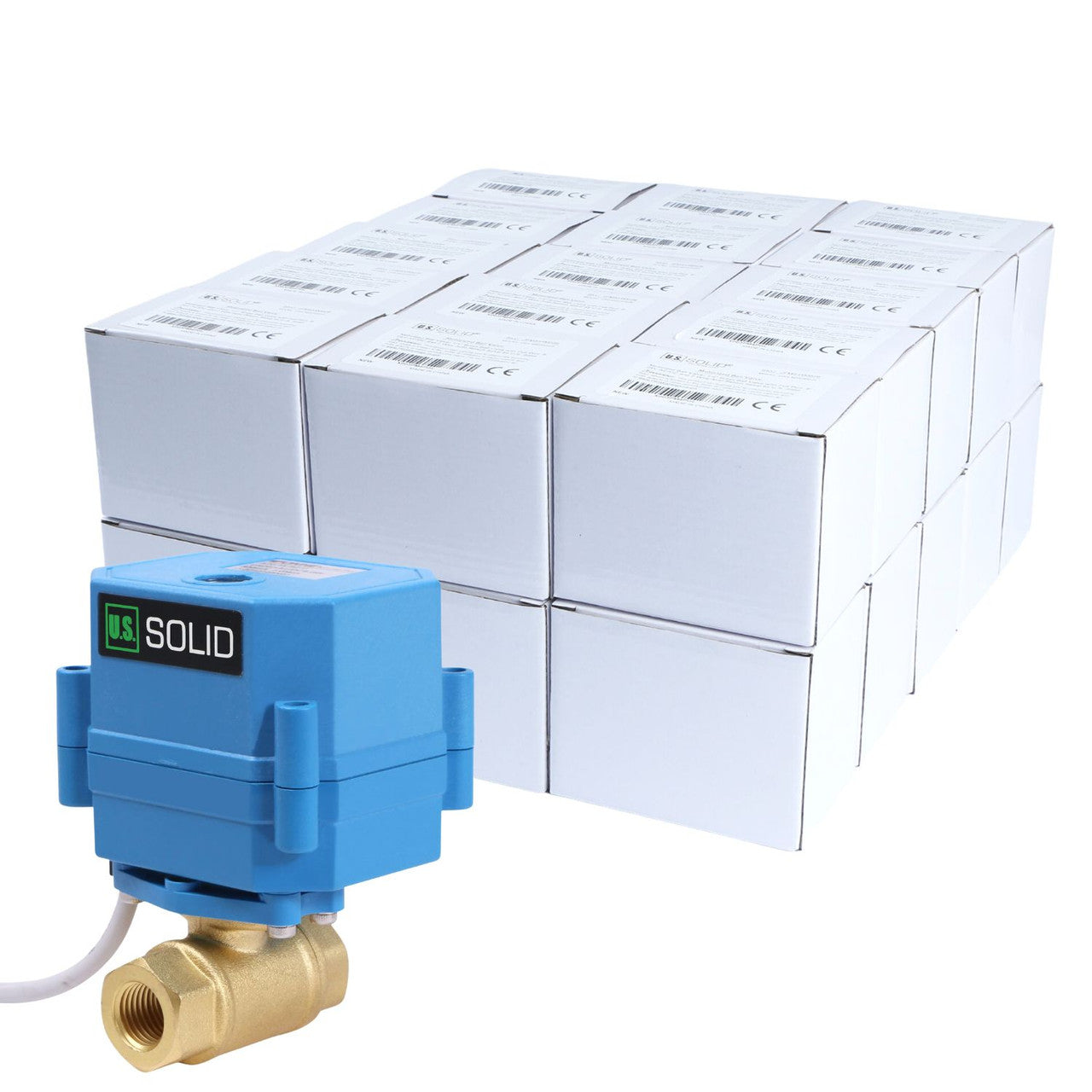

U.S. Solid Model: USS-MSV00105(It contains 30 pieces of USS-MSV00029)
Valve Material: Brass
Ball Seal: PTFE
Operating Time: 3-5 Seconds
Working Voltage: 9-24V AC/DC
Max Power: 5 W
Max Torque: 2 Nm
Max Medium Pressure: 1.0 MPa
Temperature Range for Flow Medium: 2°C to 90°C
Ambient Temperature Range: -15°C to 50°C
Enclosure Rating: IP67
Life Expectancy: 70,000 Cycles at Least
Bore Type: Full
Thread Type: NPT
Wiring Type: 2 Wire Auto Return Video

Instruction Manual
