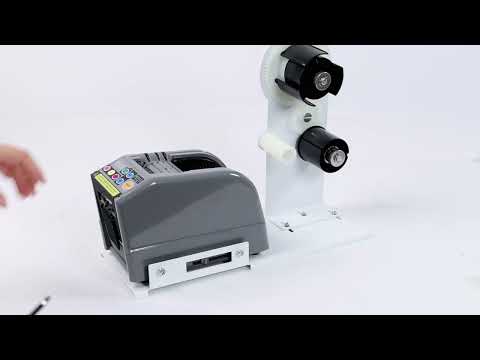

This liner remover is specially designed to automatically peel off the backing paper from tape rolls. It works with several U.S. Solid electric tape dispensers including the JF-3000, JF-5000, JF-7000, JF-8000 and JF-9000 models. It fits tape rolls with a 3”(75mm) inner diameter and up to a 5.9”(150mm) maximum outer diameter.
This dispenser bracket is widely compatible with various tapes that have backing paper, such as aluminum tape, copper tape, acetate cloth tape, and more. It automatically removes the backing so tapes are ready to dispense quickly and easily.
Specifications
Tape Width: up to 2.36”
Max Outside Diam of Roll: 5.9”
Core: 3”
Type Gear Drive: gear
Material: sheet metal
Net Weight: 3.8 lbs(1.7 kg)
Product Dimensions: 14.2(L)*5.3(W)*11.2(H) inches(36*13.5*28.5CM)
SKU |
|||||
Model |
JF-3000 |
JF-7000 |
JF-9000 |
JF-5000 |
JF-8000 |
Tape Width |
0.25” to 2.36” |
0.25” to 2.36” |
0.25” to 2.36” |
0.12" to 0.98" |
0.12" to 0.98" |
Tape Length |
0.2” to 39.33” |
0.2” to 39.33” |
0.2” to 39.33” |
0.6” to 2.76” |
0.2" to 2.36" |
Inner Diameter |
no limit |
no limit |
no limit |
no limit |
no limit |
Max. Outside Diameter |
11.8" |
11.8" |
11.8" |
5.91" |
5.91" |
non-adhesive tape |
✓ |
✓ |
✓ |
x |
x |
adhesive tape |
✓ |
✓ |
✓ |
✓ |
✓ |
