INTRODUCTION
A next-generation electric valve engineered for fast installation, effortless servicing, and long-term reliability.
KEY FEATURES

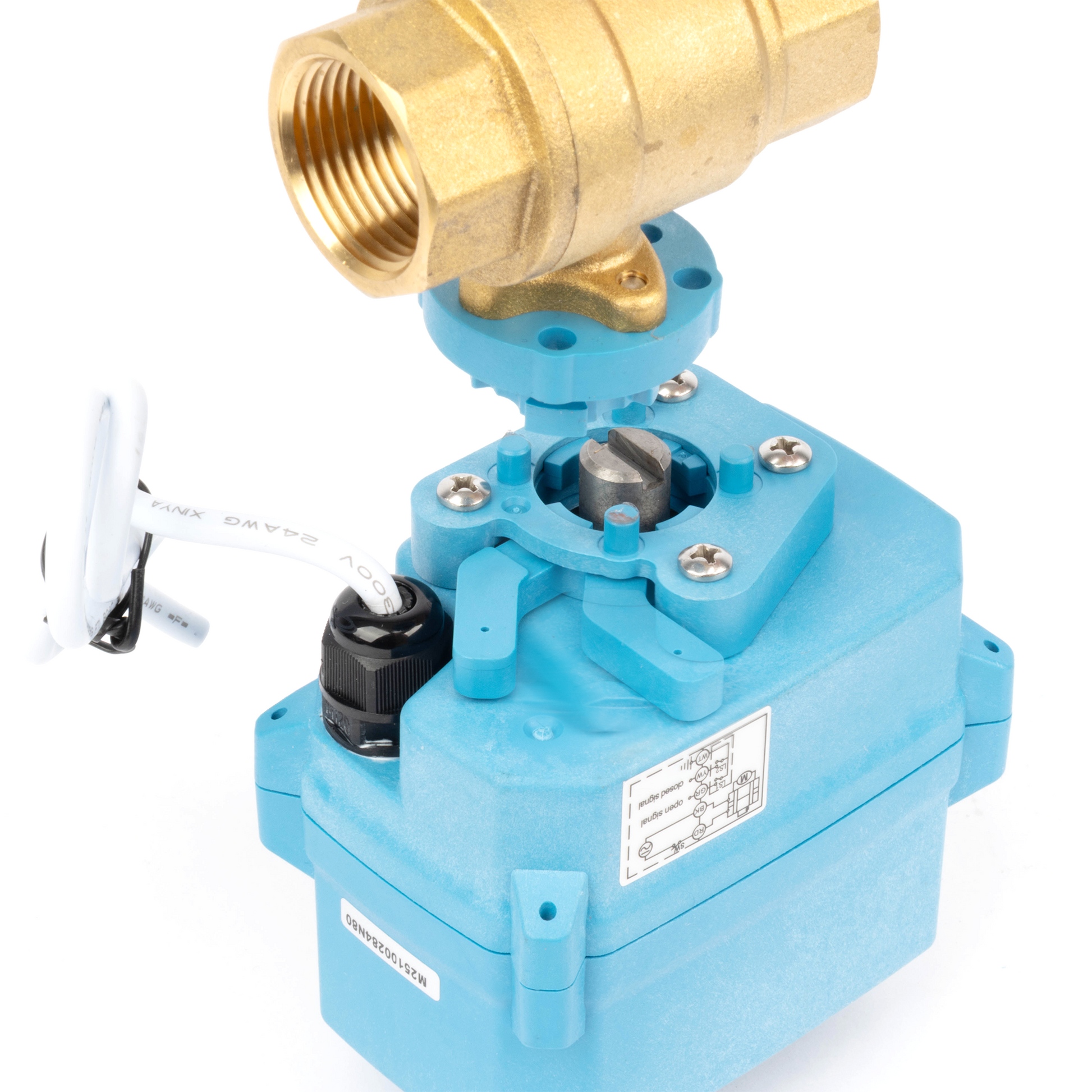

Quick-Release Actuator Mechanism
Detach or replace the actuator in seconds using a built-in release handle. No tools, no pipe cutting, no downtime.
Fail-Safe Auto-Return (CR202 2-Wire Control)
✔ Power ON → Valve Opens
✔ Power OFF → Valve Automatically Closes
Ideal for safety systems, water protection, and automation.
High Torque & Fast Response
• 7N·m torque
• ≤3-second open/close time
• Stable holding performance with 11W running / 0.8W idle power
Wide Voltage Compatibility
Accepts DC12–24V or AC24V, making it compatible with most controllers, sensors, and automation systems.
Built for Harsh Environments
• IP67 waterproof protection
• −15℃~60℃ ambient rating
• 2℃~90℃ liquid temperature
• Stainless steel ball + FKM/PTFE sealing

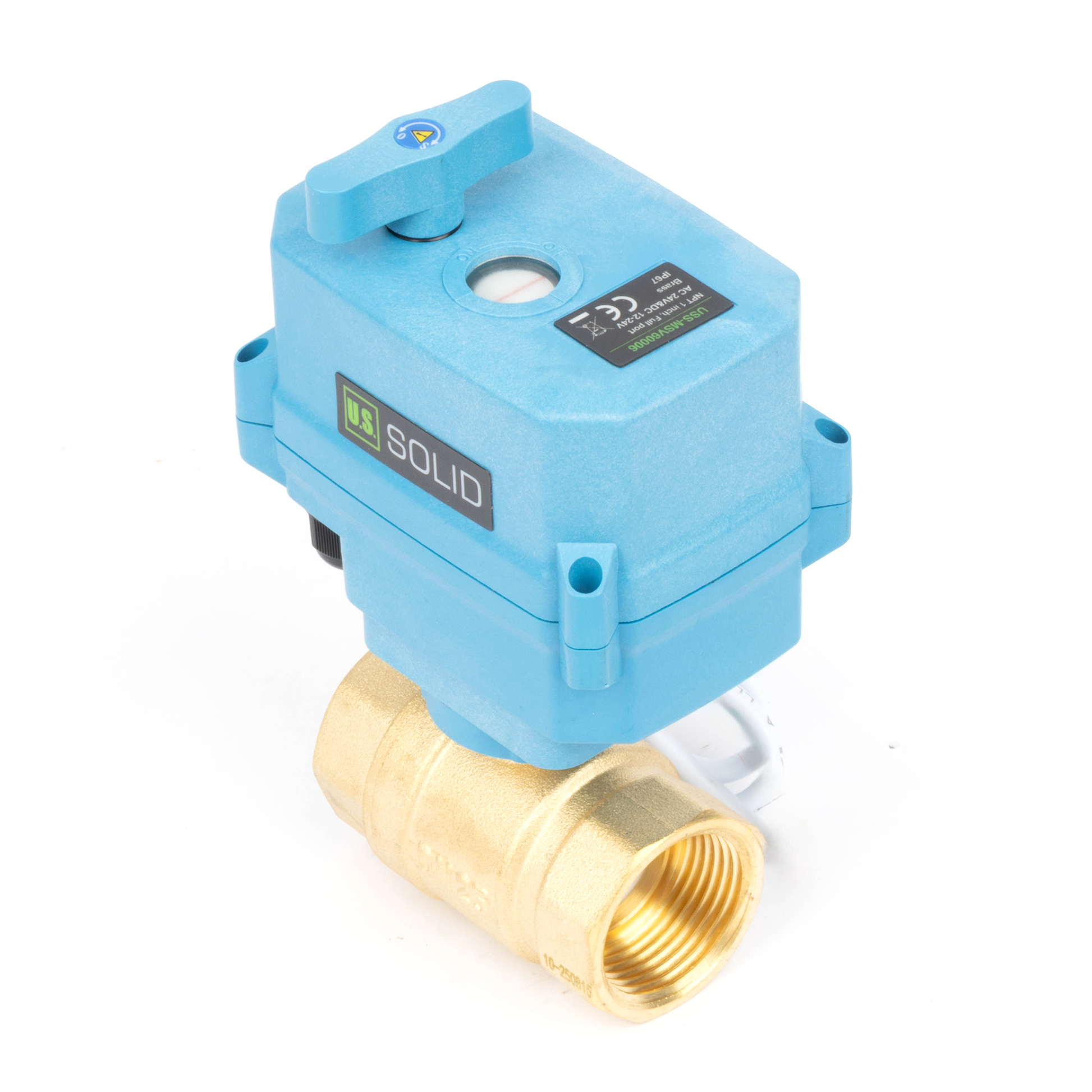

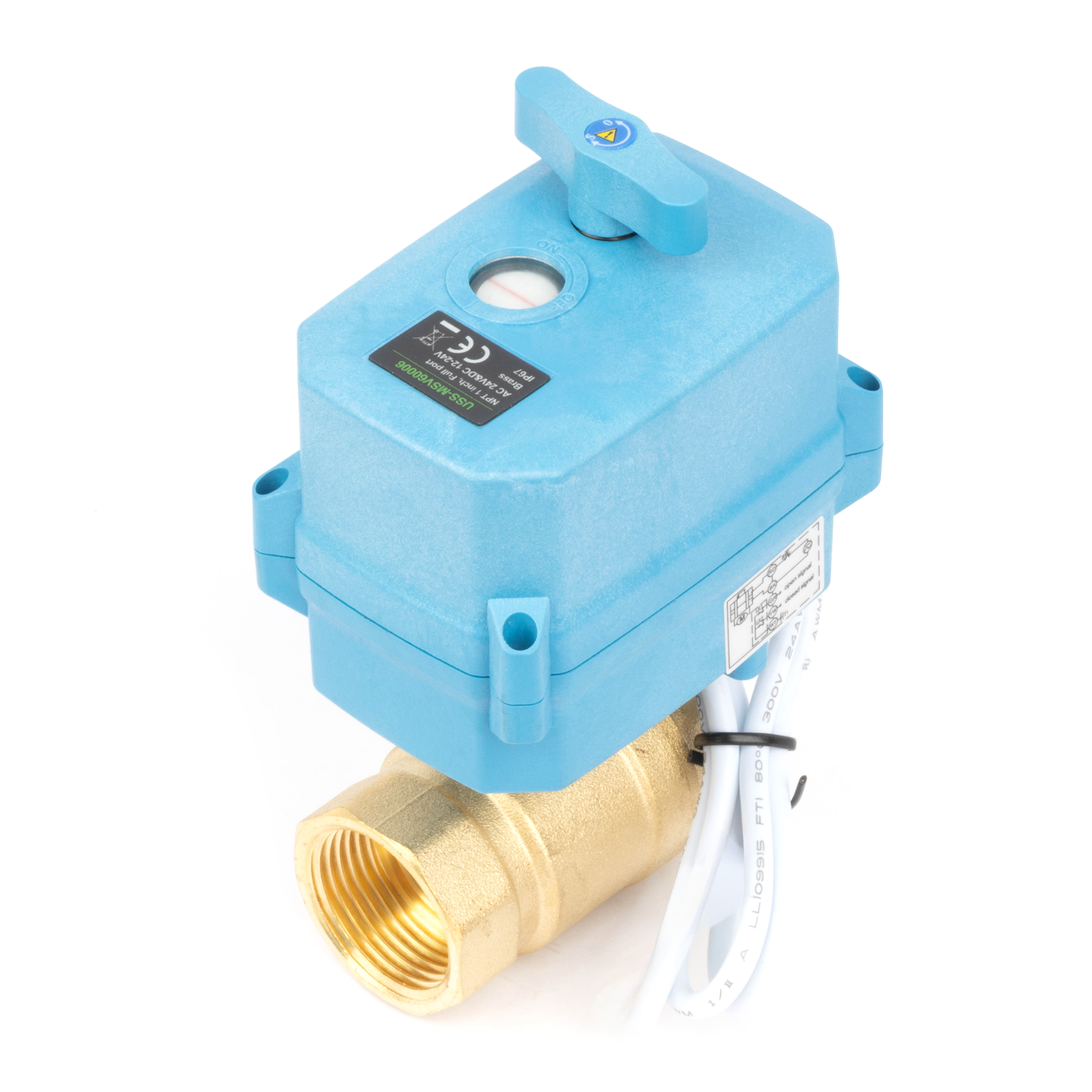

Easy Manual Operation

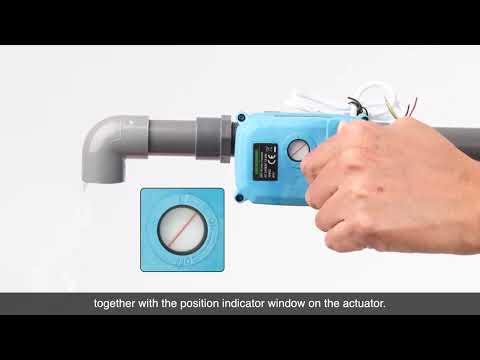

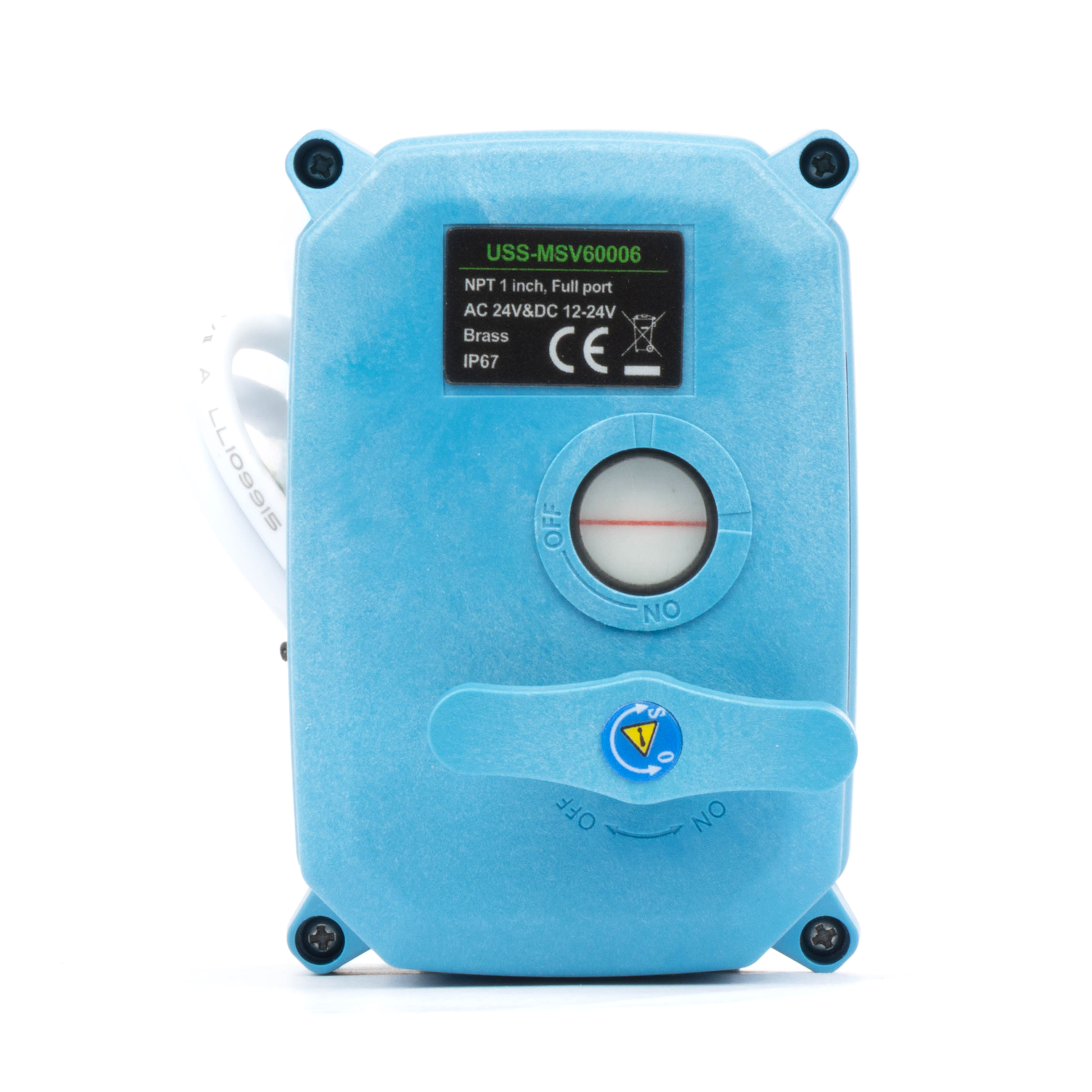

Includes a handwheel for manual control and an indicator window showing open/close status.
RECOMMENDED APPLICATIONS
• Smart home water control
• HVAC and heating systems
• Industrial automation
• Irrigation and agriculture
• Water purification systems
• Fluid monitoring and safety shutoff
This smart quick-release valve series is ideal for users who value convenience, reliability, and simplified maintenance.
SPECIFICATIONS
| Maximum Working Pressure | 1.0 MPa | Rated Voltage | DC12-24V & AC24V |
|---|---|---|---|
| Wiring | 2-wire auto-return | Life Time | 70000 times (testing pressure 0.4MPa, medium water) |
| Actuator Material | Engineering Plastics PPO | Torque Force | 7 N.m |
| Cable Length | 0.5m | Environment Temperature | -15℃ ~ 60℃ |
| Liquid Temperature | 2℃ ~ 90℃ | Manual Operation | Yes |
| Open/Close Indicator | Yes | Protection Class | IP67 |
| Open/Close Time | ≤3s | Operating/Static Power | 11W / 0.8W |
| Locked-Rotor Current | 0.6 A | Hand Wheel Turn | 2 |
