Introduction
Our electric CPVC ball valve series has been upgraded to include three larger sizes: 1-1/4", 1-1/2", and 2". These larger valves feature a unique US standard socket end & double union connection—enabling exceptional ease of installation and maintenance with a simple solvent cement bond, unlike threaded NPT or G connections. For other connection standards, please contact our customer service.
These valves are 2-wire auto return and remain in a normally-closed position. They automatically close if power is lost. A manual override is also included for use during power outages. All valves have FPM seals for reliable performance.
NOTE: This auto-return ball valve requires a min. power-on duration of 60 seconds (≥60s) . This step is mandatory on first commissioning or after prolonged power cut to ensure reliable auto-reset performance.
CPVC vs. UPVC: CPVC offers higher temperature resistance and especially stronger resistance to highly concentrated acid and alkali corrosion. For normal-temperature and general corrosive working conditions, UPVC is a more cost-effective choice.
To learn how to use this product, please refer to the user manual.
Specifications

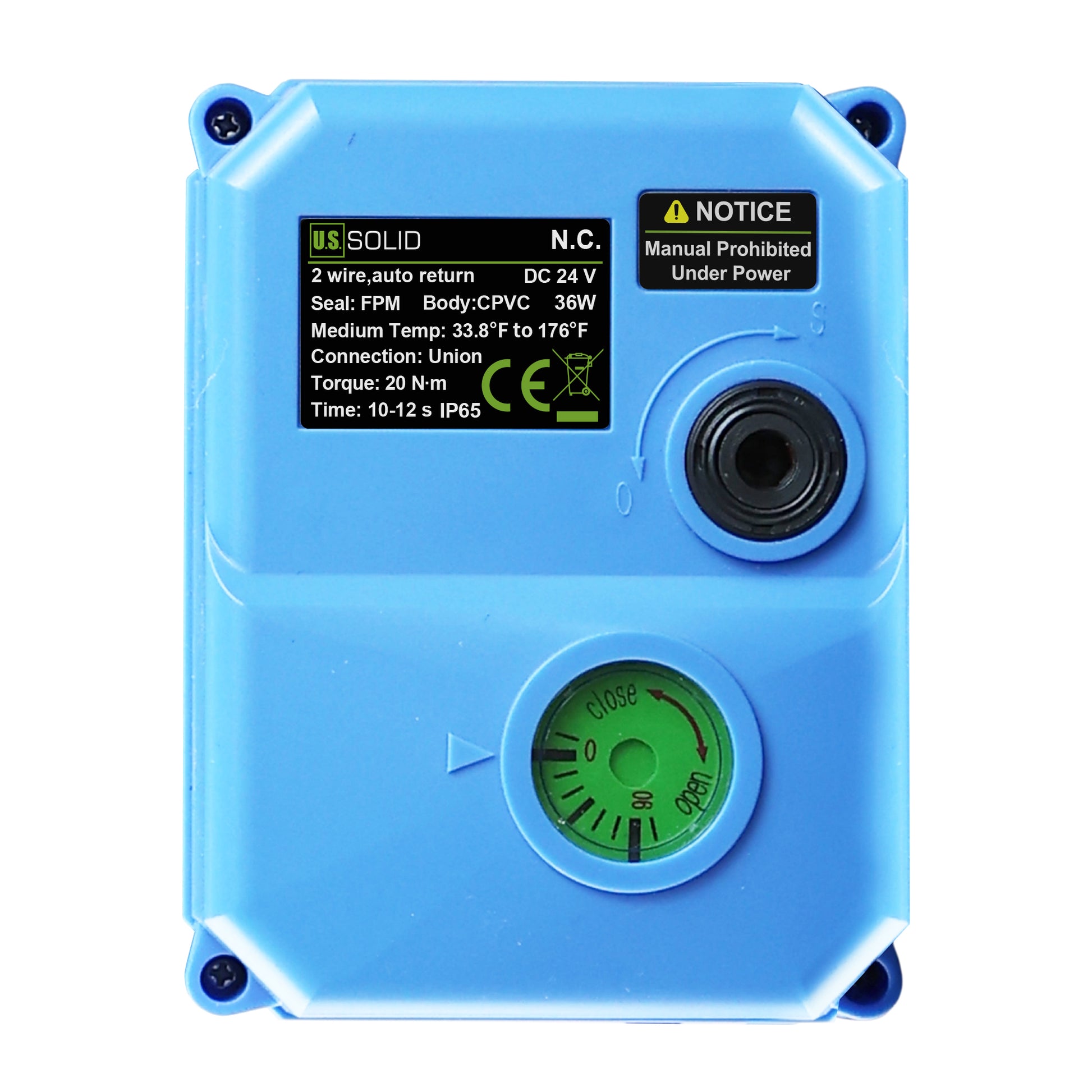

Model: USS-MSV567
Size: 1-1/4"
Connection: Union & Socket End
Socket Inside Diameter: 42.2mm
Material: CPVC
Normal Position: Normally Closed
Working Voltage: DC 24V
Max Power: 36W
Max Torque: 20 N·m
Max. Pressure: 232 psi
Medium Temp: 33.8℉ to 176℉
IP Rating: IP65
Life Expectancy: 20,000Cycles
Close/Open Time: 10-12s
Wiring: 2 wire,auto return
Manual Function: Yes
Signal feedback function: No
Seal: FPM
