Introduction

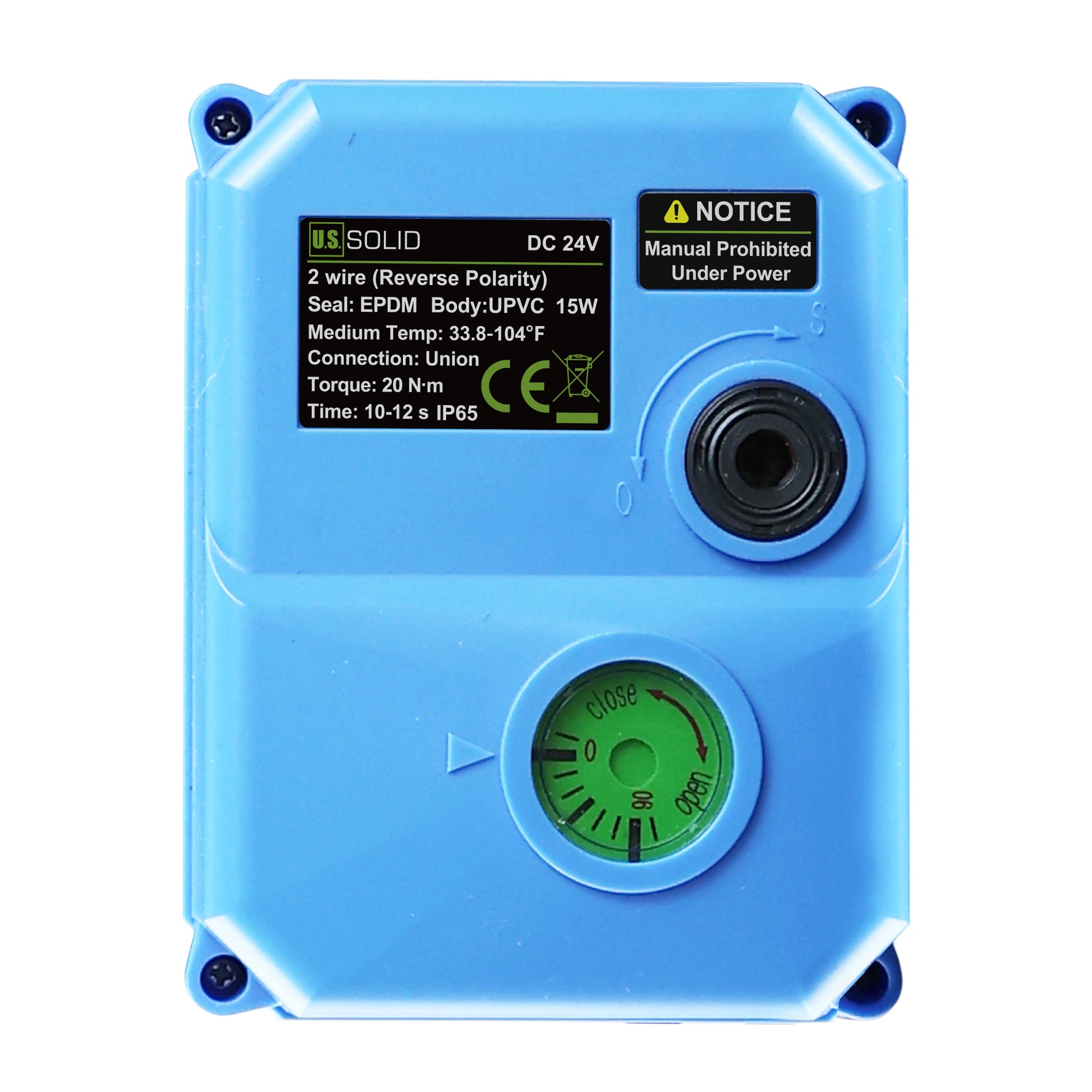

Our electric UPVC ball valve series has been upgraded to include three larger sizes: 1-1/4", 1-1/2", and 2". These larger valves feature a unique US standard socket end & double union connection—enabling exceptional ease of installation and maintenance with a simple solvent cement bond, unlike threaded NPT or G connections. For other connection standards, please contact our customer service.
These valves are 2-wire reverse polarity. Reversing the power supply polarity switches the valve between open and closed states. Unlike the 2-wire auto-return model, this version does not automatically reset if power is lost. A manual override is also included for use during power outages. All valves have EPDM seals for reliable performance.
To learn how to use this product, please refer to the user manual.
Specifications
Model: USS-MSV485
Size: 1-1/4"
Connection: Union & Socket End
Socket Inside Diameter: 42.2mm
Material: UPVC
Working Voltage: DC 24V
Max Power: 15W
Max Torque: 20 N·m
Max. Pressure: 232 psi
Medium Temp: 33.8℉ to 104℉
IP Rating: IP65
Life Expectancy: 20,000Cycles
Close/Open Time: 10-12s

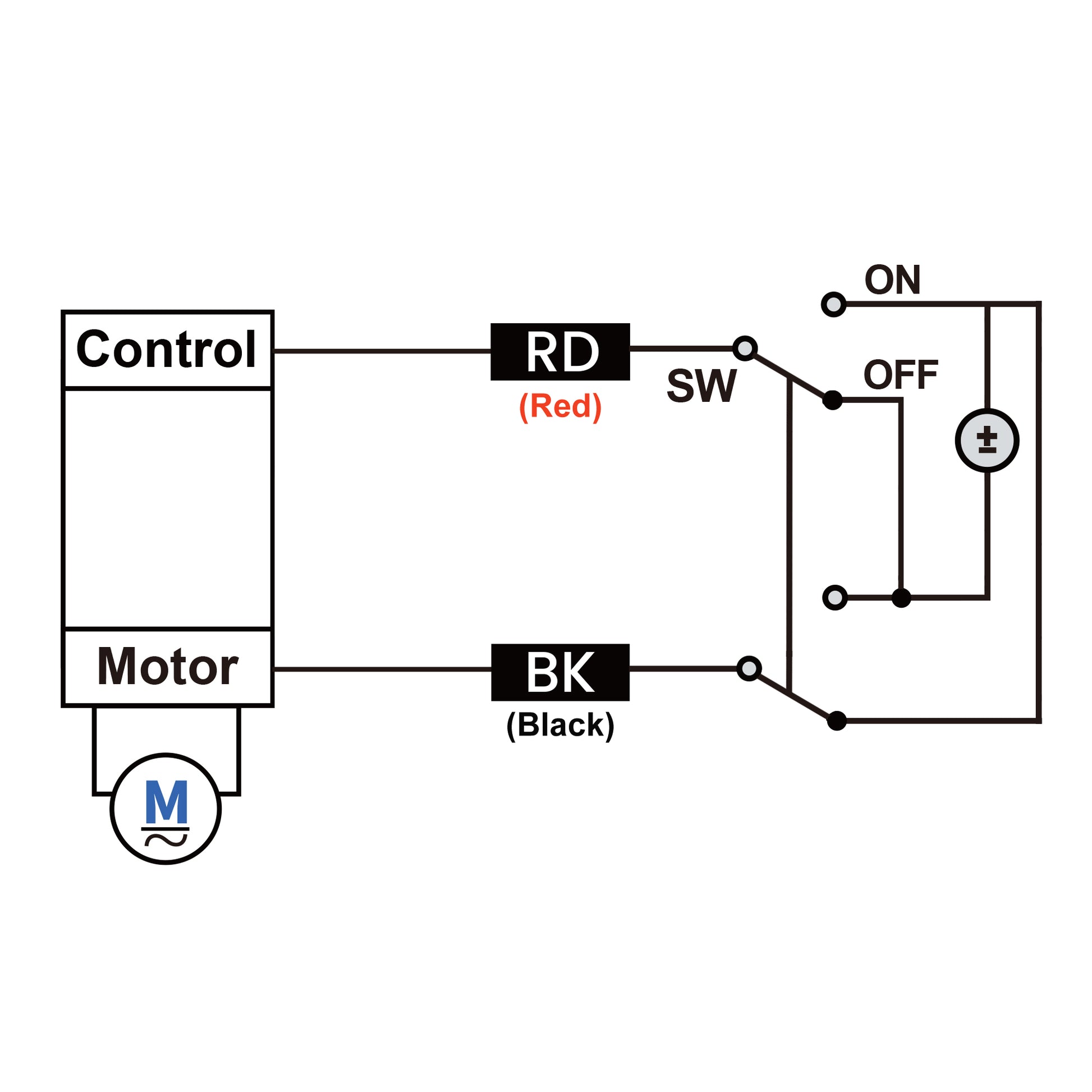

Wiring: 2-wire reverse polarity
Manual Function: Yes
Signal feedback function: No
Seal: EPDM
Factory set: The valve is set to CLOSED by default. It is a non-spring return model, meaning it does not have a predefined Normally Open (NO) or Normally Closed (NC) state.
