Moisture Analyzer - 0.001 g, 0.01% Readability Moisture Balance, 7-inch Touch Screen, Automatic Door

Features:
1. Superior Accuracy: Engineered with a remarkable weight readability of 0.001g and moisture readability of 0.01%, the moisture analyzer provides unparalleled accuracy in gauging the moisture content of a wide array of samples.
2. Versatile Testing Modes: The device comes equipped with four distinct testing modes and ending modes, offering comprehensive flexibility to cater to diverse testing requirements and specimen characteristics.

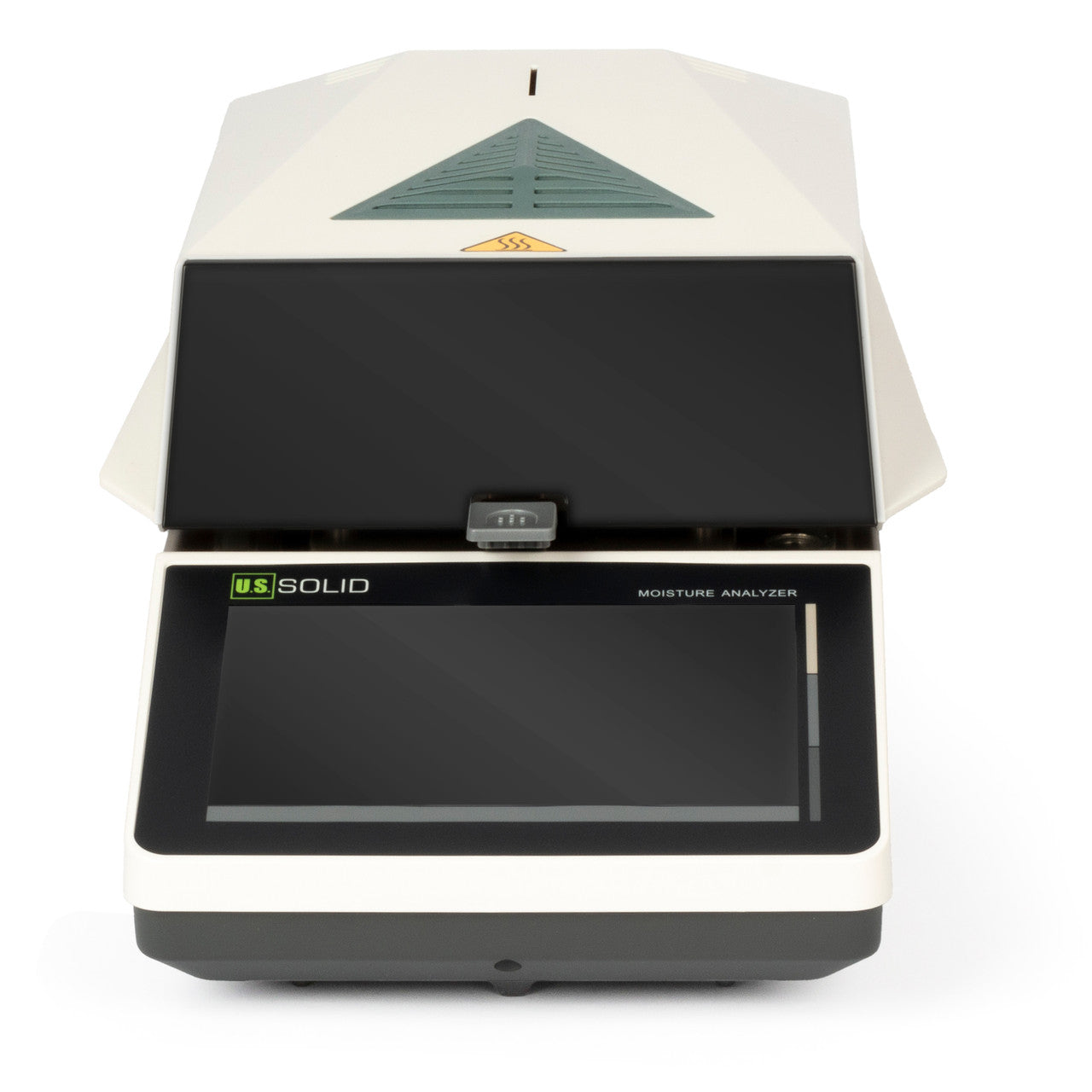

3. Advanced Display: Outfitted with a large 7-inch touch screen, the moisture analyzer exhibits critical testing data including moisture content, dry content, and residual weight, along with a real-time testing curve.

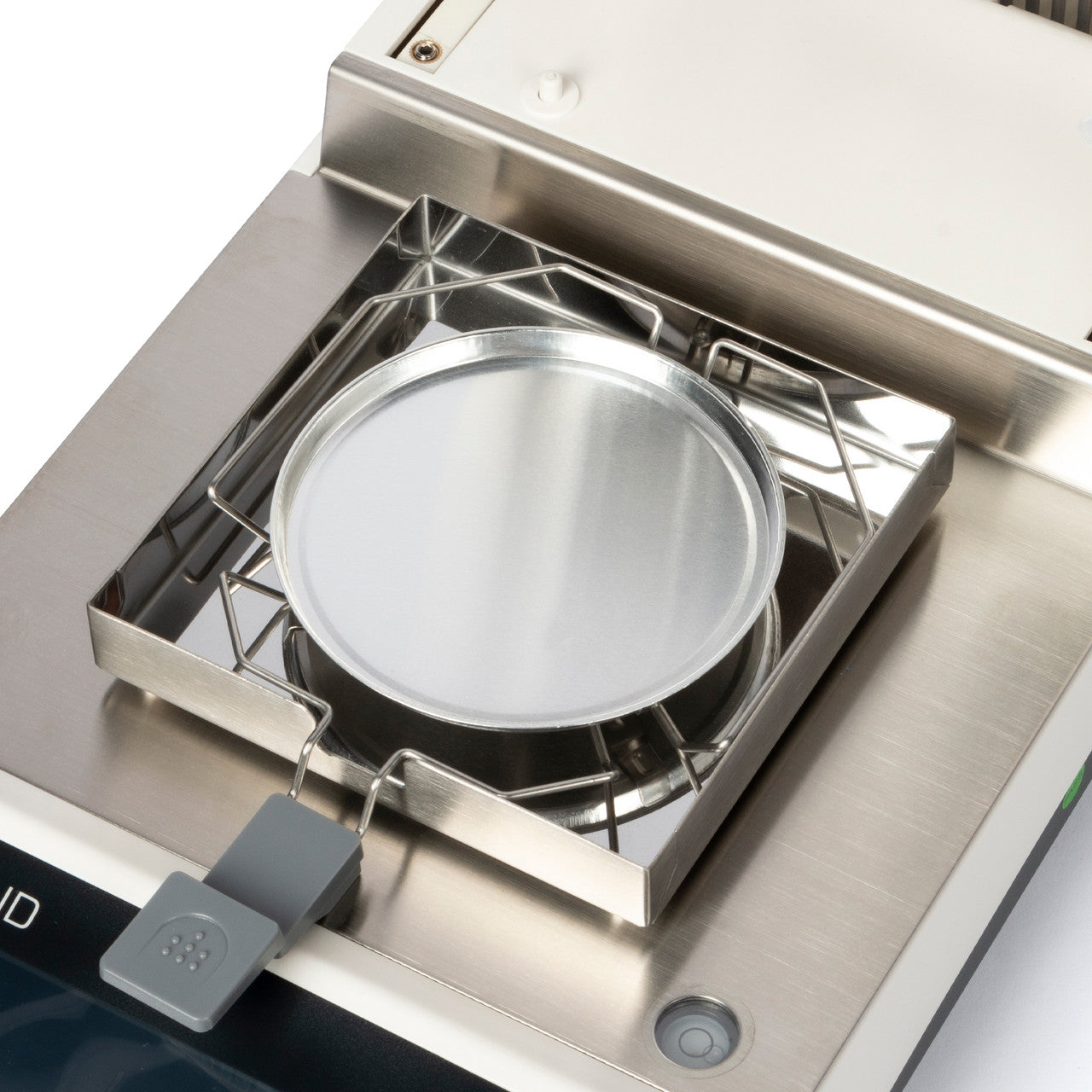

4. Robust Design: Meticulously crafted from superior aluminum and plastic, the moisture analyzer showcases a sturdy structure, stable sample plate, and an expansive observation window for continuous sample monitoring.
5. Advanced Sensor Technology: Integrating a state-of-the-art HBM sensor, the device offers superior performance in the weighing aspect of the analysis.
6. Precise Temperature Control: The drying temperature can be finely adjusted from a low of 40 to a high of 200℃, in increments of 1℃, ensuring optimal performance under varying environmental conditions.
7. Noise Control: The moisture analyzer is fitted with a silent fan, engineered to operate quietly, providing a peaceful testing atmosphere and eliminating auditory distractions during the process.
8. User Authentication: Supporting a flexible user management system, the moisture analyzer allows for the setting up of an admin and multiple operators, each with unique passwords for secure access to testing data.
9. Data Storage: The device boasts substantial storage capacity, capable of archiving up to 200 sets of historical testing data, readily available for reference or analysis when required.

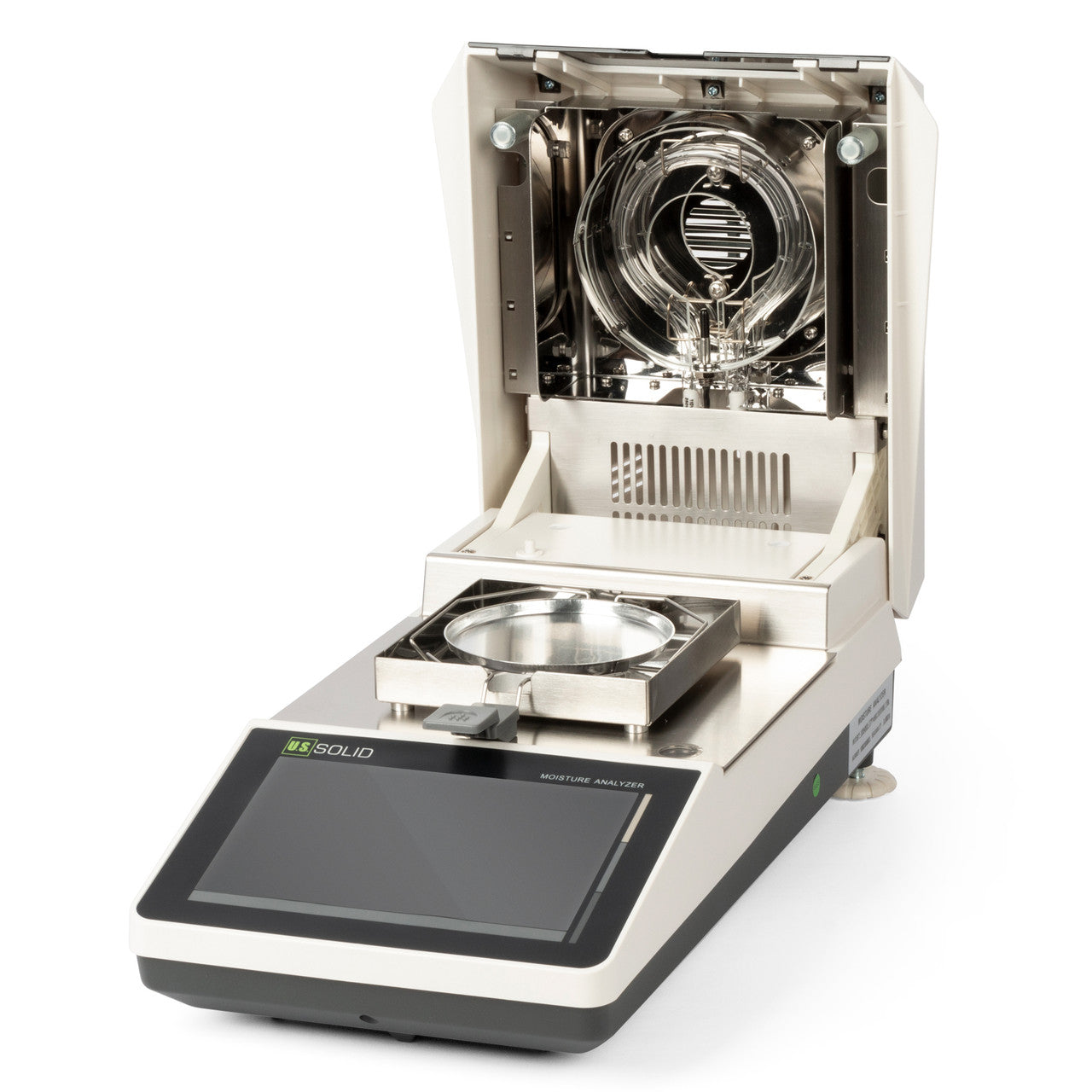

10. Automatic Door Mechanism: The moisture analyzer features a convenient automatic door that can be operated via touch commands on the screen.

Specifications:
Model: USS-HMA12
Capacity: 110g
Weight Readability: 0.001 g
Moisture Readability: 0.01 %
Calibration: External
Heater Cover: Automatic

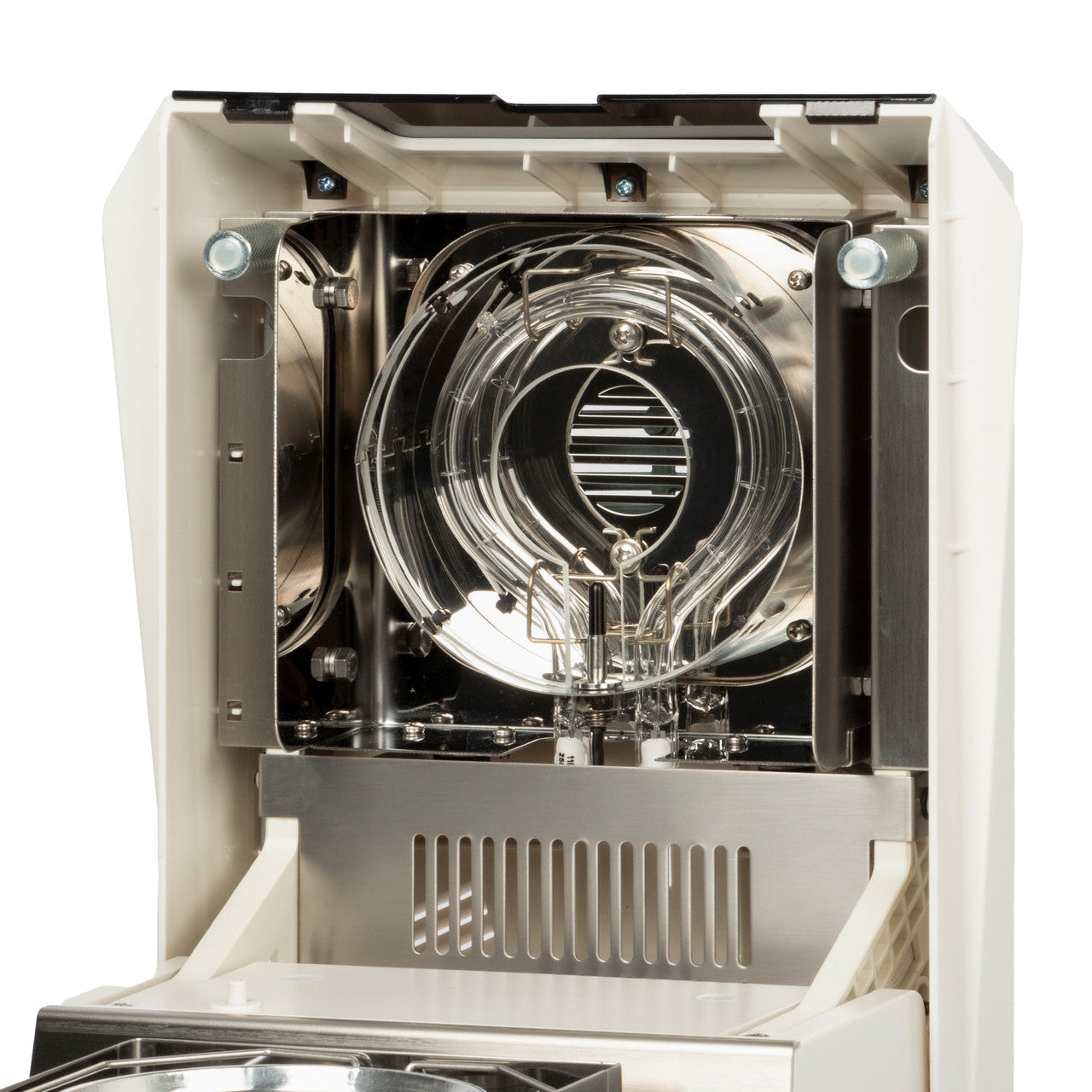

Heating Element: 250W Halogen Lamp
Operating Temp.: 40 ℃ - 200 ℃（104 ℉- 392 ℉）
Ambient Temp.: 41 ℉- 95 ℉（5 ℃ - 35 ℃）
Time setting range: 1 - 99 min
Test mode: Standard, Fast, Soft, Step
Ending mode: Automatic, Timing, Manual
Displays of results: [%m] moisture content, [%] dry content, [ g ] residual weight in grams
stabilization time: ≤ 3 s
Pan size: Φ100 mm

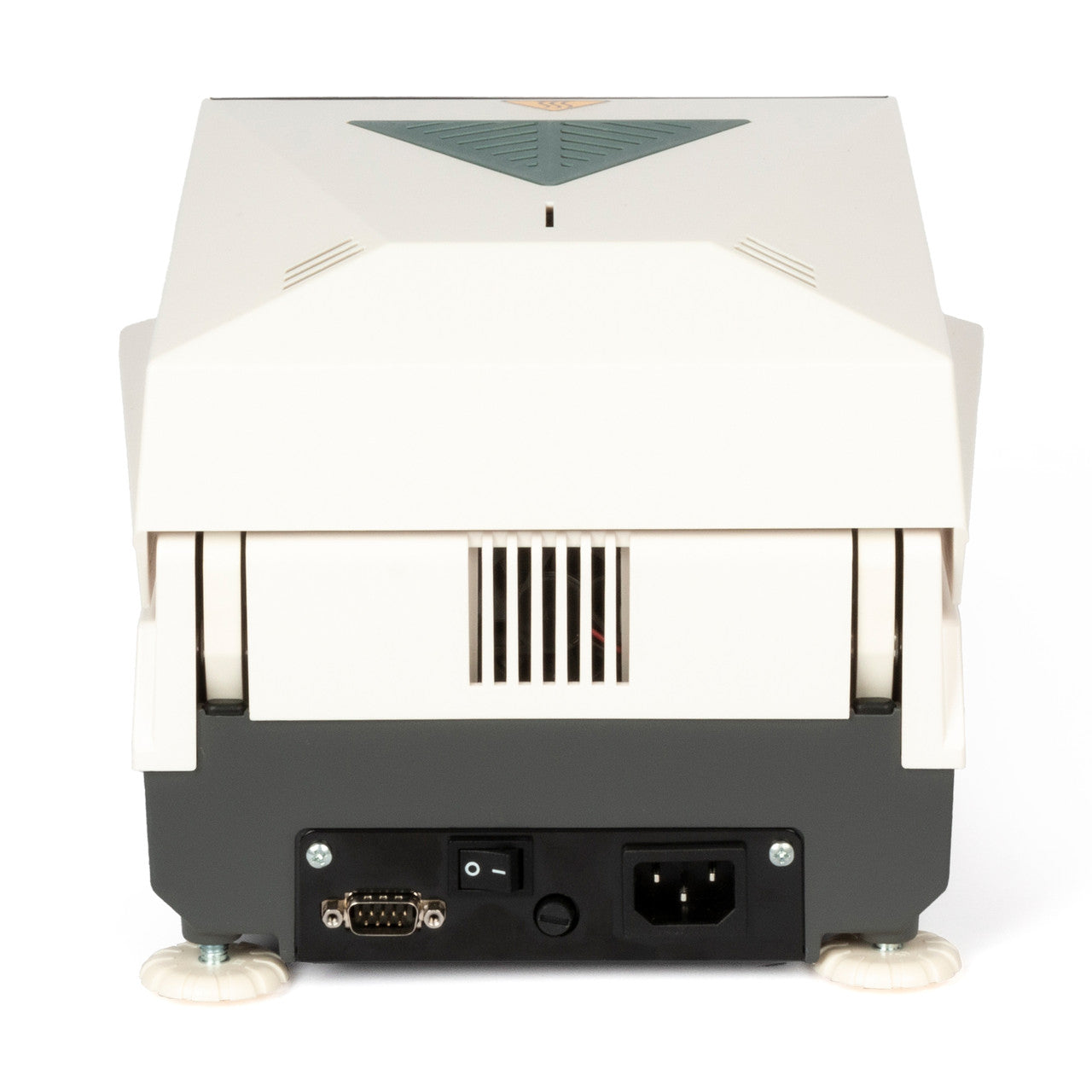

Interface: RS-232
Power: 110V AC, 60H
Dimensions: 9.45*15.75*7.09 inches (240*400*180 mm)
