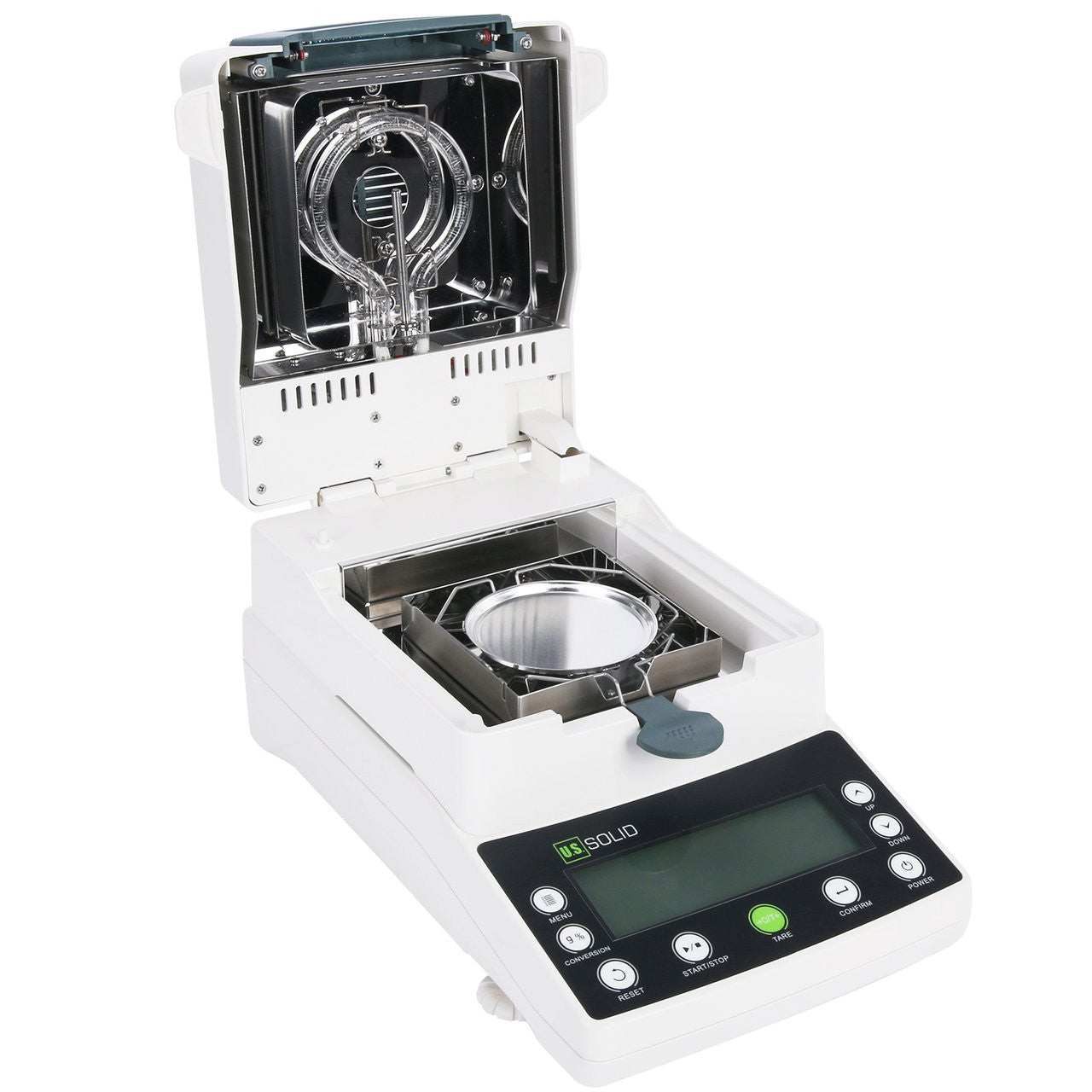

The USS-HMA02 Moisture Analyzer can preset and store up to 16 groups of measuring methods which will greatly improve measurement convenience. There are also 3 drying modes (Standard, Fast and Soft) and 3 ending modes (Auto, Manual and Timing) to choose from, which will bring great flexibility and excellent adaptability for various samples and testing situations. The cast aluminium enclosure, multi-storey stainless steel heating chamber and the high definition backlit LCD display determine the high quality and excellent experience.
Features:

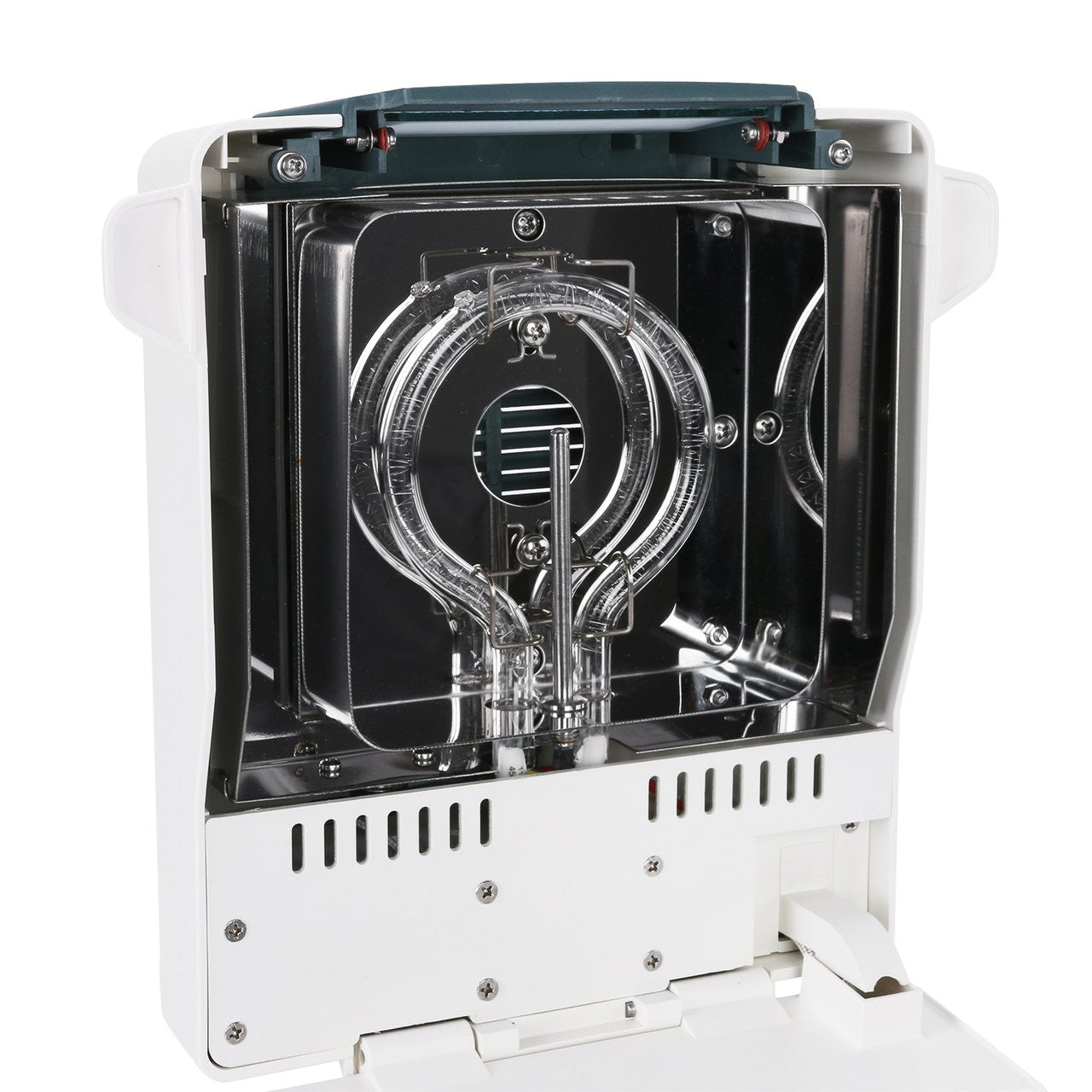

· 400W halogen lamp;
· HD backlit LCD display;
· Allows up to 16 groups of methods to be preset and stored;
· 3 drying modes: standard, fast, and soft;
· 3 ending modes: automatic, manual, and timing;
· Cast aluminum enclosure;

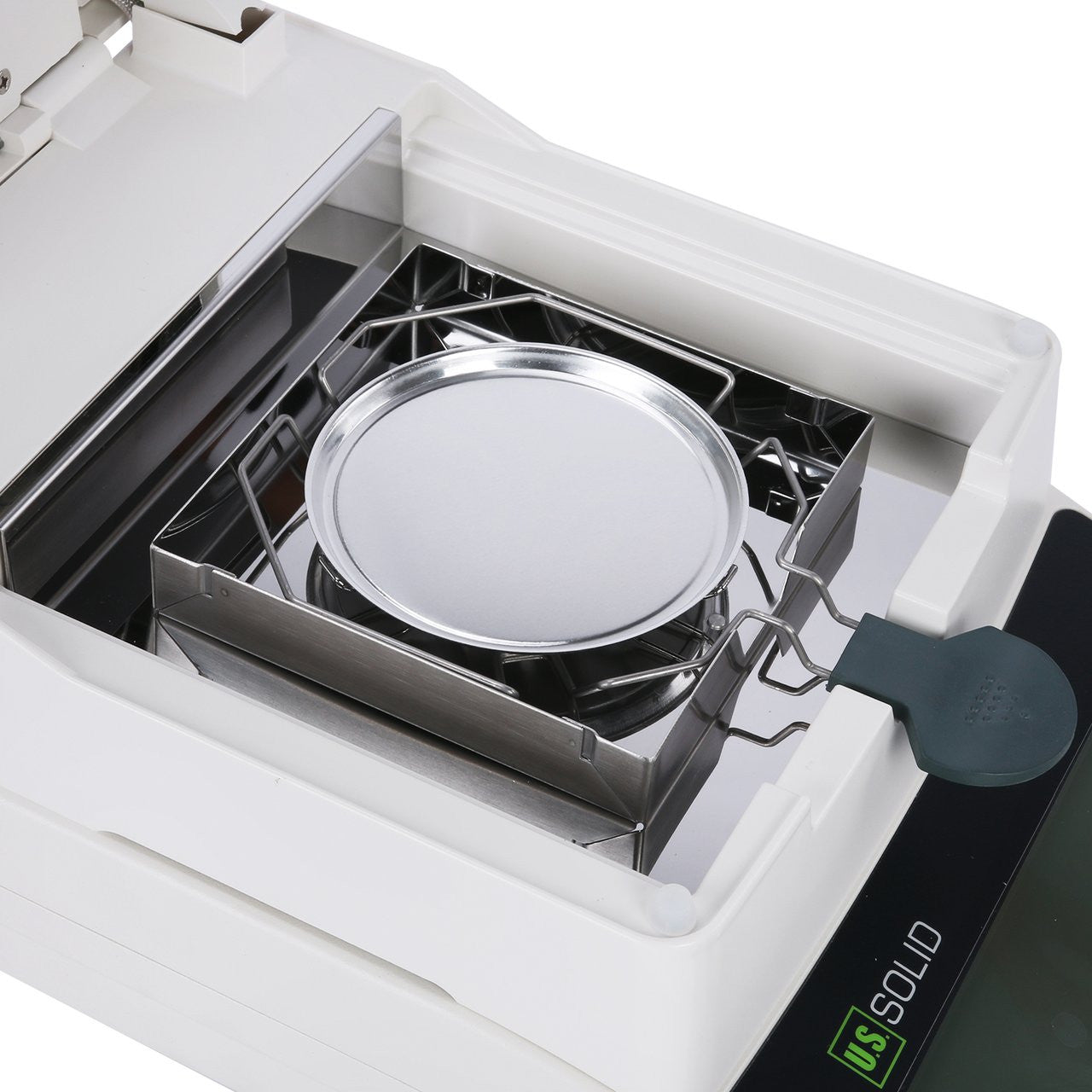

· Multi-storey stainless steel heating chamber
· 50 sample pans included
Specifications:
Capacity: 110 g
Minimum Weight: 1 g
Readability: 0.001 g (1 mg)
Moisture Readability: 0.01%
Heating Element: Halogen Lamp
Gross Weight: 15.7 lbs
Packaging Dimensions: 13.78*13.78*18.90 inches (35*35*48 cm)
Instruction Manual
Instruction Video
Positioning |
Mainstream |
High-end |
Economical |
|||||||
Weight Readability |
0.005 g |
0.001 g |
0.001 g |
0.001 g |
0.001 g |
0.0001 g |
0.0001 g |
0.01 g |
0.005 g |
0.001 g |
Moisture Readability |
0.1 % |
0.01% |
0.01 % |
0.01 % |
0.01 % |
0.001 % |
0.001 % |
0.1 % |
0.05% |
0.01 % |
High-end strain gauge |
Electromagnetic force |
Strain gauge |
||||||||
Push Button |
Push Button |
5-inch Touch Screen |
7-inch Touch Screen |
7-inch Touch Screen |
7-inch Touch Screen |
7-inch Touch Screen |
5-inch Touch Screen |
5-inch Touch Screen |
5-inch Touch Screen |
|
Calibration |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
|
Heater Cover |
Manual |
Manual |
Manual |
Manual |
Automatic |
Automatic |
Automatic |
Manual |
Manual |
Manual |
Data Storage Group |
15 |
15 |
20 |
200 |
200 |
200 |
200 |
20 |
20 |
20 |
Temperature Range |
40℃ - 199℃ |
40 ℃ - 200 ℃ |
40 ℃ - 160 ℃ |
|||||||
Drying mode |
Standard, Fast, Soft |
Standard, Fast, Soft, Step |
Standard, Fast, Soft |
|||||||
Ending mode |
Automatic, Timing, Manual |
|||||||||
Pan size |
Φ90 mm |
Φ100 mm |
Φ100 mm |
|||||||
Interface |
RS-232 |
