INTRODUCTION

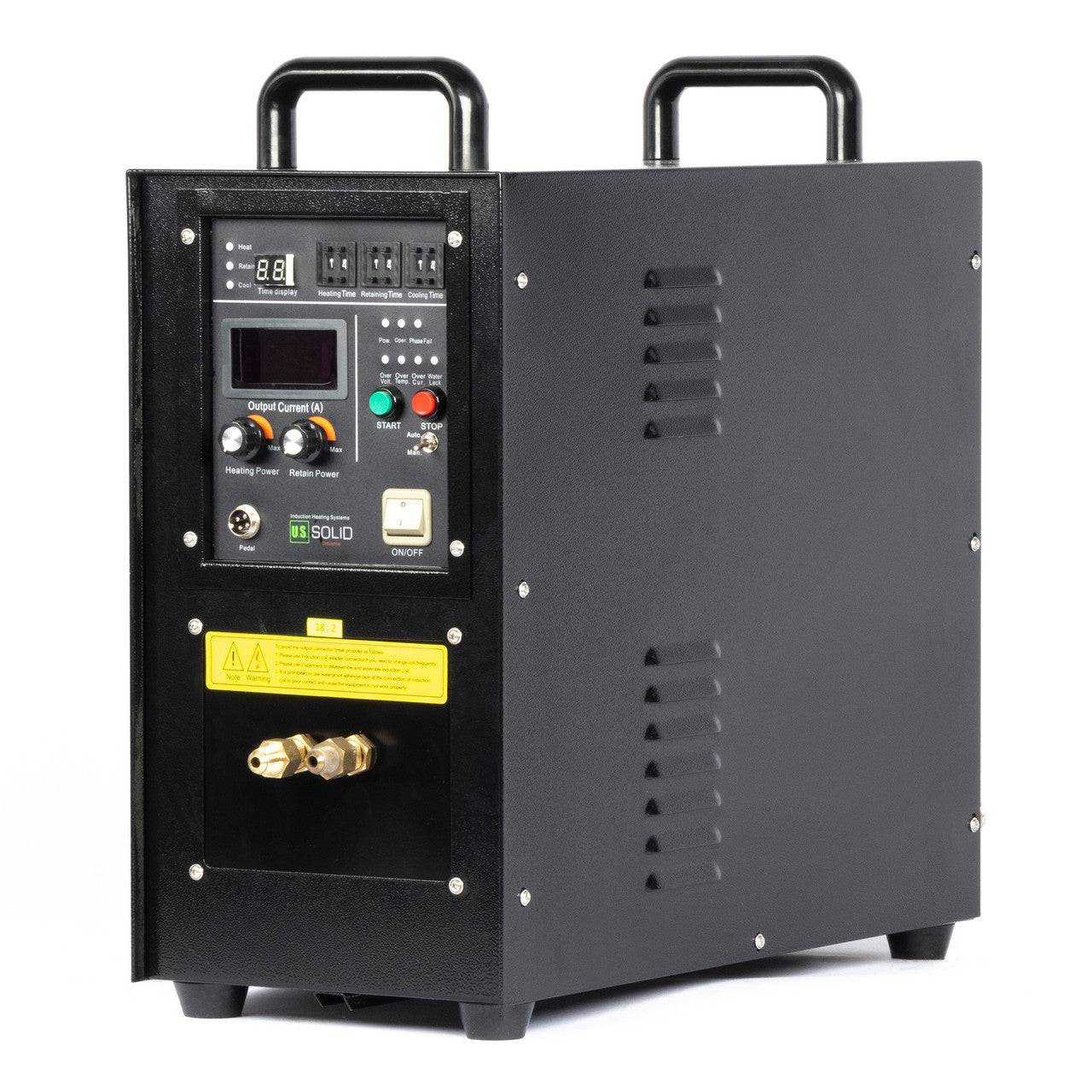

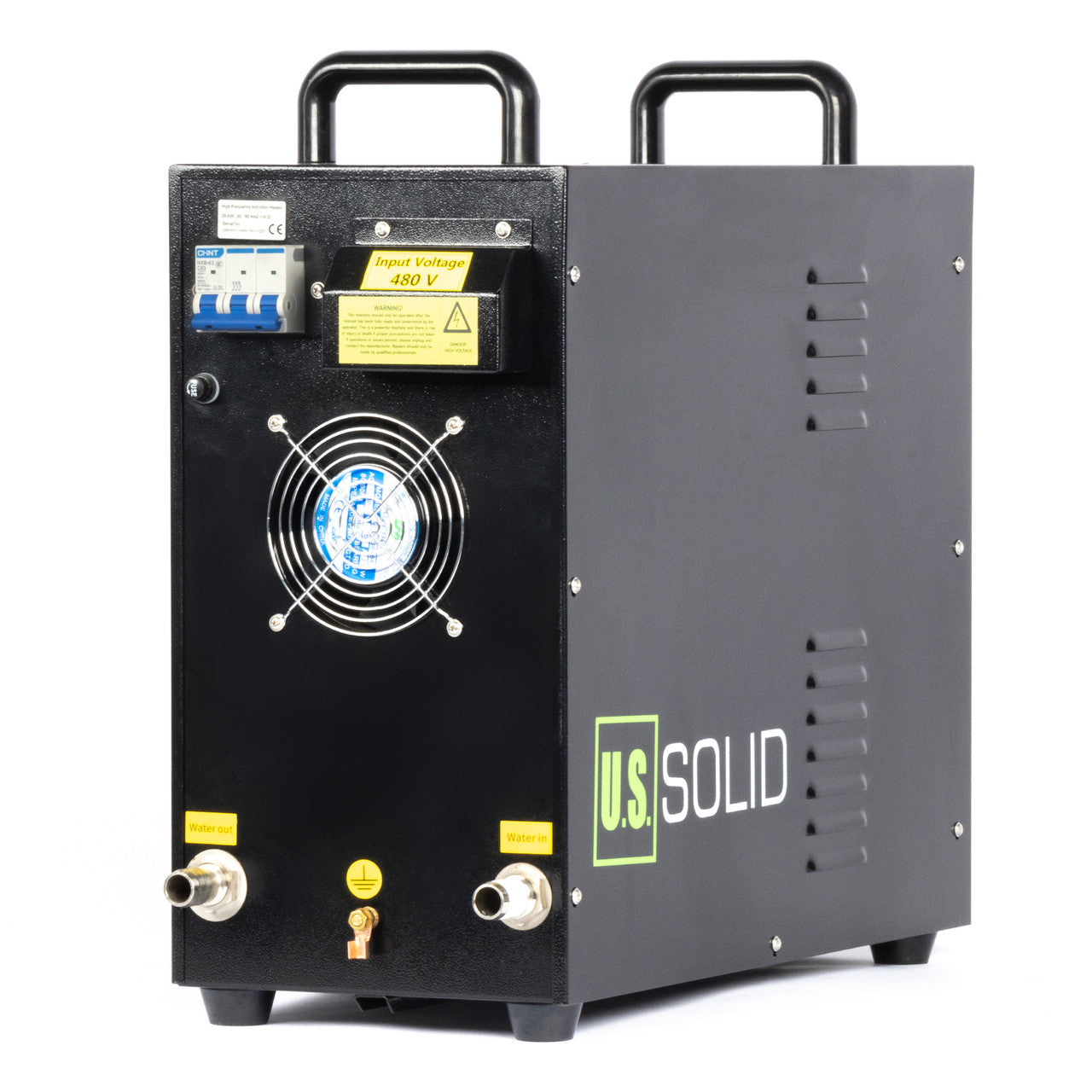

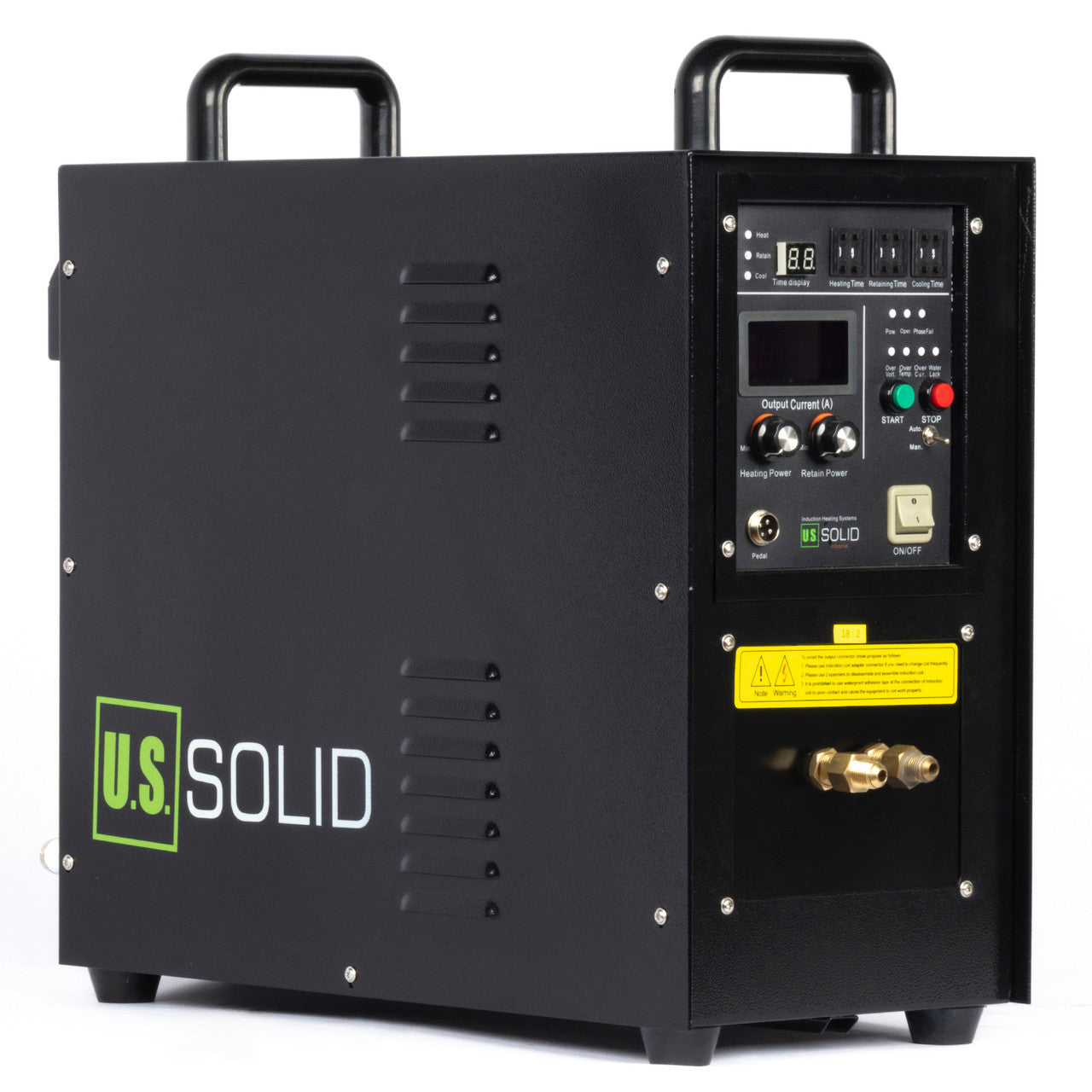

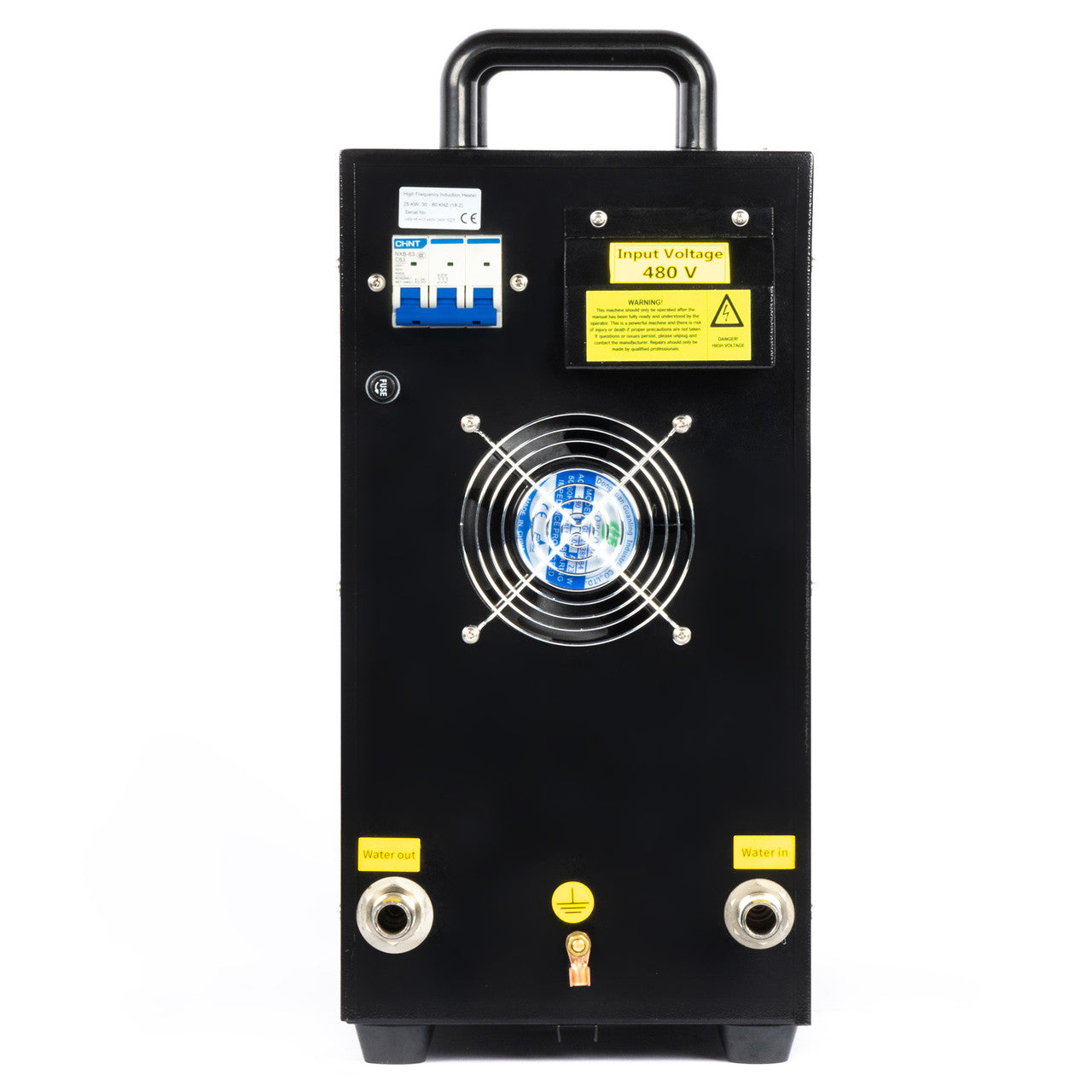

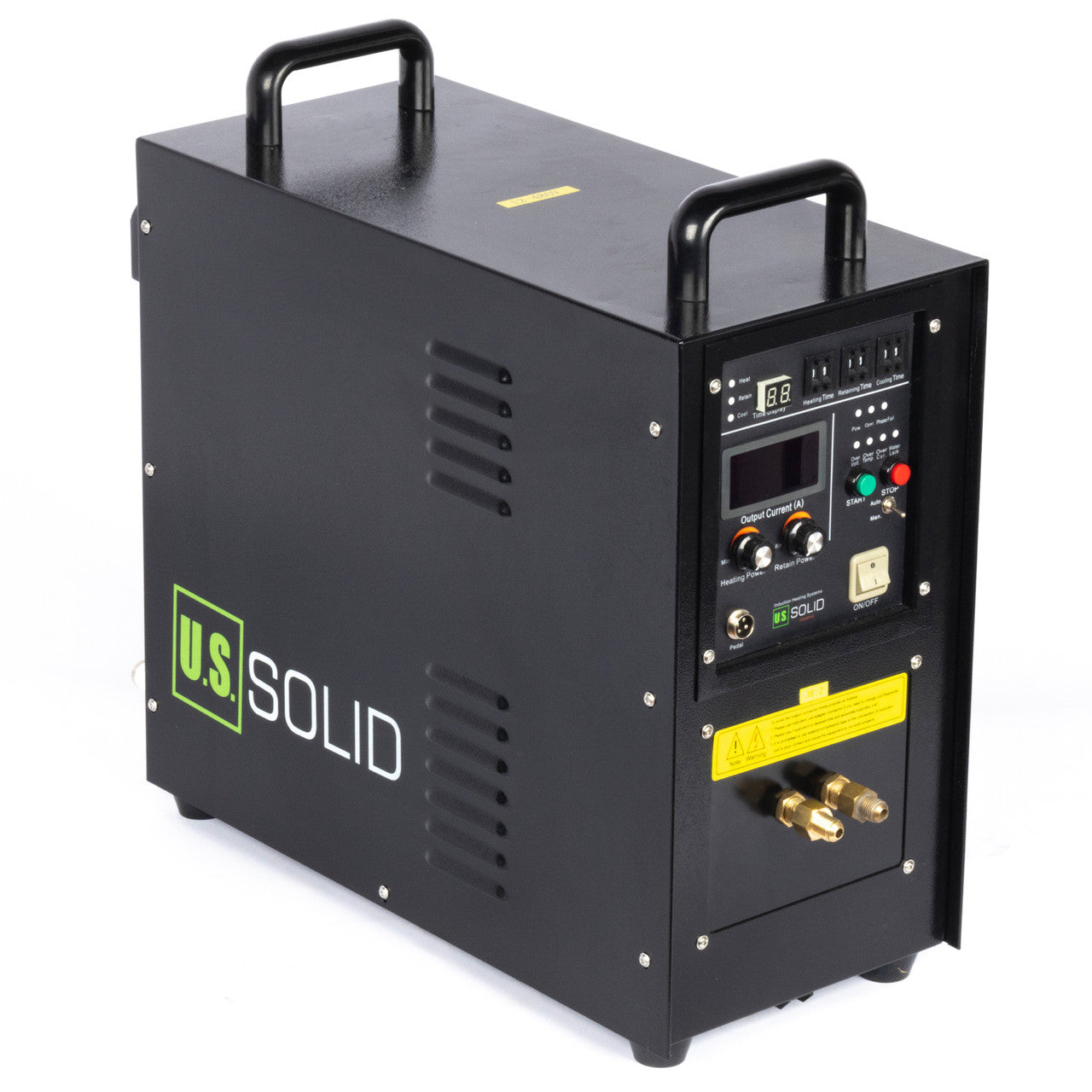

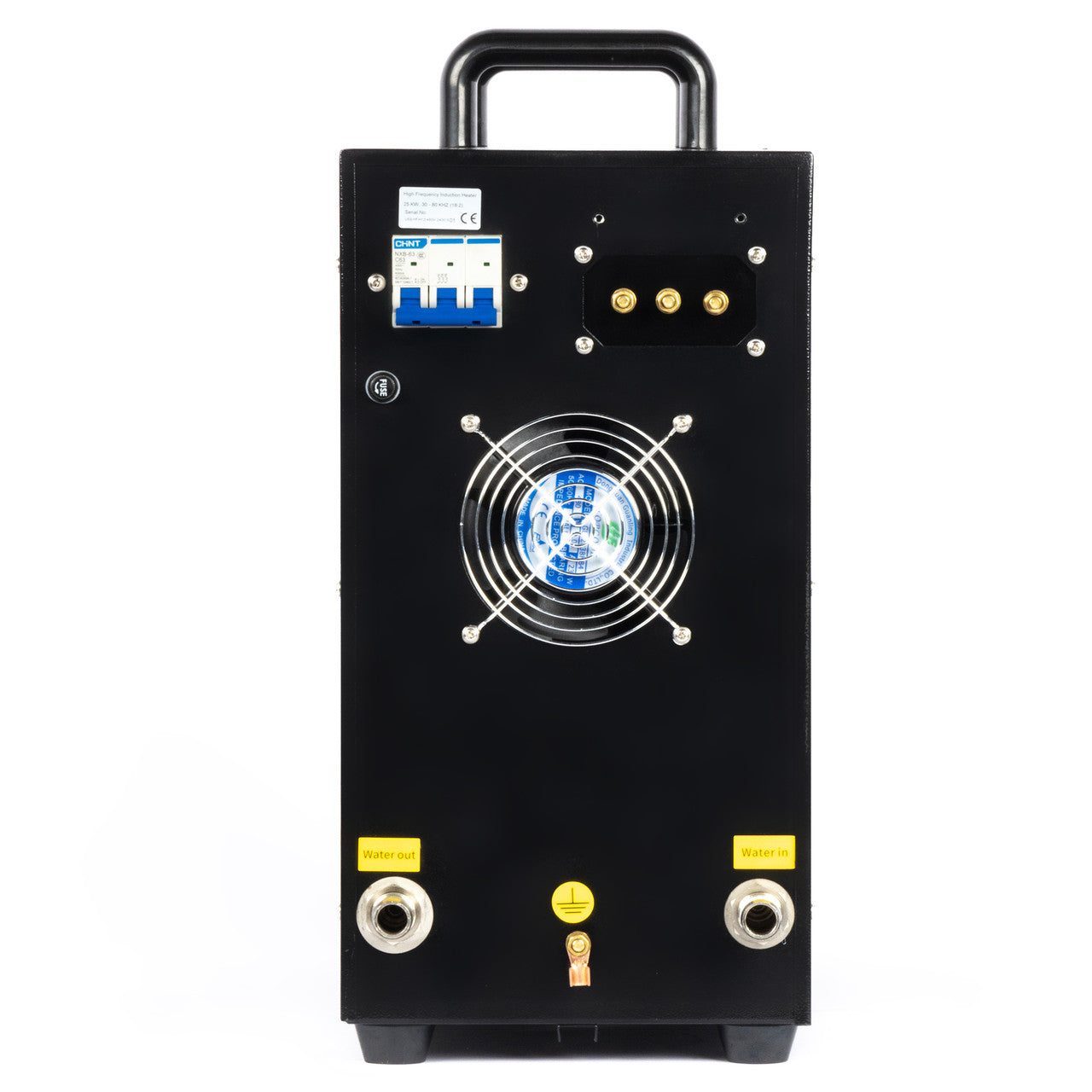

This High Frequency Induction Heater enables efficient metalworking by generating electrical currents within conductors like gold, silver, copper, and aluminum, creating precise heat for melting. It offers a constant and stable working temperature, ensuring excellent results.With remarkable features, it has low energy consumption yet high output power, consuming only half the power of traditional electron tube high frequency induction heaters under the same conditions. The 100% load design allows for continuous 24-hour operation.Equipped with the latest MOSFET and IGBT power units and current frequency control standards, it simplifies manual operation. The infrared temperature detector not only improves heating quality but also automatically controls temperature, and built-in status displays promptly alert users to any potential errors, enhancing reliability and sustainability.For optimal usage, select the power supply according to power and frequency. Note that a higher frequency leads to shallower heating depth, while a lower frequency offers better heat penetration. It is suitable for crucibles between 75 - 90 mm (crucible not included). This machine connects directly to the power line without a plug, and the water temperature must be at least 26°C to avoid condensation on water pipes.
WHY US
SPECIFICATIONS
| Model | USS-HFIH00003-480V | Brand | U.S. SOLID |
|---|---|---|---|
| Power Supply | Three phase 480V | Output Power | 25kw |
| Turns Ratio (ratio of primary coil turns to secondary coil turns) | 18:1 | Total Coil Length | 300-800mm |
| Total Length of Copper Tube | ≤1.5m | Inner Diameter of coil | ≤100mm |
| Output Current | 200-1200A | Time Setting | 1-99 seconds |
| Maximum Heating Temperature | up to 1800°C / 3272°F (depending on the workpiece and coil material) | Minimum Circuit Breaker Current | 60 A |
| Cooling Water | 0.15-0.25MPa 15L/min | Minimum Cooling Water Temperature | 40°C / 104°F |
FAQ
1.What should I do if the over - temperature light comes on?
Allow the machine to cool down for a period of time and then restart it. Ensure that the water temperature is below 40°C (104°F) before it enters the machine. Always use cool, clean water.
2.How to handle when the over - voltage light comes on?
Make sure the machine is connected to the appropriate voltage according to the machine model.
3.How to solve the problem that the machine won't power on?
Reset the circuit breaker, replace the fuse, check and tighten the power connections, and ensure that the outlet has power.
4.How to deal with the machine beeping when starting?
Check the connection between the coil and the machine. Ensure that the coil does not have too many turns or cover too much space.
WARNING
1.This machine should only be operated by adults who have read and fully understood this manual.
2.Do not touch any of the electrical connections while the machine is plugged in or turned on to avoid the risk of electrocution.
3.Make sure that the coil is properly fitted with an insulation sleeve to limit sparks and the risk of fire.
4.Since the induction heater generates a magnetic field, anyone with a pacemaker or other medical device should not work or be in the immediate vicinity of the device. Other sensitive equipment, such as wrist watches, magnetic carriers, or electronic circuits, might also be affected. A safe minimum distance of 0.5 meters (20") is recommended.
5.Circulating cooling water: High - quality circulating cooling water can expand the life of the high - frequency induction heater. Poor water quality may cause rust, scrap, and blockage inside the equipment, which will damage the machine. The following water is recommended (in order of priority): distilled water, softened water, pure water, filtered water.

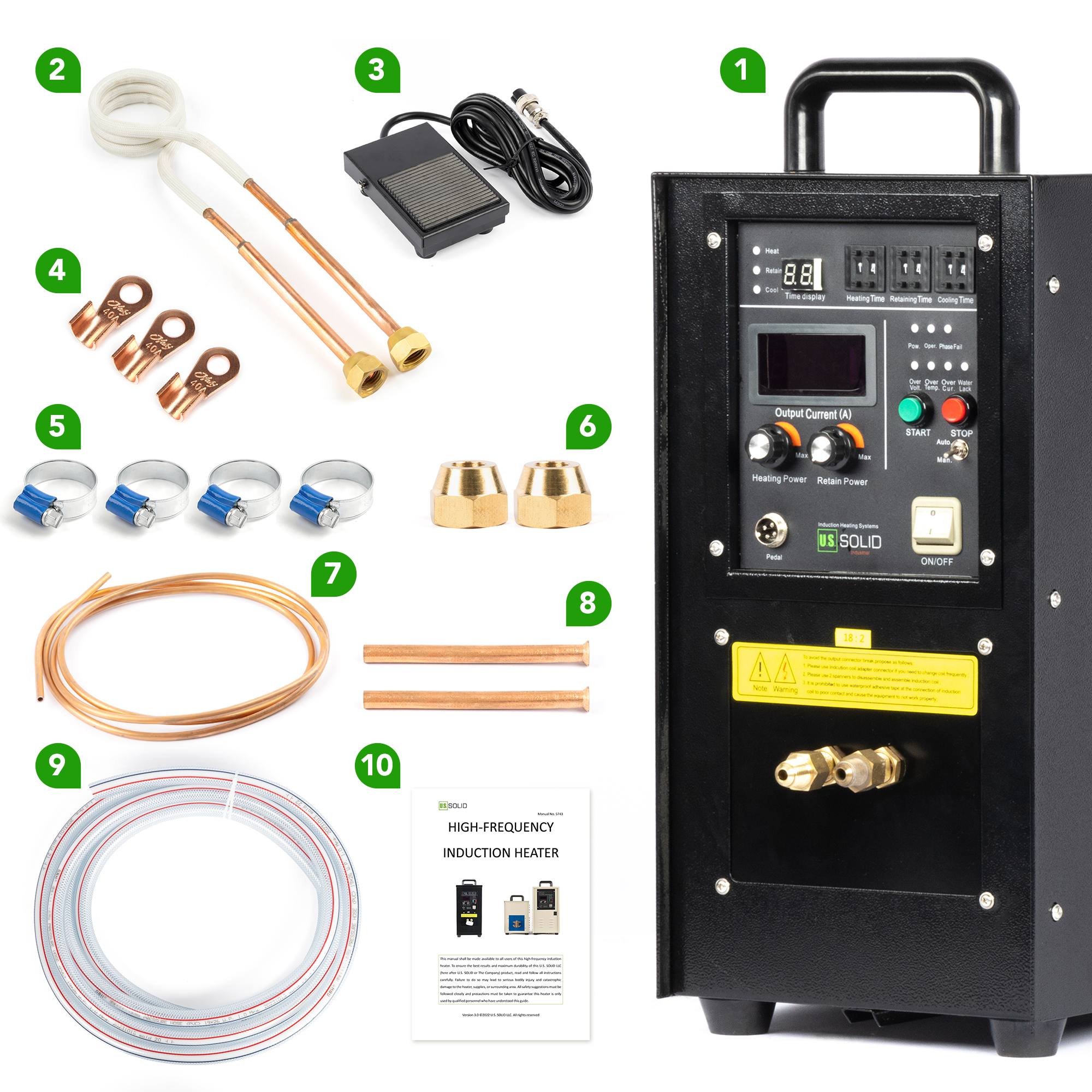

Packing List:
- Foot pedal x 1
- Fuse x 3
- Stainless steel clamp x 4
- Copper tubing to connect your own coil x 2, each about 0.5 ft long
- Copper tubing to create your own coil x 1, about 5 ft long
- Copper coil x 1, about 3.3 ft long
- Rubber hose x 1, about 32 ft long, 3/4" diameter
- High - frequency induction heater x 1
OTHER MODELS
|
Induction Heaters |
||||
|
Output Power |
Turns Ratio |
Power Supply |
Non-handheld Type |
Handheld Type |
|
25kw |
18:2 |
Three phase 480V |
||
|
16:2 |
Three phase 480V |
|
||
|
25kW |
18:1 |
Three Phase 380V |
||
|
Three Phase 480V |
||||
|
35kW |
18:1 |
Three Phase 380V or 480V |
||
|
40kW |
18:1 |
Three Phase 380V or 480V |
||
|
60kW |
18:1 |
Three Phase 380V or 480V |
||
|
80kW |
18:1 |
Three Phase 380V or 480V |
||
|
Accessories |
||||
|
Model |
Description |
|||
|
M8 Screw Nut |
||||
|
6mm Copper Pipe |
||||
|
8mm Copper Pipe |
||||
|
Foot Pedal Switch |
||||
