U.S. Solid Handheld High Frequency Induction Heater 35 KW 30-80 KHz, 18:1 Turns Ratio, Three-phase 380V or 480V

Note: This machine can't be used with a plug, it need a wire to connect the machine to power line directly, the cross-sectional area of power line must be larger than 6 square millimeters.

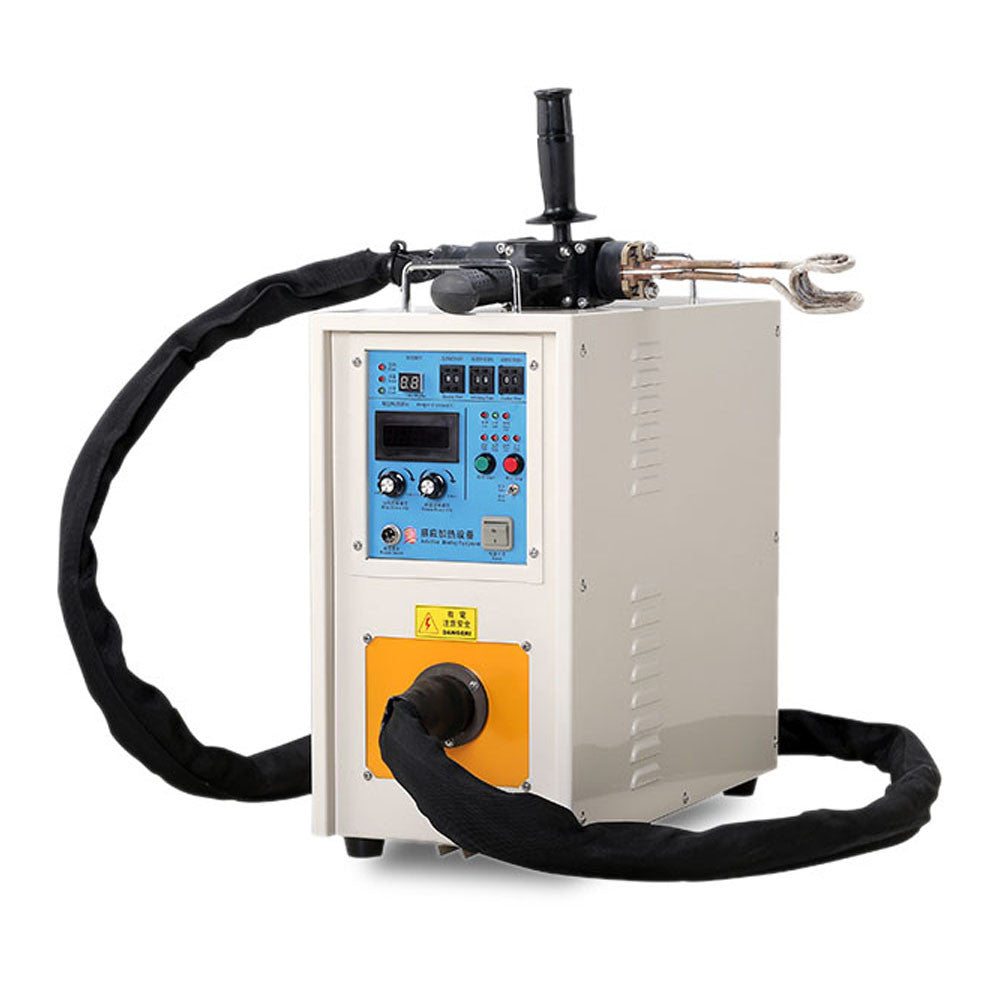

The default product shell will be black, not the off-white color in the picture. If you have any color requirements, please contact us.

Our high-frequency induction heaters are used to heat various metal objects in a non-contact state, concentrating the heating at the necessary location to achieve instant heating, which can save energy, protect the environment and improve efficiency.
There is no flame, no gas, and no heat radiation during operation, so that operators have a more comfortable and environmentally friendly working environment.

SPECIFICATIONS
Brand: U.S. SOLID
Model: USS-HFIH00018
Power Supply: Three phase 380V or 480V
Output Power: 35kW
Turns Ratio (ratio of primary coil turns to secondary coil turns): 18:1
Total Coil Length: 300-800mm
Total Length of Copper Tube: ≤1.5m
Inner Diameter of coil: ≤100mm
Frequency: 30-80kHz
Output Current: 200-1600A
Maximum Heating Temperature: up to 1800℃ / 3272℉ (depending on the workpiece and coil material)
Minimum Circuit Breaker Current: 40 A
Time Setting: 1-99 seconds
Cooling Water: 0.15-0.25MPa 40L/min, (the recommended parameters will have the best cooling effect, while others may also be feasible, please contact us first)
Minimum Cooling Water Temperature: 26℃ / 78.8℉ (to prevent excessive temperature difference with the environment, causing condensation in the water pipe and the formation of water droplets)
Cooling Water Temperature Protection Point: 40℃ / 104℉
Handheld Cable Length: 5m
Gun Head Weight: 1.2kg
