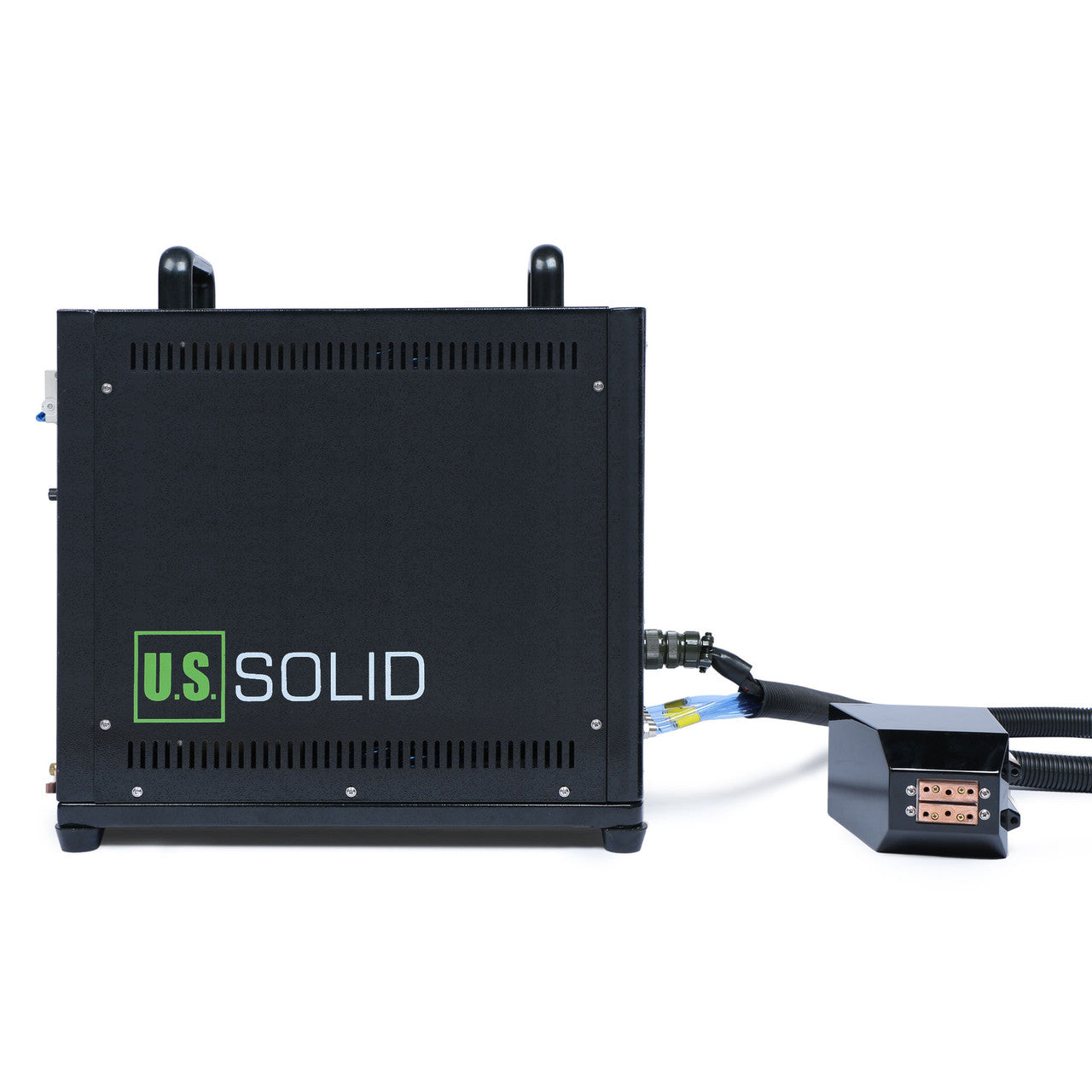

U.S. Solid 6KW Ultra High Frequency Induction Heater 500-2200 KHz 180-245V

When it comes to inductive heating, the USS-HFIH00010 Ultra High-Frequency Induction Heater is among the best. It adopts the latest MOSFET and IGBT power units and the latest frequency control methods and techniques, and provides high efficiency, low energy consumption and very high output power. Through this, it achieves efficient and quick heating of any targeted area, and is highly useful when heating metals.
It has a 100% load design, which means that it can work 24 hours without stopping. Should there be a problem, there is an infrared temperature detector which alarms the operator if the machine overheats, and it also allows easier temperature control and simplifies manual operation.

Specifications:
Input Voltage: 180-245 V
Max. Inductive Power: 6 KW
Max. Input Power: 6 KW
Fluctuating Frequency: 500-2200 KHz
Output Current: 5-30 A
Min. Water Temperature: 26℃ (78.8℉)
Max. Heating Temperature: 1800℃ (3272℉)
Time Settings: 0.1 to 99 seconds
Water Temperature Protection Point: 40℃ (104℉)
Flow Rate of Cooling Water: 2-5 L/min
Min. Water Pressure: 0.2 MPa
Head of Cooling Water: ≥ 30 m (98 ft)
Min. Wire Gauge: 9 gauge
Circuit Breaker: ≥ 40 A

Notes:
1. This machine cannot be used with a plug. A wire will be necessary to connect the machine to power source directly (the cross-sectional area of power line must be larger than 6 square milimeters.)
2. The water temperature must not be lower than 26℃ to prevent a large temperature difference from the ambient temperature, which will cause condensation on the water pipes to form water droplets.
