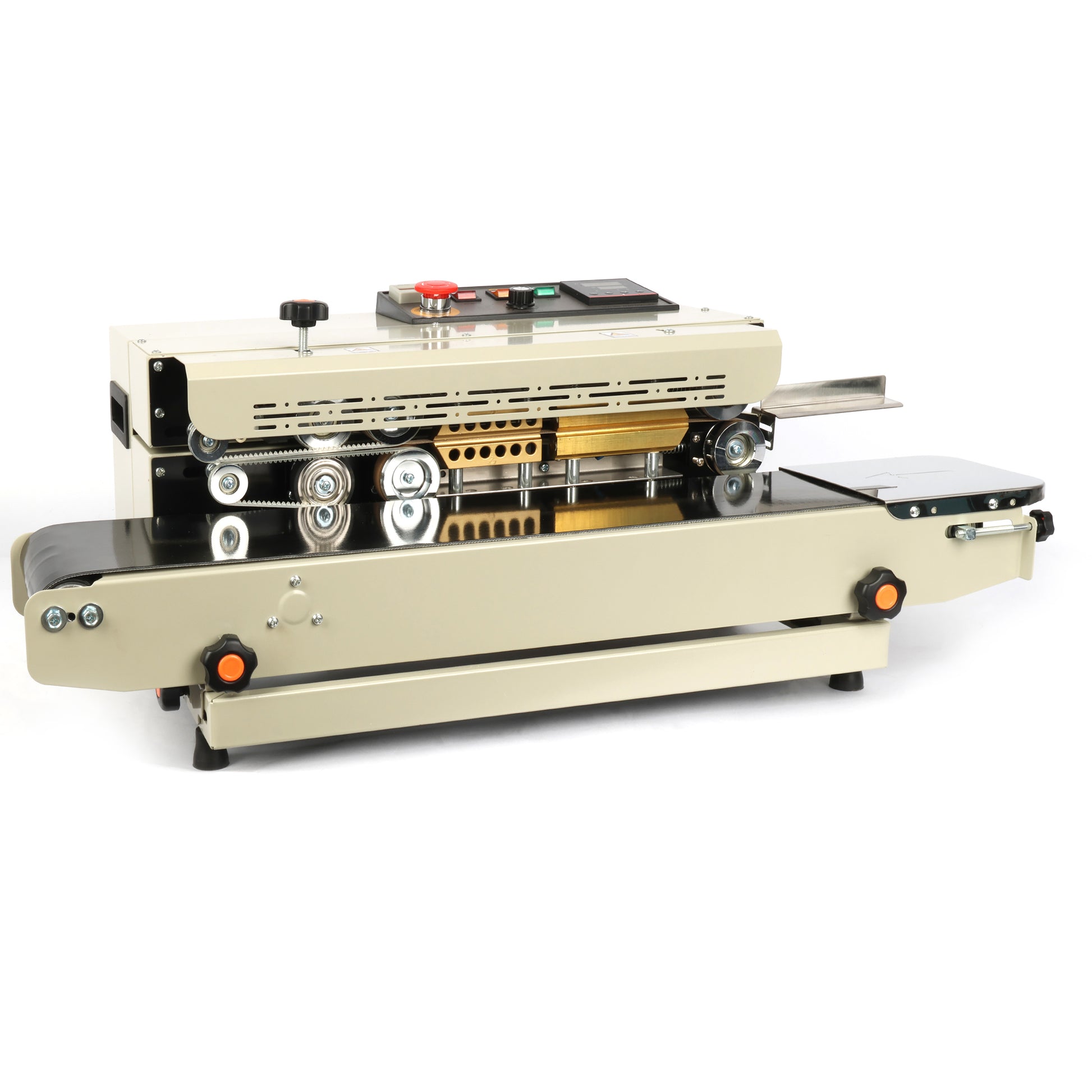

Adjustable Sealing Depth Horizontal Automatic Continuous Sealing Machine

Adjustable Sealing Depth Horizontal Automatic Continuous Sealing Machine

Product SKU: JFCBB00024

20 op voorraad

$1,599.99 USD
$1,899.99 USD $1,599.99 USD
Aanbieding Uitverkocht
Verzendkosten worden berekend bij de checkout.

Estimated Shipping Widget will be displayed here!
Alle details bekijken

INTRODUCTION

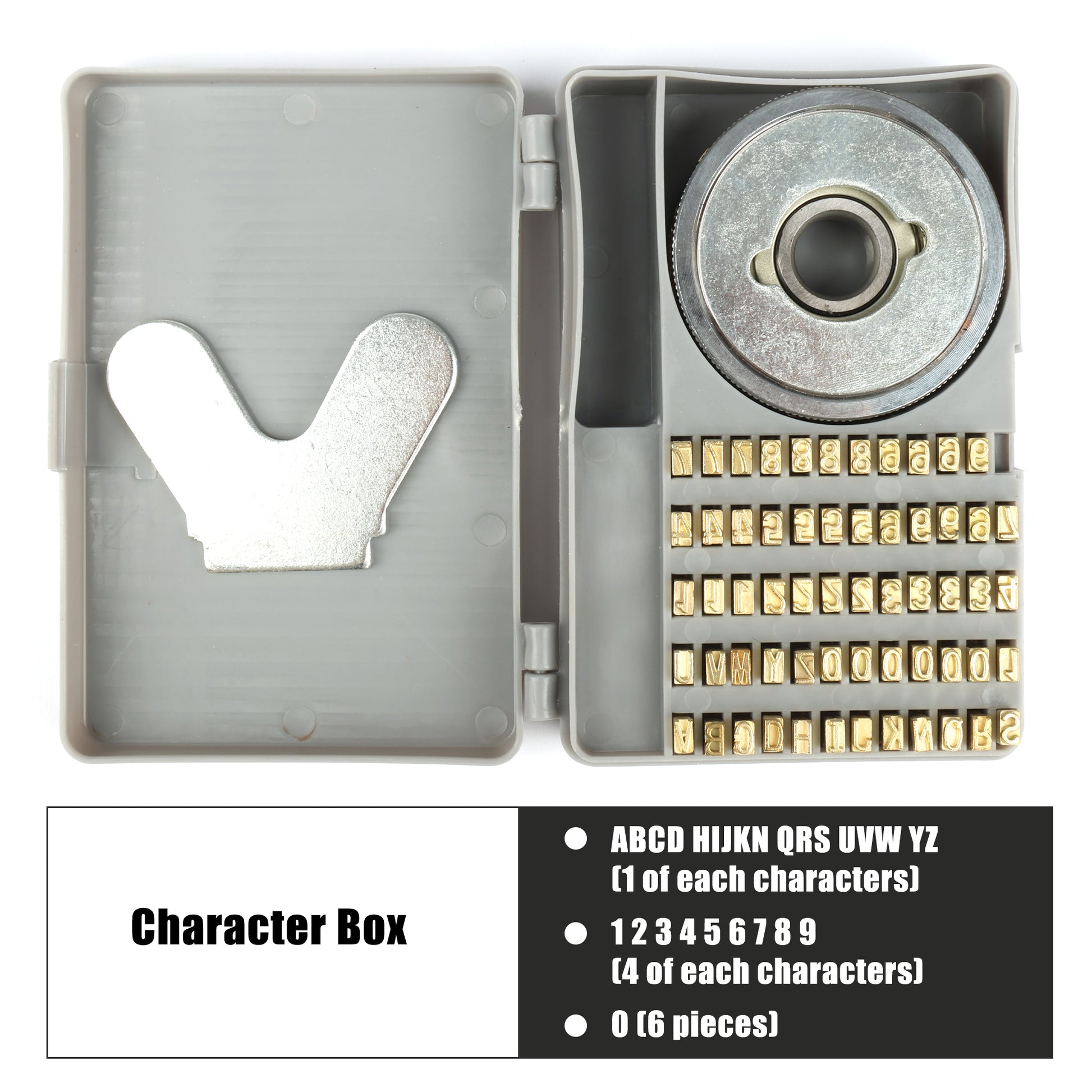

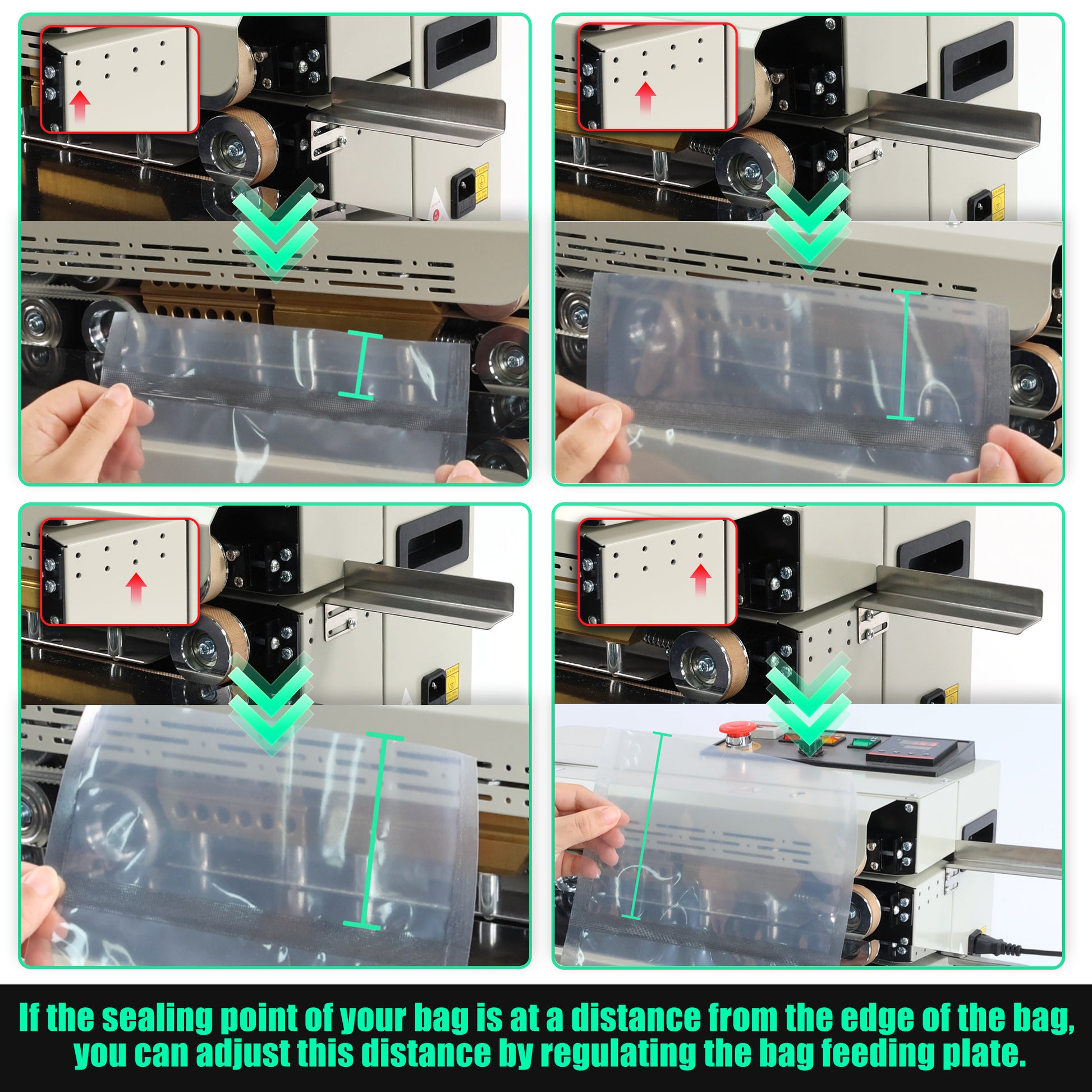

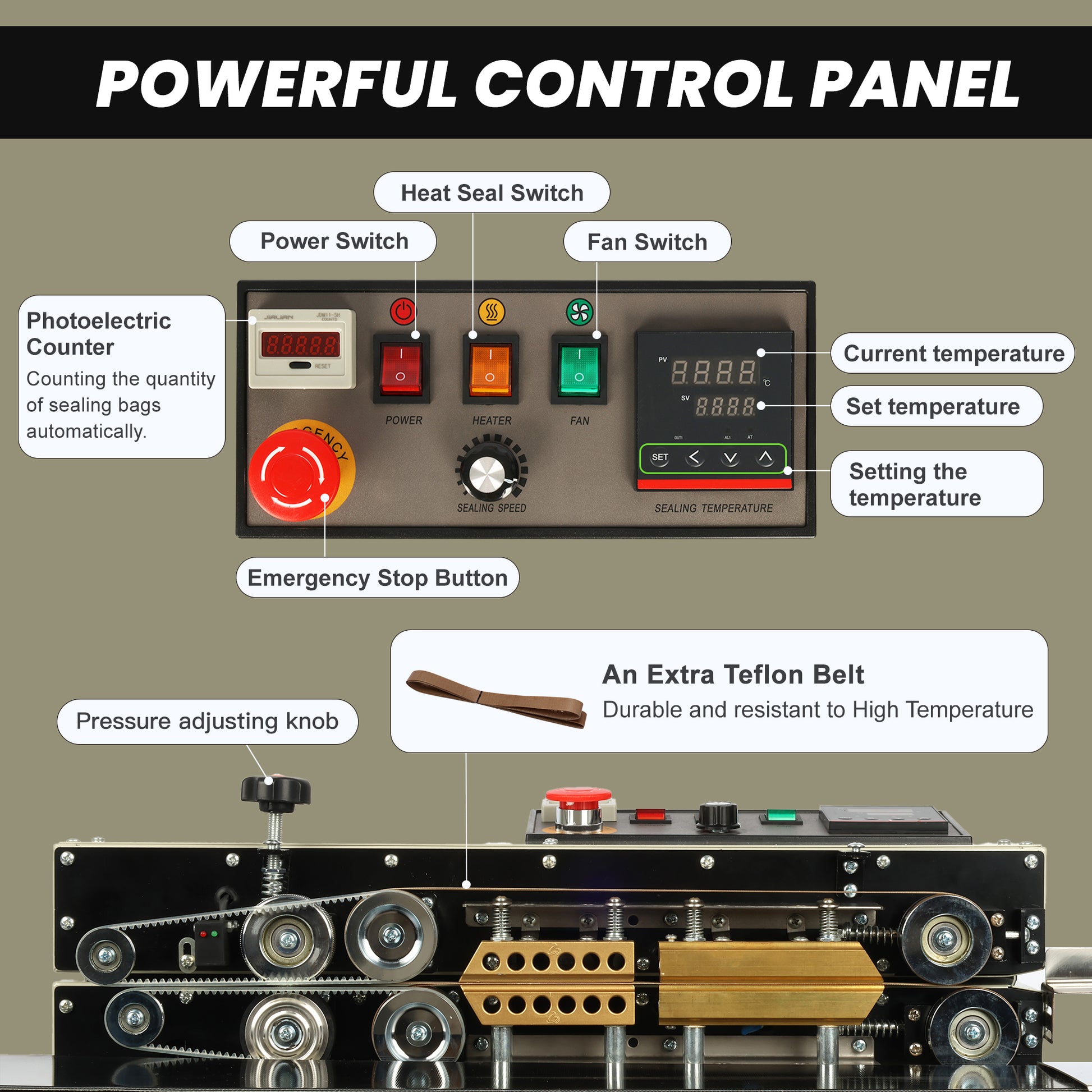

Boost your packaging efficiency with our all-in-one continuous sealer, featuring an adjustable bag feeding plate that adapts to various bag depths for a perfect seal. It offers a 12mm seal width, handles speeds from 0-12m/min, and seals single-layer bags up to 0.08mm thick within a 0-300°C (572°F) temperature range. The built-in printing function simultaneously imprints dates, comments, and logos during sealing, while the automatic counter accurately tracks sealed bags—transparent or colored—eliminating manual errors for streamlined inventory and production management. Designed for ease, its user-friendly control panel allows you to start working with just a few simple dial adjustments.

FEATURES

APPLICATIONS

SPECIFICATIONS

Model USS-CBB00024 Brand U.S. Solid
Power Supply 110/220V,50/60HZ Power 600W
Sealing Speed 0 - 12M/min (adjustable) Sealing Width 12 mm (0.47 inch)
Max. Seal Thickness 0.08 mm (0.003 inch) Temp. range 0 - 300°C (adjustable)
Counting Function Yes Max. Load Weight 6.6 lb

WARNING

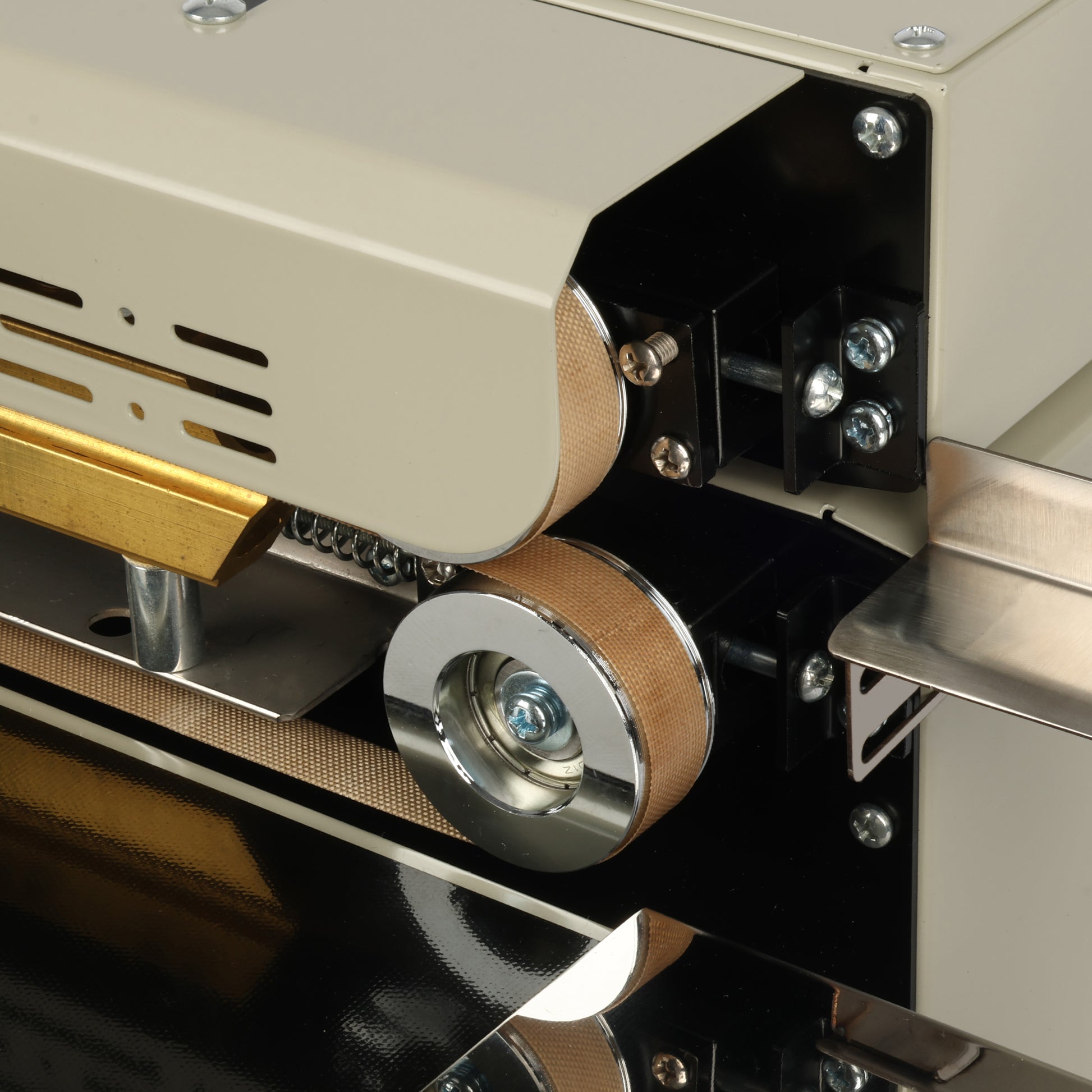

1. Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2. Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

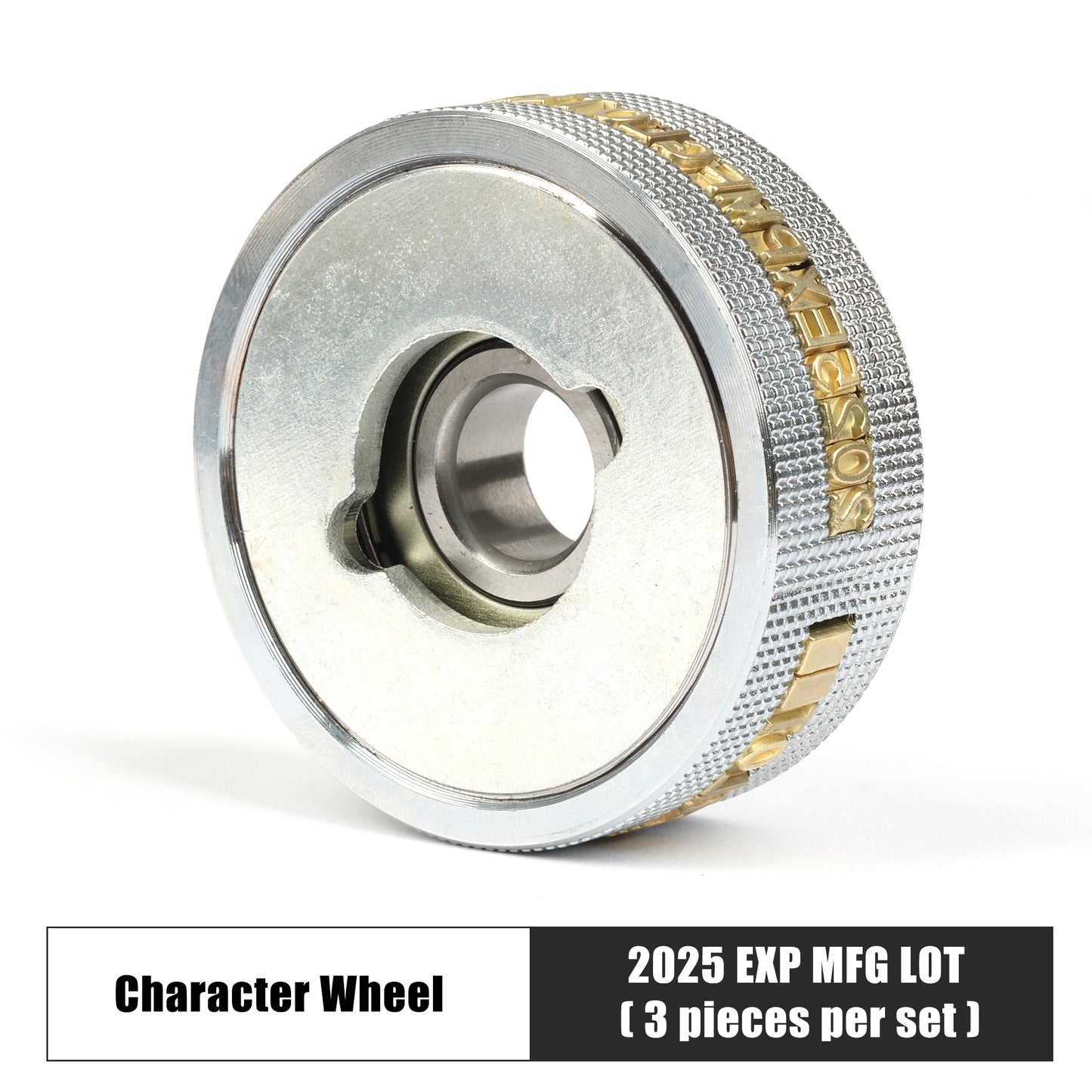

3. Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

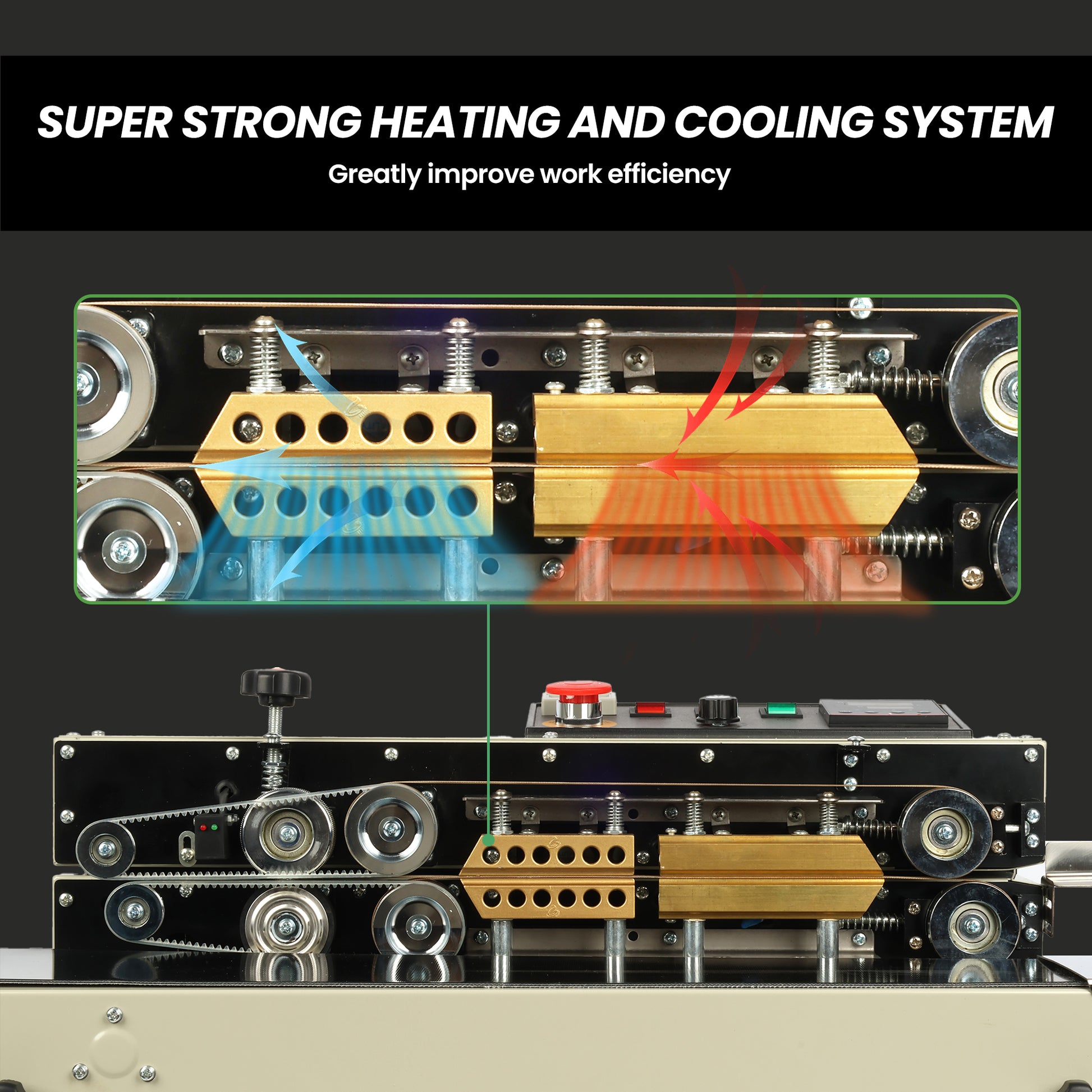

4. Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5. Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

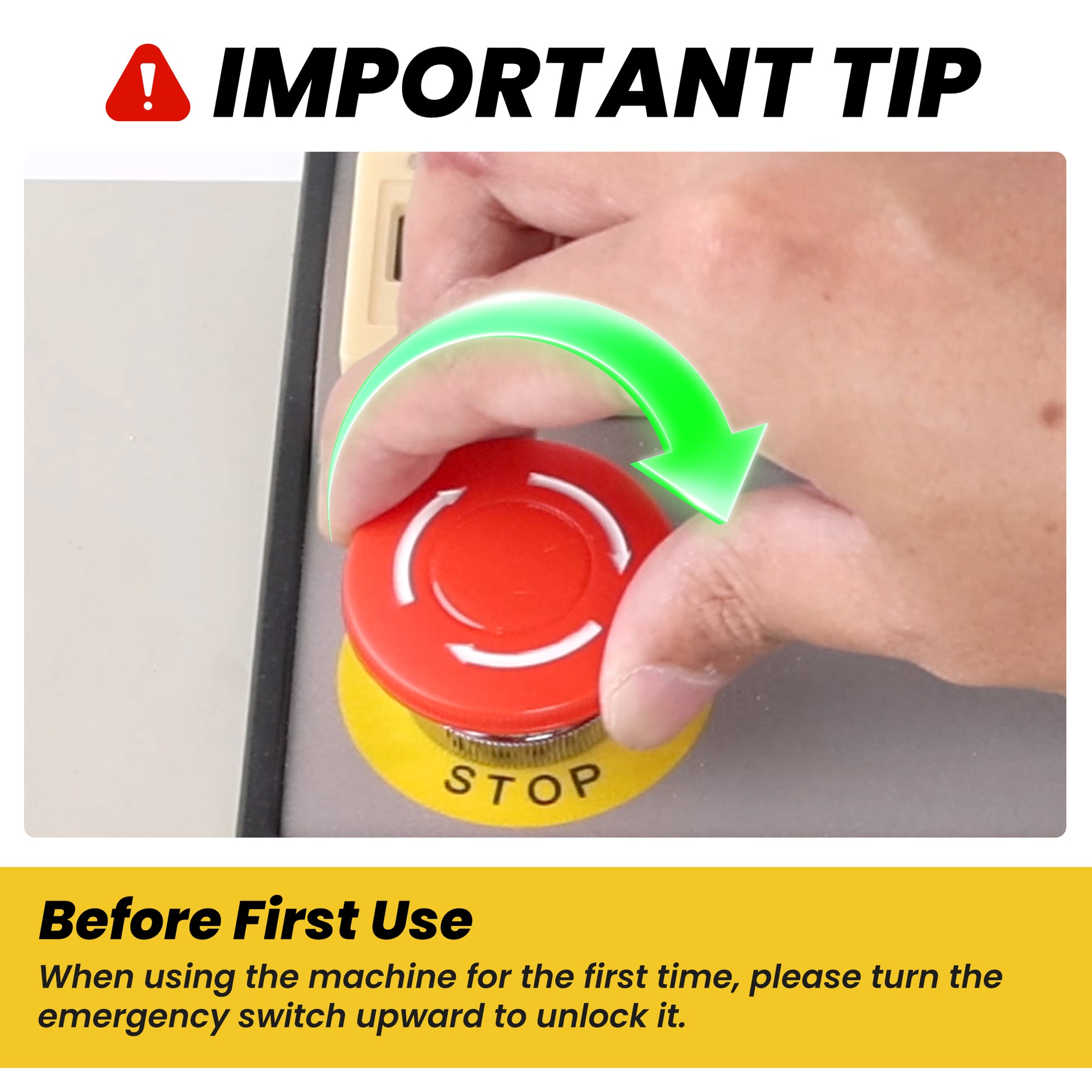

6. When using the machine for the first time, please turn the emergency switch upward to unlock it.

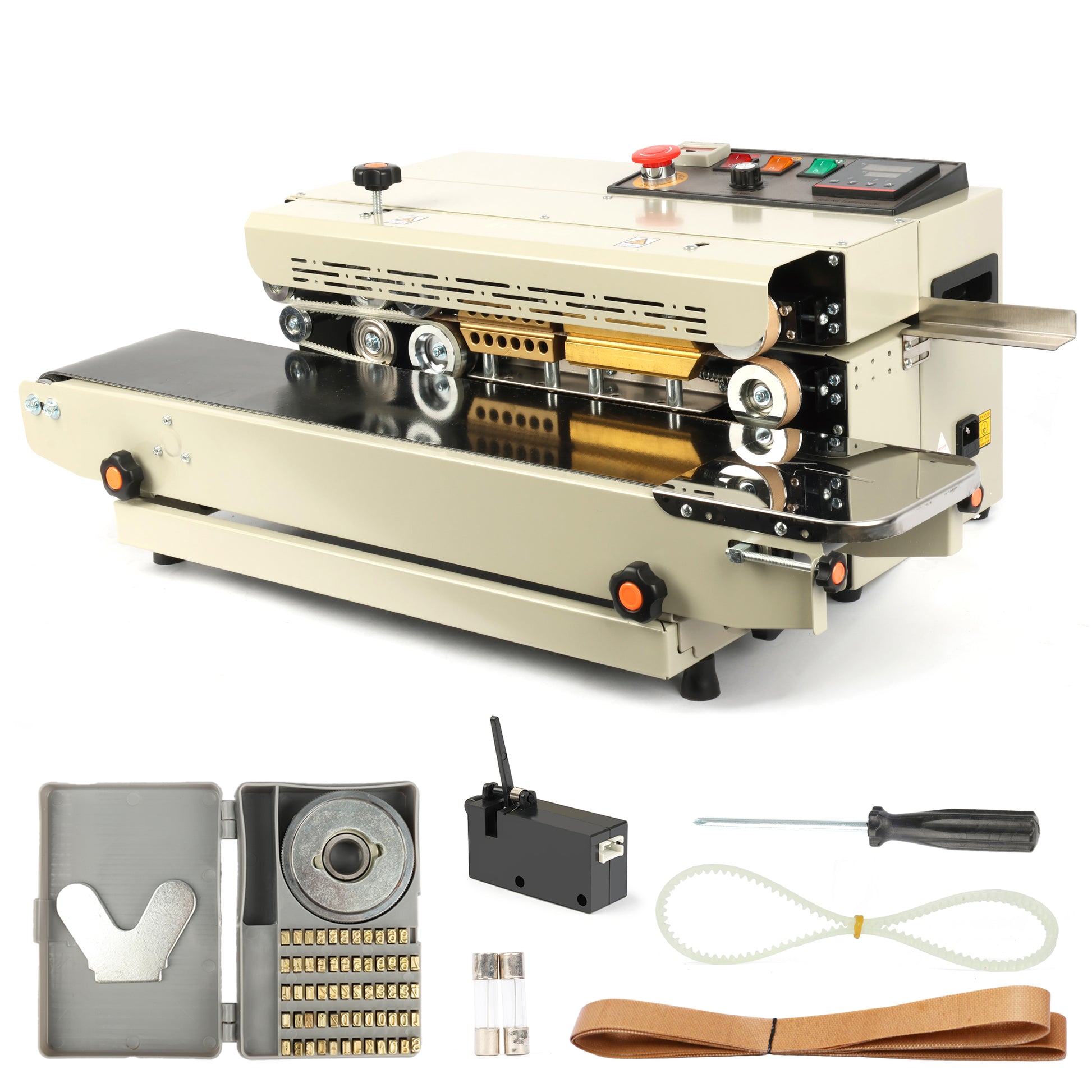

PACKING LIST

  1. Main Machine x1
  2. Accessory Bag x1
  3. User Manual x1

OTHER MODELS

SKU USS-CBB00005 USS-CBB00003 USS-CBB00002 USS-CBB00001 USS-CBB00006-BLACK USS-CBB00005
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.47 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~12 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.019 inch 0.03 inch 0.03 inch 0.019 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 22 lb 2.2 lb 11 lb 6.6 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function × × × × × ×
Conveyor Table √ √ × √ √ √
SKU USS-CBB00006 USS-CBB00007 USS-CBB00008 USS-CBB00009 USS-CBB00010 USS-CBB00011
Seal Width 0.47 inch 0.39 inch 0.39 inch 0.39 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~24 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.015 inch 0.015 inch 0.011 inch 0.015 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 2.2 lb 22 lb 22 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × √ ×
Inflation Function × × √ √ × ×
Conveyor Table √ × √ √ √ √
See More ▼
SKU USS-CBB00012 USS-CBB00013 USS-CBB00014 USS-CBB00015 USS-CBB00016 USS-CBB00017
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.5 inch 0.5 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 7 m/min
Max. Seal Thickness 0.011 inch 0.03 inch 0.01 inch 0.03 inch 0.03 inch 0.006 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 13 lb 6 lb 6.6 lb 13 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function √ × × × × ×
Conveyor Table √ √ √ √ √ ×
SKU USS-CBB00018 USS-CBB00019 USS-CBB00020 USS-CBB00021
Seal Width 0.39 inch 0.39 inch 0.39 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 24 m/min 0 ~ 24 m/min
Max. Seal Thickness 0.003 inch 0.03 inch 0.03 inch 0.03 inch
Max. Temperature 572°F 572°F 572°F 572°F
Max. Load Weight 22 lb 2.2 lb 6.6 lb 6.6 lb
Intelligent Inkjet Coding Function × × × ×
With an Ink Wheel × × √ ×
Inflation Function × × × ×
Conveyor Table √ √ √ √

Download user manual here

INTRODUCTION

Boost your packaging efficiency with our all-in-one continuous sealer, featuring an adjustable bag feeding plate that adapts to various bag depths for a perfect seal. It offers a 12mm seal width, handles speeds from 0-12m/min, and seals single-layer bags up to 0.08mm thick within a 0-300°C (572°F) temperature range. The built-in printing function simultaneously imprints dates, comments, and logos during sealing, while the automatic counter accurately tracks sealed bags—transparent or colored—eliminating manual errors for streamlined inventory and production management. Designed for ease, its user-friendly control panel allows you to start working with just a few simple dial adjustments.

FEATURES

APPLICATION

SPECIFICATIONS

Model USS-CBB00024 Brand U.S. Solid
Power Supply 110/220V, 50/60HZ Power 600W
Sealing Speed 0 - 12M/min (adjustable) Sealing Width 12 mm (0.47 inch)
Max. Seal Thickness 0.08 mm (0.003 inch) Temp. range 0 - 300°C (adjustable)
Counting Function Yes Max. Load Weight 6.6 lb

WARNING

1. Ensure the driving wheel and driven wheel are parallel to prevent seal deviation. Regularly check and adjust the screws on the driven wheel.

2. Avoid over-tightening the sealing tape. Adjust the longitudinal adjustment screw to maintain moderate tension.

3. Ensure the compression spring on the embossing wheel seat is properly tightened for clear knurling.

4. Maintain a moderate gap between heating or cooling blocks (approximately one layer of packaging thickness) to reduce friction and ensure smooth operation.

5. Adjust the pressure on intermediate or embossing rollers to avoid bags sticking or turning. Ensure gaps match the packaging thickness for optimal sealing and clarity.

6. When using the machine for the first time, please turn the emergency switch upward to unlock it.

OTHER MODELS

SKU USS-CBB00005 USS-CBB00003 USS-CBB00002 USS-CBB00001 USS-CBB00006-BLACK USS-CBB00005
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.47 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~12 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.019 inch 0.03 inch 0.03 inch 0.019 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 22 lb 2.2 lb 11 lb 6.6 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function × × × × × ×
Conveyor Table √ √ × √ √ √
SKU USS-CBB00006 USS-CBB00007 USS-CBB00008 USS-CBB00009 USS-CBB00010 USS-CBB00011
Seal Width 0.47 inch 0.39 inch 0.39 inch 0.39 inch 0.47 inch 0.39 inch
Speed 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~24 m/min
Max. Seal Thickness 0.03 inch 0.03 inch 0.015 inch 0.015 inch 0.011 inch 0.015 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 6.6 lb 2.2 lb 22 lb 22 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × √ ×
Inflation Function × × √ √ × ×
Conveyor Table √ × √ √ √ √
See More ▼
SKU USS-CBB00012 USS-CBB00013 USS-CBB00014 USS-CBB00015 USS-CBB00016 USS-CBB00017
Seal Width 0.47 inch 0.47 inch 0.39 inch 0.5 inch 0.5 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 12 m/min 0 ~ 16 m/min 0 ~ 16 m/min 0 ~ 7 m/min
Max. Seal Thickness 0.011 inch 0.03 inch 0.01 inch 0.03 inch 0.03 inch 0.006 inch
Max. Temperature 572°F 572°F 572°F 572°F 572°F 572°F
Max. Load Weight 13 lb 6 lb 6.6 lb 13 lb 13 lb 2.2 lb
Intelligent Inkjet Coding Function × × × × × ×
With an Ink Wheel × × × × × ×
Inflation Function √ × × × × ×
Conveyor Table √ √ √ √ √ ×
SKU USS-CBB00018 USS-CBB00019 USS-CBB00020 USS-CBB00021
Seal Width 0.39 inch 0.39 inch 0.39 inch 0.39 inch
Speed 0 ~ 16 m/min 0 ~ 12 m/min 0 ~ 24 m/min 0 ~ 24 m/min
Max. Seal Thickness 0.003 inch 0.03 inch 0.03 inch 0.03 inch
Max. Temperature 572°F 572°F 572°F 572°F
Max. Load Weight 22 lb 2.2 lb 6.6 lb 6.6 lb
Intelligent Inkjet Coding Function × × × ×
With an Ink Wheel × × √ ×
Inflation Function × × × ×
Conveyor Table √ √ √ √

PACKING LIST:

  1. Main Machine x1
  2. Accessory Bag x1
  3. User Manual x1
